Showroom 3DOF. A noobs journey to tractionloss. 3x160w Sabertooth2x32 Race/Flight Sim

Discussion in 'DIY Motion Simulator Projects' started by ART FLY, Jun 6, 2020.

  1. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino

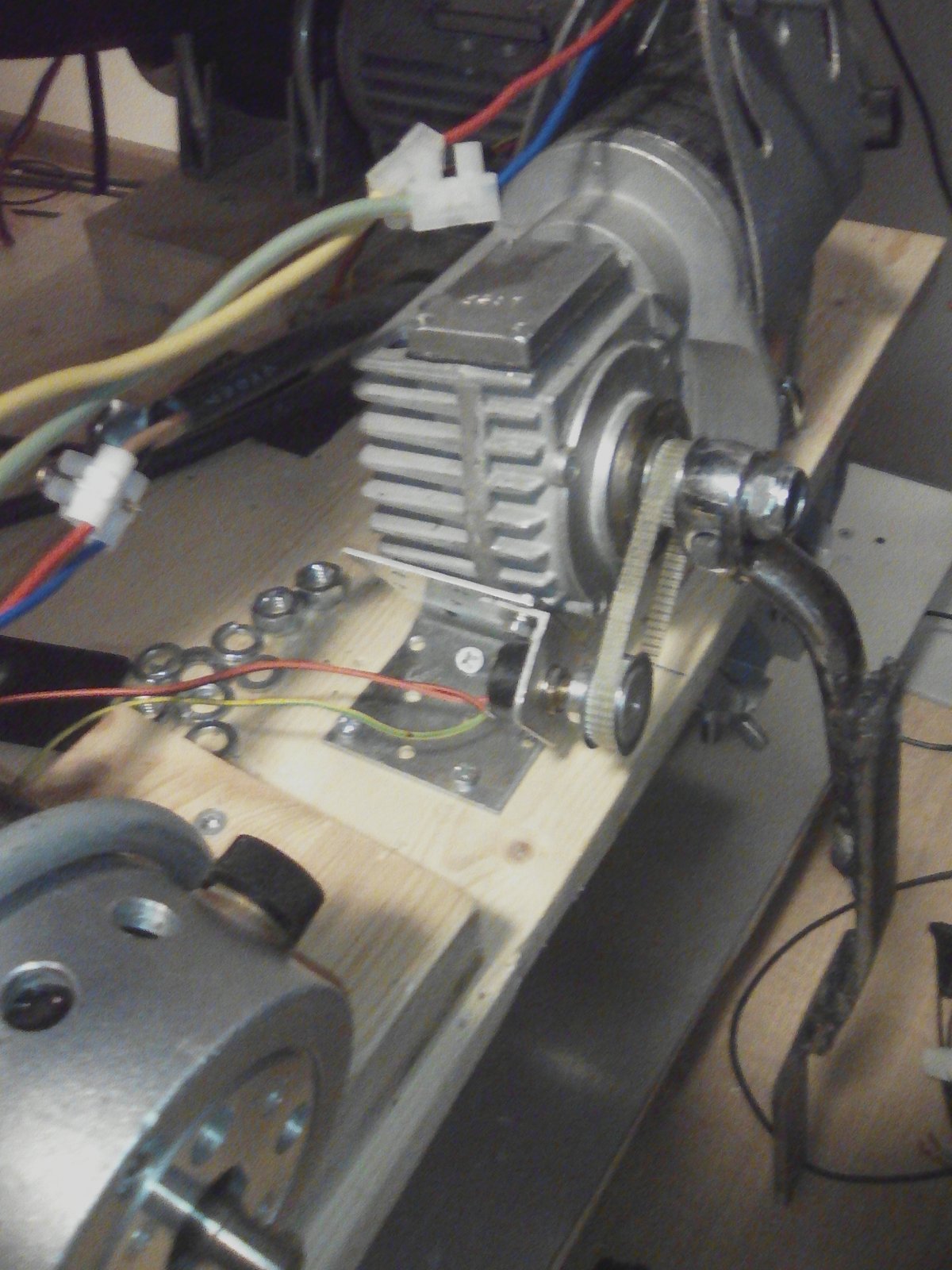

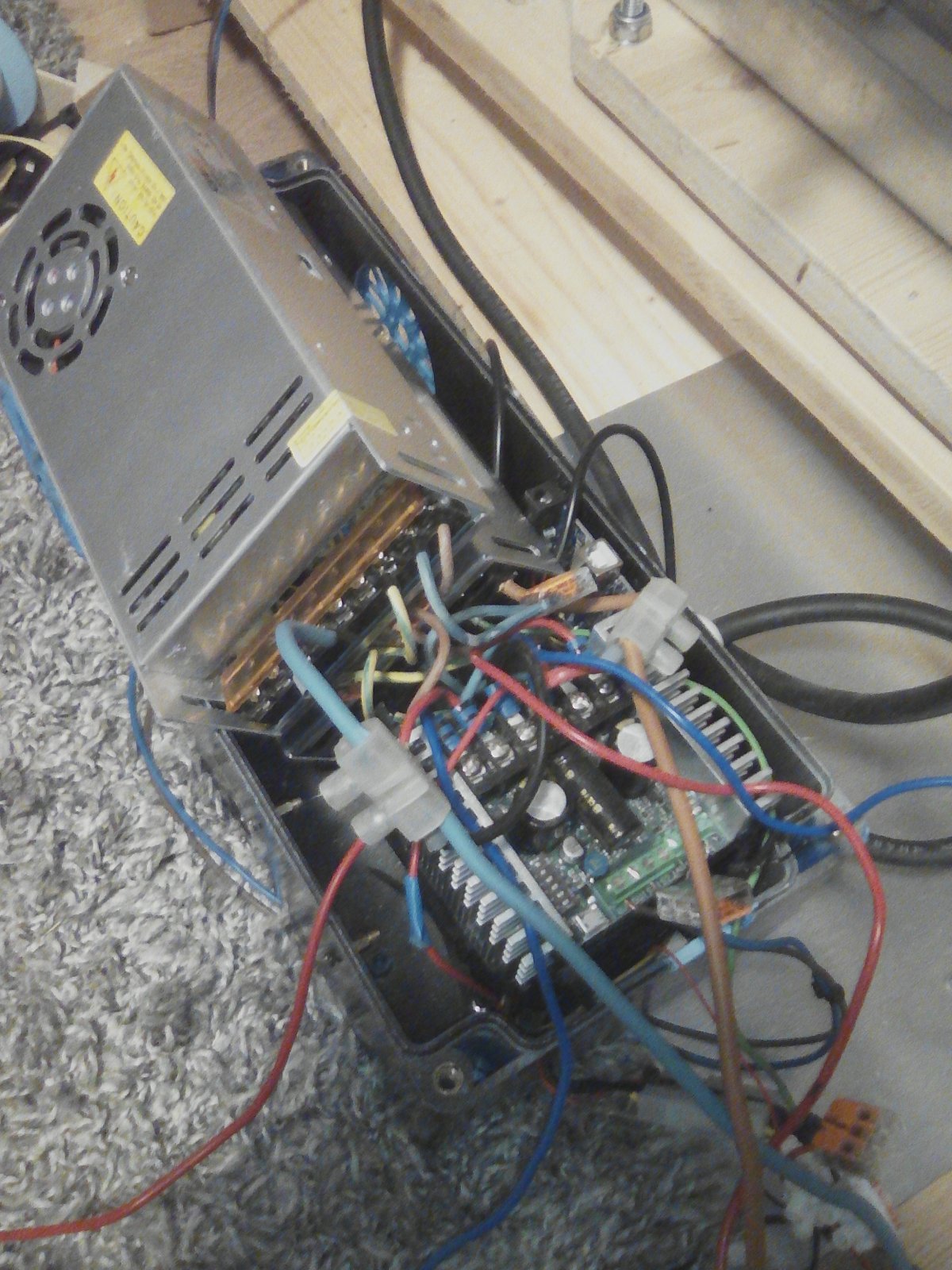

    Work in progress :thumbs

    Attached Files:

    • Like Like x 1
  2. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    And now the rocket science o_O

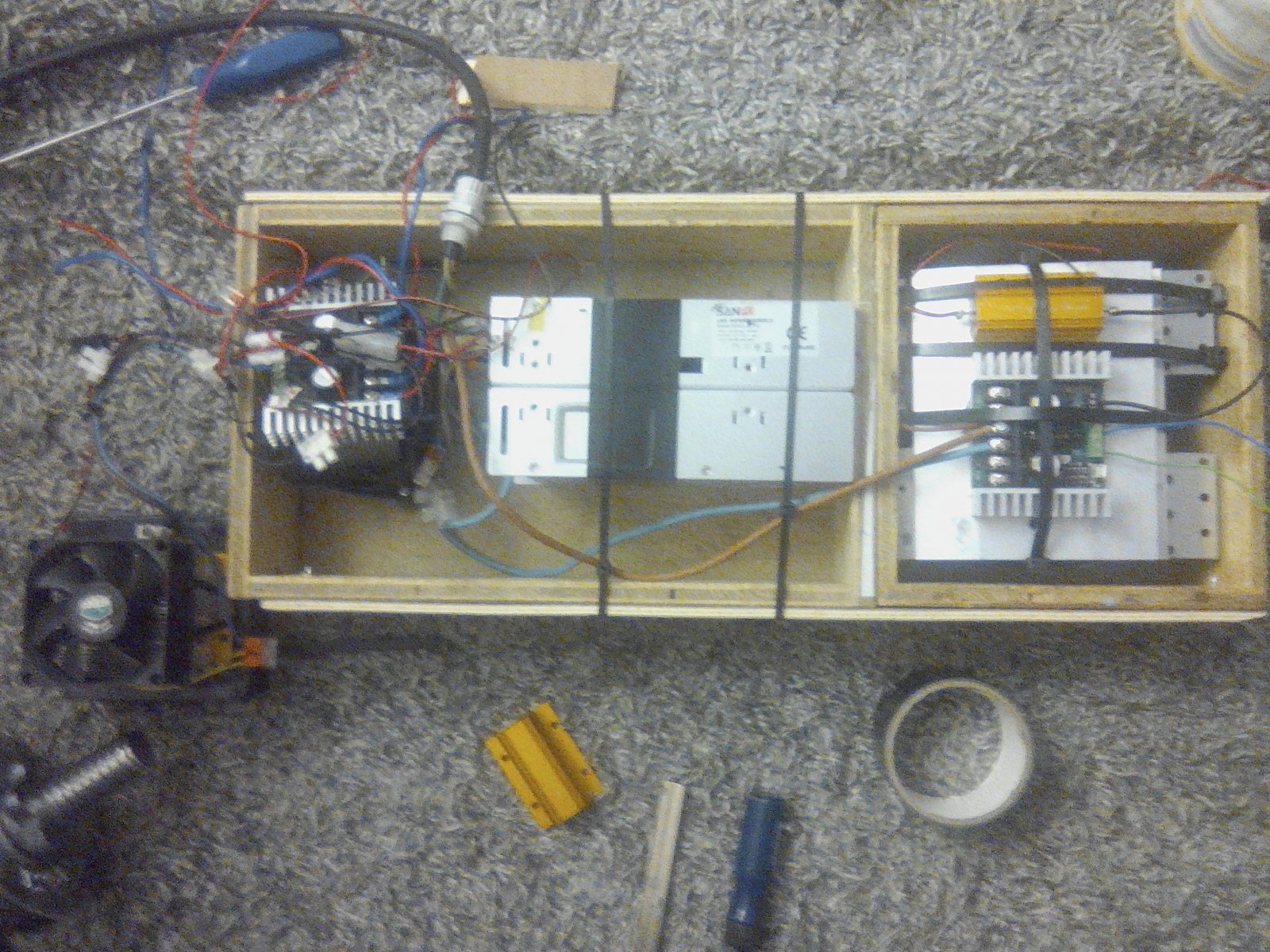

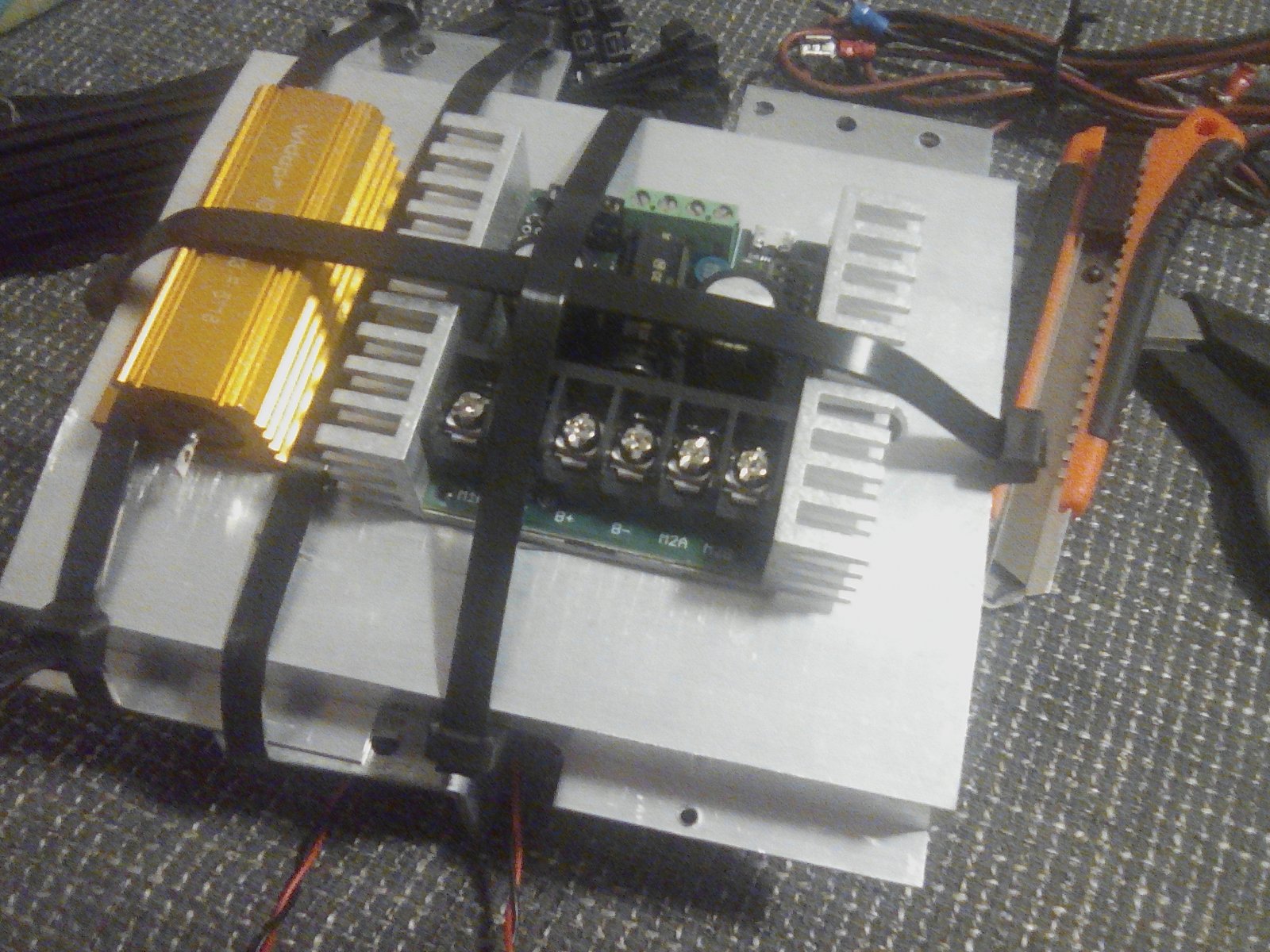

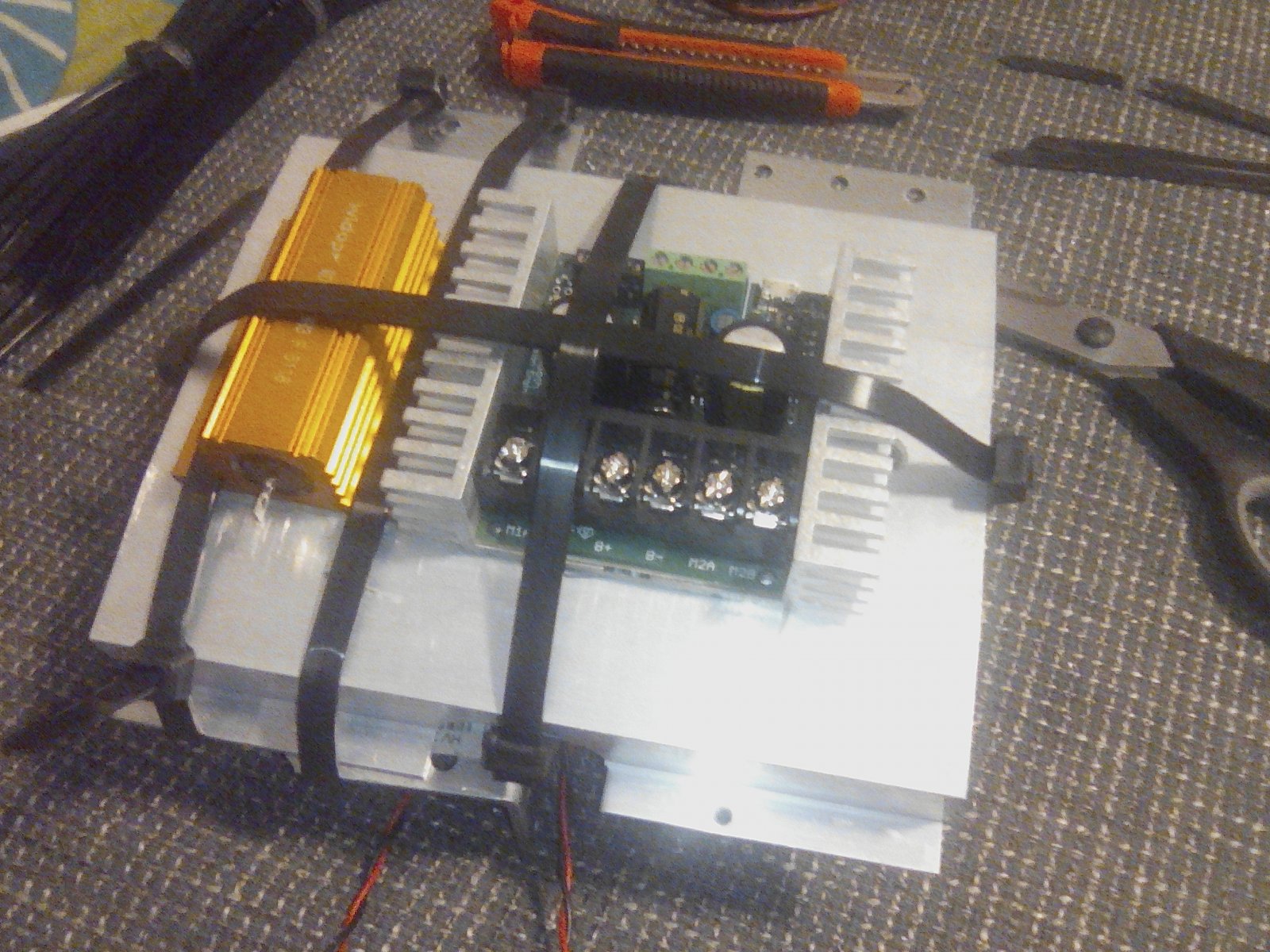

    IMG_20201102_202637.jpg IMG_20201102_202610.jpg IMG_20201102_184434.jpg IMG_20201102_184416.jpg IMG_20201102_184320.jpg
    • Like Like x 1
  3. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino

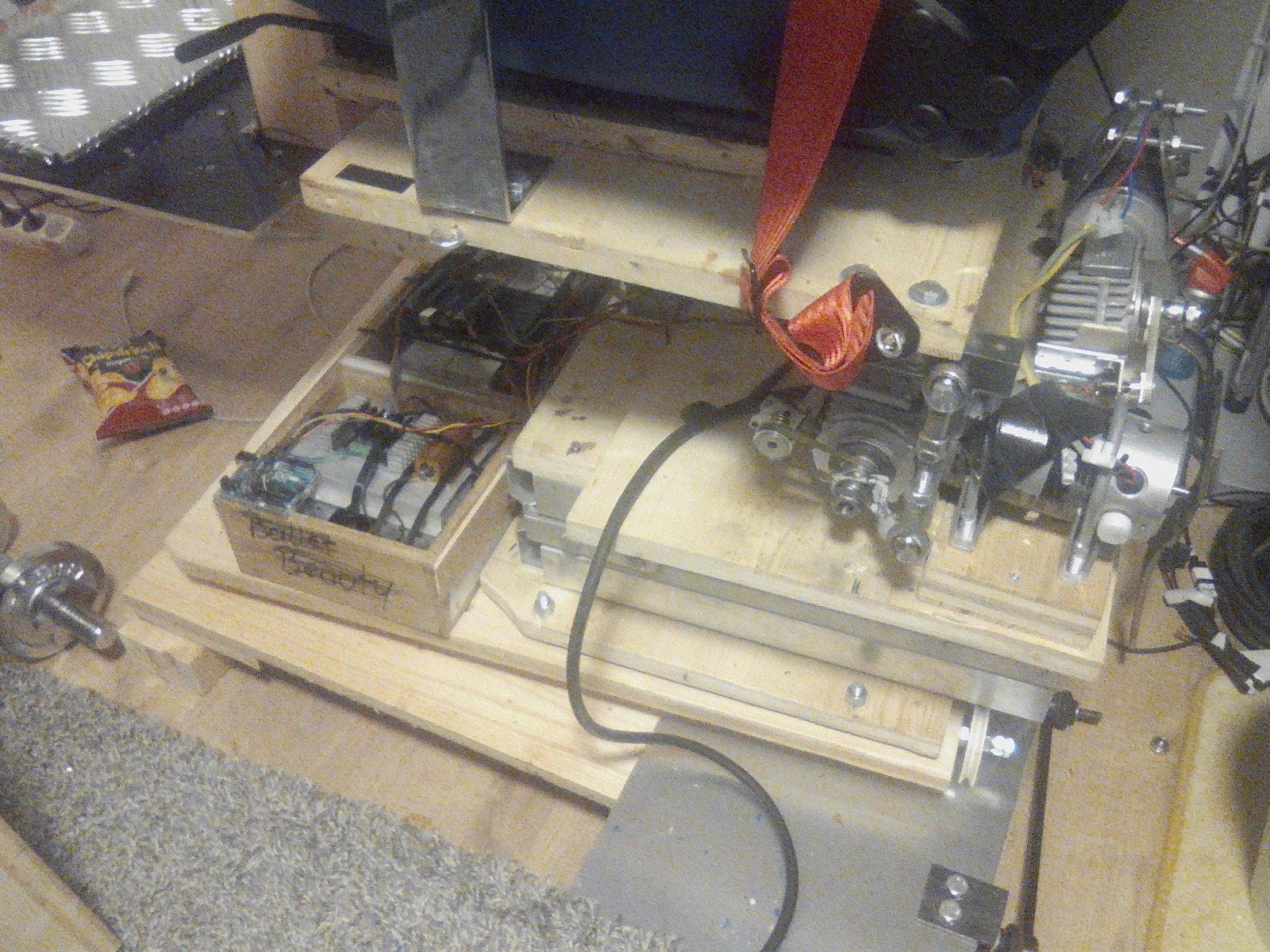

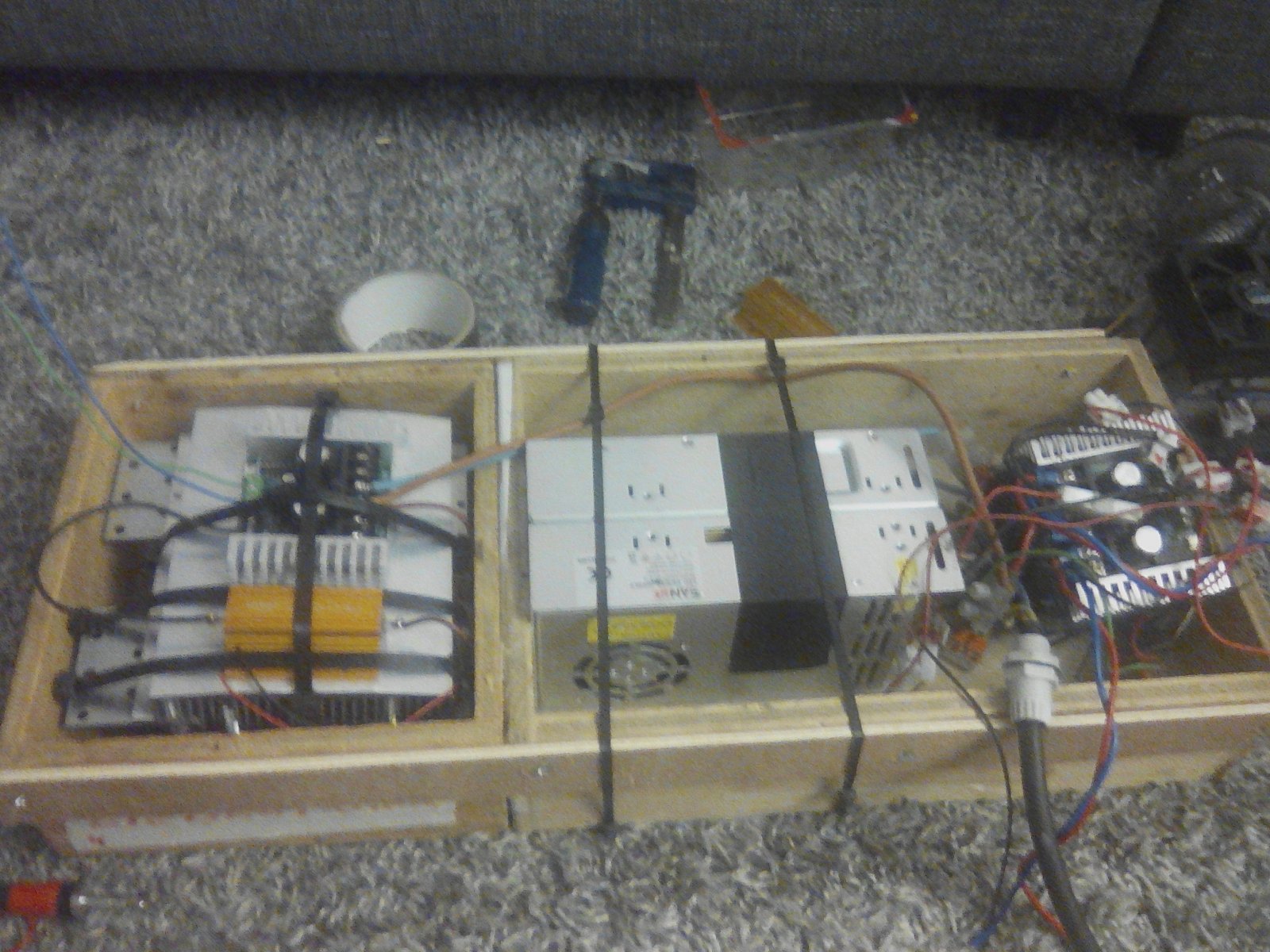

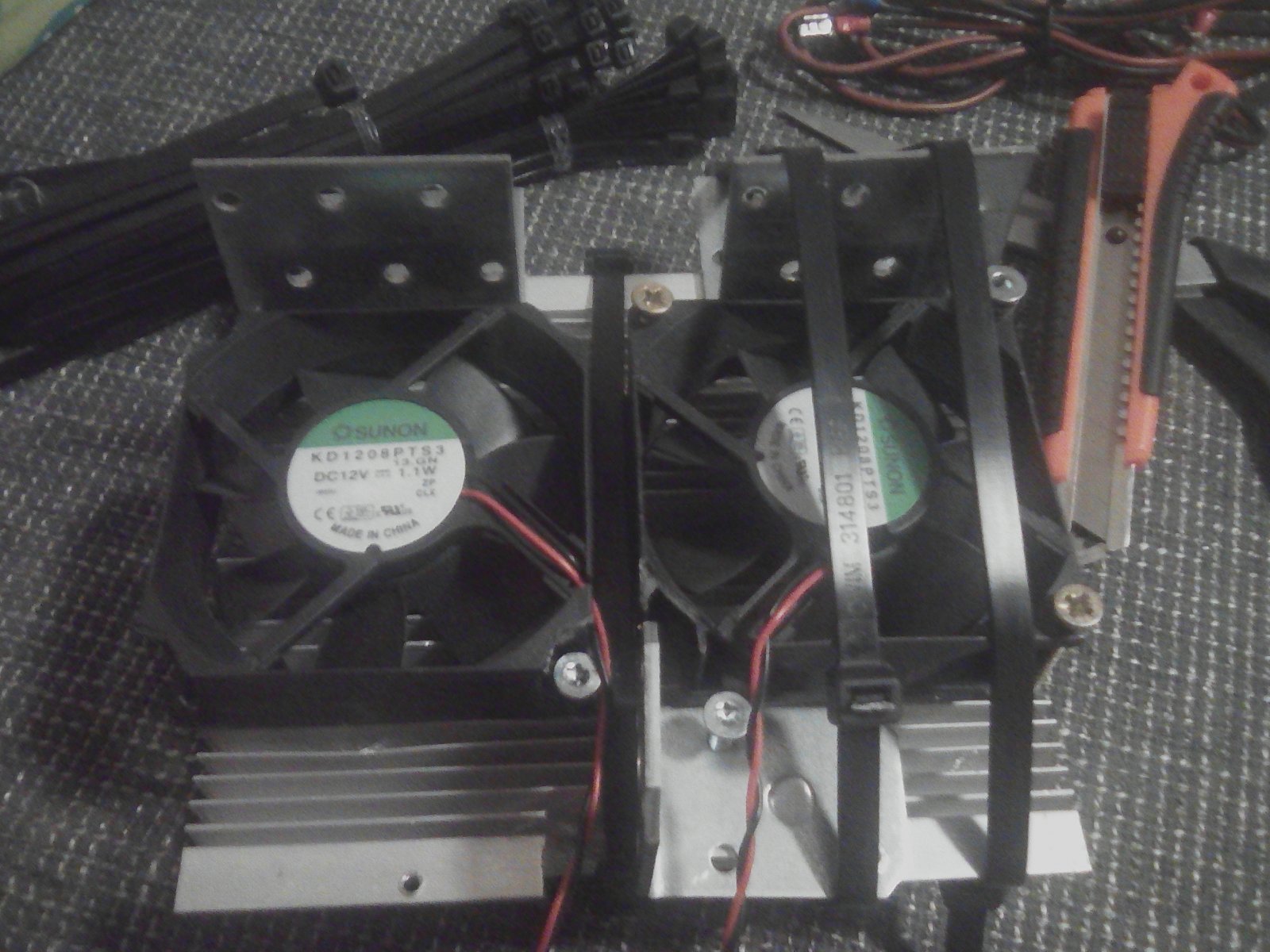

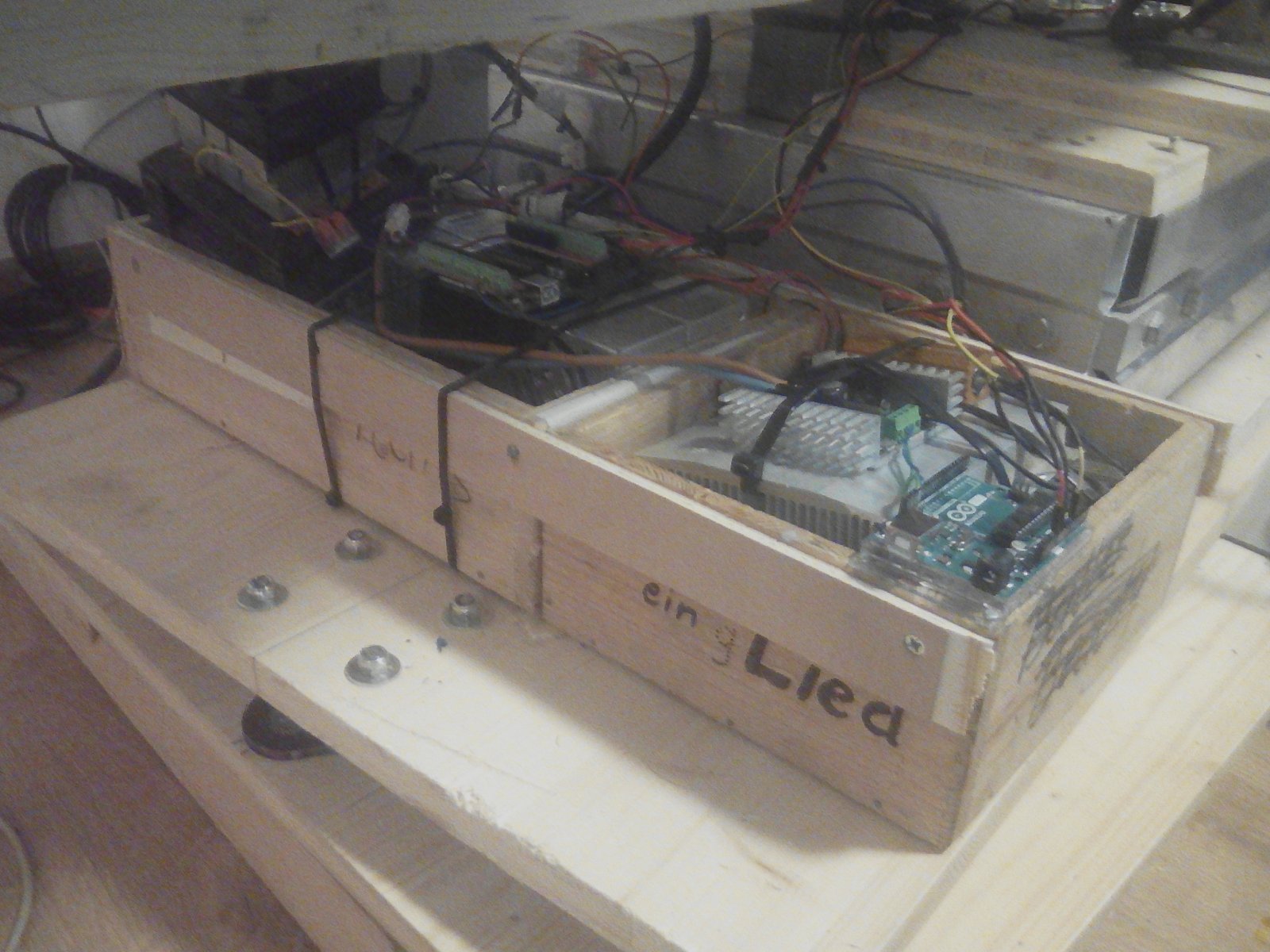

    YippieKaYeah! Vents are running, cabeling checked .... tommorrow is the day to attach the engines ... you will see :cool: wha'ppens.

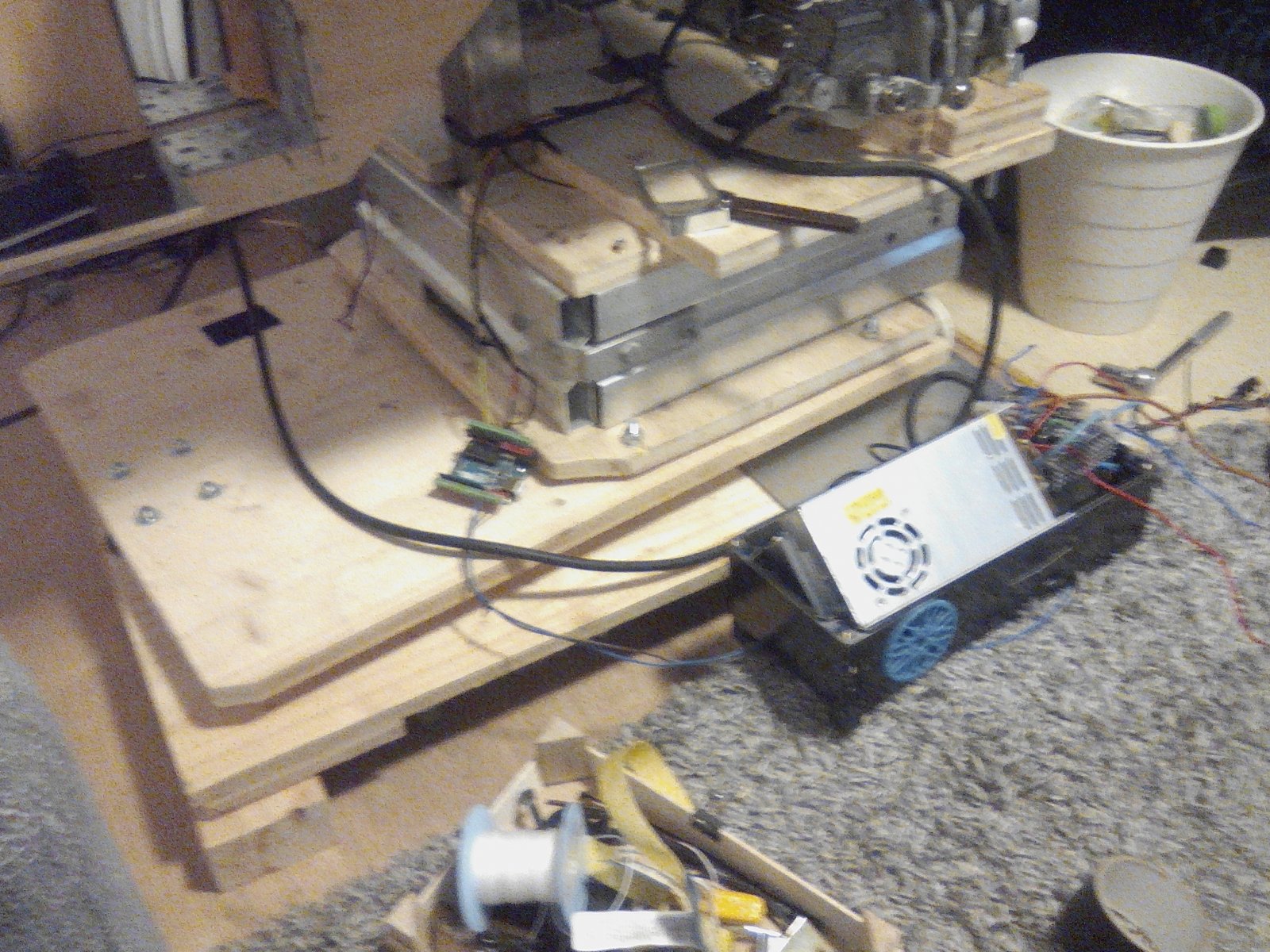

    IMG_20201102_231815.jpg IMG_20201102_231748.jpg
    • Like Like x 1
  4. absyfadhel1

    absyfadhel1 Member

    Joined:
    Oct 19, 2017
    Messages:
    134
    Location:
    bahrain
    Balance:
    312Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Amazing unique build .. its should be great , from what you got the motor? or you bought it single? because i cant find some like its or stronge one in my country
  5. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Hi friend,
    you can not find the motors anymore. The company who built them is out oft buissnes as far as I know. I was lucky ti geht some on eBay so now I have one spare.
    Greetings, ART FLY
    Last edited: Dec 21, 2020
  6. absyfadhel1

    absyfadhel1 Member

    Joined:
    Oct 19, 2017
    Messages:
    134
    Location:
    bahrain
    Balance:
    312Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    OH bad ...i cant find any motor on my country i only find a car wipermotor but its to bad power ... i search for wheelchair motor but there is nothin here ... i tryed to buy online but the price 140$ shipping 300$ (Example)
    any suggestion
  7. Christian Doehl

    Christian Doehl Member Gold Contributor

    Joined:
    Oct 6, 2020
    Messages:
    66
    Location:
    Germany - Bavaria
    Balance:
    511Coins
    Ratings:
    +35 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hi absyfadhel1,

    found thison ebay: https://www.ebay.de/itm/JCF63R-DC-1...-Elektrisch-Getriebemotor-160RPM/153756777639

    Its from Hongkong, but shipping is free (for Germany...).

    BR
    Chris
  8. absyfadhel1

    absyfadhel1 Member

    Joined:
    Oct 19, 2017
    Messages:
    134
    Location:
    bahrain
    Balance:
    312Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
  9. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    O M G
    it DOES TURN :thumbs



    :popcorn :cheers :popcorn
    • Like Like x 1
  10. MarkusB

    MarkusB Active Member Gold Contributor

    Joined:
    Jun 30, 2015
    Messages:
    509
    Location:
    Germany
    Balance:
    3,792Coins
    Ratings:
    +520 / 1 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, Motion platform
    Congratulations to this successful next step, @ART FLY.

    It seems that the motor is oscillating quite a bit, so that some more PID tuning may be needed.
    • Agree Agree x 1
  11. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    I am on it at the moment :cool:
    • Like Like x 1
  12. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Now that I finished Motor tuning in smc3utils I am looking forward to start testing in SimTools.

    As I put so much time and spirit into this project I took some time checking what could be done to make DER GERÄT reliable and safe in the long run.

    crack2.jpeg crack1.jpeg

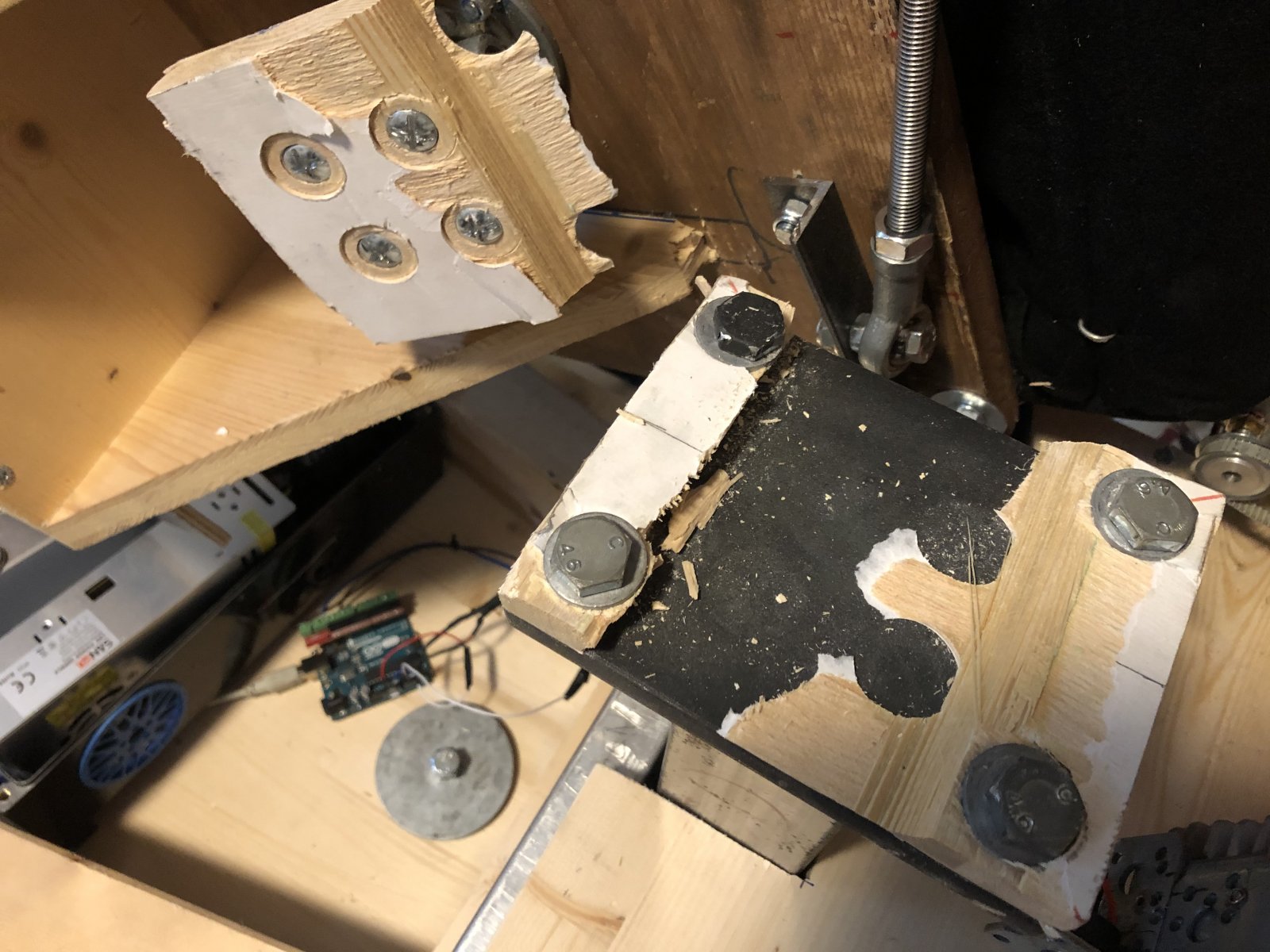

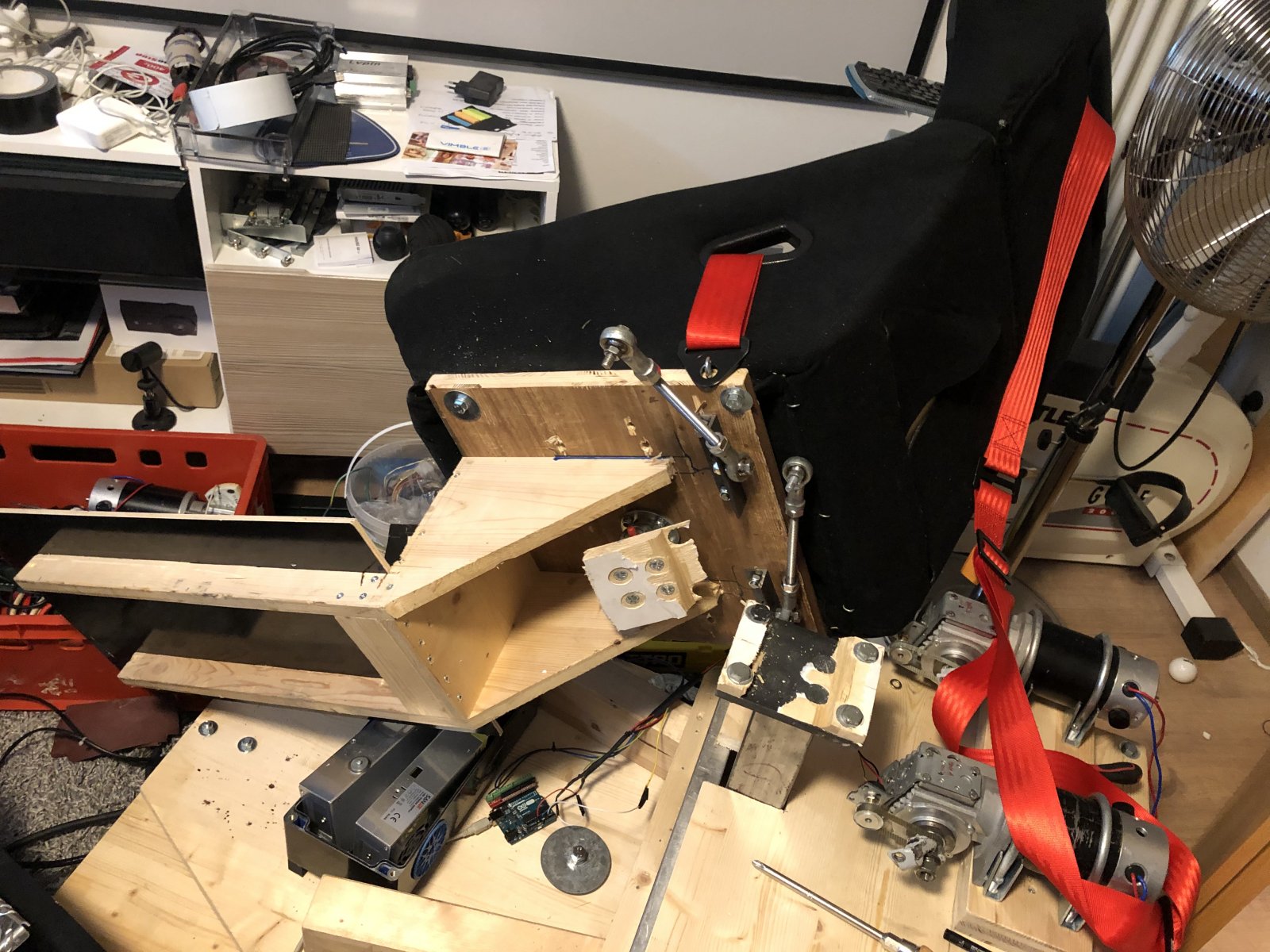

    As I already felt the destruktive power my motors cold have when something goes wrong - I checked all parts today. I found the 21mm carpenter plate was wearing out an would later break if I do not put some bigger armory on it.

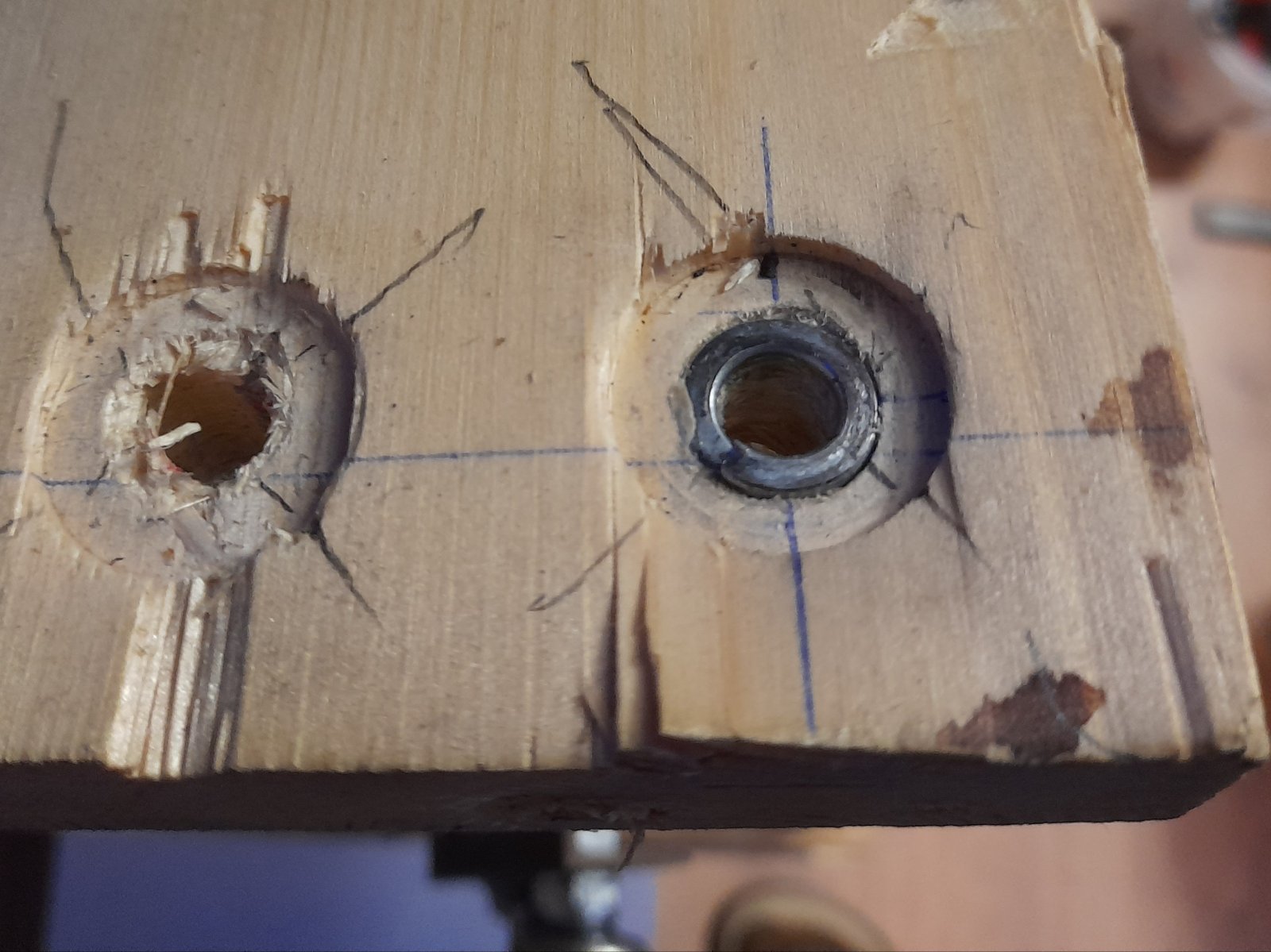

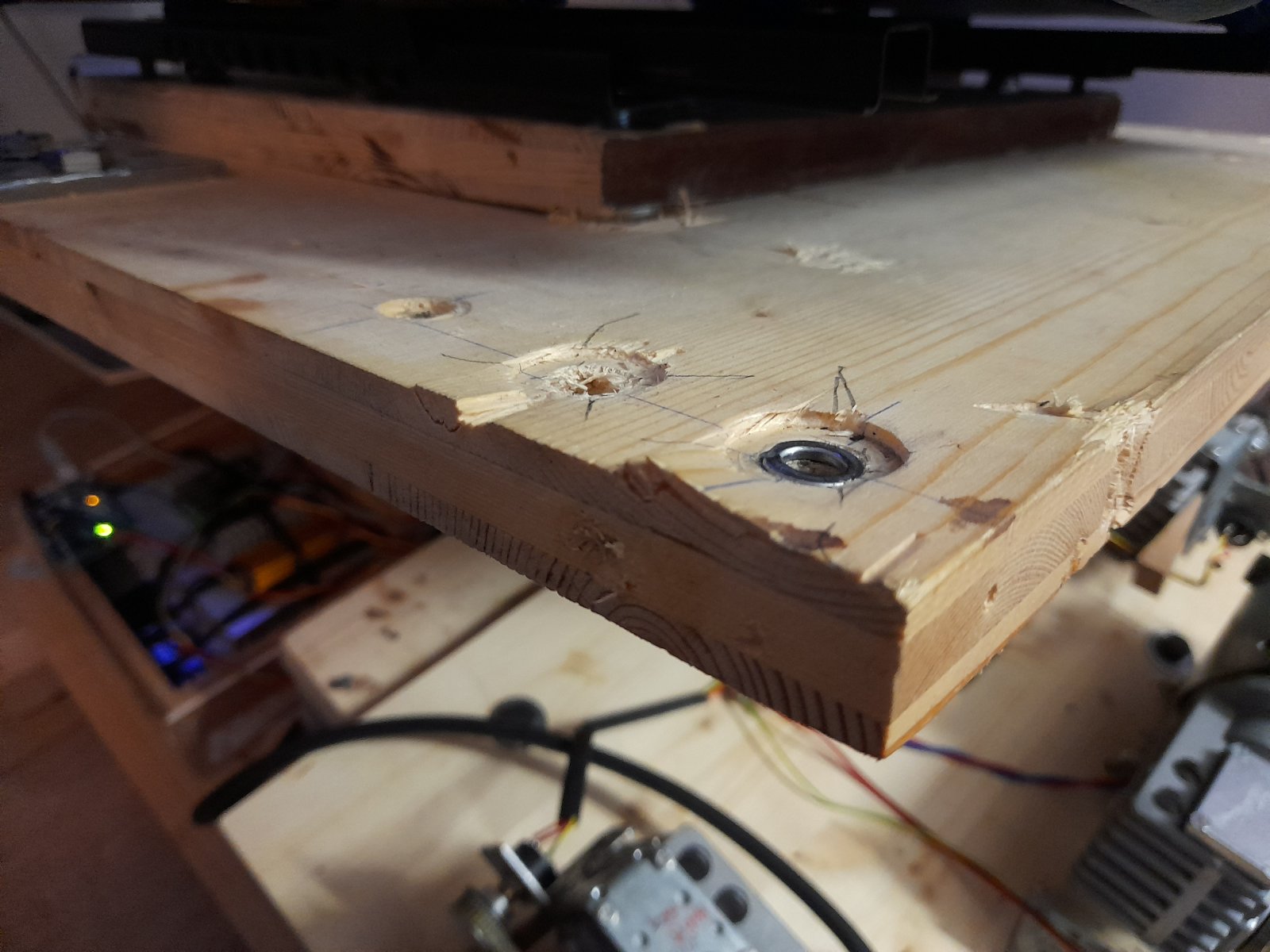

    20201109_185806.jpg 20201109_185757.jpg 20201109_192323.jpg

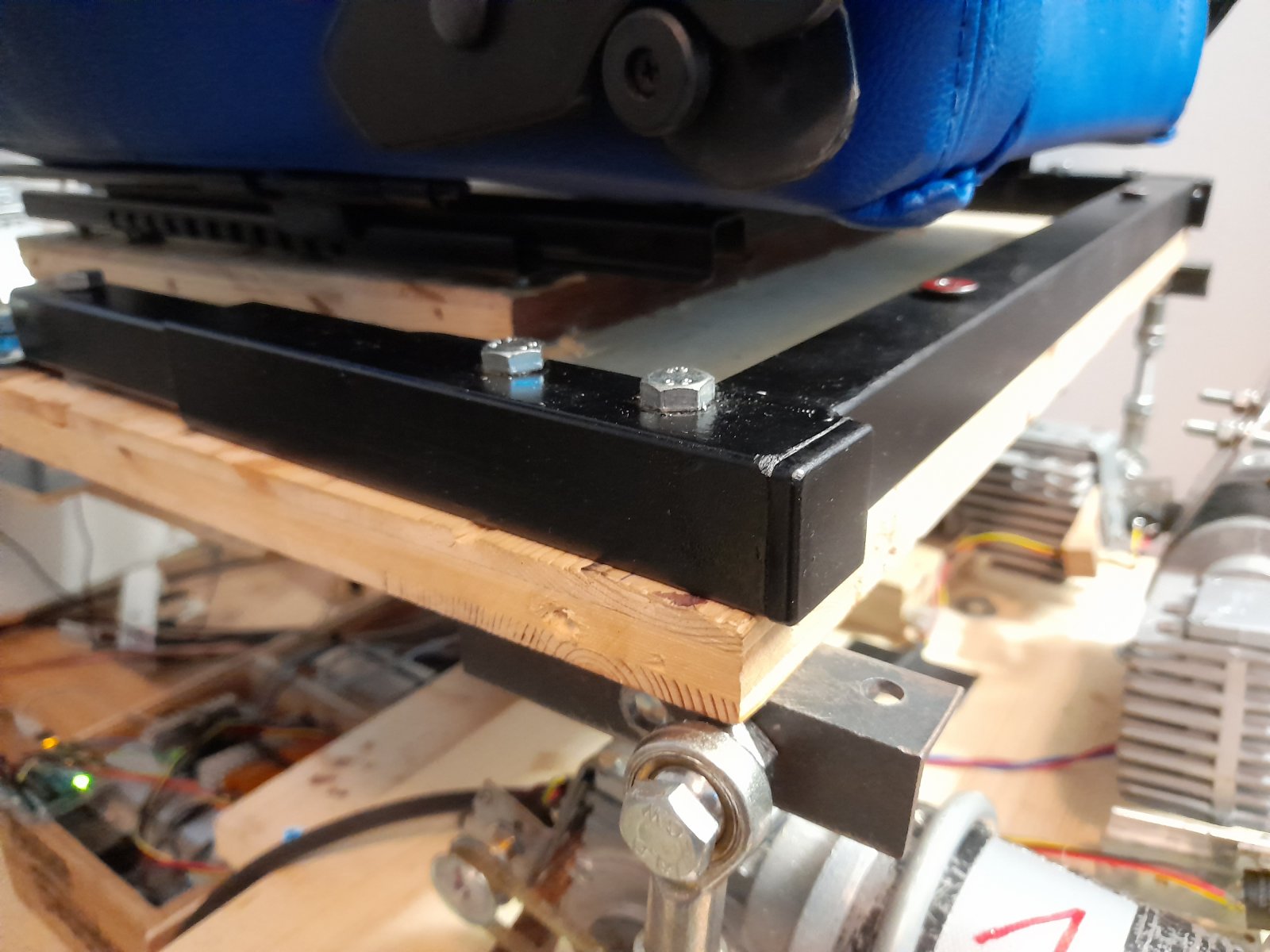

    This iron I added will not only make the hardware of DER GERÄT last for a long period - it will for sure also positively improve the performence because the stiffer material will translate in more direct movement. We'll see the next days if that really happens. I am confident :cool:

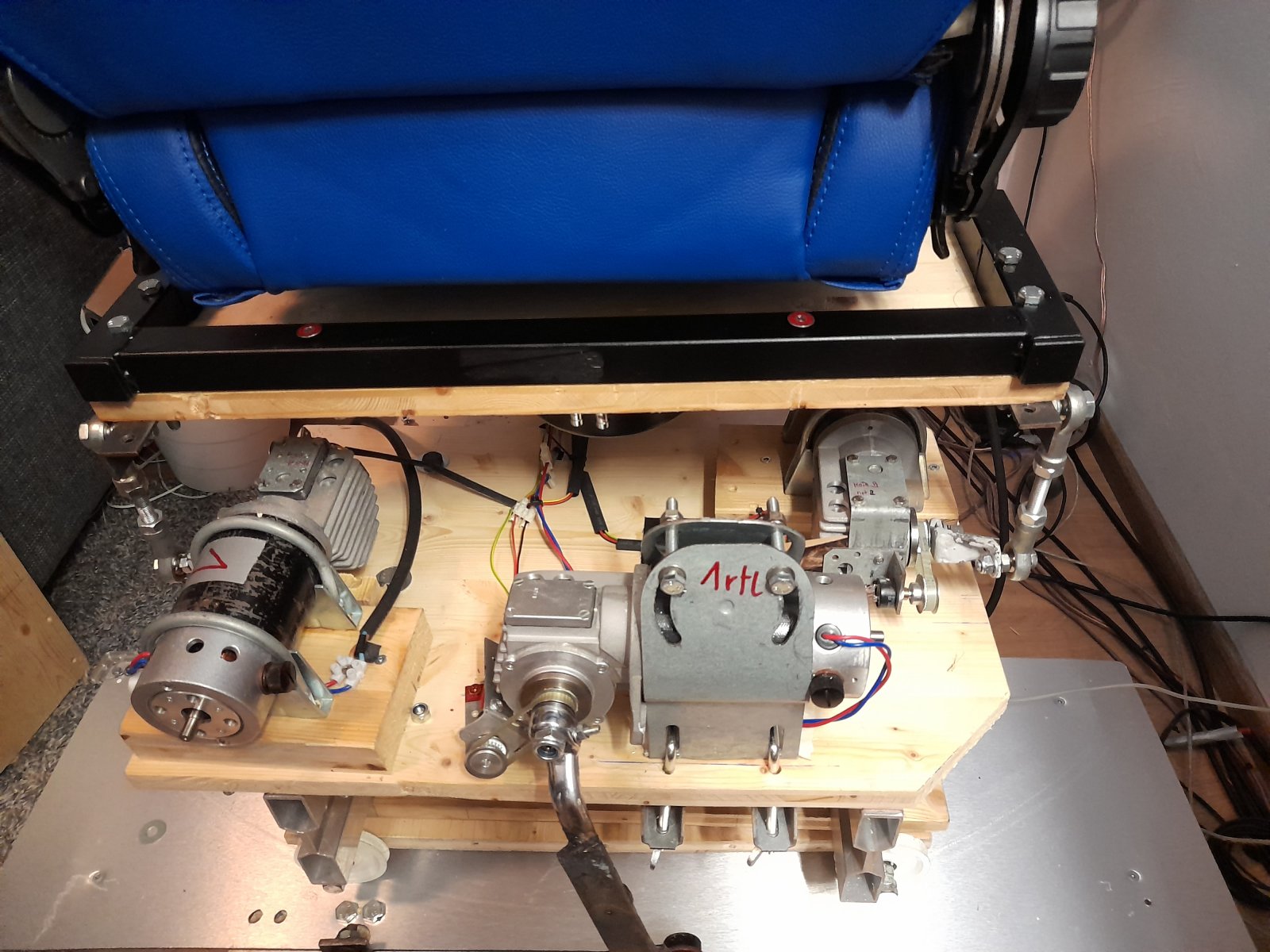

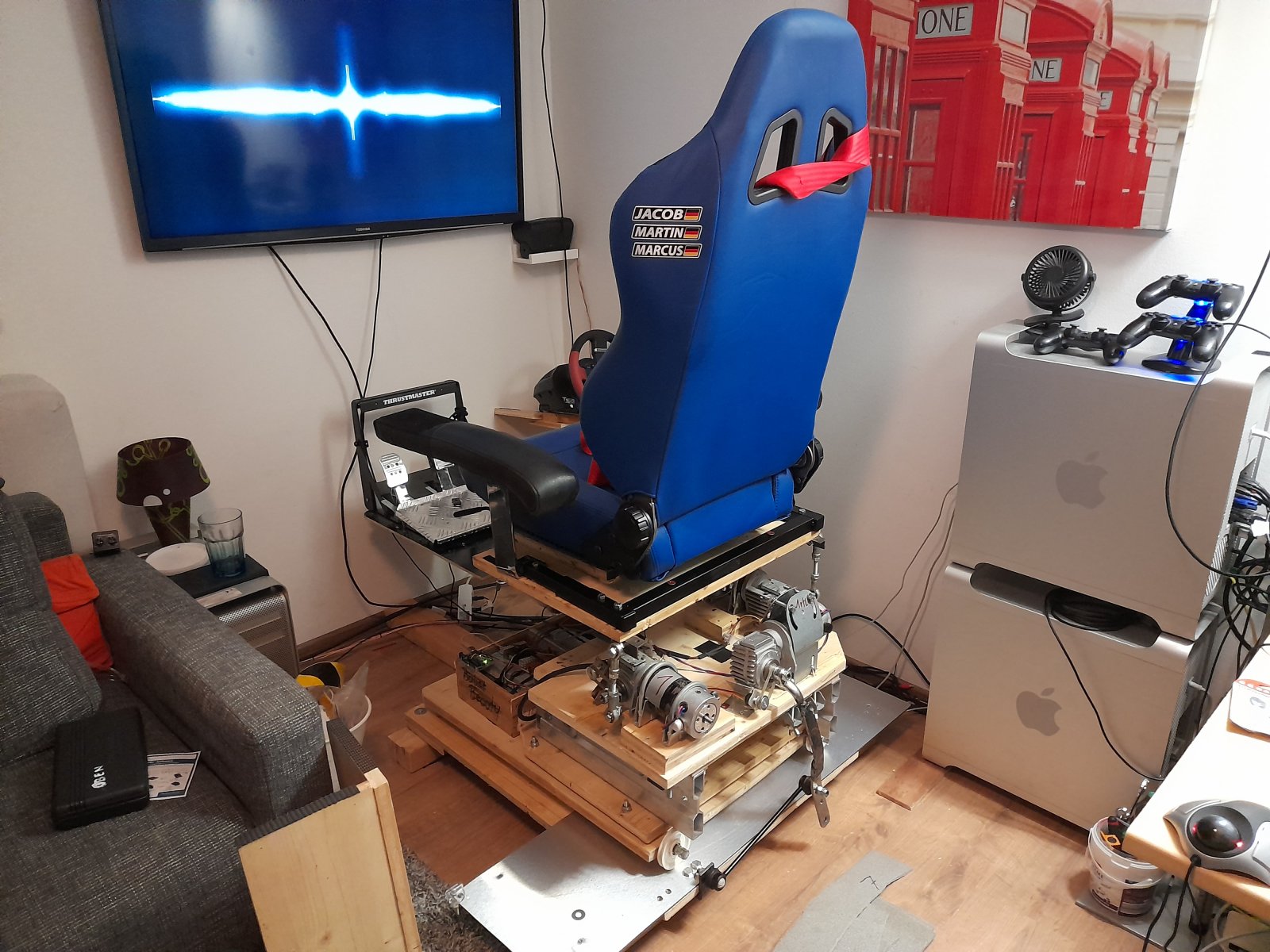

    20201109_220210.jpg 20201109_220146.jpg


    Tomorrow is another great day to have a great day - so goodN8 for now.

    :cheersyours ARTi

    @Christian Doehl
    @noorbeast
    @MarkusB
    @satbranigan
    @BlazinH
    it is so fine I met you on my way to DER GERÄThug:
    I'd be honored to keep in contact with you dear Sirs :)
    • Like Like x 3
    Last edited: Nov 10, 2020
  13. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    My welding becomes better :D

    I think this time the lever will hold ... the same I said the two other times before :confused:


    Here are two videos to watch and celebrate yours, @SilentChill,
    @noorbeast, @MarkusB , @satbranigan ,@BlazinH ,@Christian Doehl ,@Gadget999 ,@cgodwin , and my success.
    DER GERÄT is working :grin and now just needs some more tuning perhaps.
    I did almost 7 hours of non stop racing in Automobilista2 in VR with a friend last night.
    Everything is still in place and the motors were just about handwarm :cheers





    My mate Marcus as CrashTestDummy. This is in HD ;)




    If you recognize anything that might be of interest for me do not hesitate to give feedback.
    Well guys'n'gals - stay safe & stay happy, merry christmas hug:

    Later & Servus,
    Yours ART FLY
    • Like Like x 1
    • Winner Winner x 1
    Last edited: Dec 13, 2020
  14. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    This might have been a mistake :rolleyes: ... but also a lot of fun :grin



    Not bad for first 20 minutes ever behind a wheel :D
    • Like Like x 1
    • Winner Winner x 1
  15. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    16,462
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    119,815Coins
    Ratings:
    +9,533 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    The milk crate is a nice touch!

    I can see some mini me rig mods on the horizon.

    • Like Like x 2
  16. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Next week is the wind sim projekt and maybe Squadrons Plugin and Manager Tuning and and and and and and ... I guess I will never get to the point - as my wife many times correctly mentioned:
    "why don't you just play and enjoy it ?!?"

    ... I think YOU understand ;)




    ... maybe WE should really much more often listen to our wives :rolleyes:
    Last edited: Dec 13, 2020
  17. absyfadhel1

    absyfadhel1 Member

    Joined:
    Oct 19, 2017
    Messages:
    134
    Location:
    bahrain
    Balance:
    312Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    I saw your last video in youtube and it was amazing good job bro...btw you have photo for your smc3 setting and simtools axis?
  18. ART FLY

    ART FLY Active Member Gold Contributor

    Joined:
    Jan 18, 2020
    Messages:
    105
    Occupation:
    Bavarian State Theater, Decoration Stock Manager
    Location:
    BAVARiA
    Balance:
    404Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino

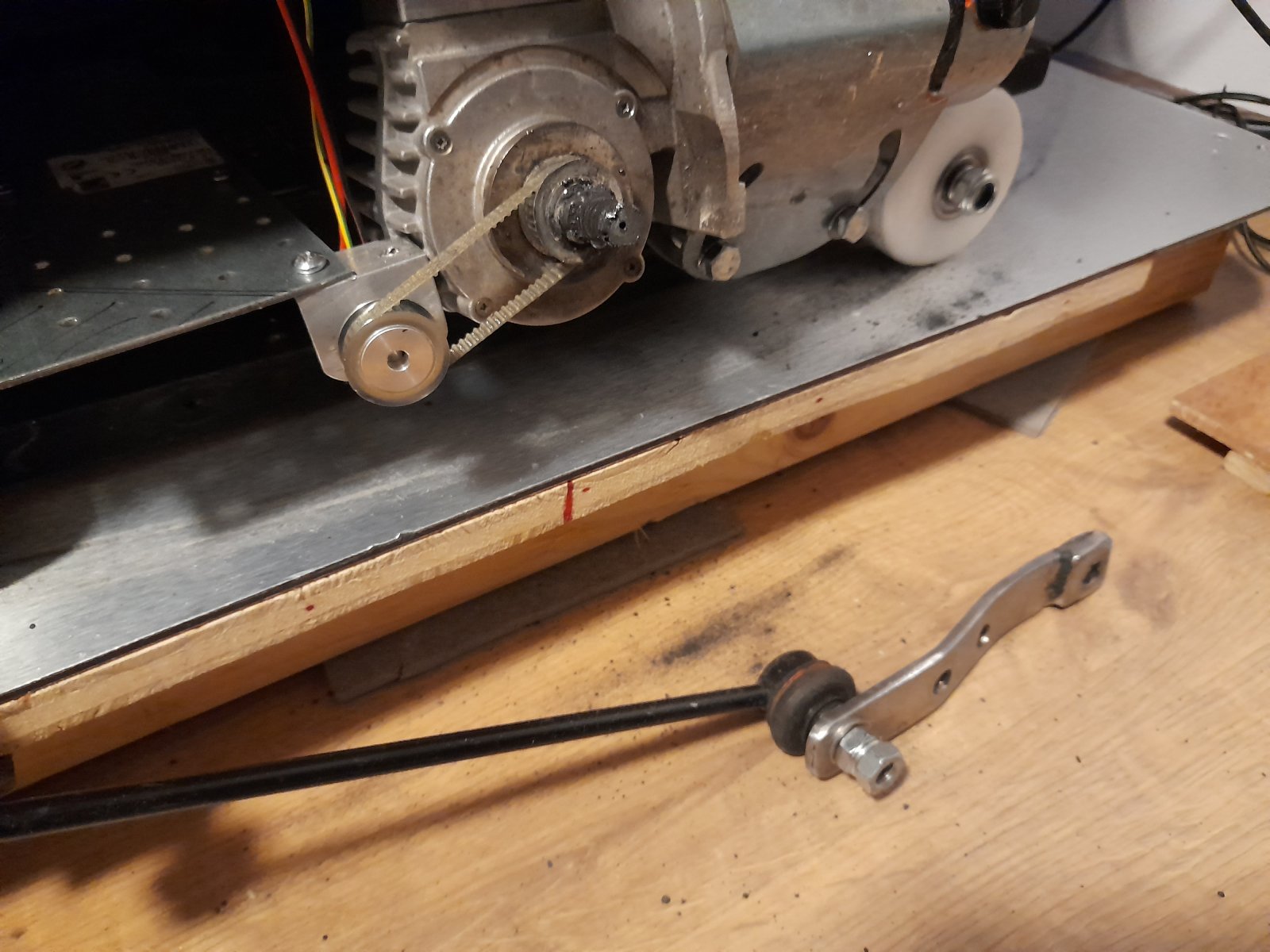

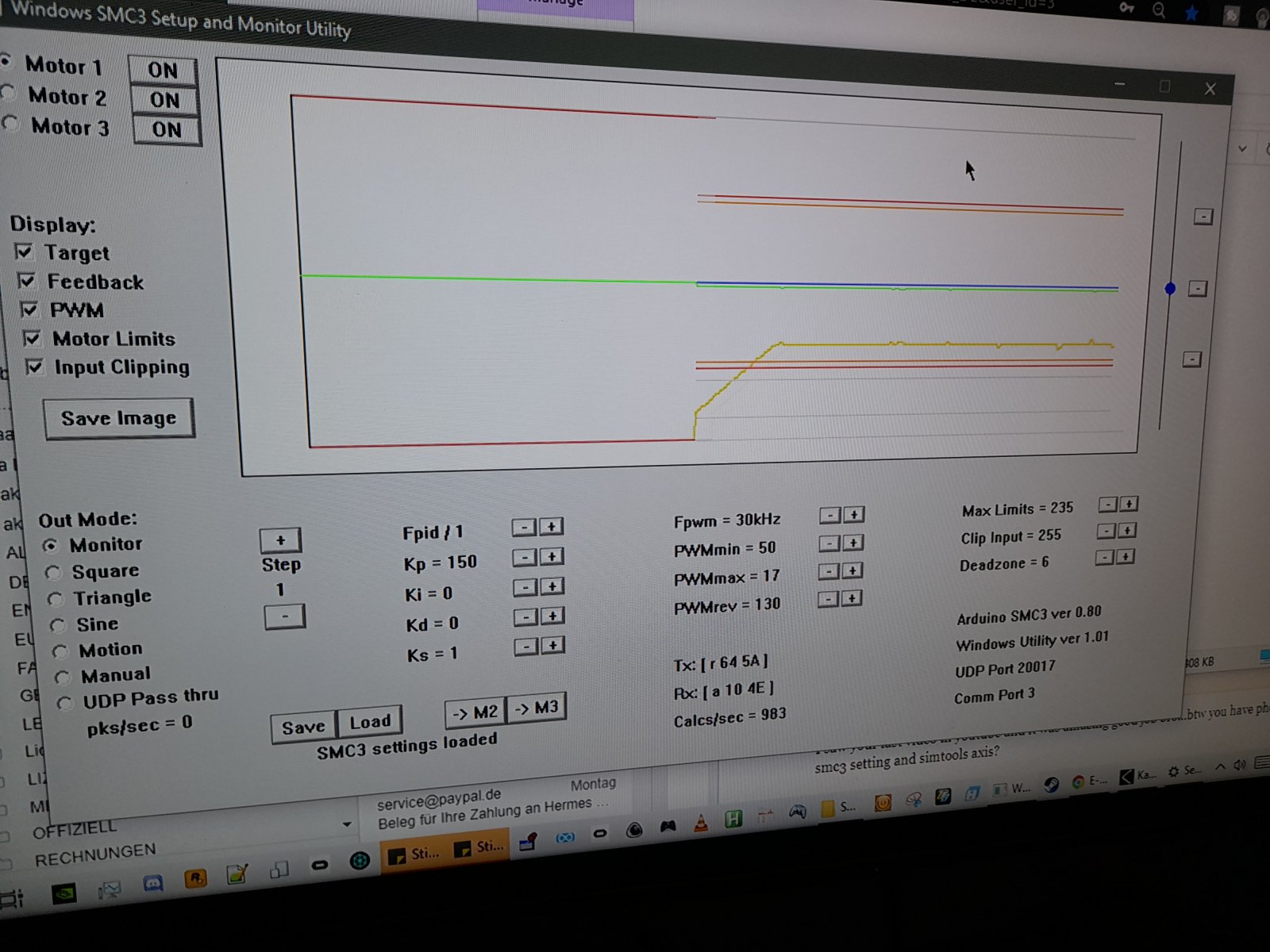

    First picture is motor 3 for Tractionloss.

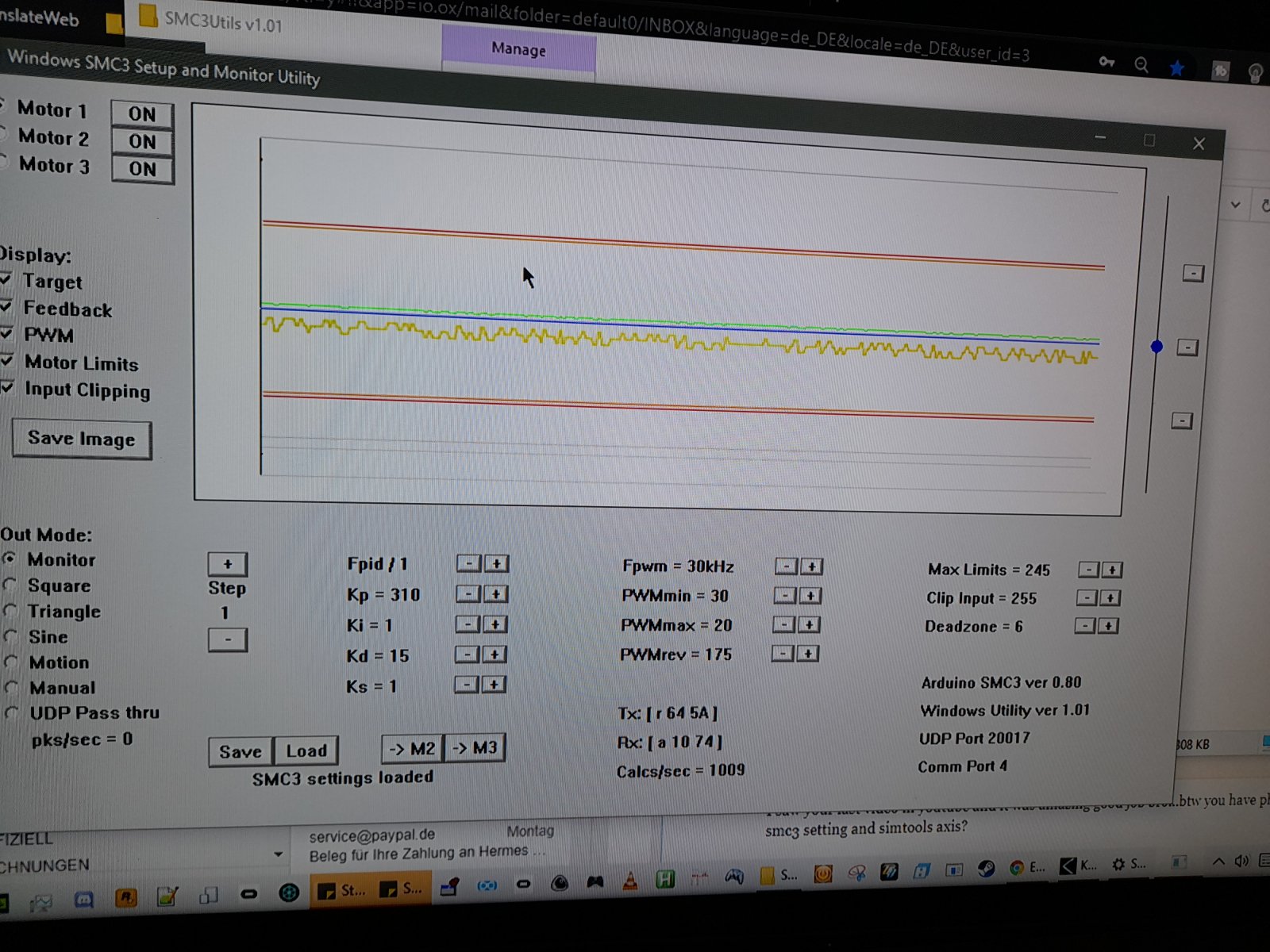

    Second picture is motor 1 and 2 for the rest.

    Attached Files:
