2DOF Motion Platform

Discussion in 'DIY Motion Simulator Projects' started by ilbiga, May 12, 2015.

Page 1 of 4
  1. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Ciao a tutti,
    dopo quasi un anno di letture ed analisi, ho finalmente deciso di tentare di costruire la mia piattaforma dinamica 2DOF con motori 12V.
    Per il momento ho solo scelto la tipologia e tirato giù qualche disegno, ma presto avrò sicuramente bisogno di supporto per realizzare il tutto nel concreto.
    Spero che le mie idee siano utili a qualcuno come quelle che ho trovato in questo forum lo sono state per me.
    Ciao


    Hello everyone ,
    after nearly a year of readings and analysis , I finally decided to groped to build my platform dynamic 2DOF with 12V engines .
    For the moment I only chose the type and taken down some design , but soon I will definitely need support to realize everything in concrete .
    I hope that my ideas are useful to someone like the ones I found in this forum have been for me .
    Hello

    • Like Like x 5
    ilbiga, May 12, 2015
    #1
  2. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,557
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,160Coins
    Ratings:
    +10,780 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I will be looking forward to following your build @ilbiga.

    You will find community members are very supportive, giving freely of their time and expertise.
    • Like Like x 1
    noorbeast, May 12, 2015
    #2
  3. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Farò del mio meglio! ;)

    I will do my best! ; )
    ilbiga, May 12, 2015
    #3
  4. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

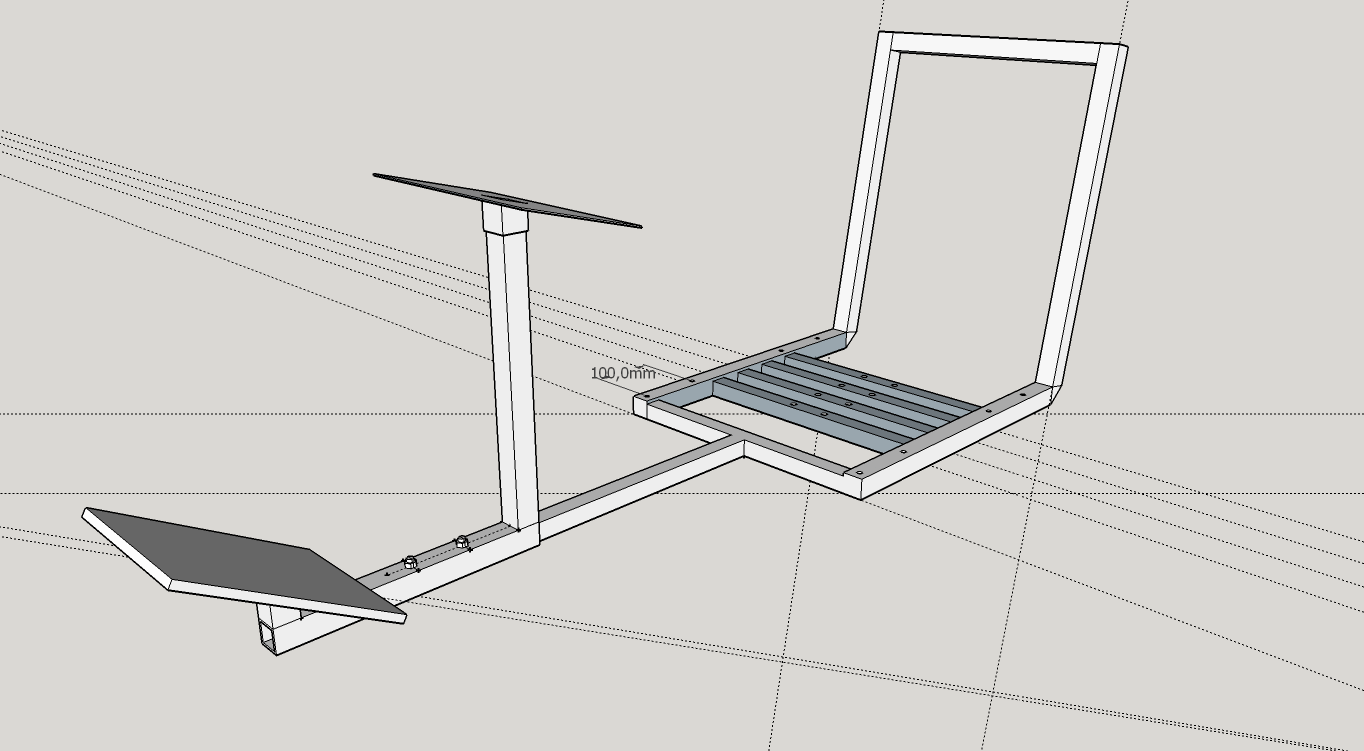

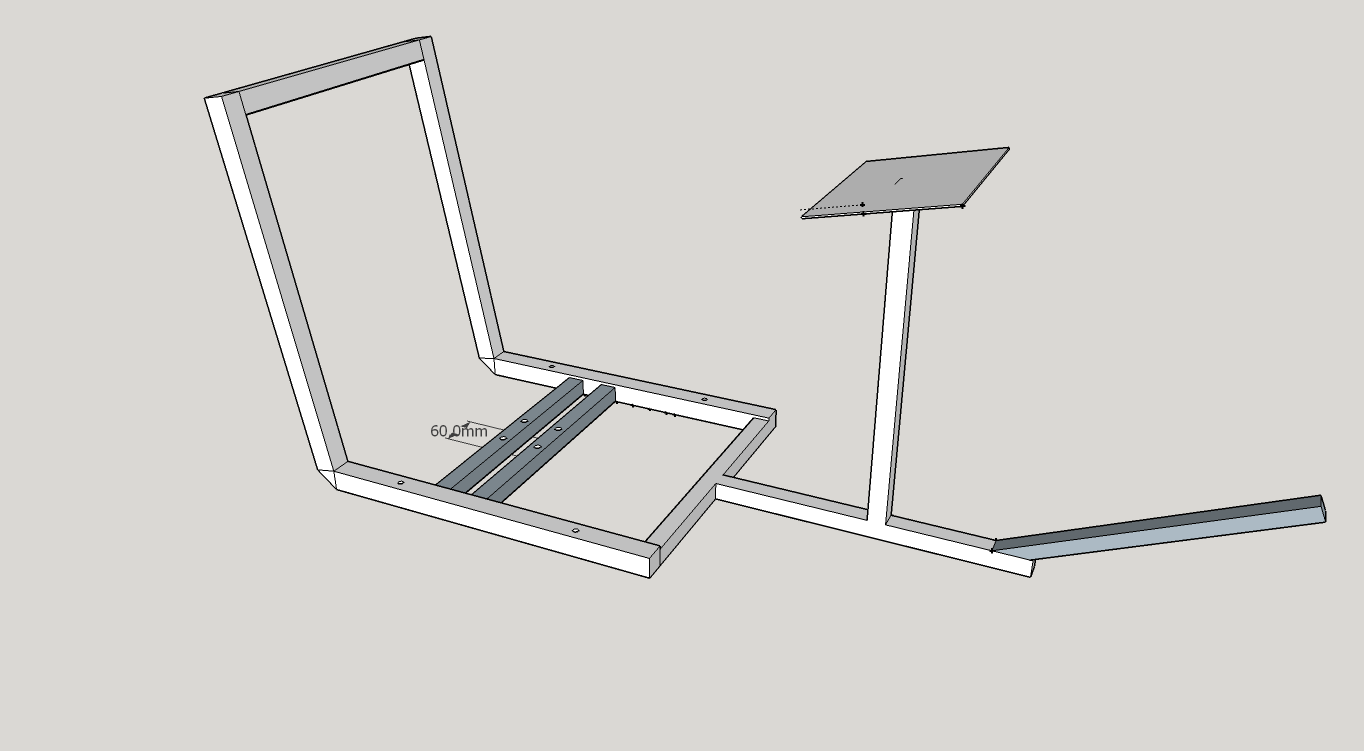

    design in progress ... :) PlaySeat7.png Base7.png
    • Like Like x 2
    ilbiga, Jun 17, 2015
    #4
  5. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,557
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,160Coins
    Ratings:
    +10,780 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
    Last edited: Sep 7, 2015
    noorbeast, Jun 17, 2015
    #5
  6. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Ciao, grazie per la tua interessante risposta e per i link!
    Per il momento sto solo pensando al design, ma approssimativamente gli angoli saranno come quelli descritti nel link che hai postato (20°-30° e 5°-10°).
    Quando avrò assemblato gli elementi principali, pensavo di procedere con qualche test empirico partendo da suggerimenti e calcoli trovati nel forum.
    Grazie ancora!!!


    Hello , thank you for your interesting reply and for the links !
    For the moment I'm only thinking about the design , but the angles are approximately as those described in the link you posted ( 20 ° -30 ° and 5 ° -10 ° ) .
    When I have assembled the key elements , thought to proceed with some empirical test starting from suggestions and calculations found in the forum .
    Thanks again !!!
    • Like Like x 2
    ilbiga, Jun 17, 2015
    #6
  7. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Nuovo design, più essenziale per diminuire i pesi...

    New design , more essential to decrease weights ...

    • Like Like x 2
    ilbiga, Jul 1, 2015
    #7
  8. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Nuovo piccolo aggiornamento... si inizia a costruire...

    New little update... I start to build...

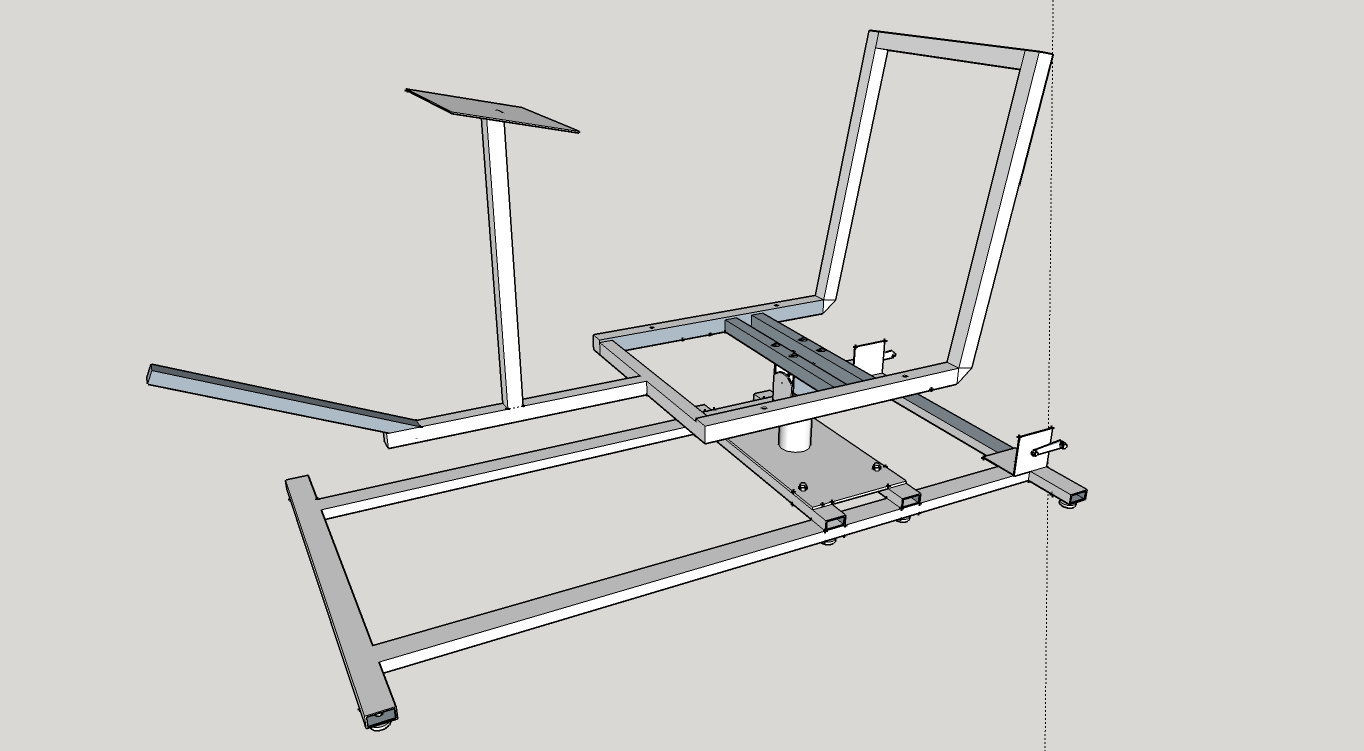

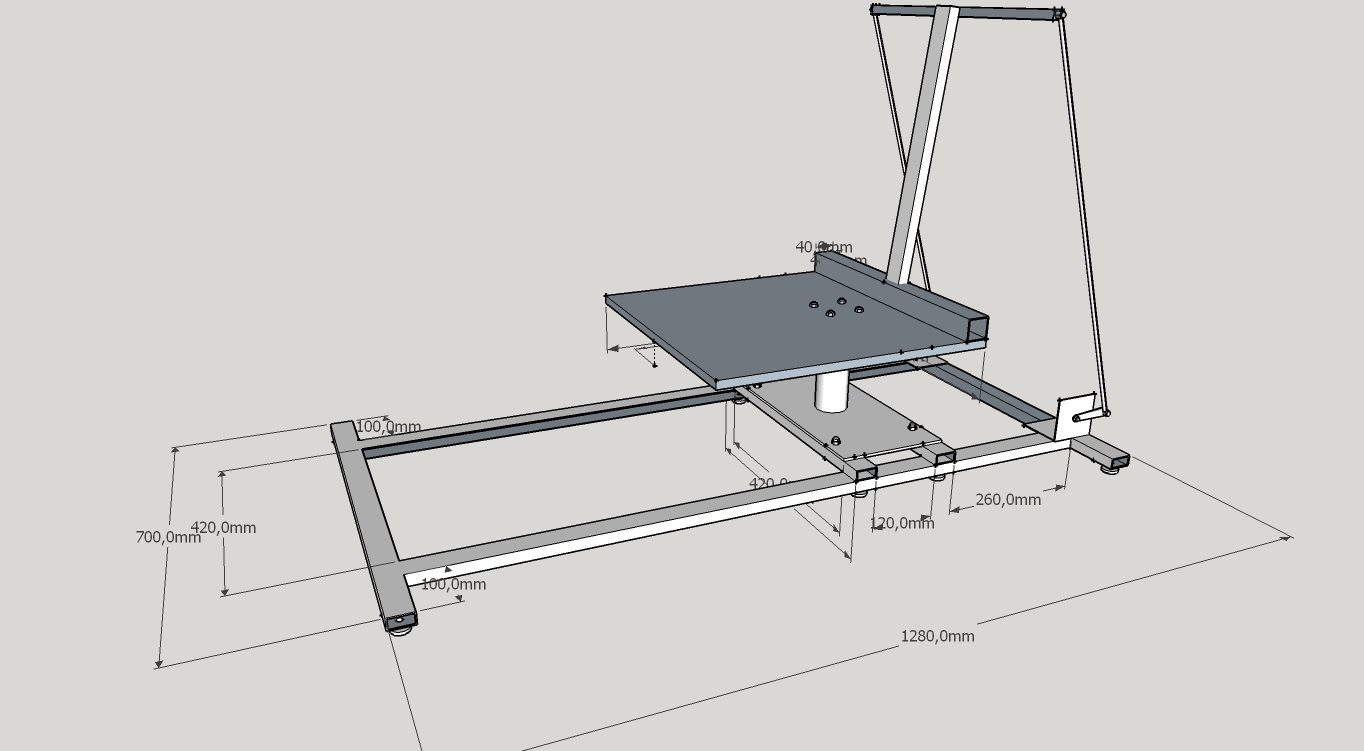

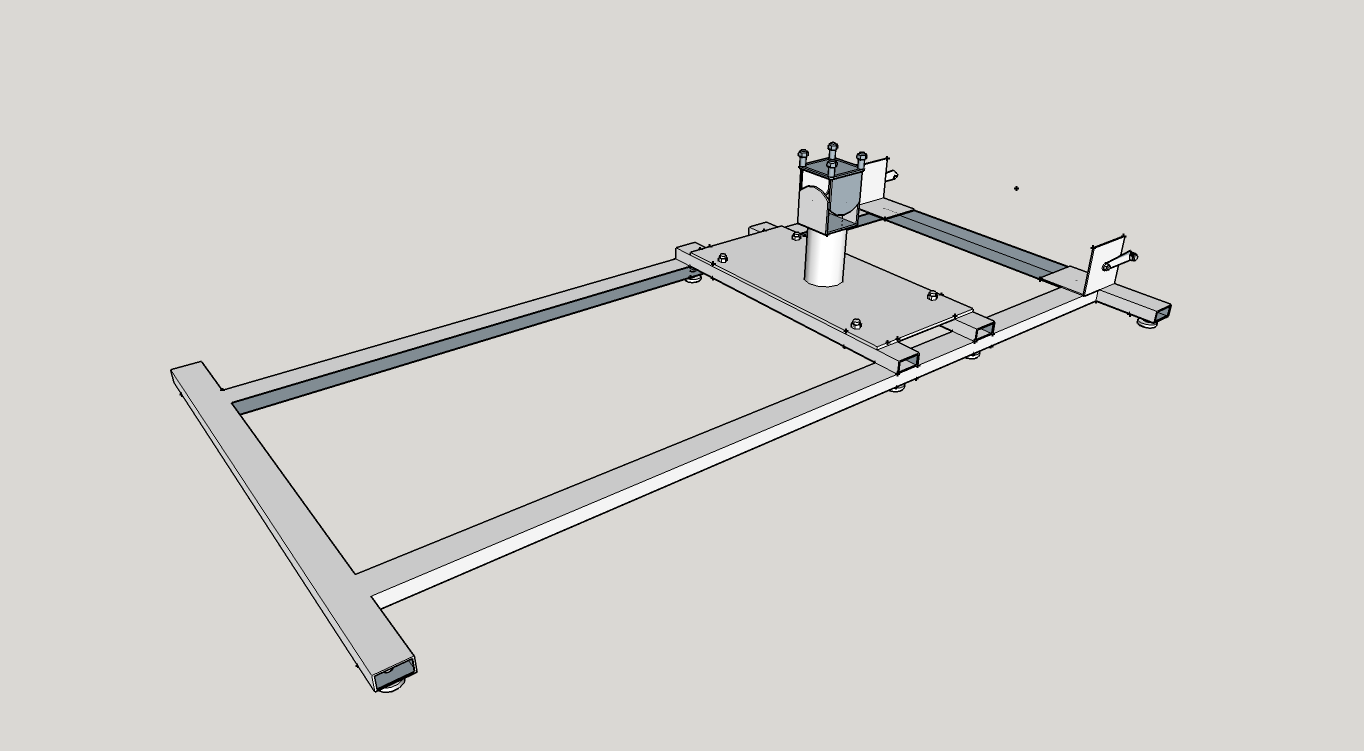

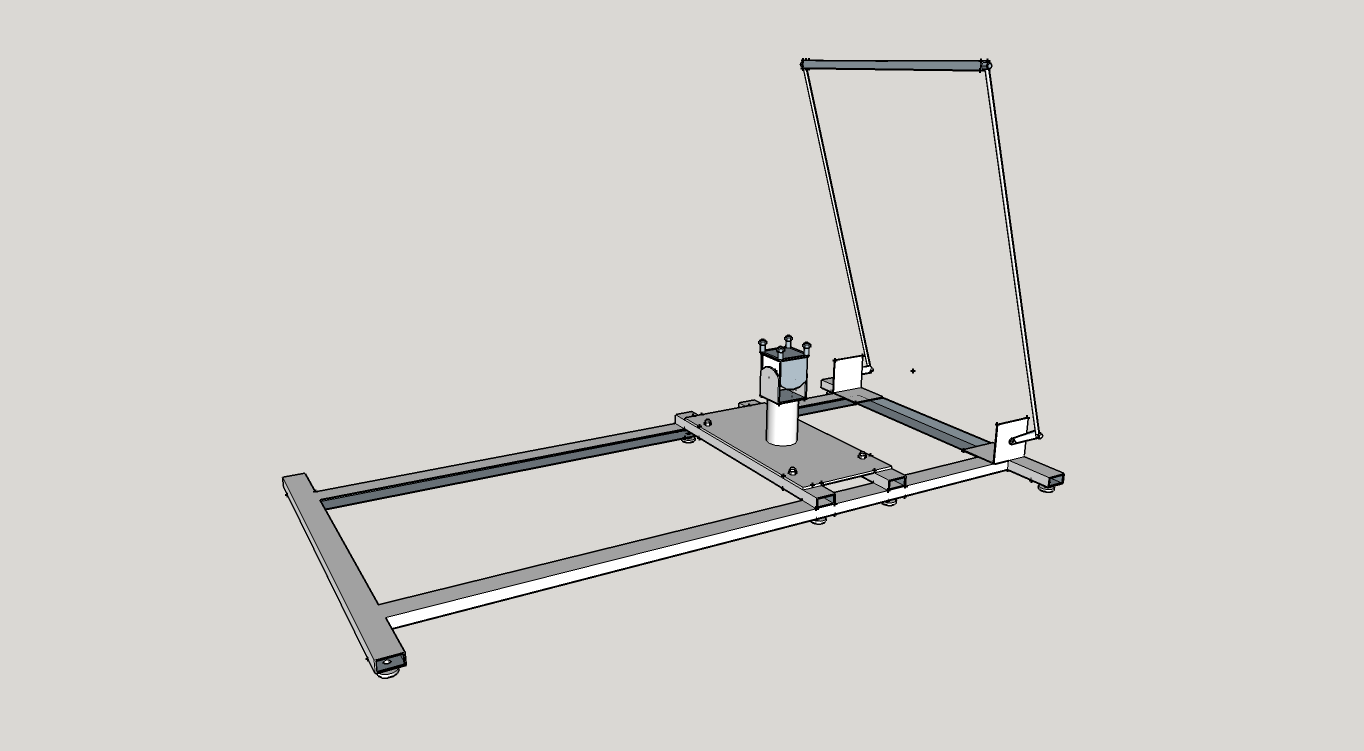

    Base7.png Completo1.png

    Attached Files:

    • Like Like x 4
    Last edited: Sep 8, 2015
    ilbiga, Sep 7, 2015
    #8
  9. Blame73

    Blame73 Well-Known Member

    Joined:
    Nov 6, 2014
    Messages:
    1,210
    Location:
    Italy
    Balance:
    8,255Coins
    Ratings:
    +1,106 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    Are you going to use JRKs or Arduino/MotoMonster? And what kind of motors?
    • Like Like x 1
    Blame73, Sep 7, 2015
    #9
  10. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Primo Componente! :)

    First component! :)

    • Like Like x 3
    ilbiga, Sep 8, 2015
    #10
  11. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

    Ciao. Per il momento l'idea è di usare Arduino + H Bridge Sabertooth dual 2x25A V2.

    Hello. For the moment the idea is to use Arduino + H Bridge Sabertooth dual 2x25A V2.
    ilbiga, Sep 8, 2015
    #11
  12. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Si procede... lentamente, ma si procede... :)

    I go forward ... slowly, but it goes ... :)

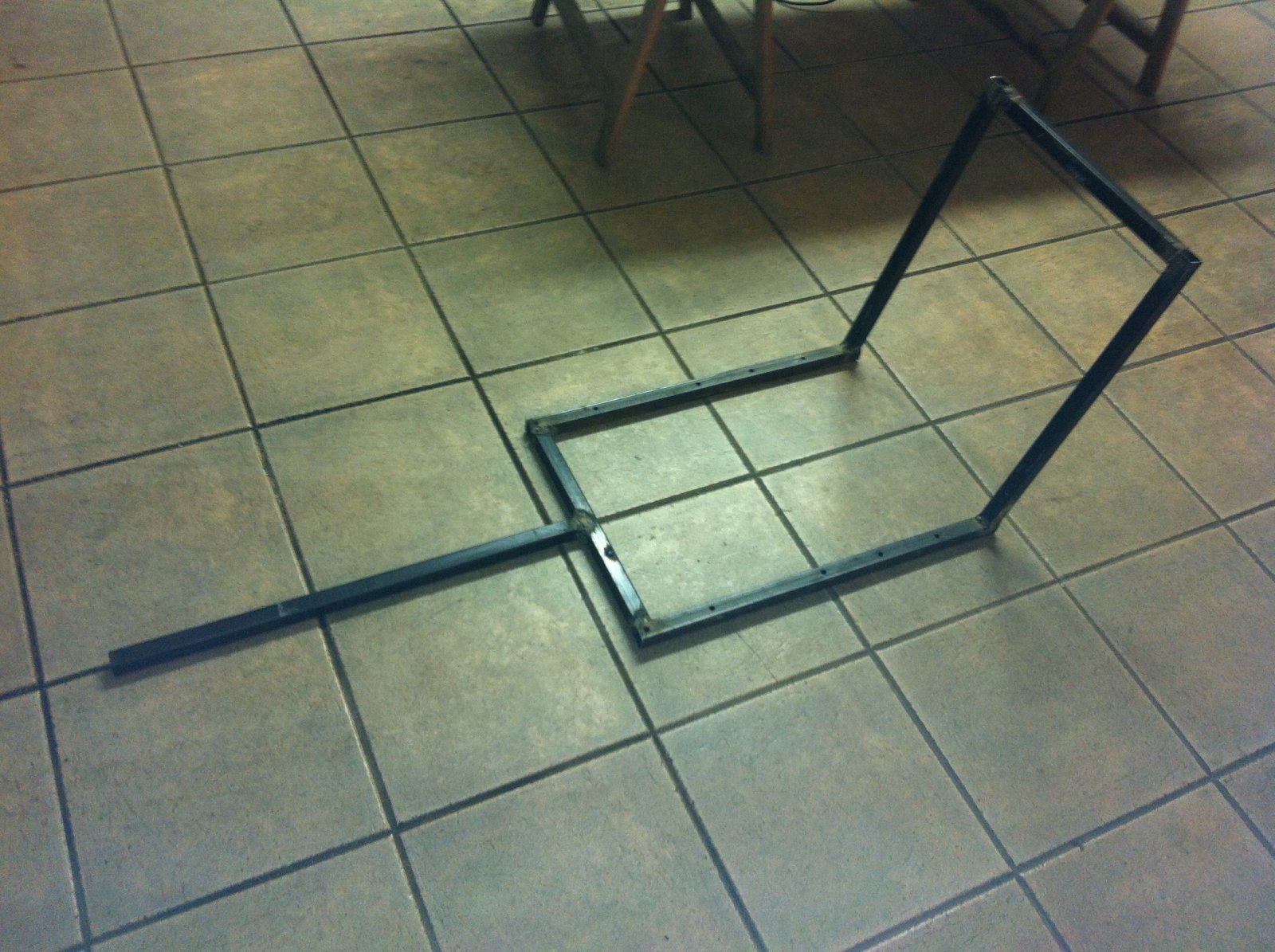

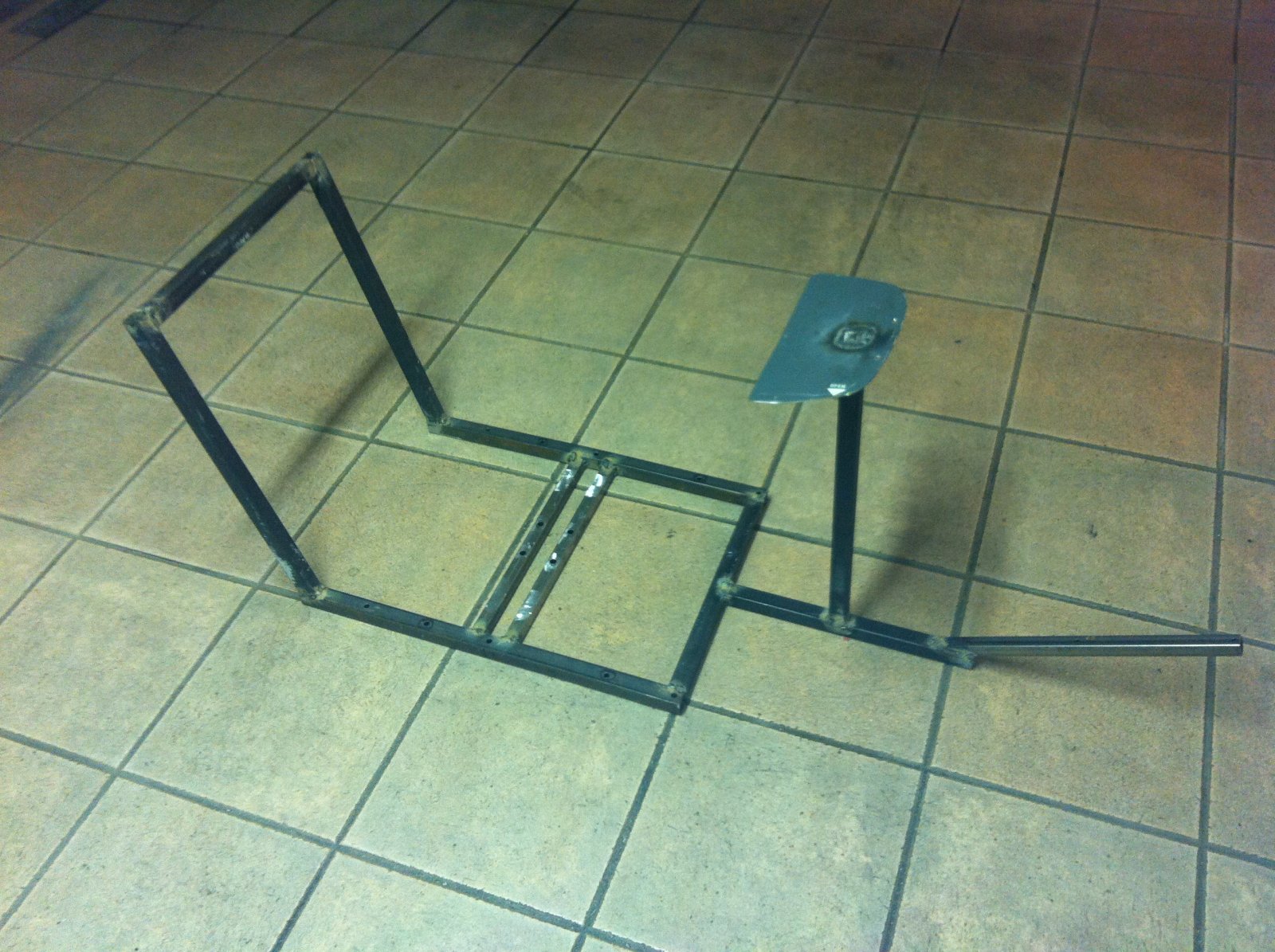

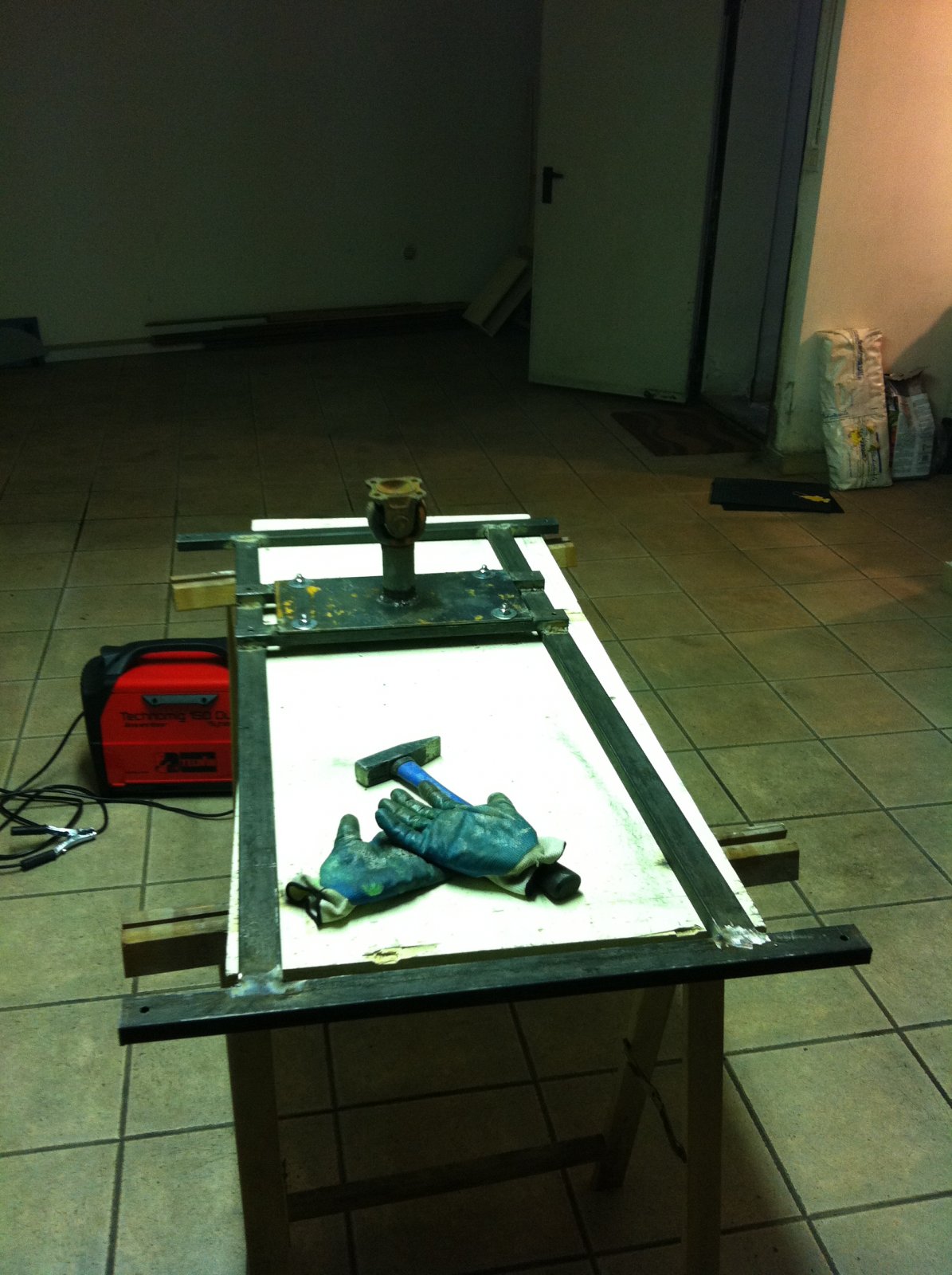

    2.jpg 3.jpg
    • Like Like x 2
    ilbiga, Sep 11, 2015
    #12
  13. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    • Like Like x 3
    ilbiga, Sep 14, 2015
    #13
  14. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

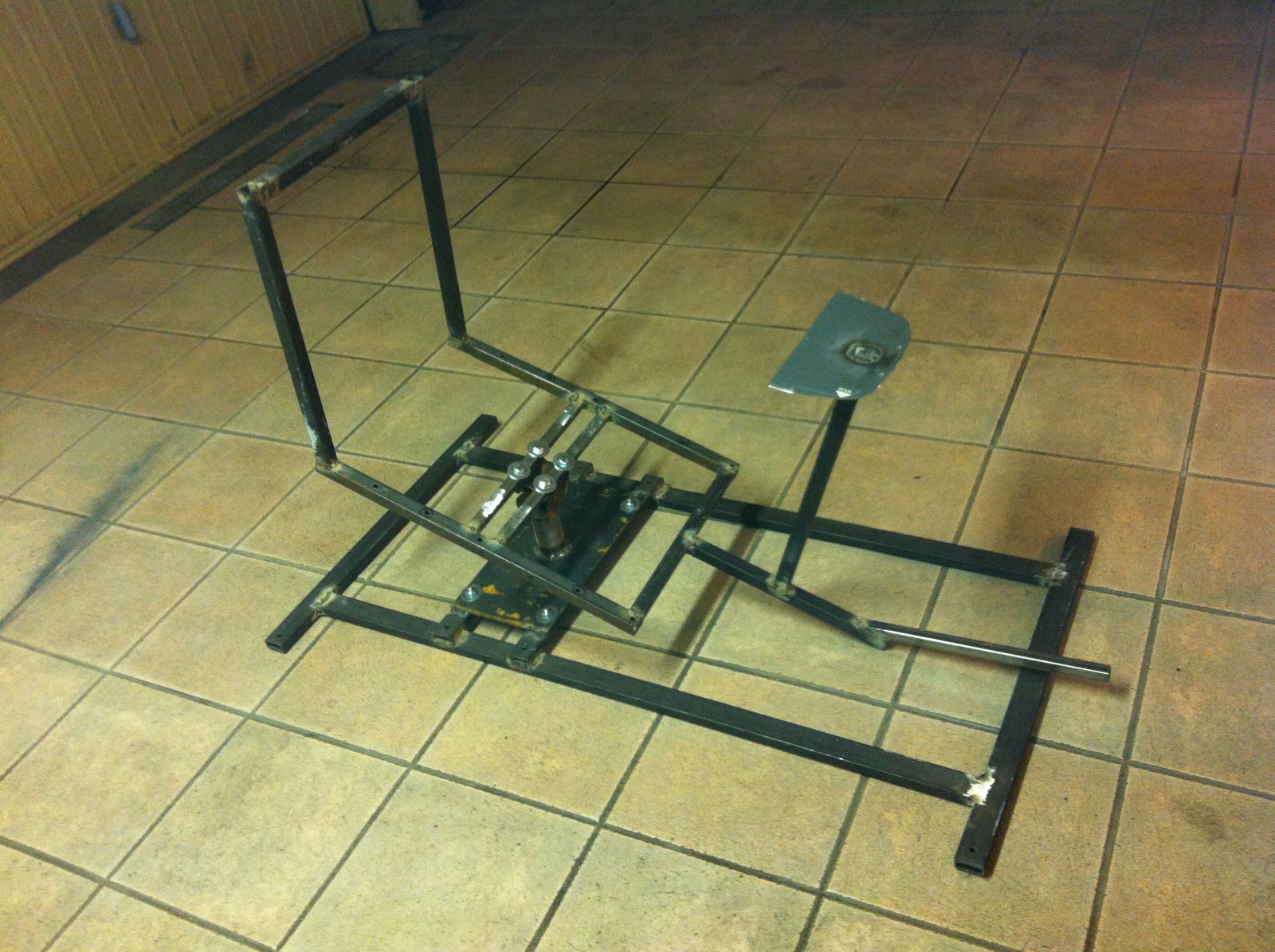

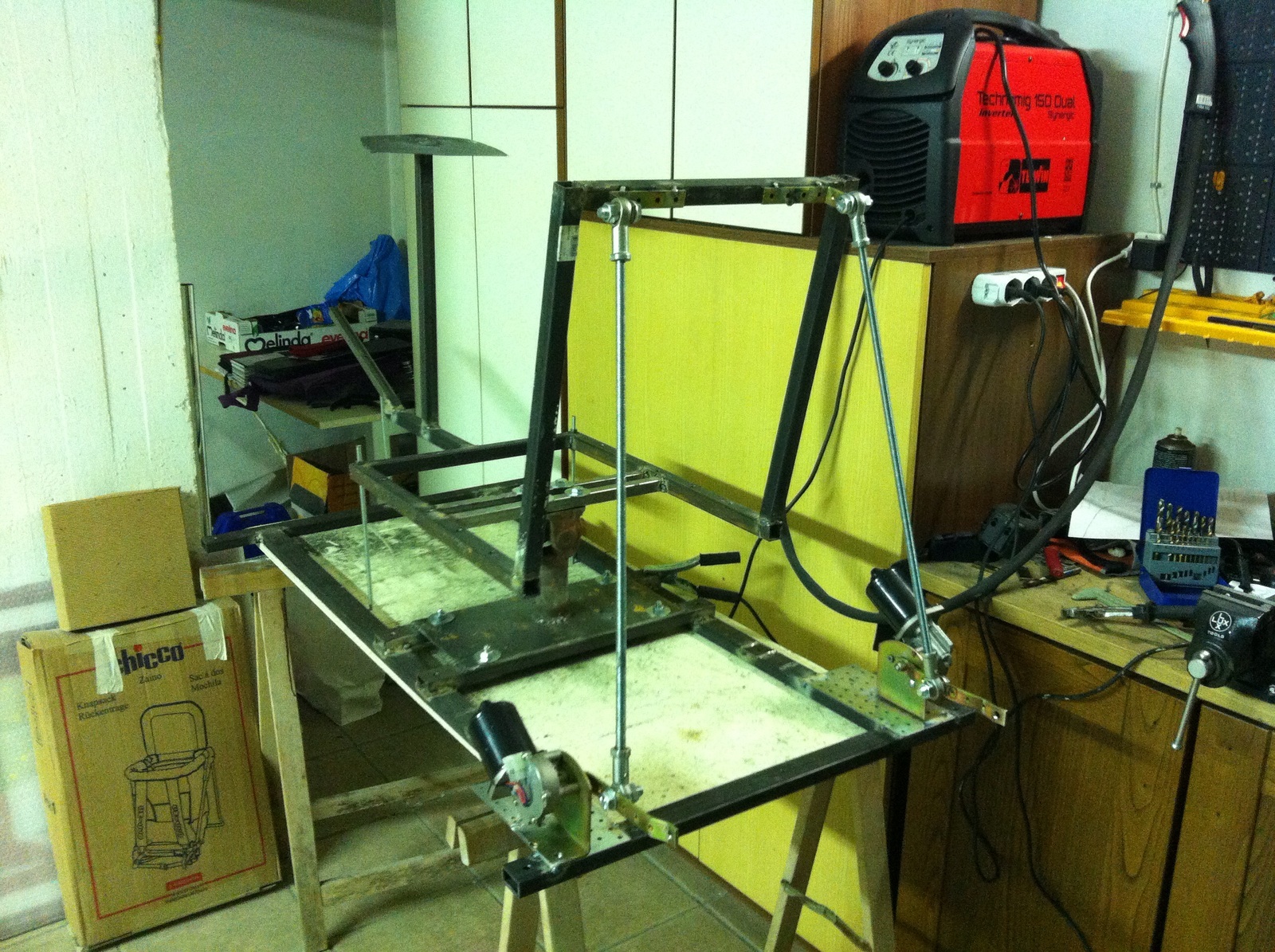

    Montaggio di prova dei motori...

    Test assembly of engines ...

    • Like Like x 1
    ilbiga, Sep 15, 2015
    #14
  15. Blame73

    Blame73 Well-Known Member

    Joined:
    Nov 6, 2014
    Messages:
    1,210
    Location:
    Italy
    Balance:
    8,255Coins
    Ratings:
    +1,106 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    • Agree Agree x 1
    Blame73, Sep 15, 2015
    #15
  16. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Grazie per il suggerimento (ovviamente ben accetto!!! ;) ).
    L'attuale configurazione è solo "prototipale" (ho fatto giusto qualche punto di saldatura...); l'idea è di sostituire i motori e rinforzare il tutto... dopo aver verificato che funzioni :)
    Grazie ancora!!!


    Thanks for the tip ; )
    The current configuration is only a " prototype " ( I did just a few points of welding ... ); the idea is to replace the engines and strengthen everything ... after checking that it works :)
    Thanks again!!!
    • Like Like x 1
    ilbiga, Sep 15, 2015
    #16
  17. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Finalmente ho potuto mettere nuovamente mano al Progetto. Ecco qualche aggiornamento.
    Le modifiche sono scaturite da "test sul campo" e da qualche suggerimento preso qua e là. :)

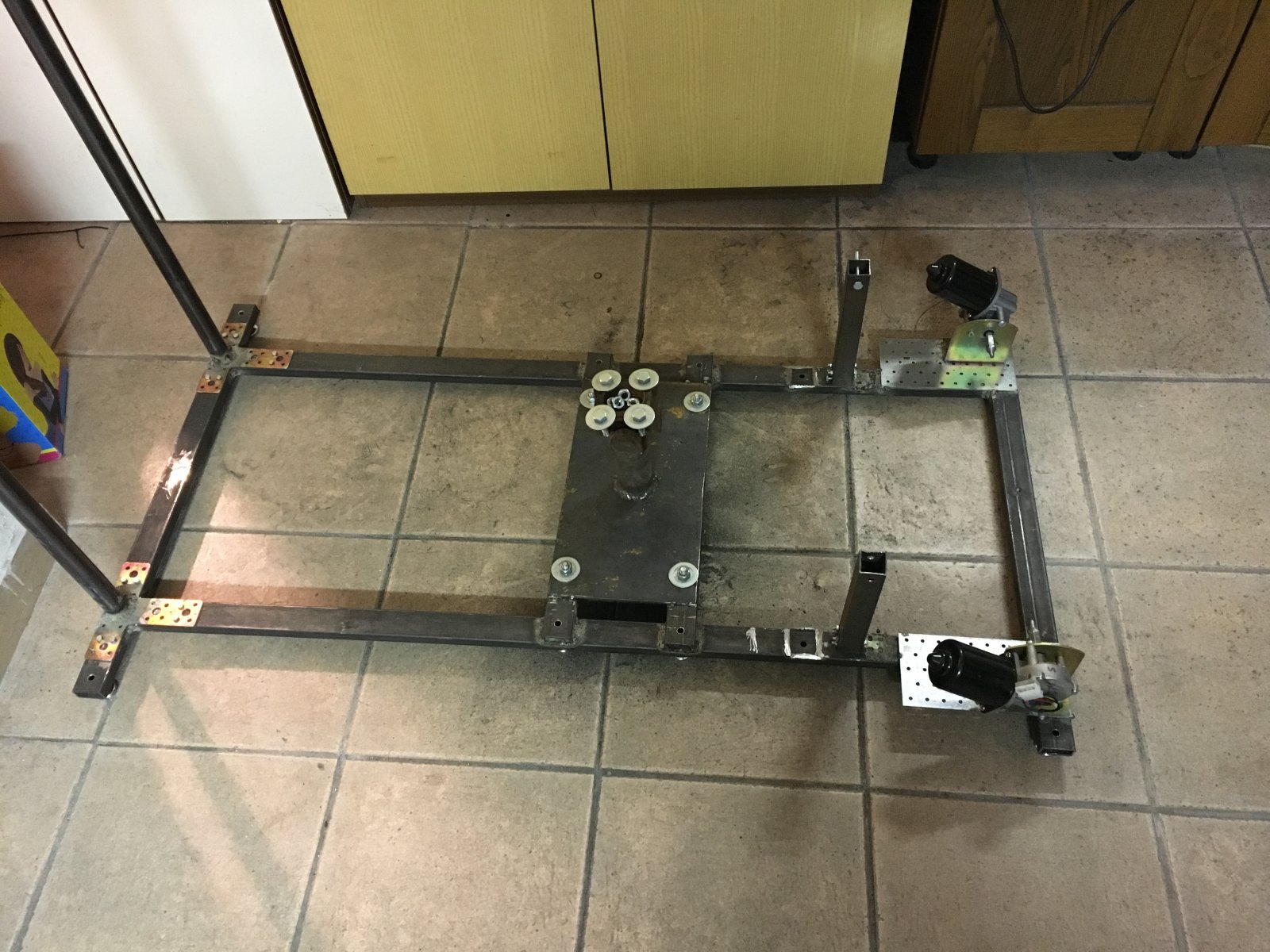

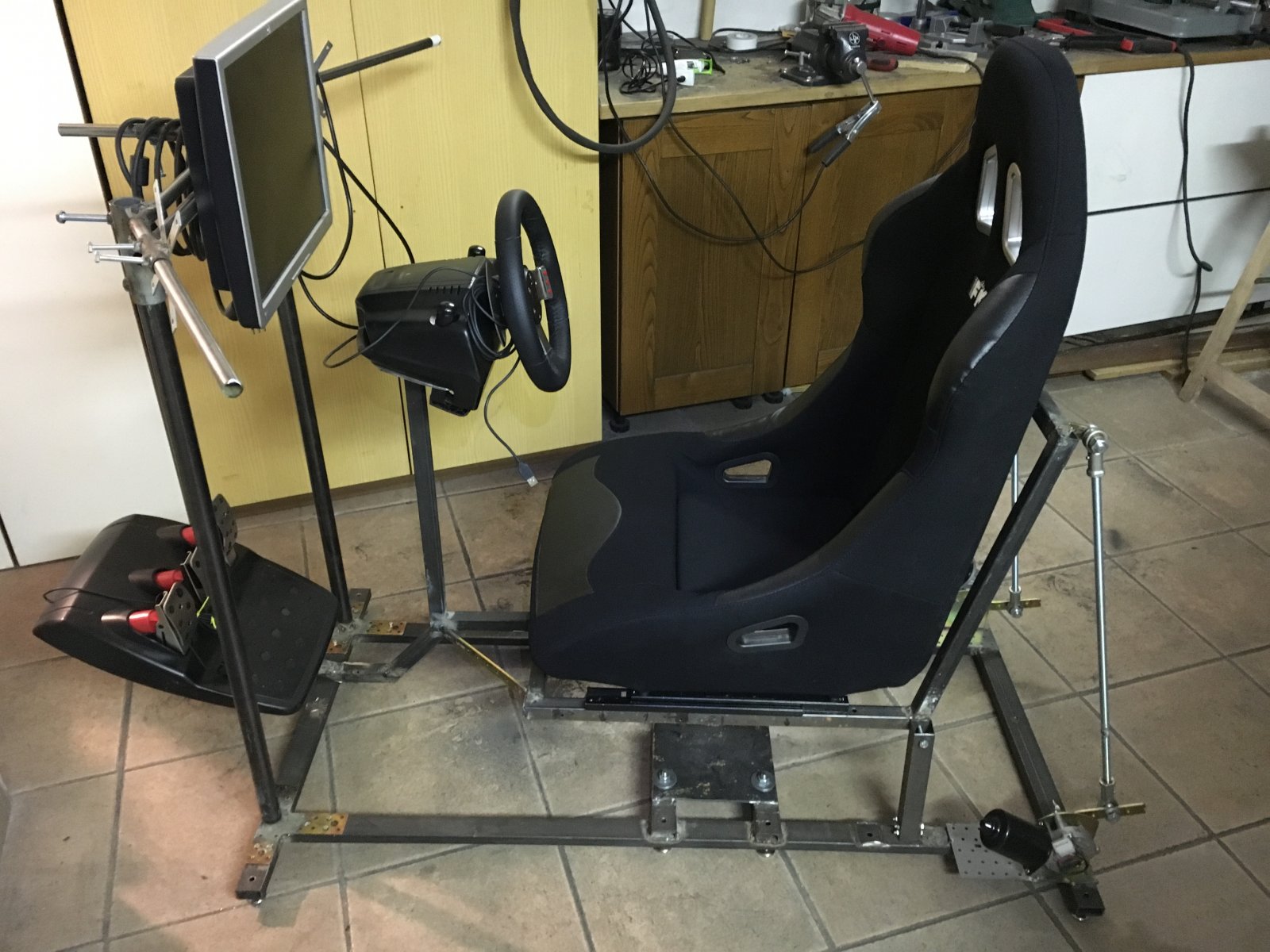

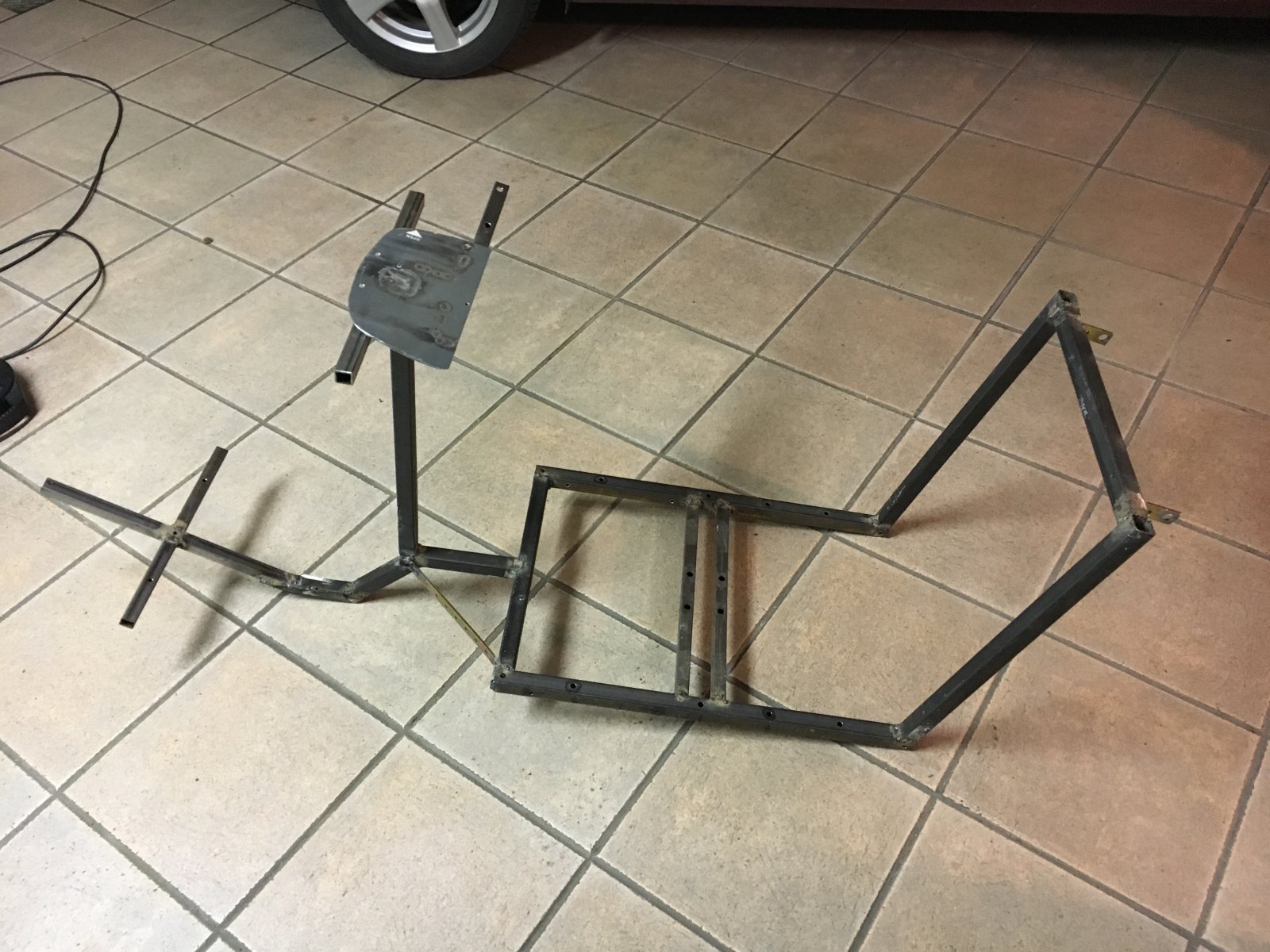

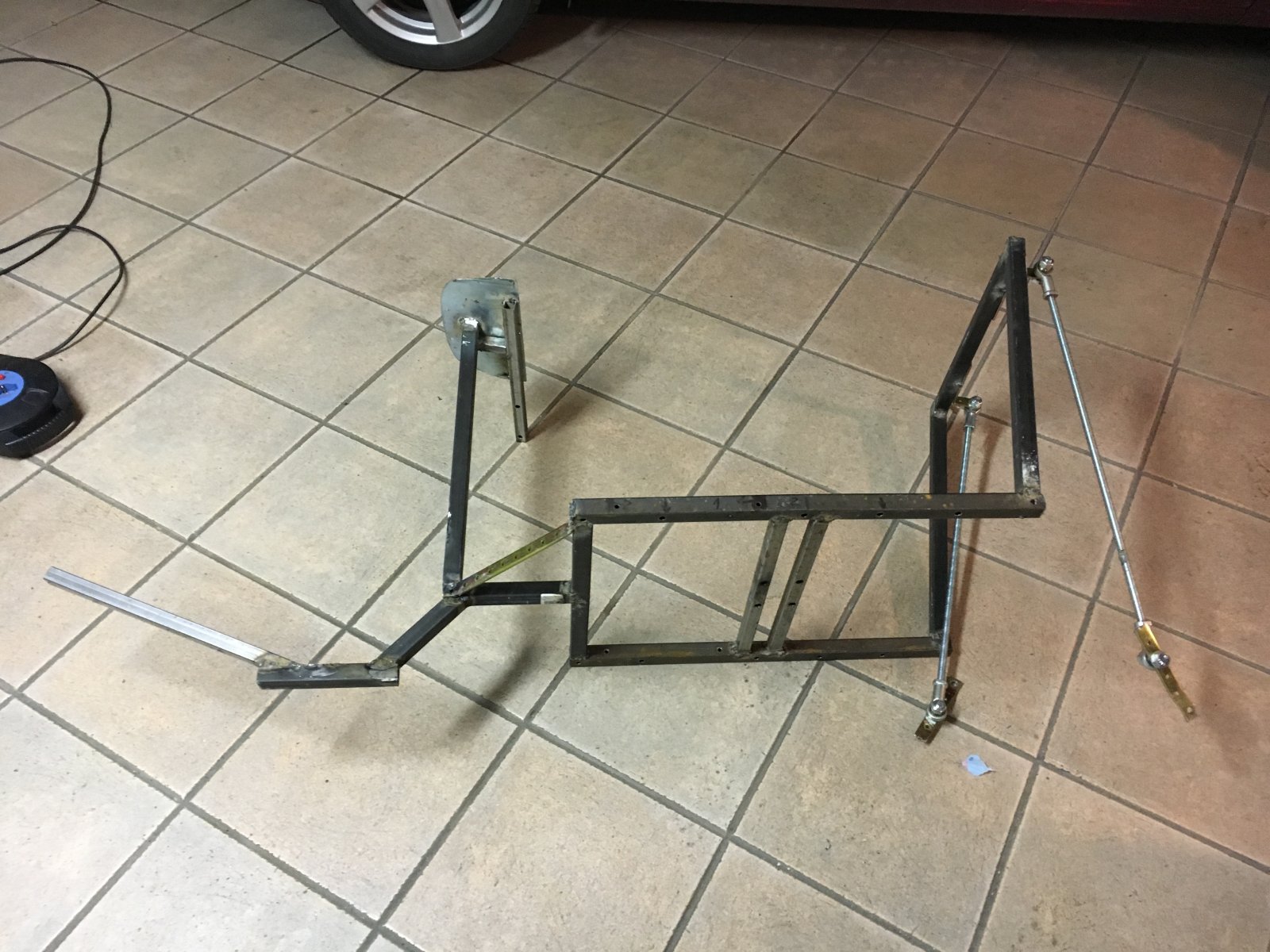

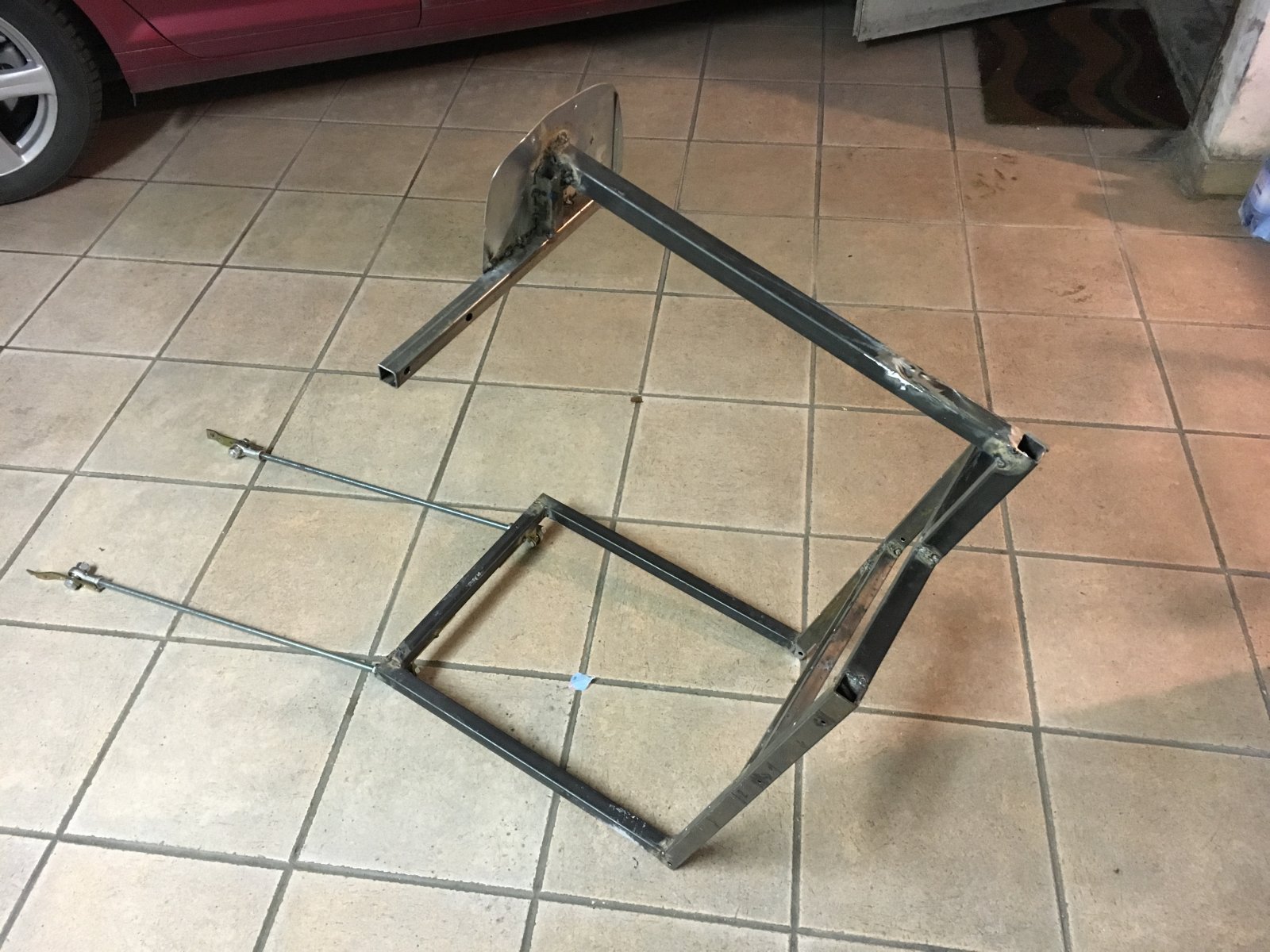

    Foto 05-03-16, 12 28 16.jpg Foto 05-03-16, 12 28 21.jpg Foto 05-03-16, 12 38 43.jpg Foto 05-03-16, 16 32 23.jpg Foto 05-03-16, 13 06 08.jpg


    I finally got again put my hands to the project .
    Here are a few updates. The changes are gleaned from " field testing " and taken any suggestions here and there . :)
    • Like Like x 1
    ilbiga, Mar 5, 2016
    #17
  18. insanegr

    insanegr !N$@n€

    Joined:
    Jan 14, 2014
    Messages:
    505
    Location:
    Athens
    Balance:
    16,715Coins
    Ratings:
    +499 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    @ilbiga dont know if you forgot about this post
    your motors would get overloaded moving a full frame. you will need to go higher on the shoulders mount point and move a bit back the motors to help motors
    • Like Like x 1
    insanegr, Mar 5, 2016
    #18
  19. ilbiga

    ilbiga Active Member

    Joined:
    Apr 4, 2014
    Messages:
    233
    Occupation:
    Network Engineer
    Location:
    Italy
    Balance:
    103Coins
    Ratings:
    +138 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Ciao e grazie. Non ho perduto il post che mi hai inviato.
    Attualmente il sistema di movimento è solo in fase sperimentale. Non trascurerò i tuoi consigli, grazie! :)


    Ciao and thanks. I have not lost the post that you sent me.
    Currently the motion system is only in the experimental stage . Do not neglect your advice , thank you! :)
    ilbiga, Mar 6, 2016
    #19
  20. asdfgg

    asdfgg New Member

    Joined:
    Mar 7, 2015
    Messages:
    27
    Occupation:
    Mechanical Designer
    Location:
    Pisa - Italy
    Balance:
    876Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Ciao! bel lavoro complimenti!
    io sono sempre in fase progetuale per la meccanica. menre l'elettronica funziona di già!
    ho notato che abbiamo i soliti motori a 12V, una domanda: come hai fissato la leva e il potenziometro sull'abero del motore??
    Grazie!
    asdfgg, Mar 6, 2016
    #20
