2DOF Arduino Wiper Motor

Discussion in 'DIY Motion Simulator Projects' started by Saftari, May 20, 2017.

  1. Saftari

    Saftari New Member

    Joined:
    Oct 6, 2016
    Messages:
    11
    Location:
    Jakarta, Indonesia
    Balance:
    71Coins
    Ratings:
    +5 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, Motion platform
    [​IMG]

    I Build 2DOF Motion Simulator in 2 months, using ...
    • Arduino UNO R3
    • 2x 43A BTS7960 Motor Driver
    • 2 Wiper Motor (Mercedes 300E Windshield Wiper Motor)
    • 3x Samsung Curve 24" LED Monitor
    • Gaming PC: Win7Pro64bit, Asus Motherboard H170 Pro Gaming, 32GB RAM, Samsung SSD 250GB, GTX1070
    • Game Engine PC: Win7Pro64bit, Lenovo i5, 8GB, Samsung SSD 250GB
    • Racing Gear: Thrustmaster T500RS + Gear Shifter
    • Handbrake: Custom made Handbrake
    • Custome made Racing Motion Rig
    Modelling Study..

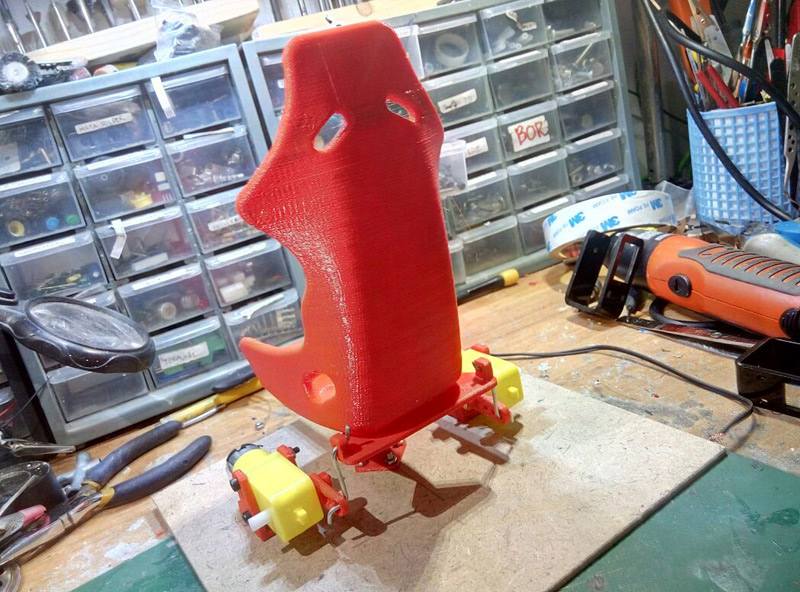

    Using 2 Mini Motor + Potentiometer + L298N Dual Motor Driver + Arduino
    [​IMG]

    [​IMG]
    [​IMG]

    Designing Rig Frame
    [​IMG]

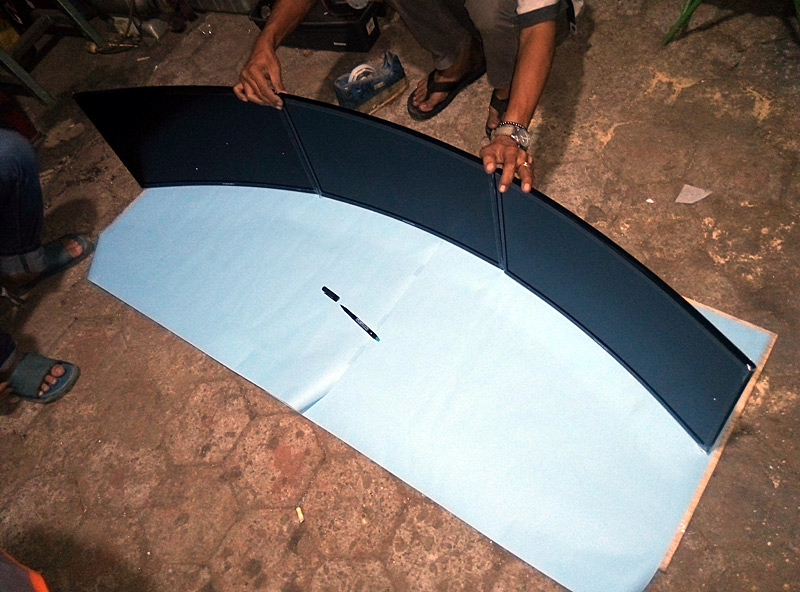

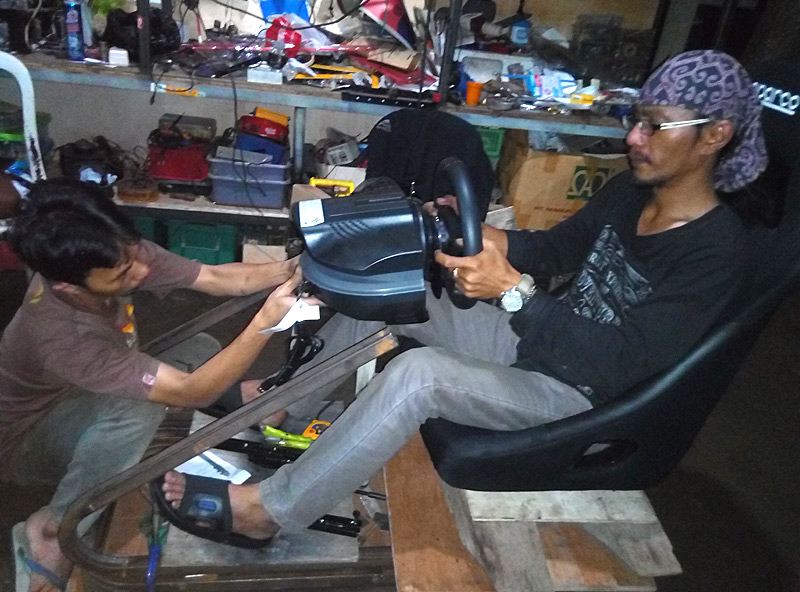

    Frame Building..
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

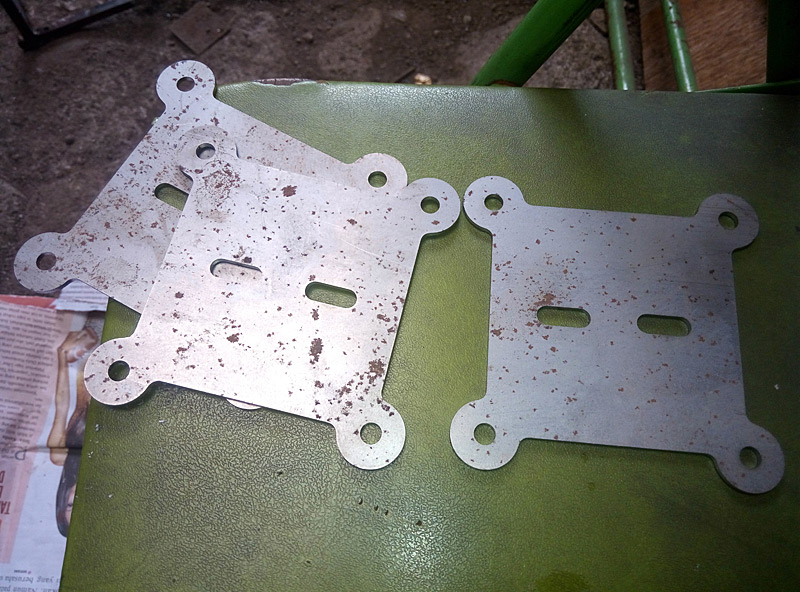

    Using Laser Cutting to make Monitor Mountings
    [​IMG]
    [​IMG]

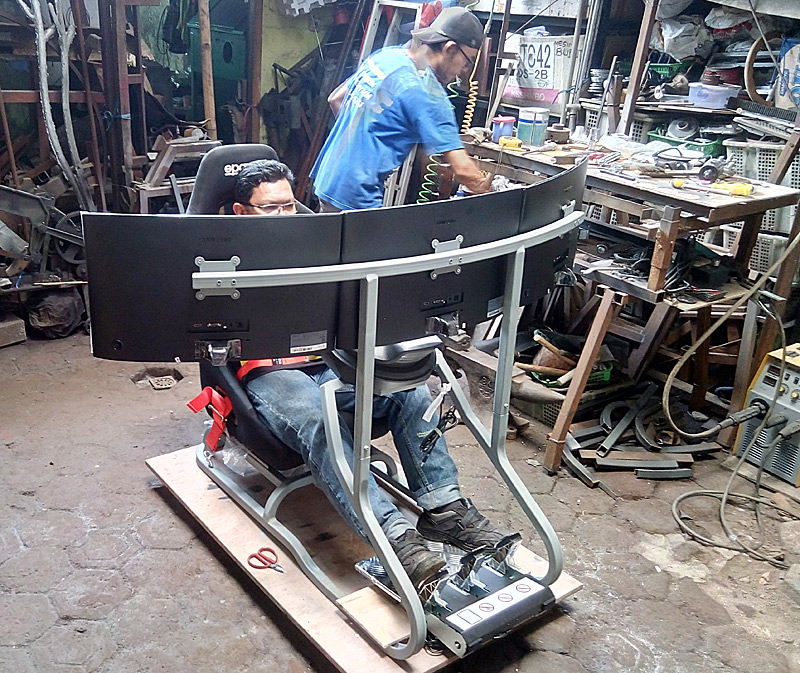

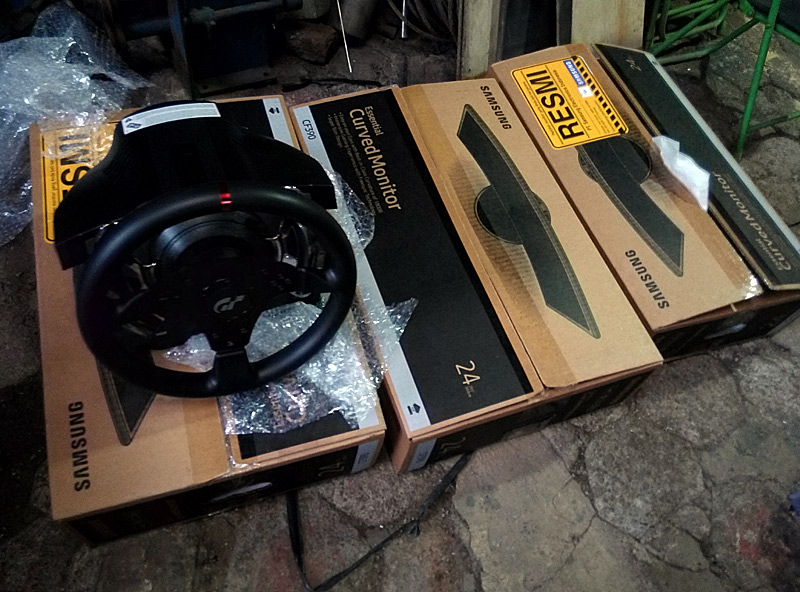

    Thrustmaster T500RS Steering Wheel and 3 Samsung CurvedMonitor 24"
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Arduino/Genuino101 and Custom Shield
    [​IMG]

    Setup PC
    [​IMG]

    Lenovo i5 mini pc for Gaming Controller PC, Razer Subwoofer.
    [​IMG]

    RIG BASE
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    Custom Handbrake
    [​IMG]

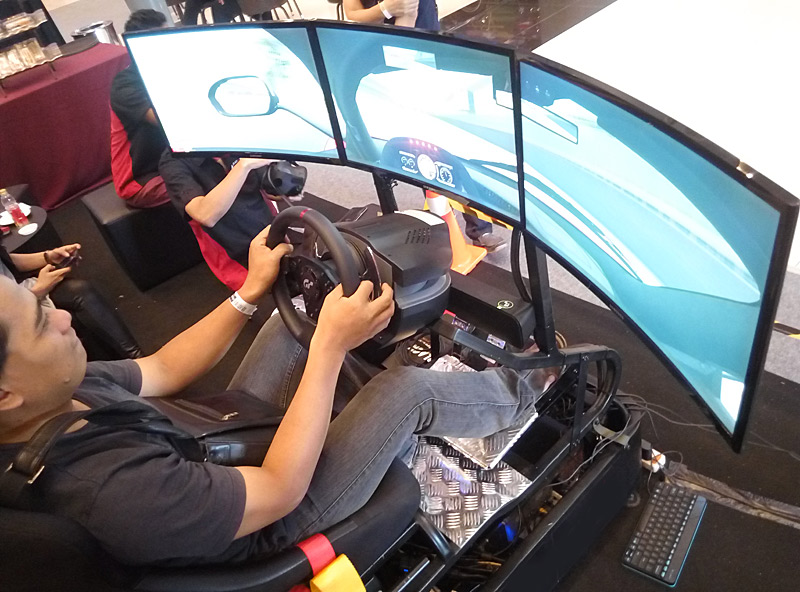

    Result
    [​IMG]

    Video:


    Agressive Mode:
    Using VR Oculus Rift


    • Like Like x 3
    • Winner Winner x 1
    Last edited: May 20, 2017
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. RandomCoder

    RandomCoder Active Member Gold Contributor

    Joined:
    Feb 19, 2017
    Messages:
    185
    Occupation:
    Control Engineer
    Location:
    UK
    Balance:
    1,626Coins
    Ratings:
    +138 / 0 / -0
    Awesome result! I like the level of design that has gone into the base with the PC and subwoofer all neatly tucked away. :thumbs

    The motion looks a little gentle but I guess this can be optimised more?
  4. Saftari

    Saftari New Member

    Joined:
    Oct 6, 2016
    Messages:
    11
    Location:
    Jakarta, Indonesia
    Balance:
    71Coins
    Ratings:
    +5 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, Motion platform
    Thank you so much!
    I just add more video for aggressive mode and using Oculus Rift VR above
    Still have a problem with oculus rift for 3 display, maybe conflict with my GTX1070 VGA.
    • Like Like x 1
  5. Zed

    Zed VR Simming w/Index Gold Contributor

    Joined:
    Apr 4, 2017
    Messages:
    867
    Location:
    USA
    Balance:
    4,728Coins
    Ratings:
    +870 / 3 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK
    @Saftari - You might want to check, but I think it's a fundamental limitation of at least Nvidia cards that they can't run triples and a VR HMD at the same time.

    Really nice job on the sim! Love the 3D printed mini version too!
  6. Andrew M

    Andrew M P_H_O_3_N_I_X Gold Contributor

    Joined:
    May 11, 2017
    Messages:
    105
    Occupation:
    IT Chief Programmer / CTO
    Location:
    Warsaw, Poland
    Balance:
    539Coins
    Ratings:
    +96 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino
    Really nice job ! Great sim, I am thinking about using in my project this BTS7960 - can you please tell me which Arduino source have you used ?
  7. ferslash

    ferslash Active Member

    Joined:
    Feb 8, 2011
    Messages:
    490
    Balance:
    4,711Coins
    Ratings:
    +178 / 2 / -0
    grate build...

    how did you make the curve boards of the base (i can see a white material, is it fiber glass?)

    why you used such an expensive arduino? is it faster or better?

    again, grate result

    fer
  8. Takumivs

    Takumivs Project CPT

    Joined:
    Nov 6, 2018
    Messages:
    38
    Occupation:
    Electronic/ Mechanical Engineer
    Location:
    South Africa
    Balance:
    - 54Coins
    Ratings:
    +4 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, AC motor, SCN5, SCN6, Arduino, Joyrider
    This is amazing great work gent:thumbs
  9. yondwangmms

    yondwangmms New Member

    Joined:
    Feb 14, 2018
    Messages:
    7
    Location:
    china
    Balance:
    105Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Great project! I like the design of putting the subwoofer in the base!
