Showroom Thrustmaster T500RS Motor Upgrade 65W to 85W - SUCCESS 01/23/16

Discussion in 'DIY peripherals' started by Pit, Dec 14, 2015.

?

Would you upgrade your T500RS and risk to void the guarantee in case of a successfully upgrade?

  1. Yes

    33 vote(s)
    82.5%
  2. No

    7 vote(s)
    17.5%
  1. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    EDIT 01/23/16

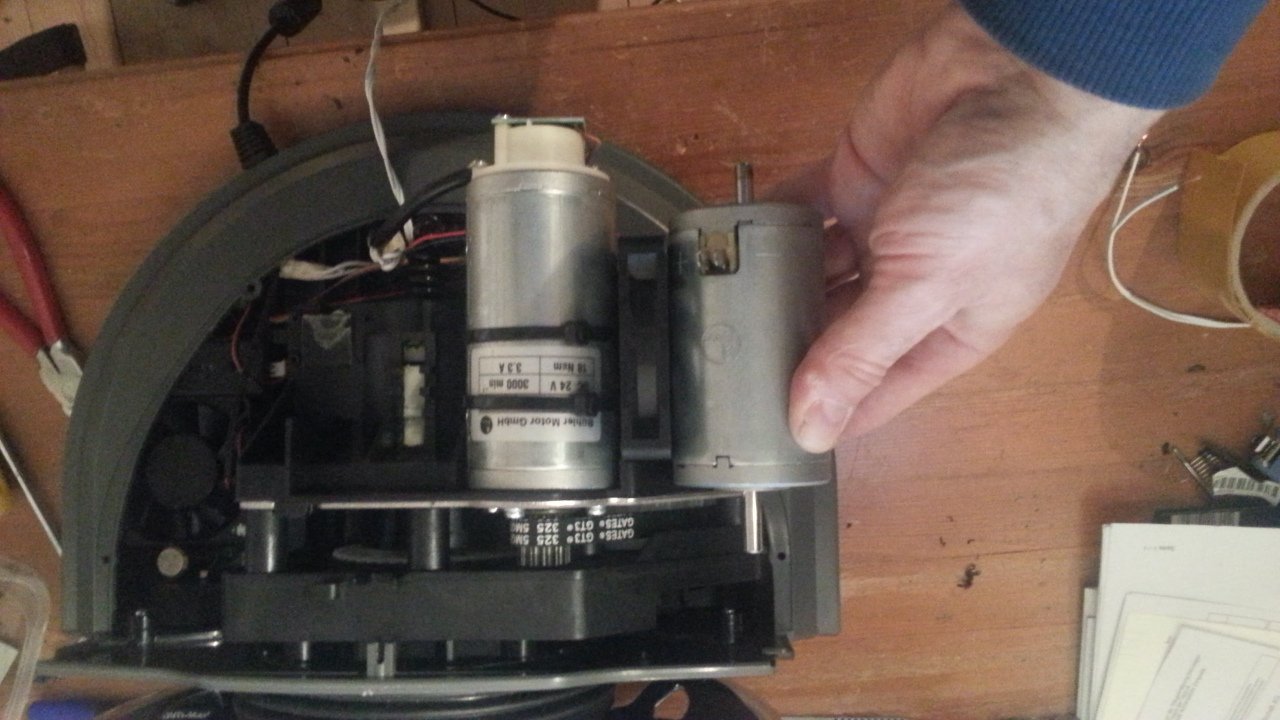

    All assembled - and it works so far. First tests are very promising, 30% more gain, better feedback, harder pikes. A detailed doc and a video will to be uploaded on Monday 01/25/16.


    Hi folks.

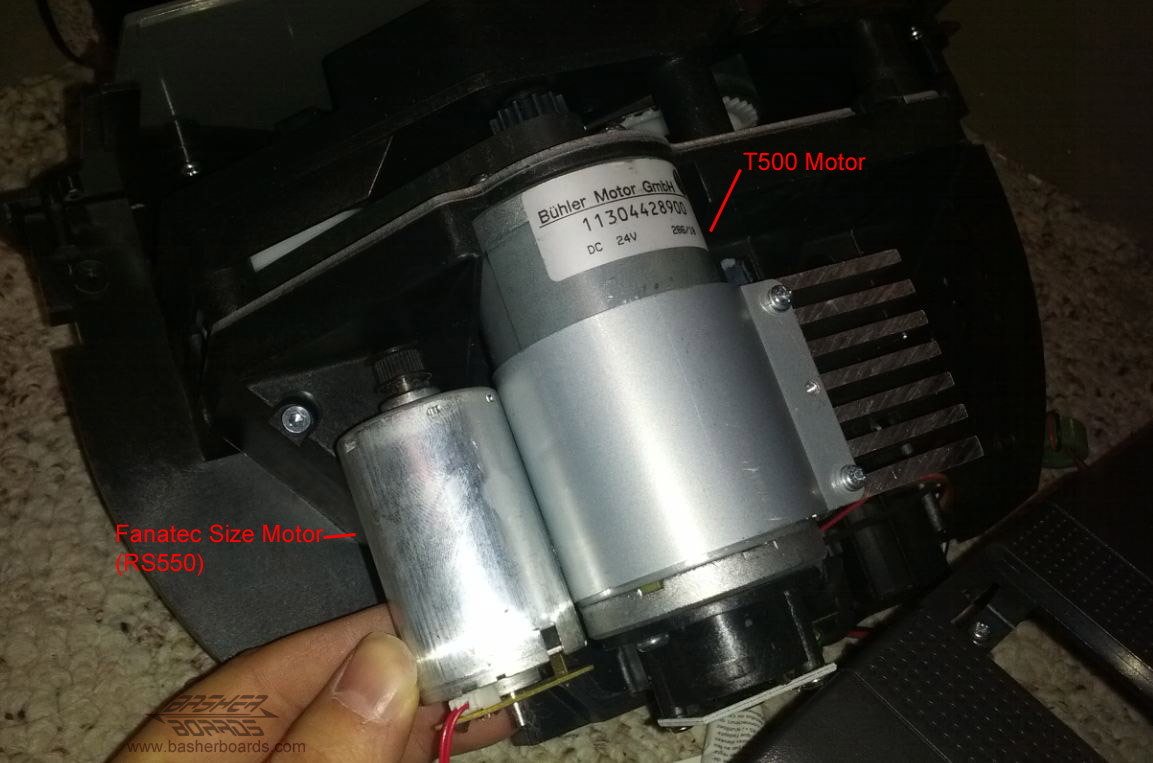

    My new project: I will add a stronger - 85W - motor to the T500RS by replacing the standard 65W motor. The DC motor is a Bühler 24V DC motor 1.13.044.289 (or 1.13.044.236). Bühler offers a slightly stronger motor, same diameter, same rear shaft which is used for the encoder which monitors the position of the motor and in turn the wheel, same rpm but more Nm and slightly more watt but longer: 103.4 cm instead of 88.6cm. The upgrade is moderate so IMO ( :rolleyes: ) the T500RS should handle the stronger motor (if not, OSW is calling...). There is enough space behind the motor so the case should not to be cut or modified. Anyway I need a bigger fan, other parts must be cooled better as before, so probably I drop the case.

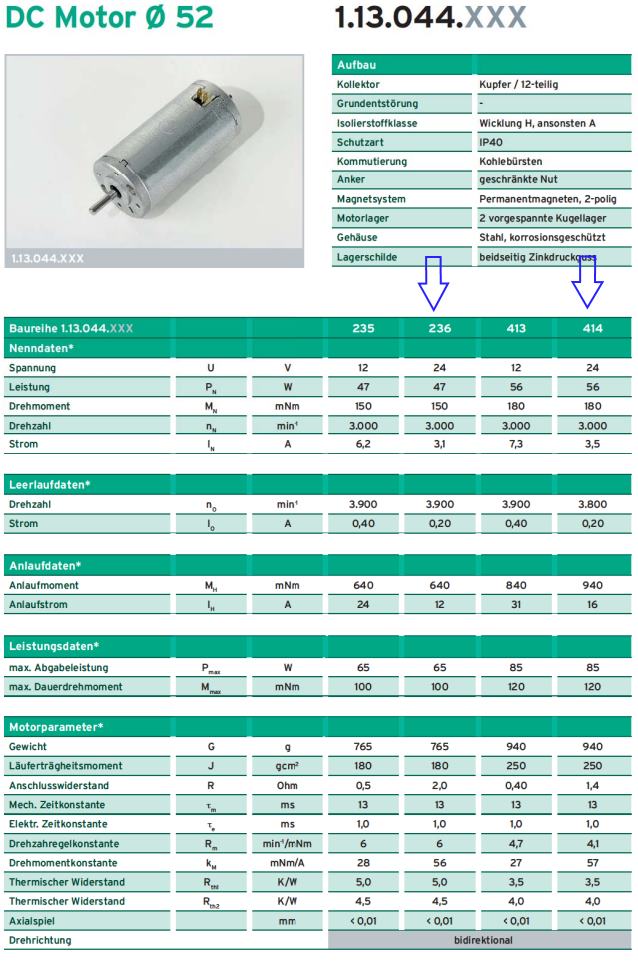

    The spec sheet:
    The motor (screenshot found somewhere from the internet, I did not open the case yet)
    Stay tuned (as always ;)
    ......................................:popcorn
    • Winner Winner x 2
    • Like Like x 1
    • Optimistic Optimistic x 1
    Last edited: Jan 3, 2018
  2. shannonb1

    shannonb1 Well-Known Member

    Joined:
    Mar 12, 2008
    Messages:
    1,107
    Occupation:
    Sales Intelligence
    Location:
    Virginia
    Balance:
    8,909Coins
    Ratings:
    +598 / 5 / -0
    My Motion Simulator:
    2DOF, AC motor, Arduino, JRK, 4DOF
    You going to change your power supply to support that bigger motor?
  3. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    no, not planned.
  4. shannonb1

    shannonb1 Well-Known Member

    Joined:
    Mar 12, 2008
    Messages:
    1,107
    Occupation:
    Sales Intelligence
    Location:
    Virginia
    Balance:
    8,909Coins
    Ratings:
    +598 / 5 / -0
    My Motion Simulator:
    2DOF, AC motor, Arduino, JRK, 4DOF
    So I know the motors are both 24v but Im not sure of the rating on that power supply or the h-Bridge on the wheel itself. Are you aware?
  5. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
  6. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    btw @shannonb1 you have seen my motto, I like to burn gadgets. :grin
    • Like Like x 2
  7. insanegr

    insanegr !N$@n€

    Joined:
    Jan 14, 2014
    Messages:
    504
    Location:
    Athens
    Balance:
    16,718Coins
    Ratings:
    +499 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    i say no and the reason is why to do all this stuff(spending time money and may not work ,harming a working wheel) and at the end building a DIY wheel. i have a t500 too and i am happy with it don't think that needs any upgrade except a new DIY DD wheel in the far future.
  8. shannonb1

    shannonb1 Well-Known Member

    Joined:
    Mar 12, 2008
    Messages:
    1,107
    Occupation:
    Sales Intelligence
    Location:
    Virginia
    Balance:
    8,909Coins
    Ratings:
    +598 / 5 / -0
    My Motion Simulator:
    2DOF, AC motor, Arduino, JRK, 4DOF
    Its a good thing that this isnt your project then. Sheeww!...I have a DD wheel, a g27, a T500rs, a g25 and dfgt...I think it woudl be a cool project to mess with the t500rs.
    • Agree Agree x 1
  9. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Experimenting is for me the motivation to do things, even they are not logical or being senseless. No doubt the T500RS is a good wheel (probably the best of the non DD wheels) but it can can be better. For that reason I make this test. Even if it will blow away - I am satisfied ;)
    • Like Like x 1
    • Agree Agree x 1
    Last edited: Apr 17, 2016
  10. pipis2015

    pipis2015 over-boost

    Joined:
    Feb 18, 2015
    Messages:
    222
    Location:
    Athens, GREECE
    Balance:
    10,248Coins
    Ratings:
    +272 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    I hope your experiment goes as planned. Progress/knowledge comes always by risking(assuming the cost/risk is reasonable).

    If it succeeds lots of people will follow your steps. I hope the oem electronics are capable for 30% more juice(though i doubt it).



    ps
    I dont want to be misunderstood... but...having experimented with a thrustaster wheel in the past i can only wish you good luck.

    Their products are very hard to mod circuit wise(if you happen to see that the electronics cant feed the bigger motor that is).
  11. insanegr

    insanegr !N$@n€

    Joined:
    Jan 14, 2014
    Messages:
    504
    Location:
    Athens
    Balance:
    16,718Coins
    Ratings:
    +499 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    as far as i remember @Pit wanted to change his wheel(T500) for a DD wheel and had it for sale long time ago and i was thinking and talking like a guy that owns one wheel.
  12. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    @pipis2015 probably you are right, eventually not. 30% is many, I know. Let me say we use only 60% of the forces (trustmaster control panel) and 70% in AC. If we would set all to 100% the wheel would be on the other hand very very strong but undrivable due to the clipping. My intention is based on my hope that the sensitivity will profit and already beginning from the small forces up to the linearity which has been already not really linear since the T500RS is on the market. Let's see what happens :)
  13. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    I have to come back to your question because I changed my opinion, if the PSU of the T500RS can be uncoupled I will use an separate PSU.
  14. Alexey

    Alexey Well-Known Member

    Joined:
    Sep 23, 2014
    Messages:
    452
    Occupation:
    Electronics Technician
    Location:
    Adelaide, Australia
    Balance:
    8,061Coins
    Ratings:
    +620 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Wow that is a big motor in there already. Good luck with the experiment!
    • Like Like x 1
  15. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Update: the Bühler motor is ordered. Delivery time up to 6 weeks :confused:
    The standard T500RS Power supply has a 24V voltage and 6.67 A current rating. Eventually this psu is too weak to handle the little more current - if so, either I stick a server PSU using a 4 pin male adapter to the 500RS or if someone would like to use a clear solution there is a 221W 24V 9.2A AC-DC Table Top Power Supply available. But do not buy before I tested...lol
    • Like Like x 1
  16. Alexey

    Alexey Well-Known Member

    Joined:
    Sep 23, 2014
    Messages:
    452
    Occupation:
    Electronics Technician
    Location:
    Adelaide, Australia
    Balance:
    8,061Coins
    Ratings:
    +620 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Out of curiosity, when you open up your wheel are you able to read the part number of the FETs or H-Bridge driver on the board?
    Might be able to determine if the bridge can handle the power upgrade.
    • Like Like x 1
  17. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    When I am ready to start I will have a look at this. Thank you for the input.
  18. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF

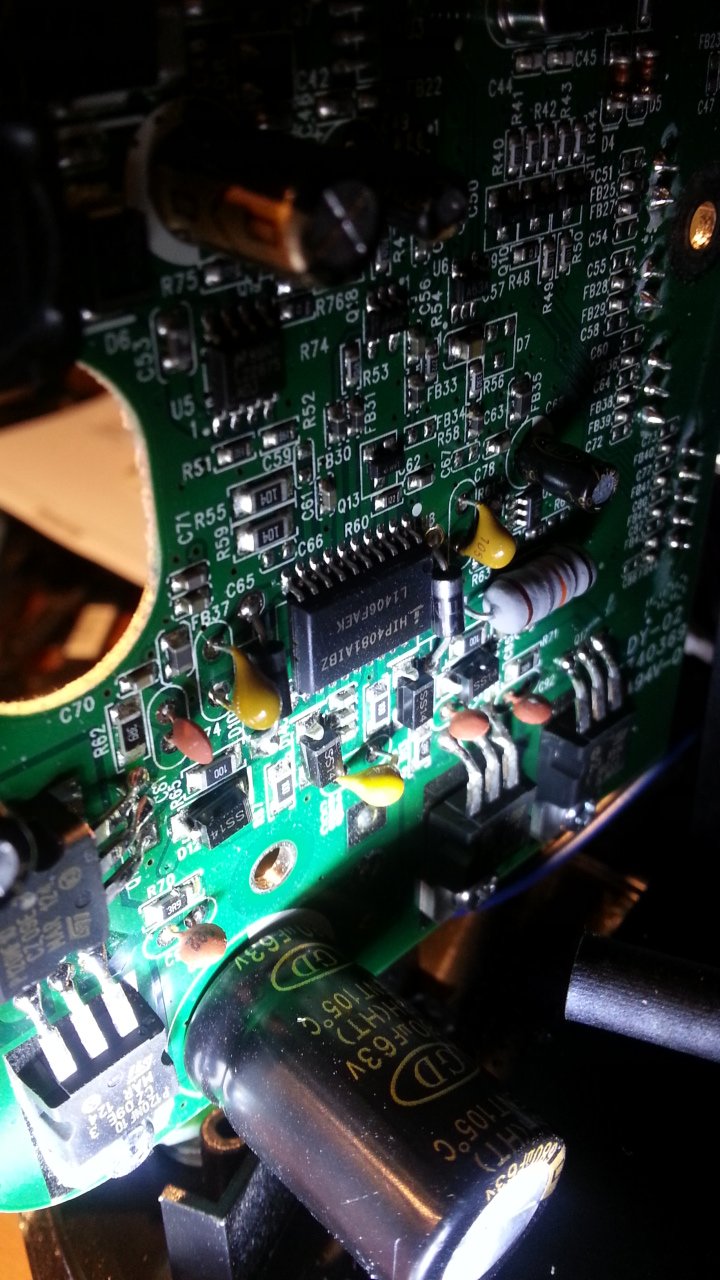

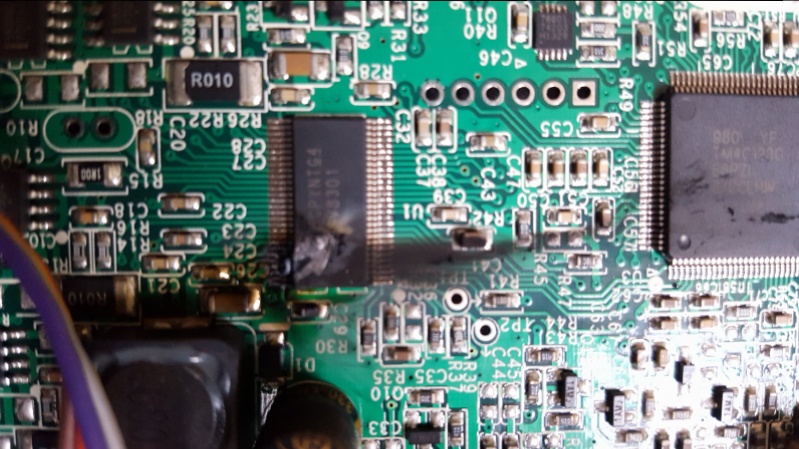

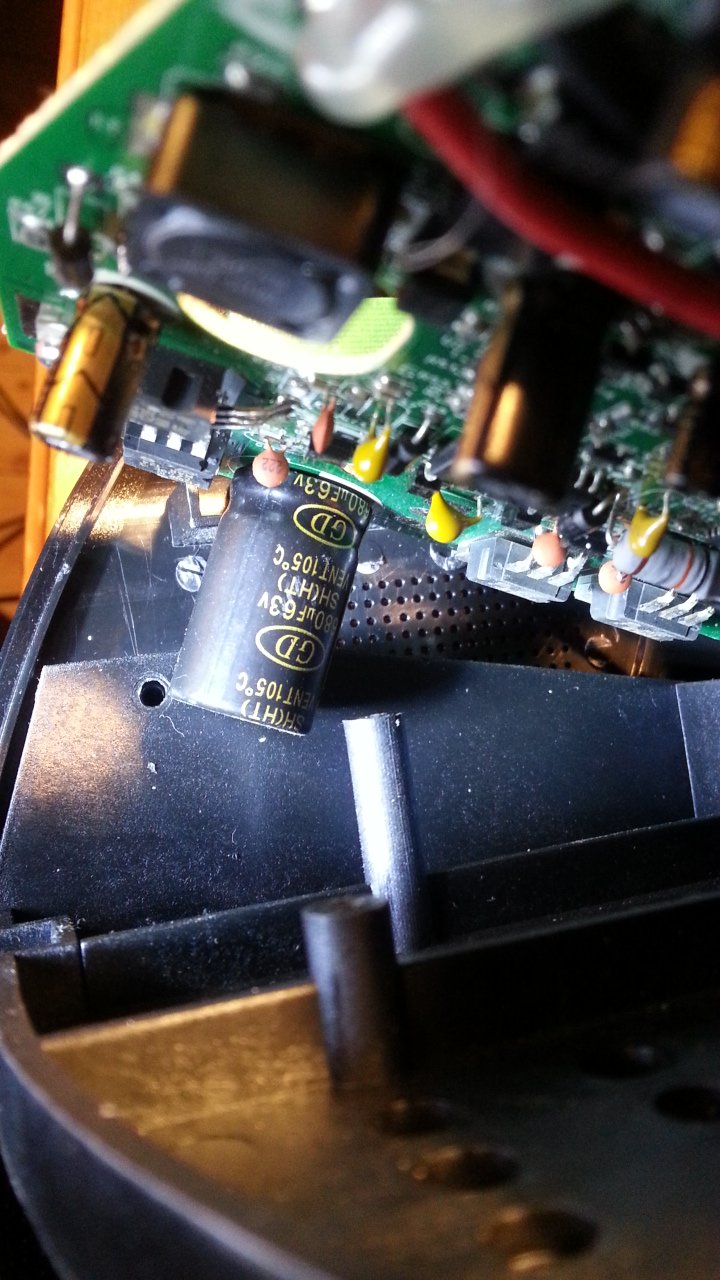

    I found a picture of a burned T500RS due to a short out of a bent pin, eventually you can detect something already...
  19. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    An other one but not sharp enough:
    [​IMG]
  20. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,012
    Location:
    Switzerland
    Balance:
    30,437Coins
    Ratings:
    +3,089 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF

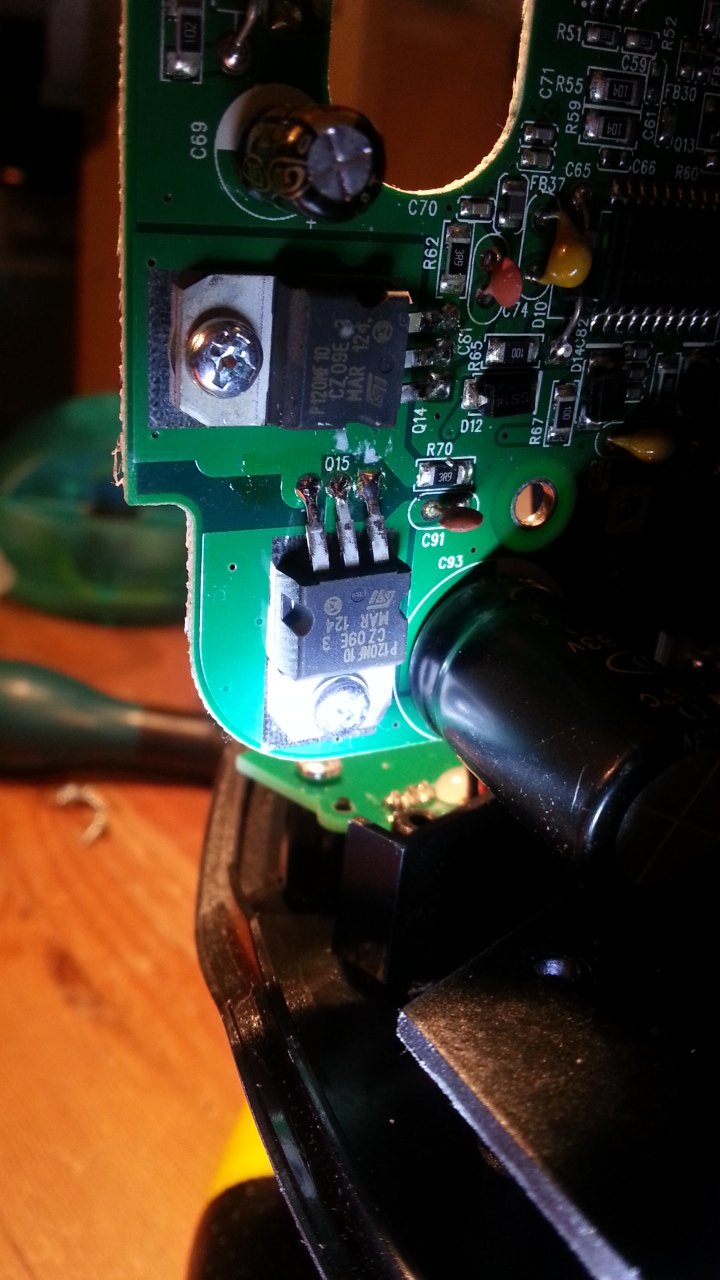

    Food for the electricians ;) There are four P120NF10 on the board.
    BTW to disassemble the motor of the T500RS obviously I have to disassemble the complete wheel... :-/
