Discussion in 'DIY Motion Simulator Projects' started by bafien, Feb 7, 2017.

  1. bafien

    bafien New Member

    Joined:
    Mar 11, 2016
    Messages:
    6
    Location:
    france
    Balance:
    21Coins
    Ratings:
    +13 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino
    Steel is not the solution !
    Wood will bring you to the next level...

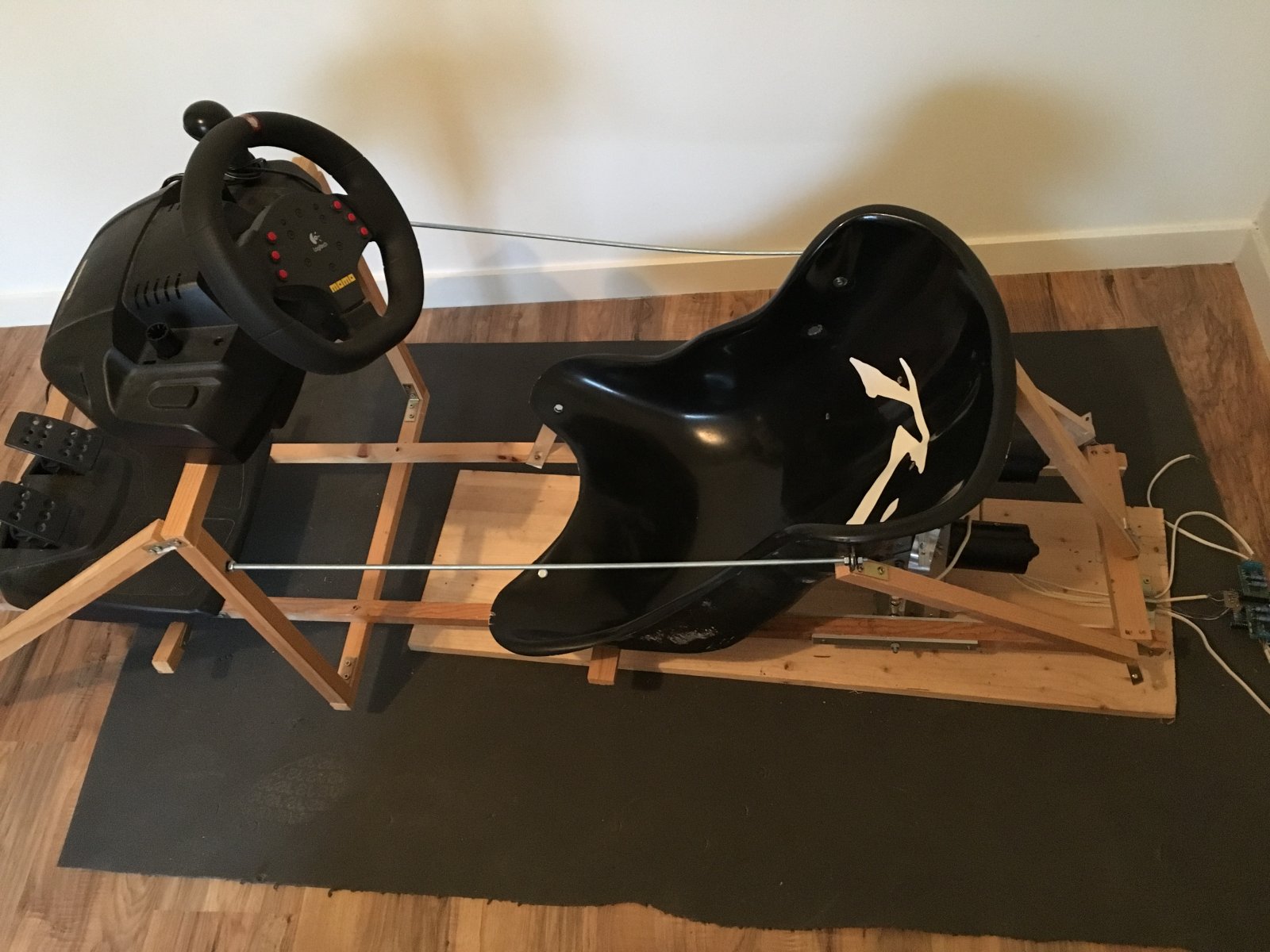

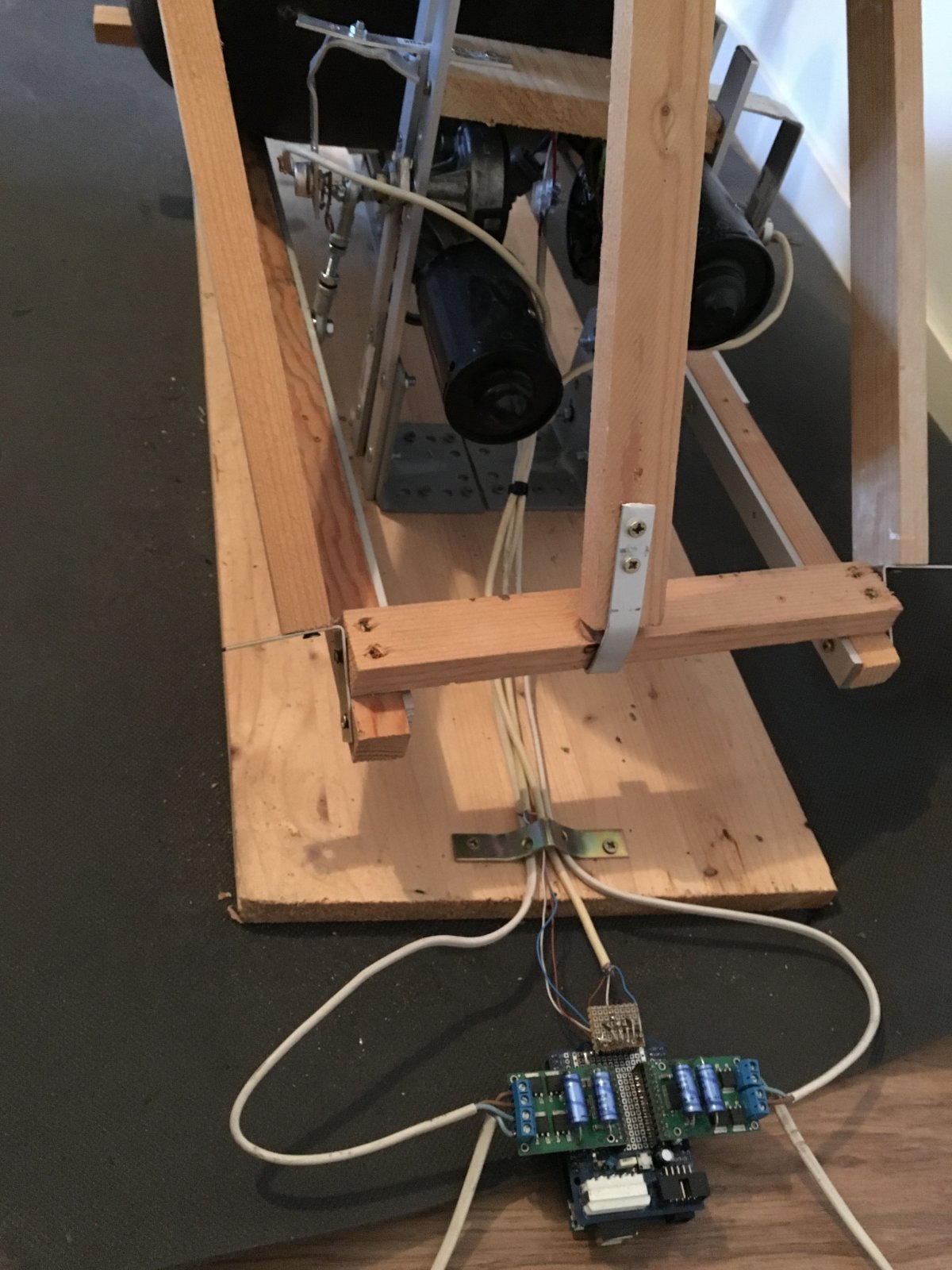

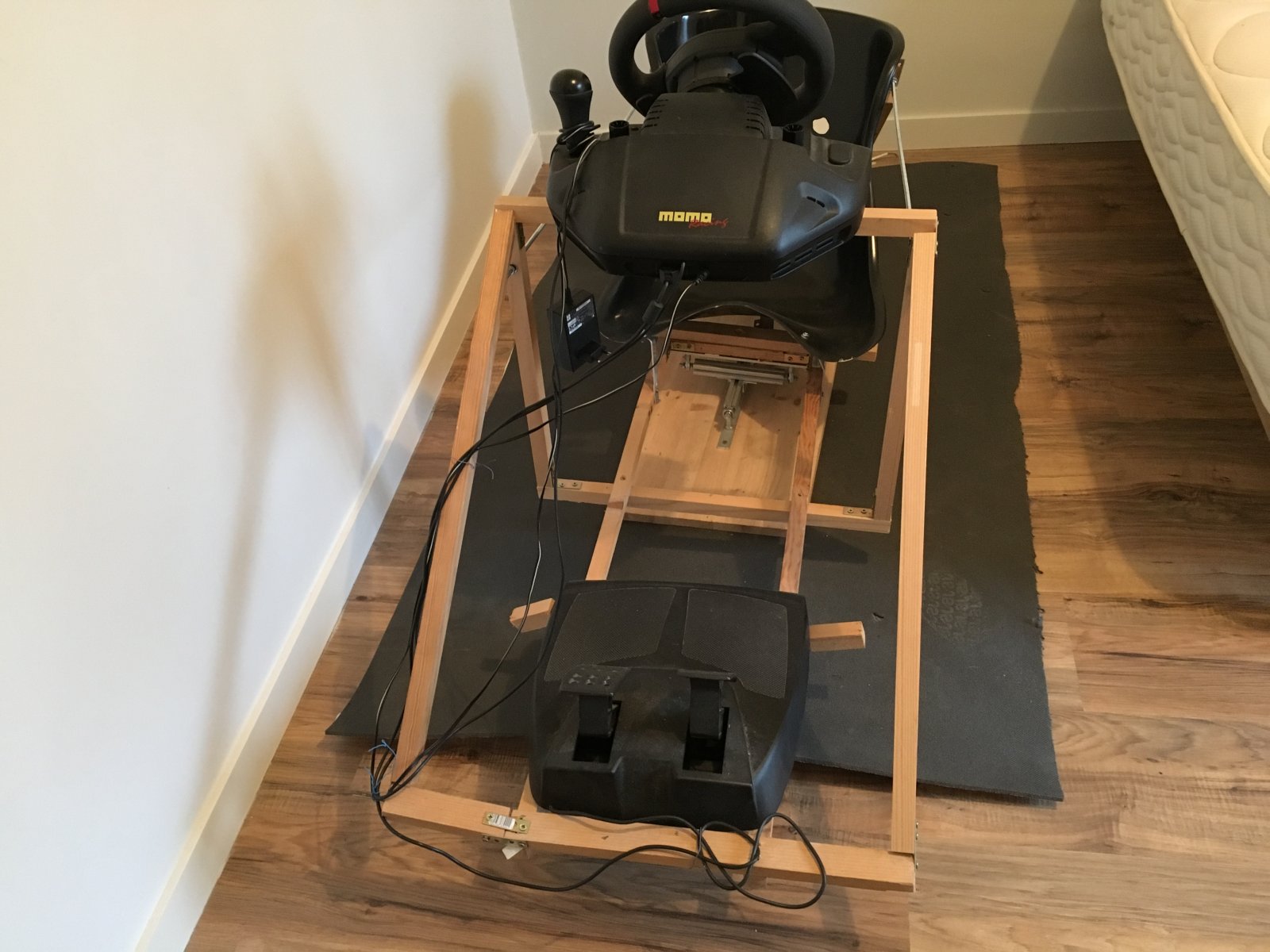

    IMG_2135.JPG IMG_2137.JPG IMG_2136.JPG
    This is a 2DOF simulator "light".
    1 x Arduino
    2 x POLOLU 24V23
    2 x windscreen wiper (renault scenic)
    home made joint (4 balljoints and hollow section)
    and wood !!
    • Optimistic Optimistic x 2
    • Like Like x 1
    • Funny Funny x 1
    • Creative Creative x 1
    bafien, Feb 7, 2017
    #1
  2. Archie

    Archie Eternal tinkerer

    Joined:
    Dec 31, 2014
    Messages:
    1,081
    Location:
    Wollongong, NSW, AU
    Balance:
    3,796Coins
    Ratings:
    +1,379 / 4 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK
    Would like to a see of video of that in motion.
    • Agree Agree x 2
    Archie, Feb 7, 2017
    #2
  3. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,779
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    17,054Coins
    Ratings:
    +2,504 / 30 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    Close but not the cheapest. :p

    • Agree Agree x 3
    • Like Like x 1
    • Funny Funny x 1
    Nick Moxley, Feb 8, 2017
    #3
  4. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,535
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,034Coins
    Ratings:
    +10,776 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    It would be cheaper still with a single motor and using a tilting office chair.
    • Agree Agree x 1
    noorbeast, Feb 8, 2017
    #4
  5. bafien

    bafien New Member

    Joined:
    Mar 11, 2016
    Messages:
    6
    Location:
    france
    Balance:
    21Coins
    Ratings:
    +13 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino
    ok, I have to be more precise, then :
    "The cheapest 2DOF wooden DIY Simu with close to race position driving with non IKEA furniture".:D
    But your IKEA seat idea is really smart !! Be carefull your back, some lumbago or lower back pain could happend.

    As soon as I have switched from Sim1.3 to Sim2.0, I will do video, for sure.
    • Funny Funny x 3
    • Like Like x 1
    bafien, Feb 8, 2017
    #5
  6. bafien

    bafien New Member

    Joined:
    Mar 11, 2016
    Messages:
    6
    Location:
    france
    Balance:
    21Coins
    Ratings:
    +13 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino
    Ok, I have a little video. But how to add it on my thread ?
    bafien, Feb 10, 2017
    #6
  7. bafien

    bafien New Member

    Joined:
    Mar 11, 2016
    Messages:
    6
    Location:
    france
    Balance:
    21Coins
    Ratings:
    +13 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino
    I think this should work :

    bafien, Feb 10, 2017
    #7
  8. shannonb1

    shannonb1 Well-Known Member

    Joined:
    Mar 12, 2008
    Messages:
    1,107
    Occupation:
    Sales Intelligence
    Location:
    Virginia
    Balance:
    8,909Coins
    Ratings:
    +598 / 5 / -0
    My Motion Simulator:
    2DOF, AC motor, Arduino, JRK, 4DOF
    bahaha....that thing is going to rattle apart
    shannonb1, Feb 10, 2017
    #8
  9. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,779
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    17,054Coins
    Ratings:
    +2,504 / 30 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    As harsh as it may sound, I have to agree with Shannon on this one, some of those structural parts are very poorly assembled with Woefully undersized lumber and supports. It may last a few days, but surely wont stand the test of time.
    • Agree Agree x 2
    Nick Moxley, Feb 11, 2017
    #9
  10. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,619
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    20,400Coins
    Ratings:
    +3,480 / 34 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    I will be positive in some way :) its a good proof of concept and it works well
    SilentChill, Feb 11, 2017
    #10
  11. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,013
    Location:
    Switzerland
    Balance:
    30,415Coins
    Ratings:
    +3,088 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    I wonder how it looks when you are sitting in the seat? BTW don't be disappointed if something is not just perfect, while your design is pretty interesting in opposite to the stiffness which could be a point of any discussion :)
    Pit, Feb 11, 2017
    #11
  12. shannonb1

    shannonb1 Well-Known Member

    Joined:
    Mar 12, 2008
    Messages:
    1,107
    Occupation:
    Sales Intelligence
    Location:
    Virginia
    Balance:
    8,909Coins
    Ratings:
    +598 / 5 / -0
    My Motion Simulator:
    2DOF, AC motor, Arduino, JRK, 4DOF
    i would be more worried about that twisting...i imagine you are gonna break some POT/Hall Sensors and possibly some electronics at the same time. I also notice there are places where it looks like you measured wrong and then tried to make bracing straps. At least you got your electrons working which for many is the hardest part.
    • Agree Agree x 1
    shannonb1, Feb 12, 2017
    #12
  13. shannonb1

    shannonb1 Well-Known Member

    Joined:
    Mar 12, 2008
    Messages:
    1,107
    Occupation:
    Sales Intelligence
    Location:
    Virginia
    Balance:
    8,909Coins
    Ratings:
    +598 / 5 / -0
    My Motion Simulator:
    2DOF, AC motor, Arduino, JRK, 4DOF
    and FYI while harsh I can be helpful!
    • Like Like x 1
    • Friendly Friendly x 1
    shannonb1, Feb 12, 2017
    #13
  14. bafien

    bafien New Member

    Joined:
    Mar 11, 2016
    Messages:
    6
    Location:
    france
    Balance:
    21Coins
    Ratings:
    +13 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino
    I ear some skeptical here !
    But this has been built a year ago and more than hundred LFS laps have been done since then !
    Yes, it craks like a old wooden ship but it goes thru the tempest.
    This was just a try, not an ambitious rig project. I don't have a room for that. So it must be easily movable. And I don't have welding station.
    It was more a PTIW than a DIY ! (PTIW stands for Pray that it works) but I learn a lot with that bunch of wood and with all your advices and articles on the site. Thanks a lot everyone !!

    And I want to congratulate Silent Chill for his 6DOF rig ! It is amazing !

    Here is a little video of my bloody rig in action :

    <iframe frameborder="0" width="480" height="270" src="//www.dailymotion.com/embed/video/x5damvq" allowfullscreen></iframe><br /><a href="" target="_blank">In simu I believe !</a> <i>par <a href="http://www.dailymotion.com/bafien332" target="_blank">bafien332</a></i>
    • Like Like x 6
    bafien, Feb 26, 2017
    #14
