My precious 2 DOF simulator

Discussion in 'DIY Motion Simulator Projects' started by hb kim, Jun 16, 2017.

  1. hb kim

    hb kim Member

    Joined:
    Nov 12, 2015
    Messages:
    46
    Location:
    incheon, korea
    Balance:
    602Coins
    Ratings:
    +10 / 1 / -0
    My Motion Simulator:
    2DOF, SCN5
    It has been almost 3 years since I built my own 2dof motion chair..
    the work was really interesting. look on my works mighty, and despair...haha

    I bought SCN5-010 from Frex in Japan cause I heard that it is easy to setup with Simtools. it was expensive but good.

    scn test.jpg

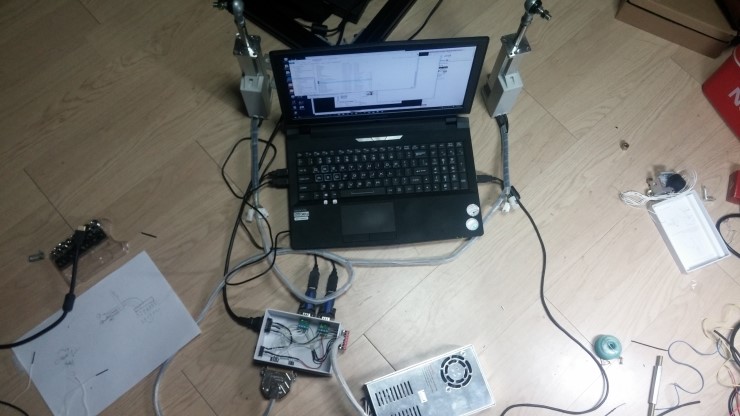

    and I bought rs485 to usb converter to connect SCN motor to my computer and 24v-350w power supply.

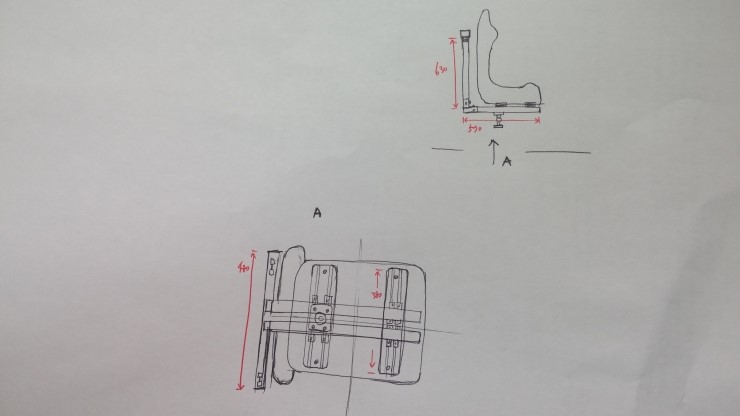

    The most challenging thing was.. how to mount seat on the motor.. so I tried to draw what I imagined

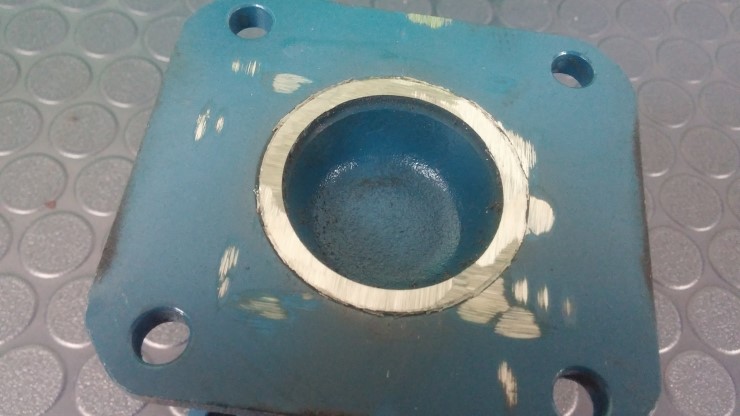

    this is the universal joint.. I grinded off stick-out part so that I can stick it with the frame completely.

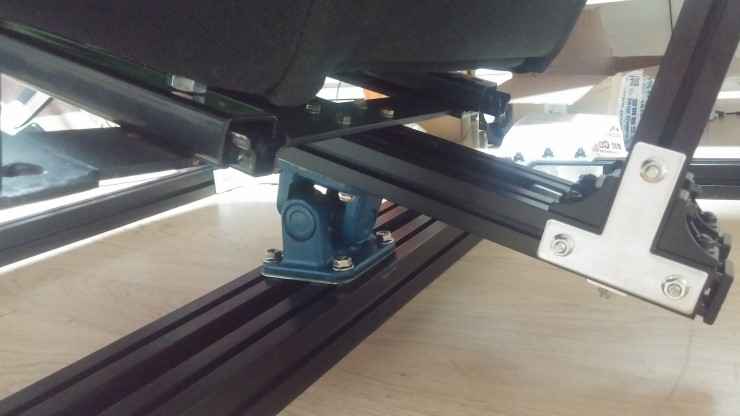

    joint and seat.jpg

    drilling, grinding, sanding.. it was hard but interesting.. I realized this is what I like to do.. finally I found what I can do well..hahaha

    I used aluminium profile for the frame.. I don't know what you guys call this kind of bars, we call it profile in Korea..

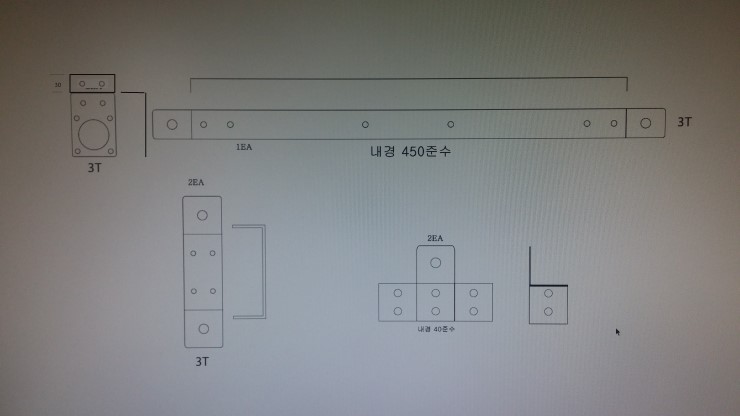

    to connect SCN motors and seat, I drew some connecting parts. it has to be strong enough to bear person's weight, so I chose hard-metal.

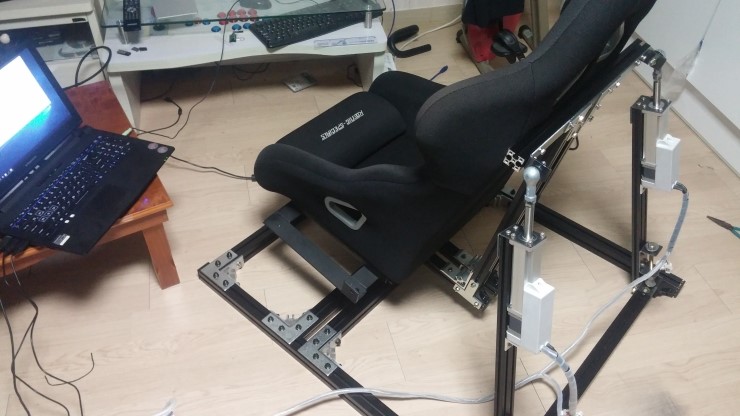

    this is my first version.

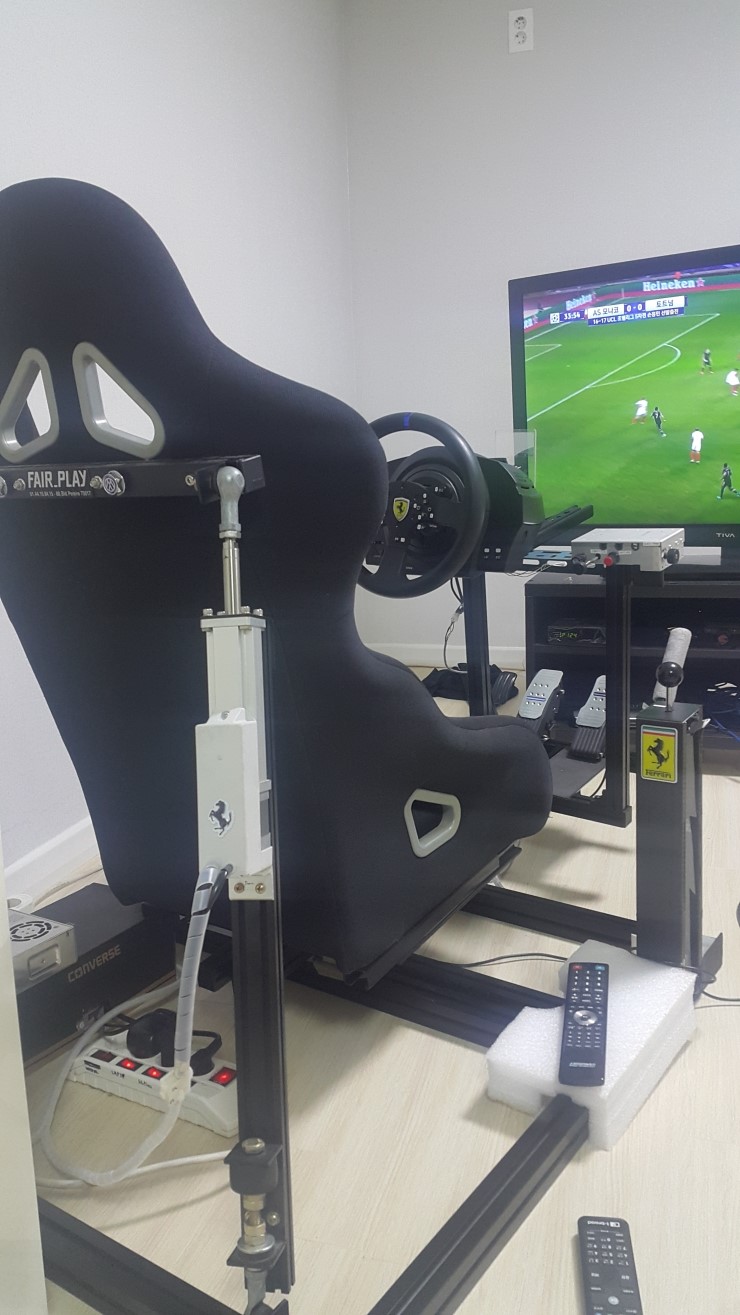

    and I put steering wheel, handbrake and some analog inputs now..

    and here is the video..
