Motion Simulator Using Linear Actuators

Discussion in 'New users start here - FAQ' started by Motionsai, Mar 15, 2018.

  1. Motionsai

    Motionsai New Member

    Joined:
    Mar 8, 2018
    Messages:
    1
    Location:
    India
    Balance:
    116Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    6DOF
    Hi all,

    I am creating a motion simulator platform for withstanding four people.
    The design is attached below .
    Dimensions of the frame( 240cm * 160 cm * 3.6 cm)
    {Length * Breadth * thickness}

    Specs of the Electric Linear actuators being used.
    Load - 2000 N.
    Speed - 20mm/ second.
    Voltage - 24V Dc.
    Stroke length: 450 mm.

    Th frame is made with mild steel. On the frame we are placing a stainless steel sheet.
    And two seater chairs are placed on opposite to each side on the SS sheet.

    Actuators are placed like 2 in left, 2 at the centre and 2 in right.
    Above the platform two seated Chairs are placed on the left set and right set of actuators.
    We have placed the left and right sets at a distance of 80cm apart.

    A maximum of 200 Kgs ( 2 persons seated on two seated chair) acts downwards, So there is a weight of 400 kgs in TOTAL ( 2000 N each actuator in TOTAL 4000 N) on the left and right sides of the platform.

    The application is syncing a Flight into real time like when the flight takes off, each set of actuators raise progressively.

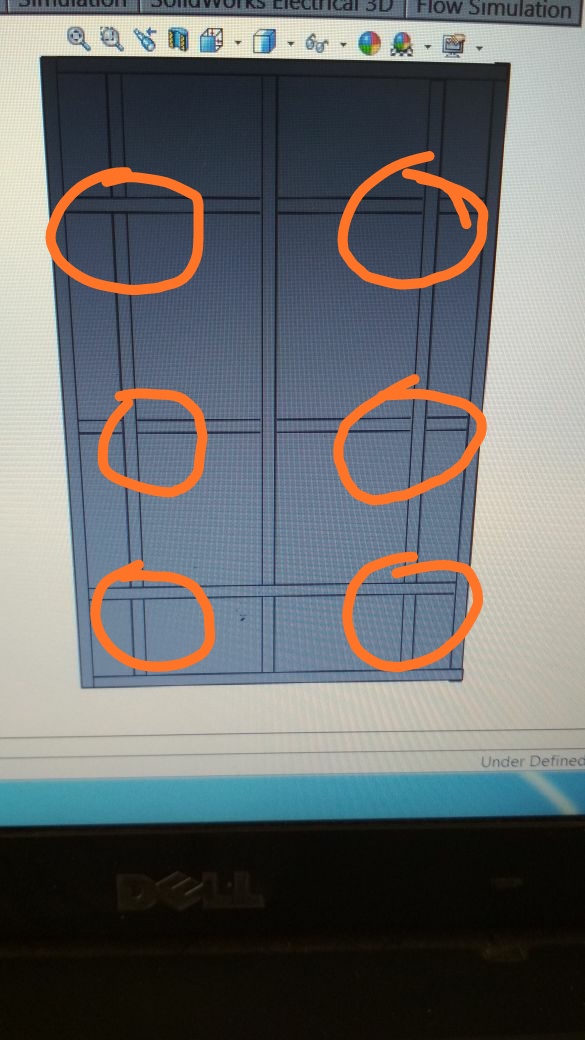

    The rounded regions are where the linear actuators are placed.
    ( 6 at 6 regions) .

    So, can the platform lift the load on full load condition?
    If there are any corrections I must make, enlighten me.
    Also, suggest if any other design would be even optimum.

    Attached Files:

    Motionsai, Mar 15, 2018
    #1
