Showroom Marksman Motion Sim School Project

Discussion in 'DIY Motion Simulator Projects' started by Marksman, Feb 9, 2019.

  1. Marksman

    Marksman New Member Gold Contributor

    Joined:
    Sep 13, 2018
    Messages:
    5
    Balance:
    11Coins
    Ratings:
    +0 / 0 / -0
    Hello,

    We are a project team of the Rudolf-Diesel-technical college in Nuremberg Germany. Right now we are in the third of four semesters to become a state certified technician (also known as Bachelor of Mechatronics).
    In our project we are building simulator for racing games. Our tasks are planning, documenting, assembling and commissioning of it. The simulator is going to be presented at many different events.

    We want to show you our Project and We would appreciate help.

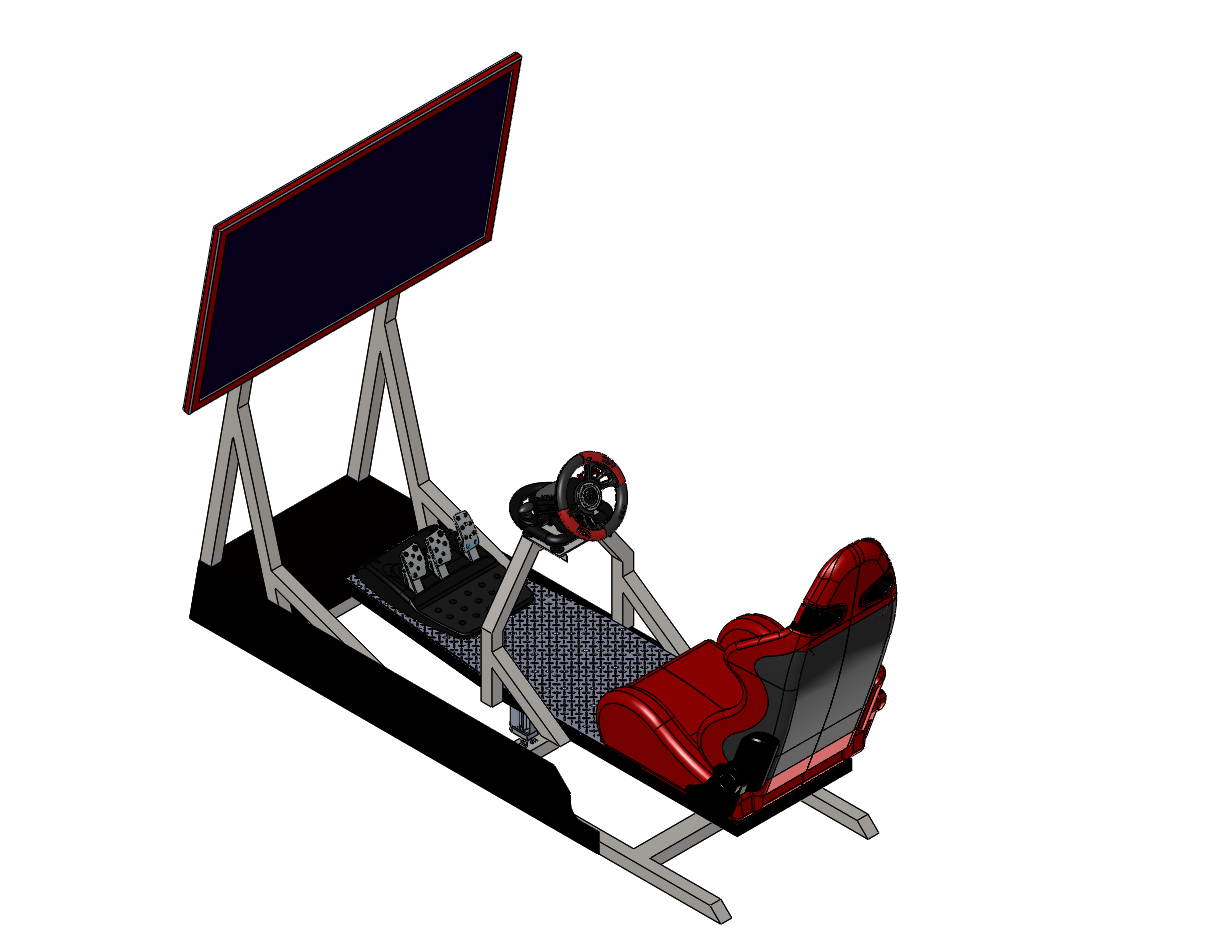

    This is our CAD construction.
    3D Model Neu Dimetrisch.png
    There are two elements the mainframe and the upper element.
    We want to build a 2 DOF system with two linear actors that are attached under the upper element.

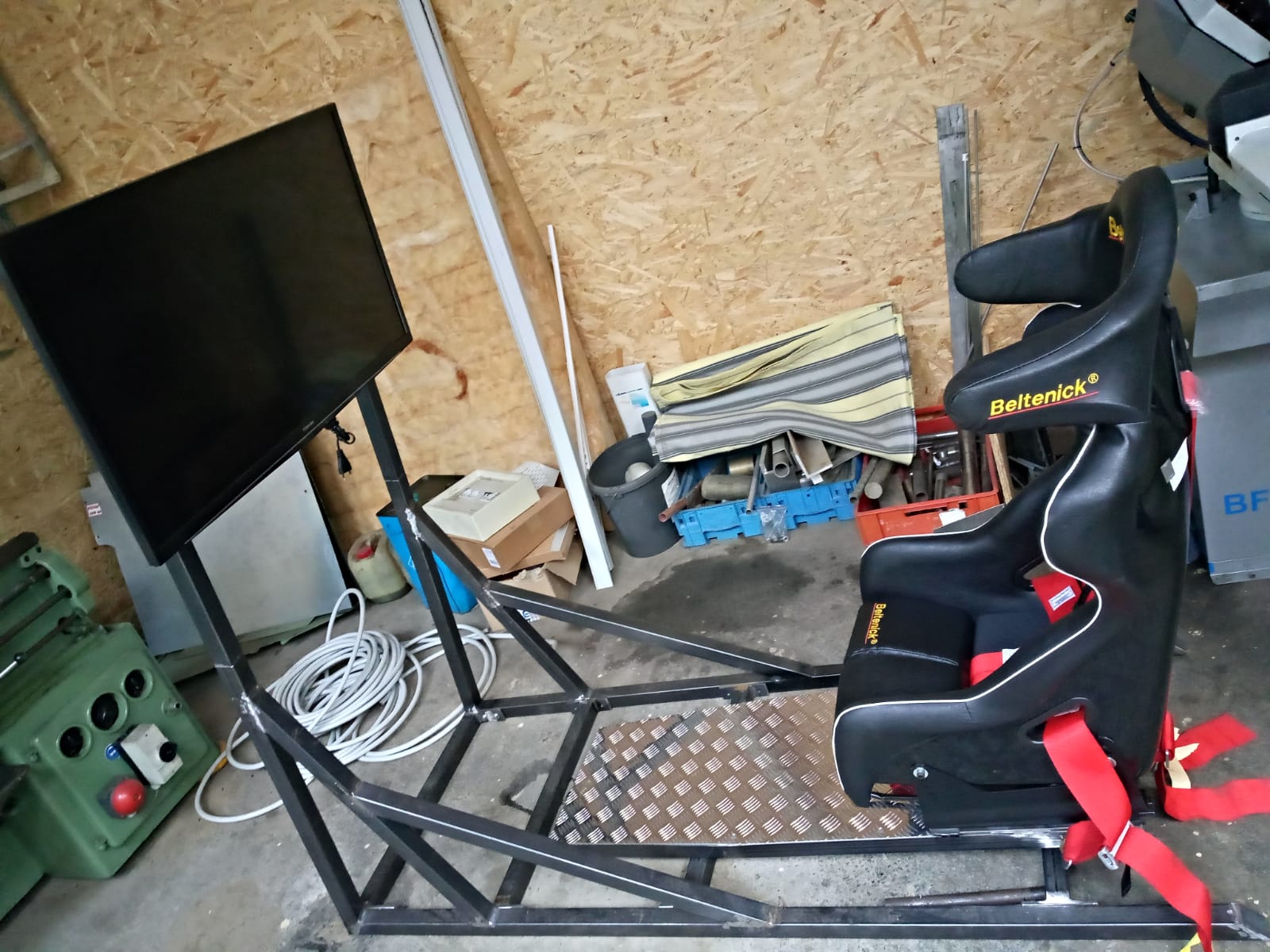

    and this is our current status.

    We still need the actors and a controller for them.
    if anybody got a idea for us it would be great!
    i will update this Thread every week from now on.
  2. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    12,614
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    96,486Coins
    Ratings:
    +8,106 / 40 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I look forward to hearing more about your project plans.

    You will find plenty to get you started in the FAQs: http://www.xsimulator.net/community/faq/

    You can also search for specific types of projects/ideas, like DIY actuators, using the Google Custom Search function on the Recent page: https://www.xsimulator.net/community/find-new/posts?recent=1

    We have a glossary for all those acronyms we tend to use, which will help you decipher some descriptions: http://www.xsimulator.net/community/faq/glossary-of-acronyms-and-names.66/
    Last edited: Feb 13, 2019
  3. Marksman

    Marksman New Member Gold Contributor

    Joined:
    Sep 13, 2018
    Messages:
    5
    Balance:
    11Coins
    Ratings:
    +0 / 0 / -0
    Thanks for your answer

    we choose a dc gearmotor with a
    maximum torque value from: 30 Nm
    maximum Current: 26A
    maximum performance: 80W
    free-wheel speed: 180 rpm
    runnable voltage 0-24V
    nominal voltage 24V
    reduction ratio 20:1

    and a Sabertooth 2X12

    do you think its going to work with this setting?

    best regards
  4. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    12,614
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    96,486Coins
    Ratings:
    +8,106 / 40 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
  5. Marksman

    Marksman New Member Gold Contributor

    Joined:
    Sep 13, 2018
    Messages:
    5
    Balance:
    11Coins
    Ratings:
    +0 / 0 / -0

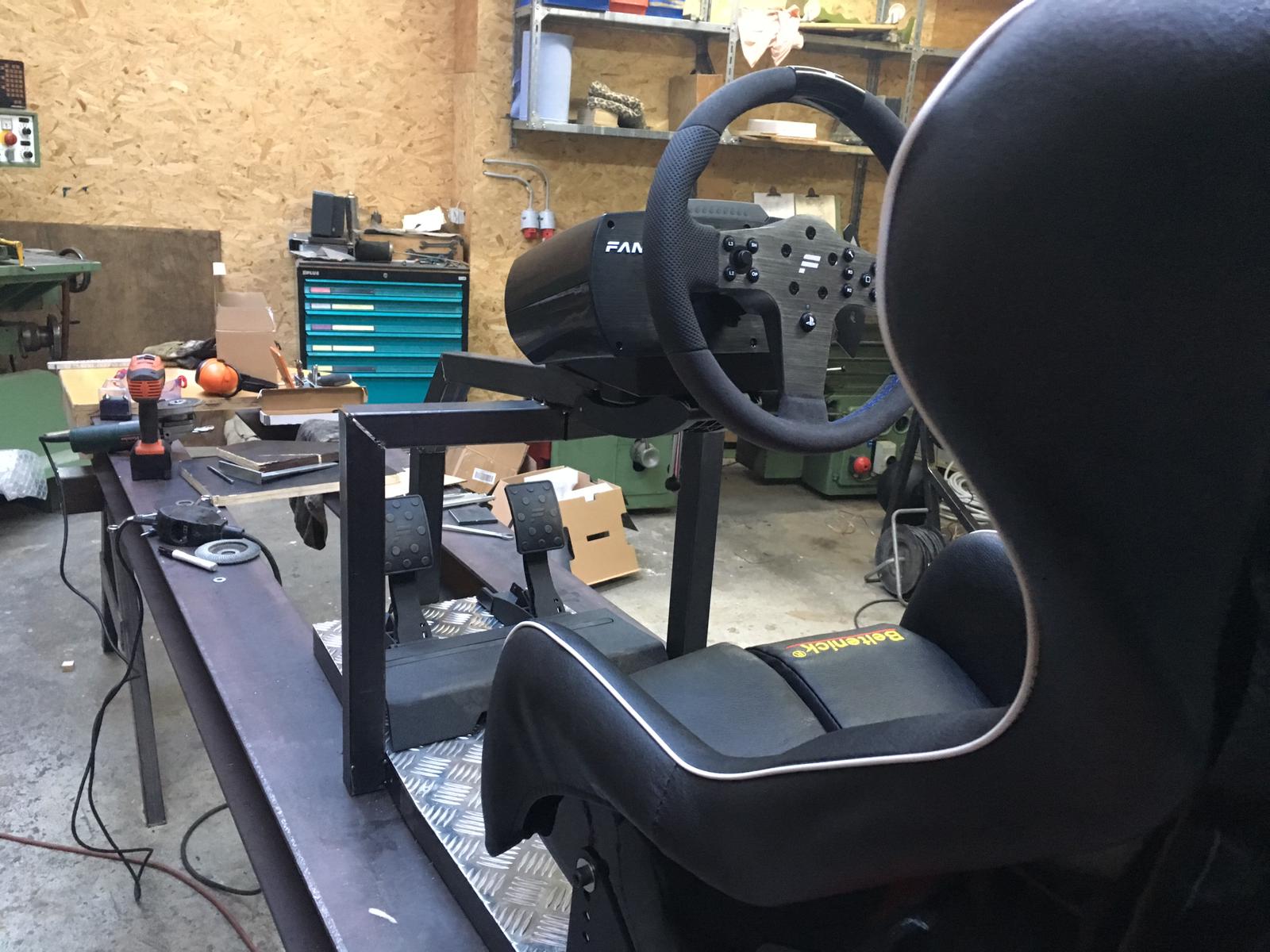

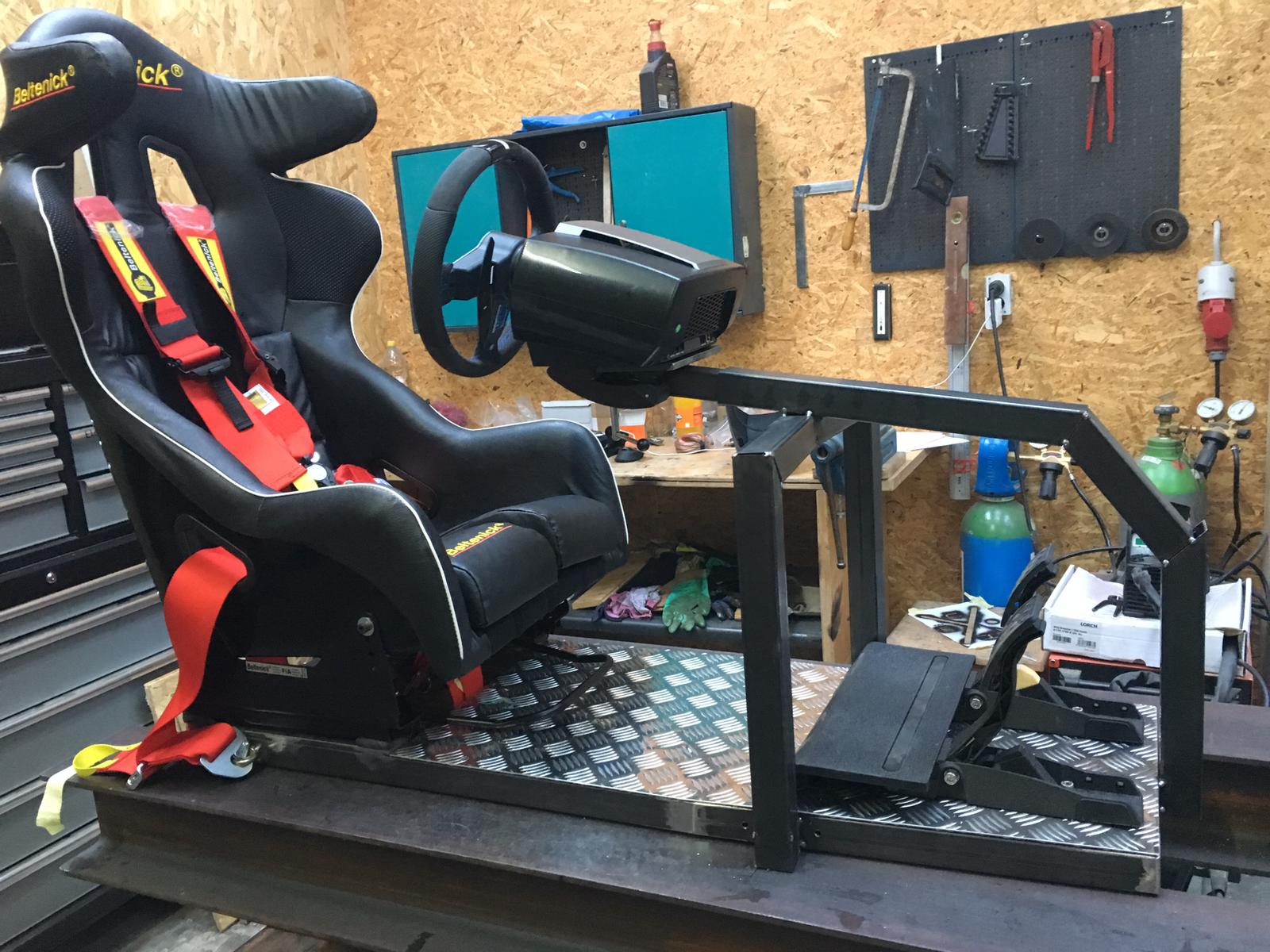

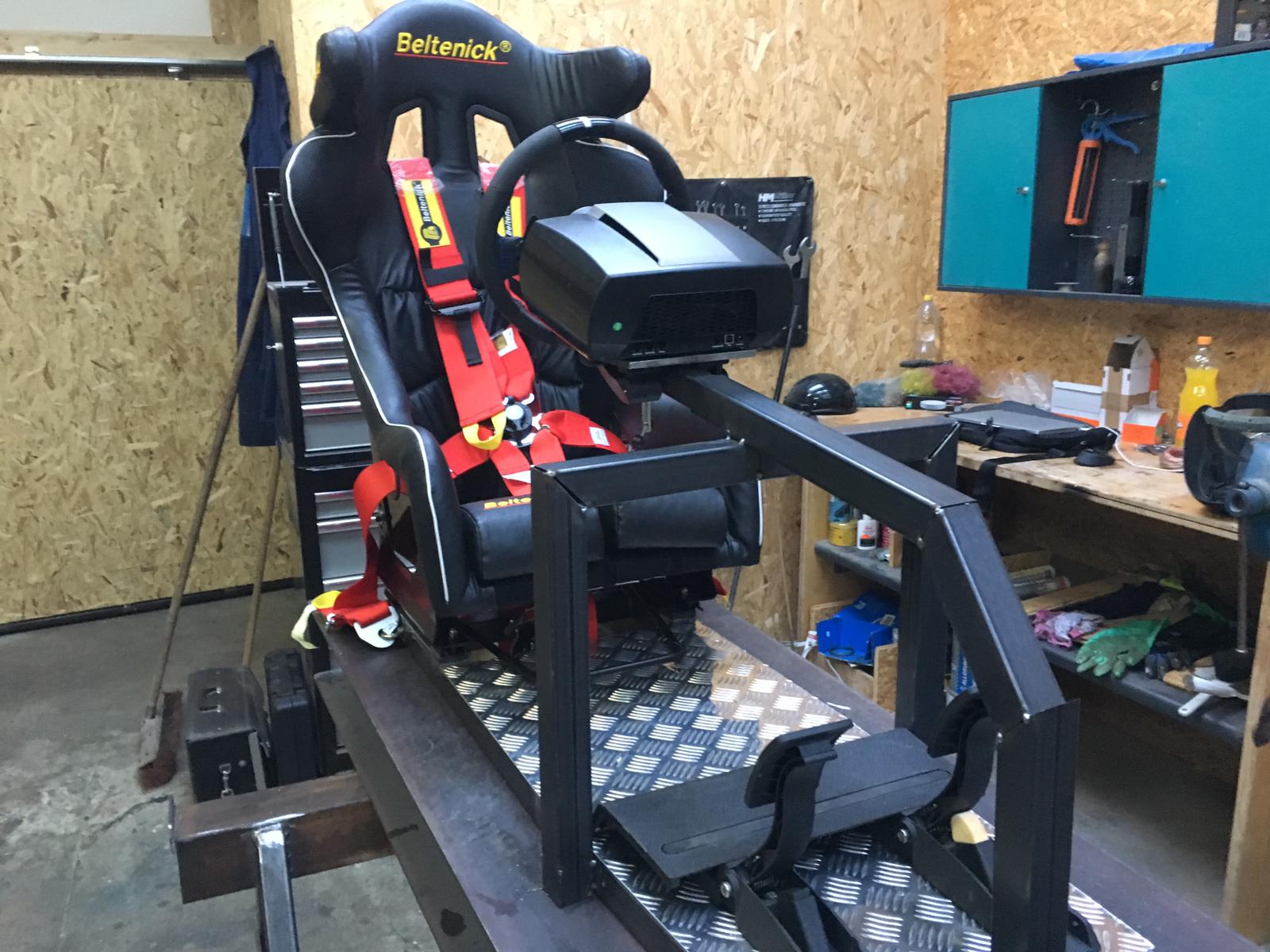

    WhatsApp Image 2019-02-14 at 16.35.41.jpeg WhatsApp Image 2019-02-14 at 16.35.42(1).jpeg WhatsApp Image 2019-02-14 at 16.35.42.jpeg update:
    As you can see on the pictures, we builded on a holding unit for the steering wheel. Also we mounted the steering wheel on it and mounted the pedals on the upper unit.
    Last edited: Feb 23, 2019
  6. Marksman

    Marksman New Member Gold Contributor

    Joined:
    Sep 13, 2018
    Messages:
    5
    Balance:
    11Coins
    Ratings:
    +0 / 0 / -0
    We also mounted two speakers and ordered two motors, one sabertooth 2x32 and two pots.

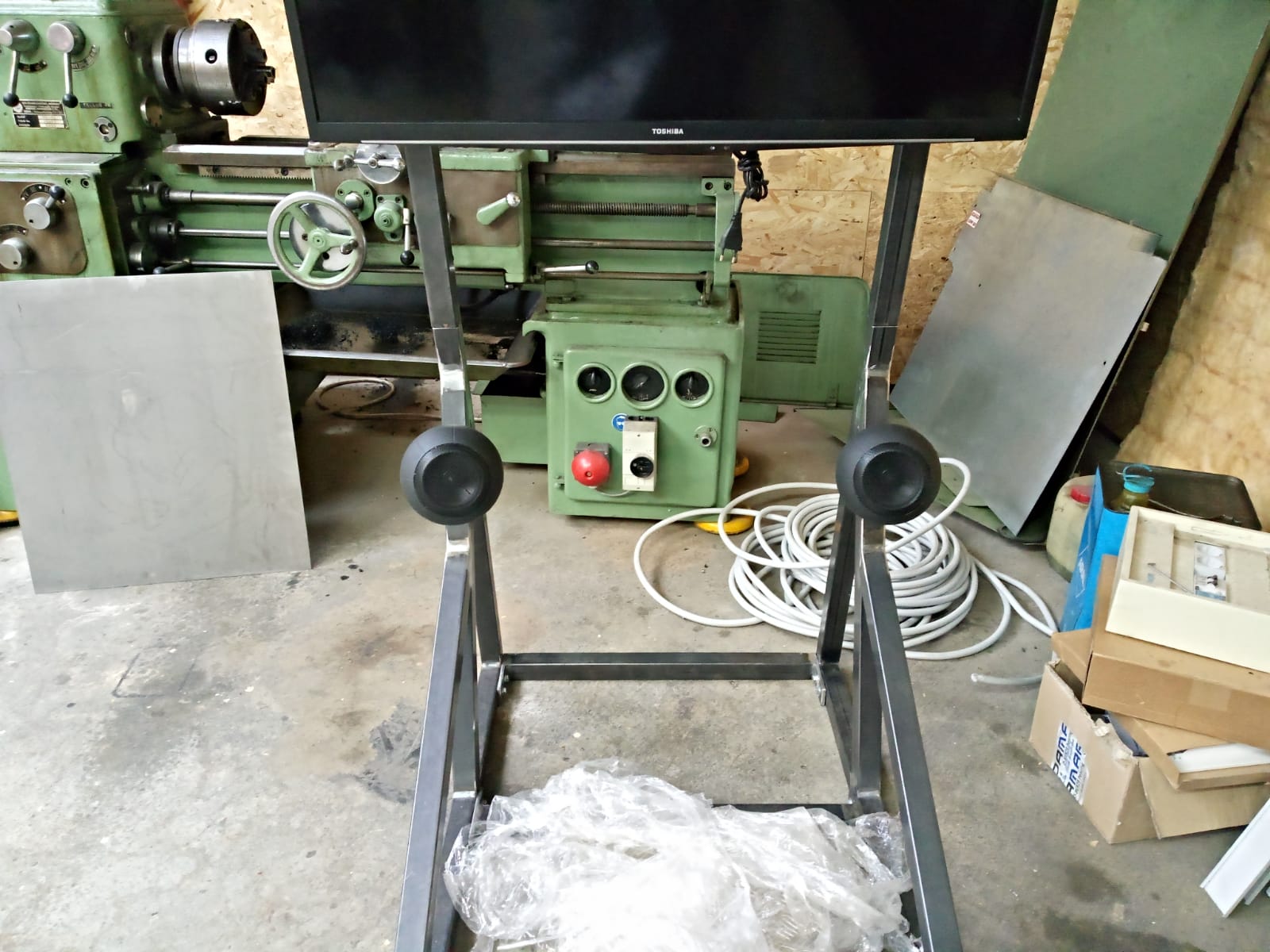

    WhatsApp Image 2019-02-13 at 14.59.05.jpeg
