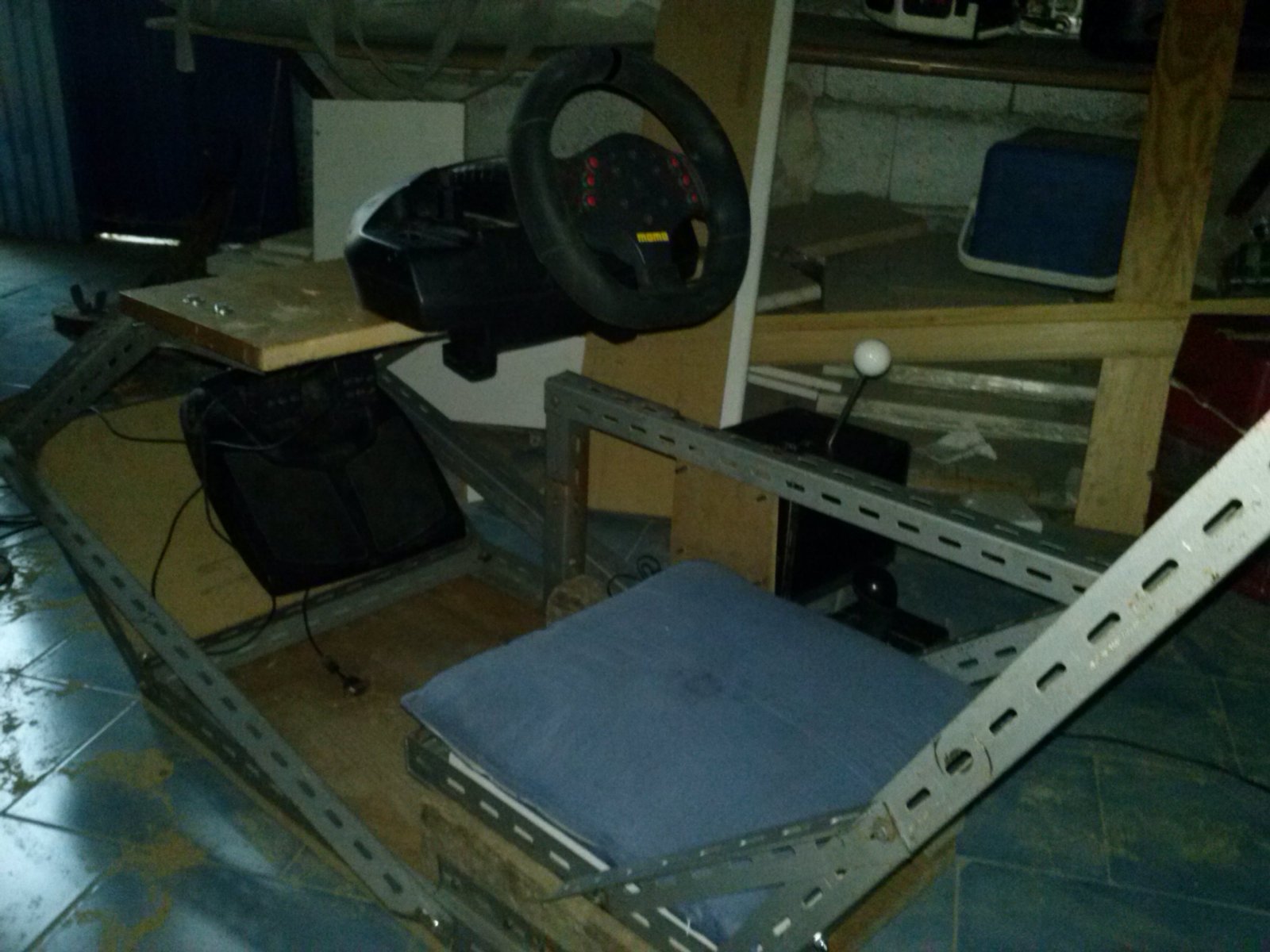

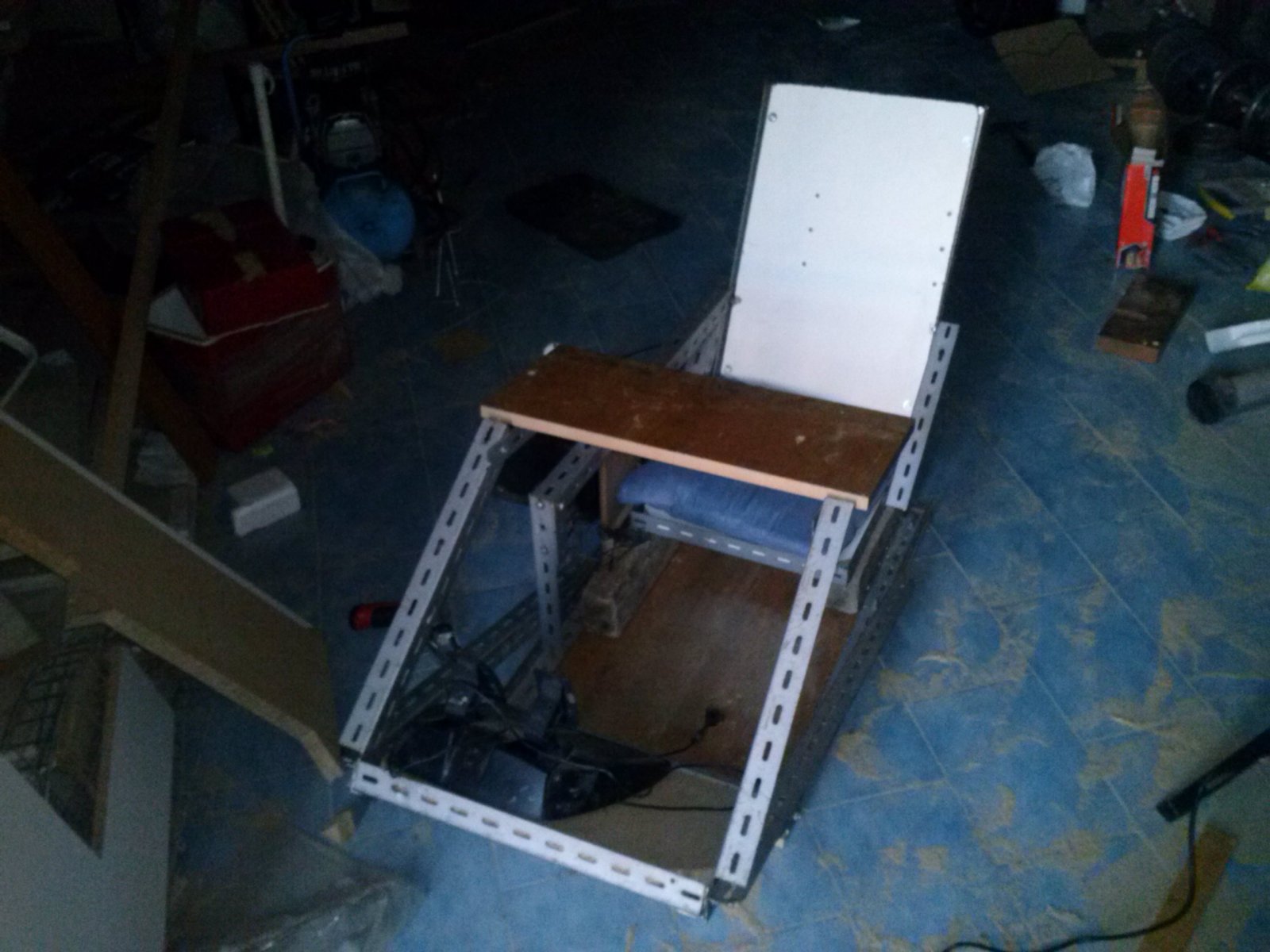

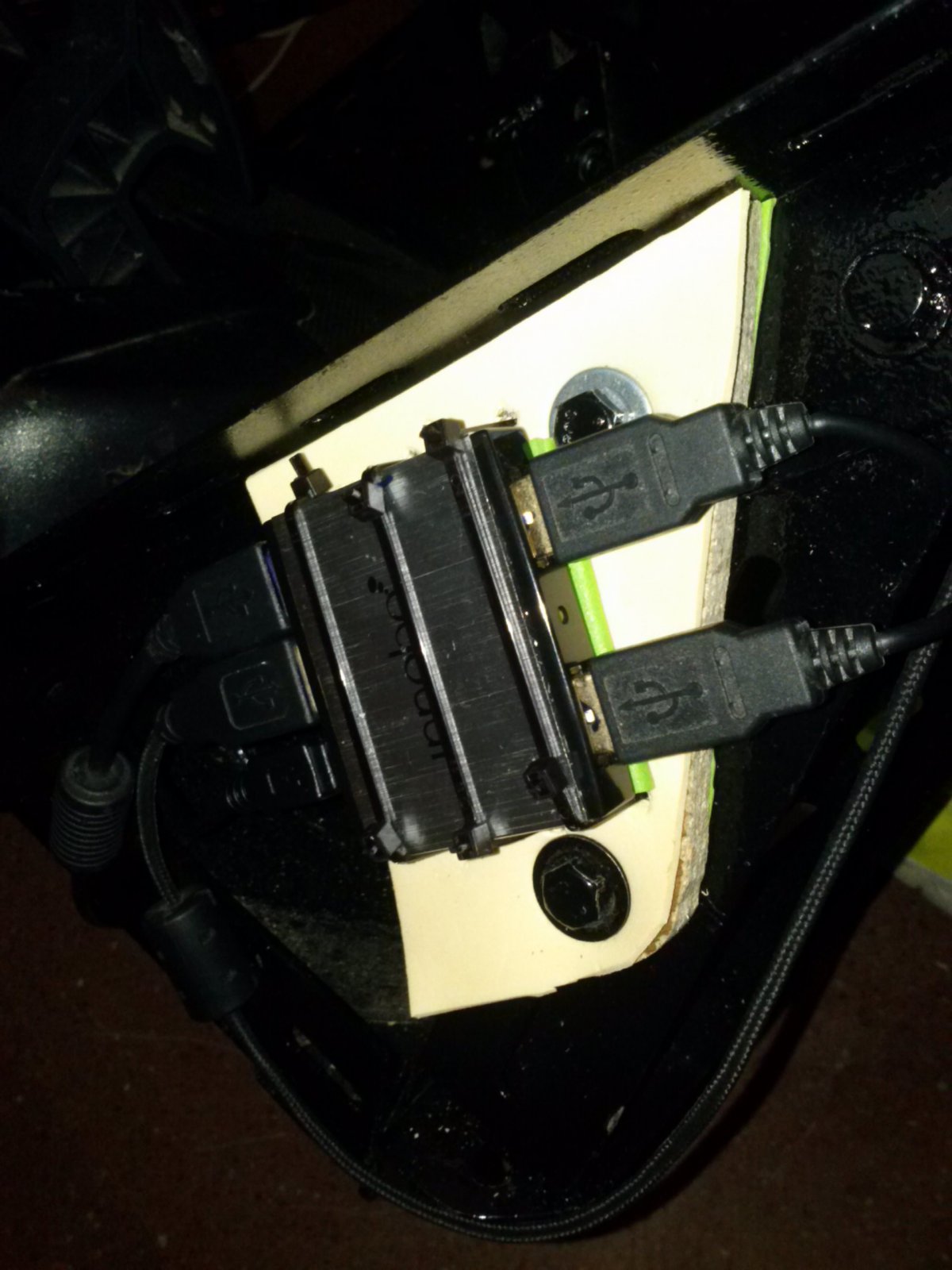

    hello I present a small draft motion simulator to do it on 2 dof case one can take her ideas ....
    Right now I'm still quite busy with electronics until you can fix small problems. I'll upload some photos and diagrams as I was riding it. greetings.

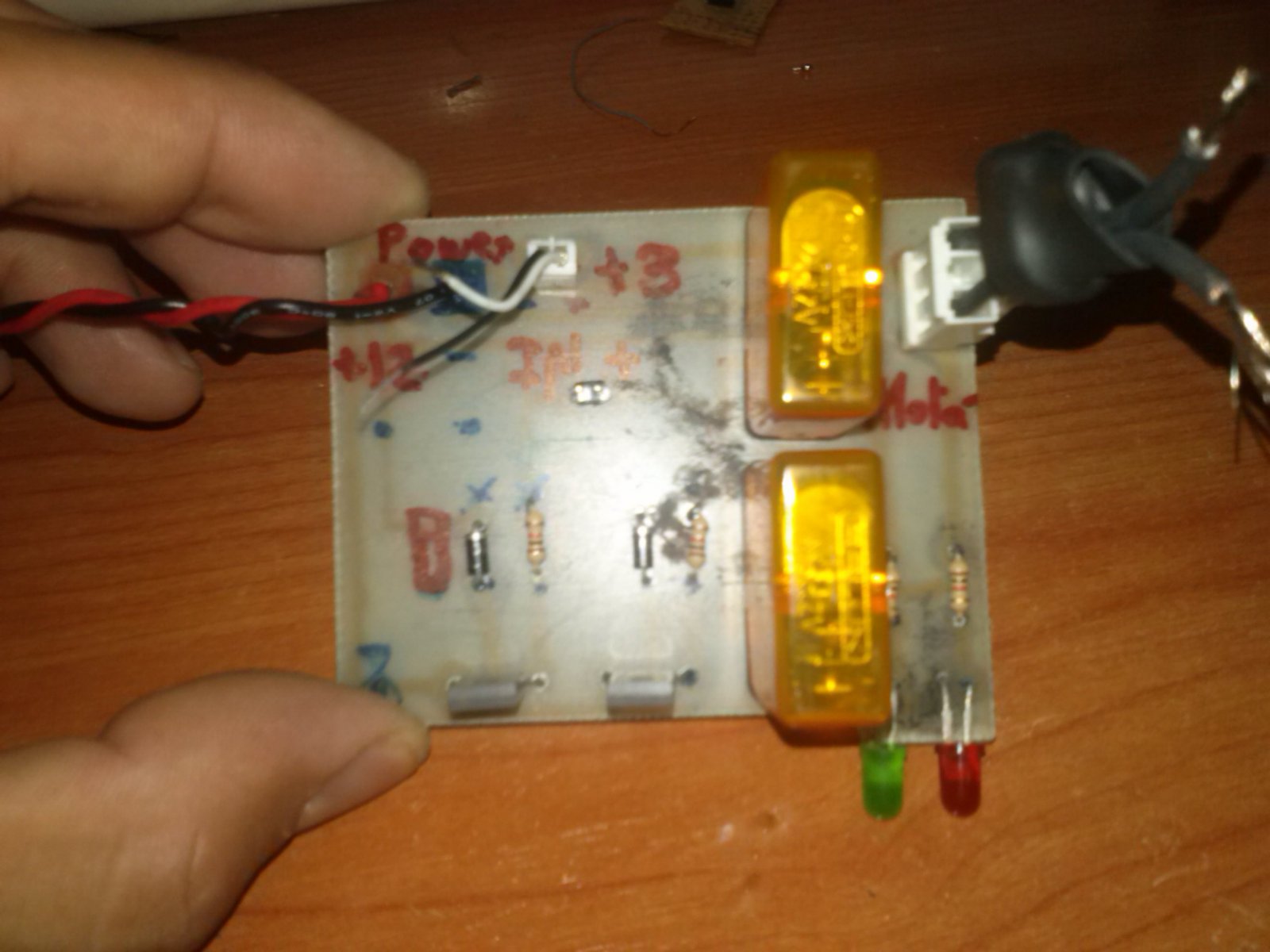

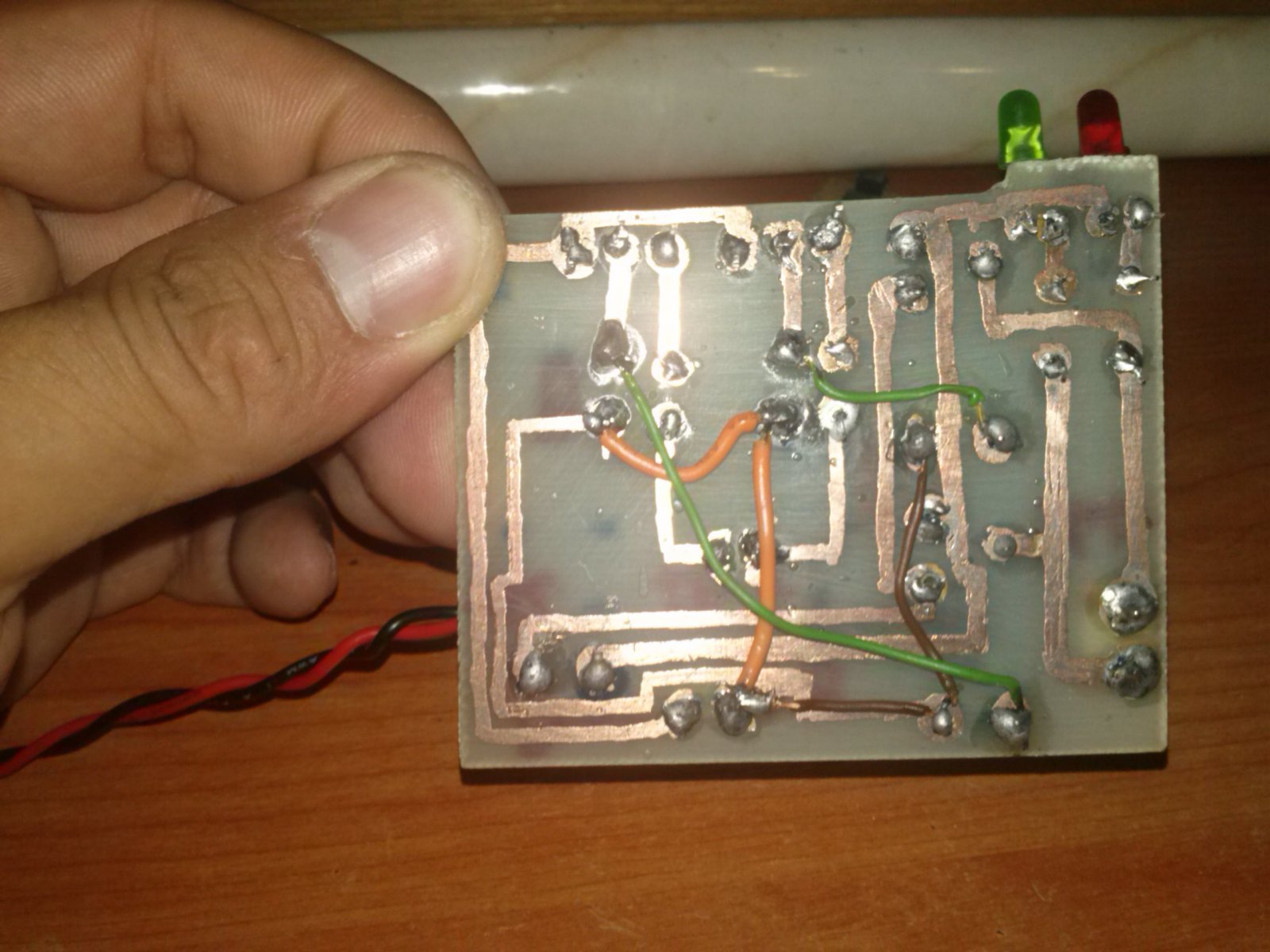

    The circuit that I represent in the photo is a bridge h with 2 transistors and relays to simplify electronics.

    I have to say also that it is equipped with multiple engines to give more realism to the simulator that act by the sound by vibrating the entire platform to the sound of the underside of the engine and when you go off the track. Later I will upload some motorcillos fotillos of vibration.

    Attached Files:

    • Like Like x 1
    Last edited: Sep 9, 2014
  2. Capitan

    Capitan New Member

    Joined:
    Feb 18, 2013
    Messages:
    16
    Balance:
    202Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

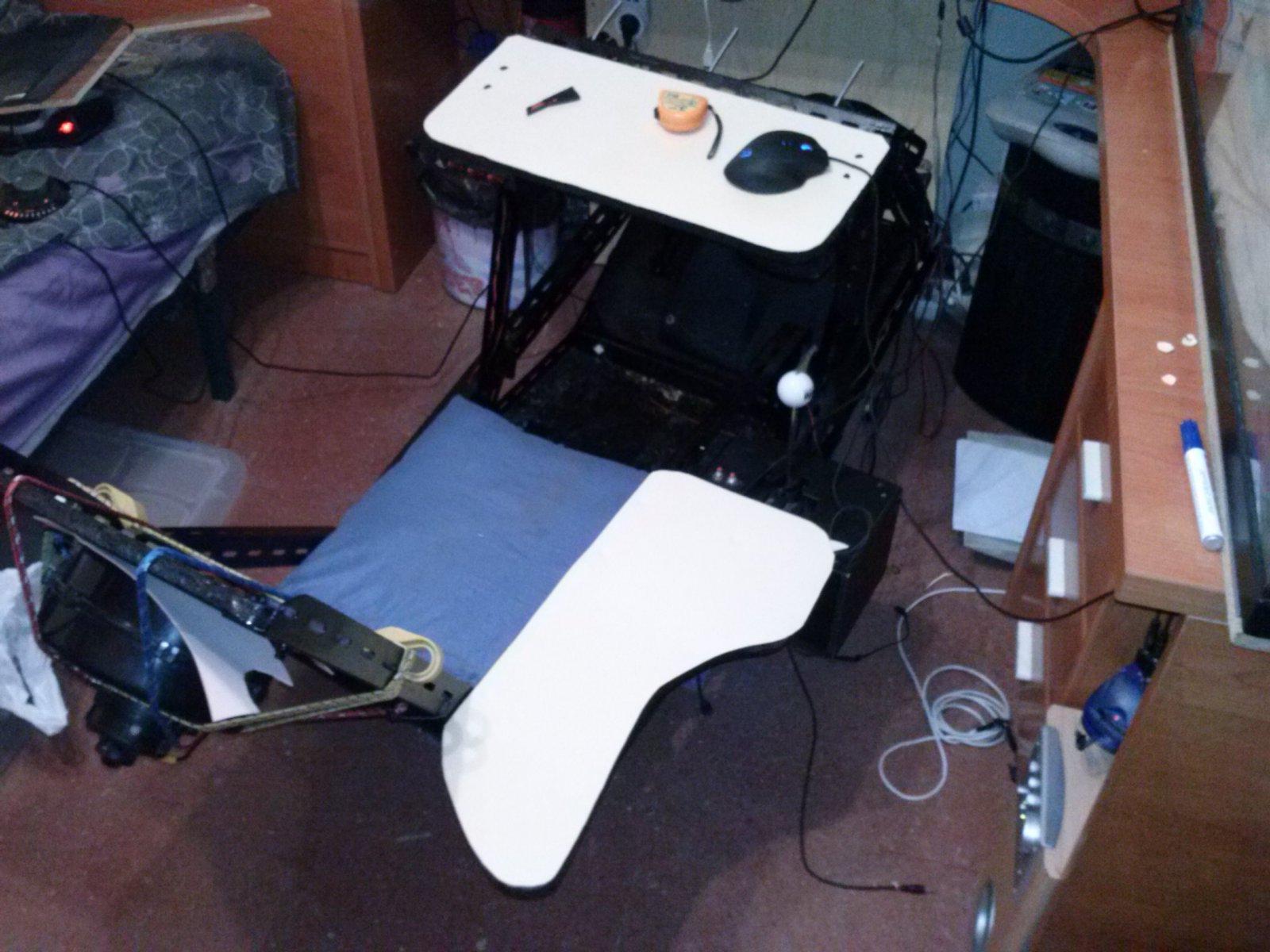

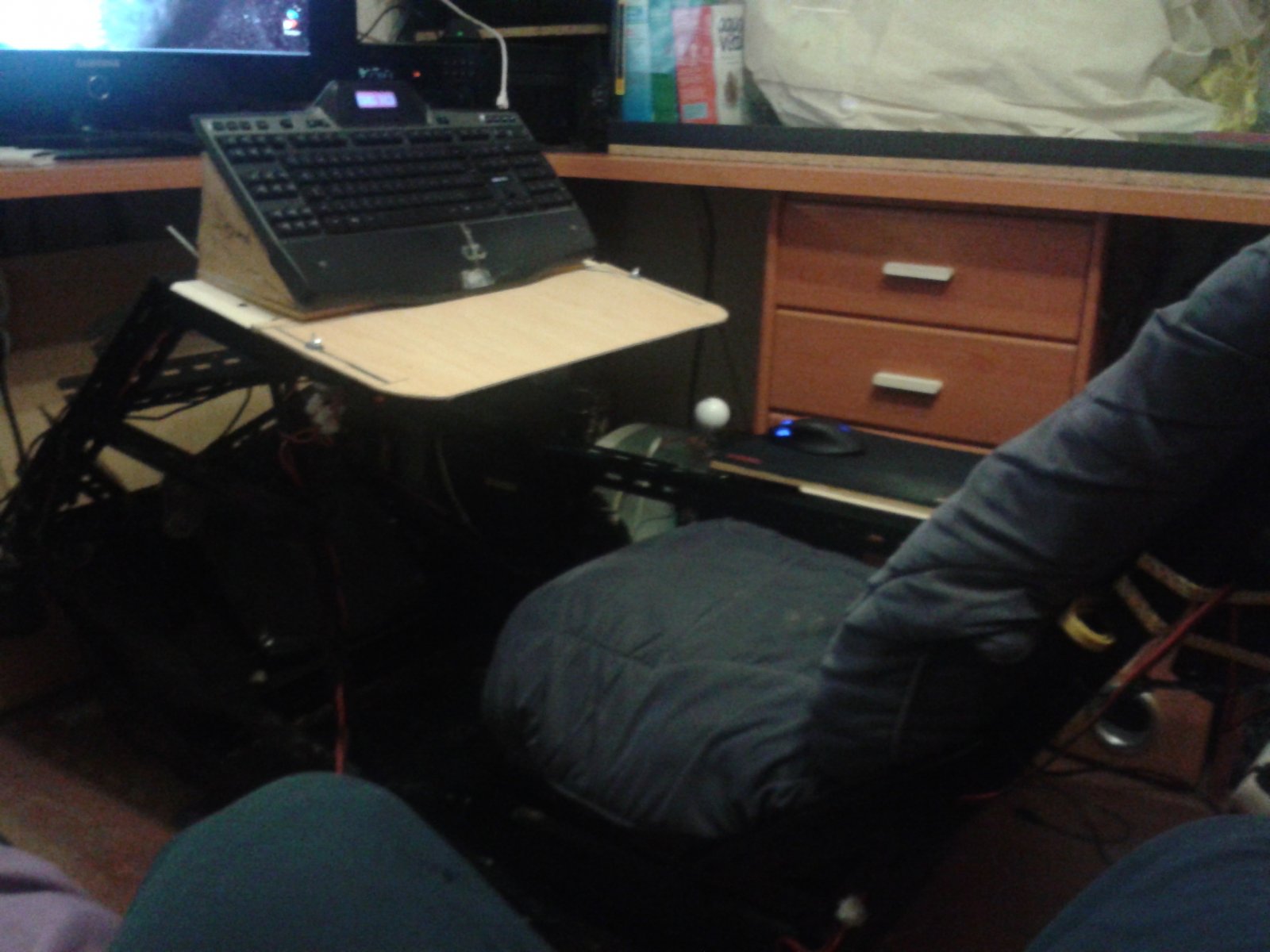

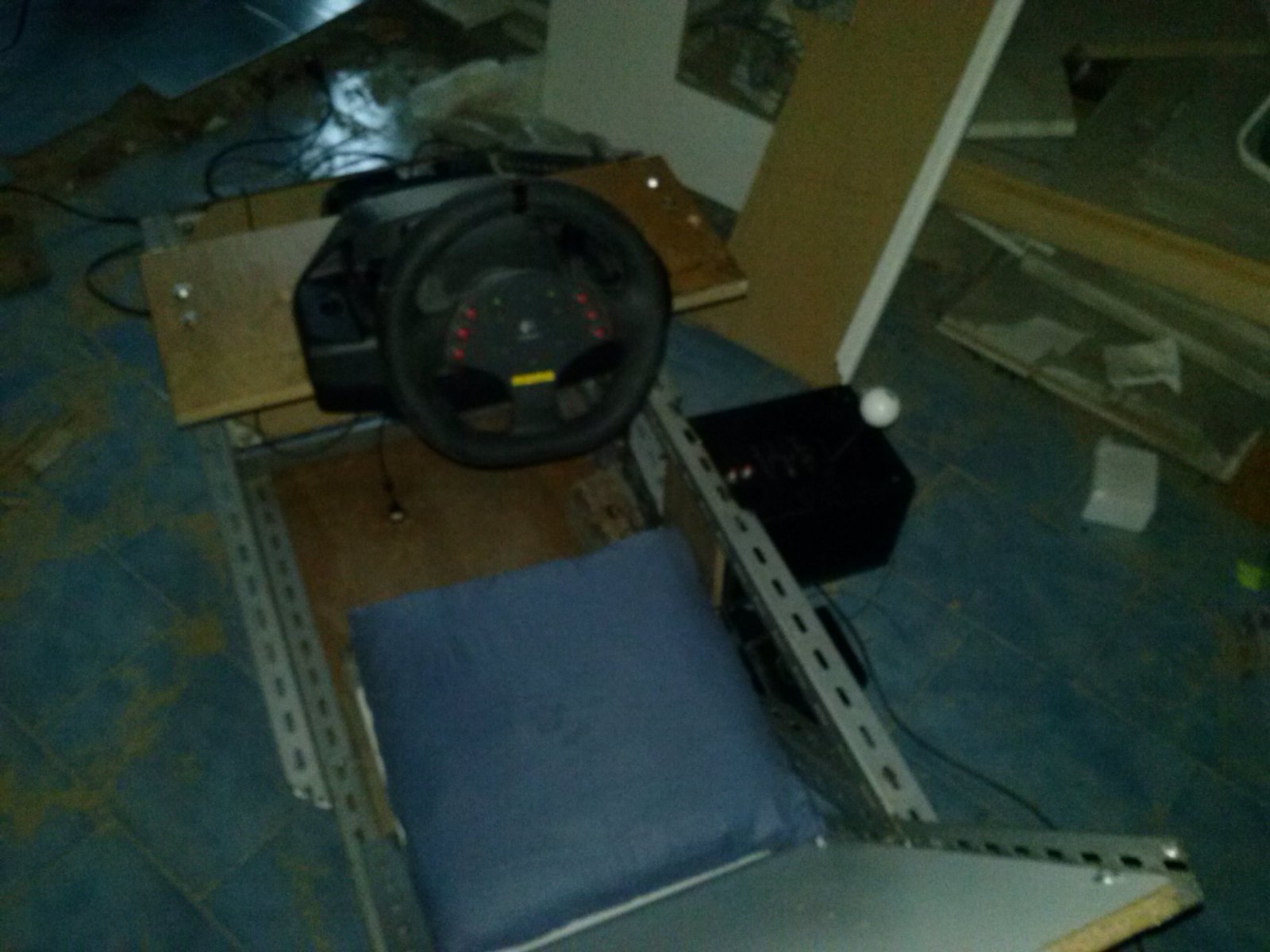

    This simulator'm doing hybrid to also use the keyboard to other types of games such as eg fps.

    Attached Files:

  3. Capitan

    Capitan New Member

    Joined:
    Feb 18, 2013
    Messages:
    16
    Balance:
    202Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

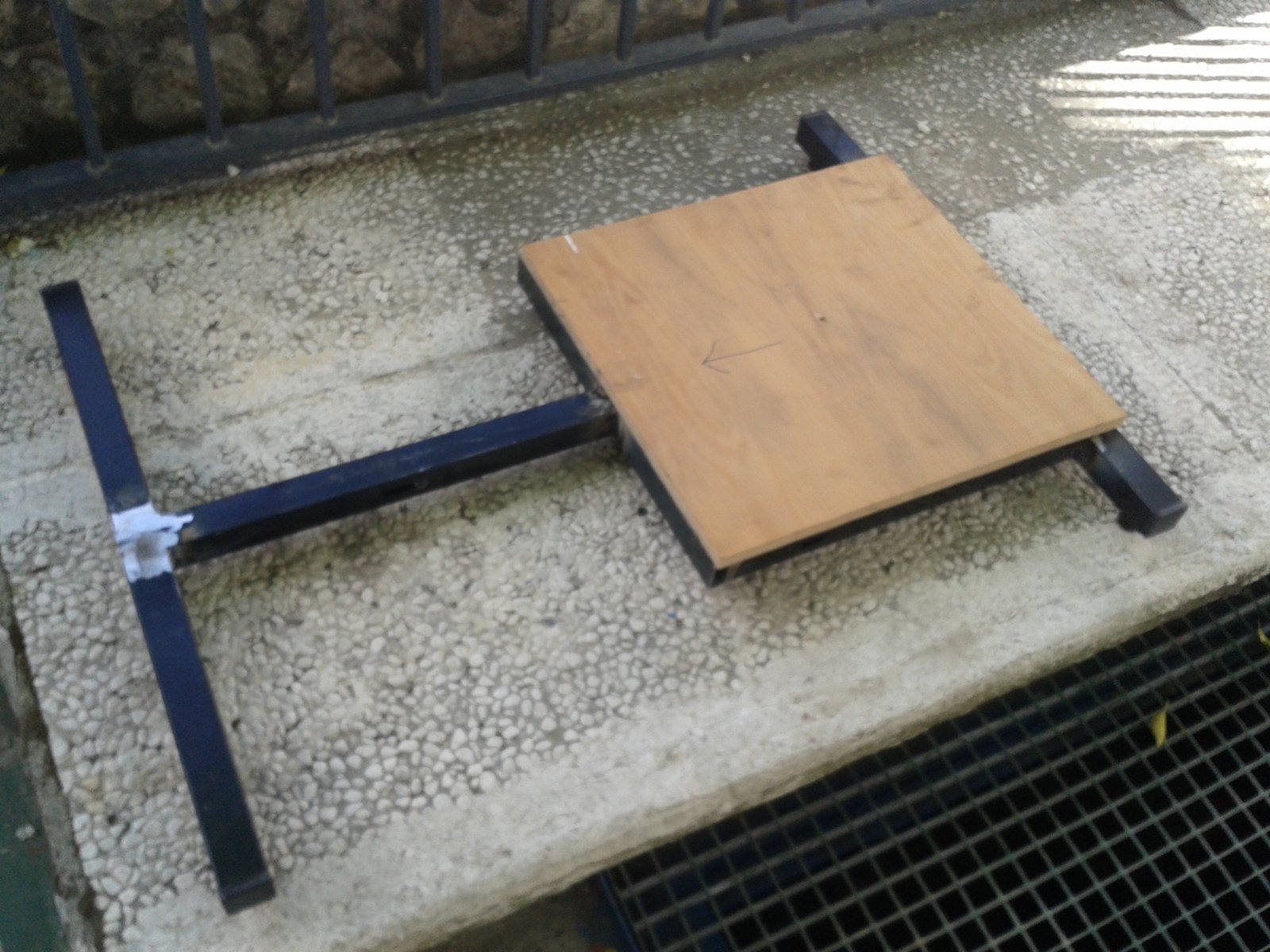

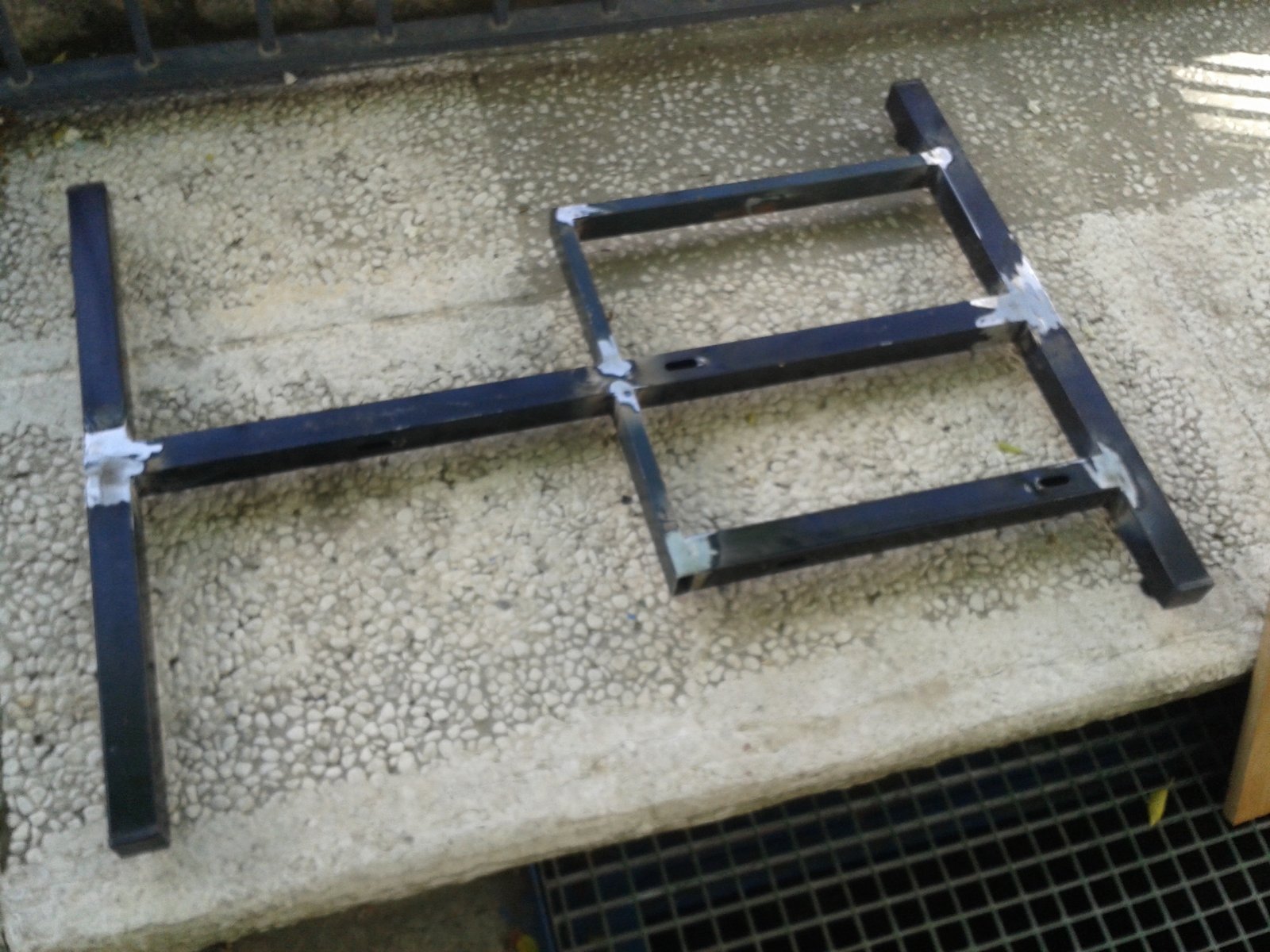

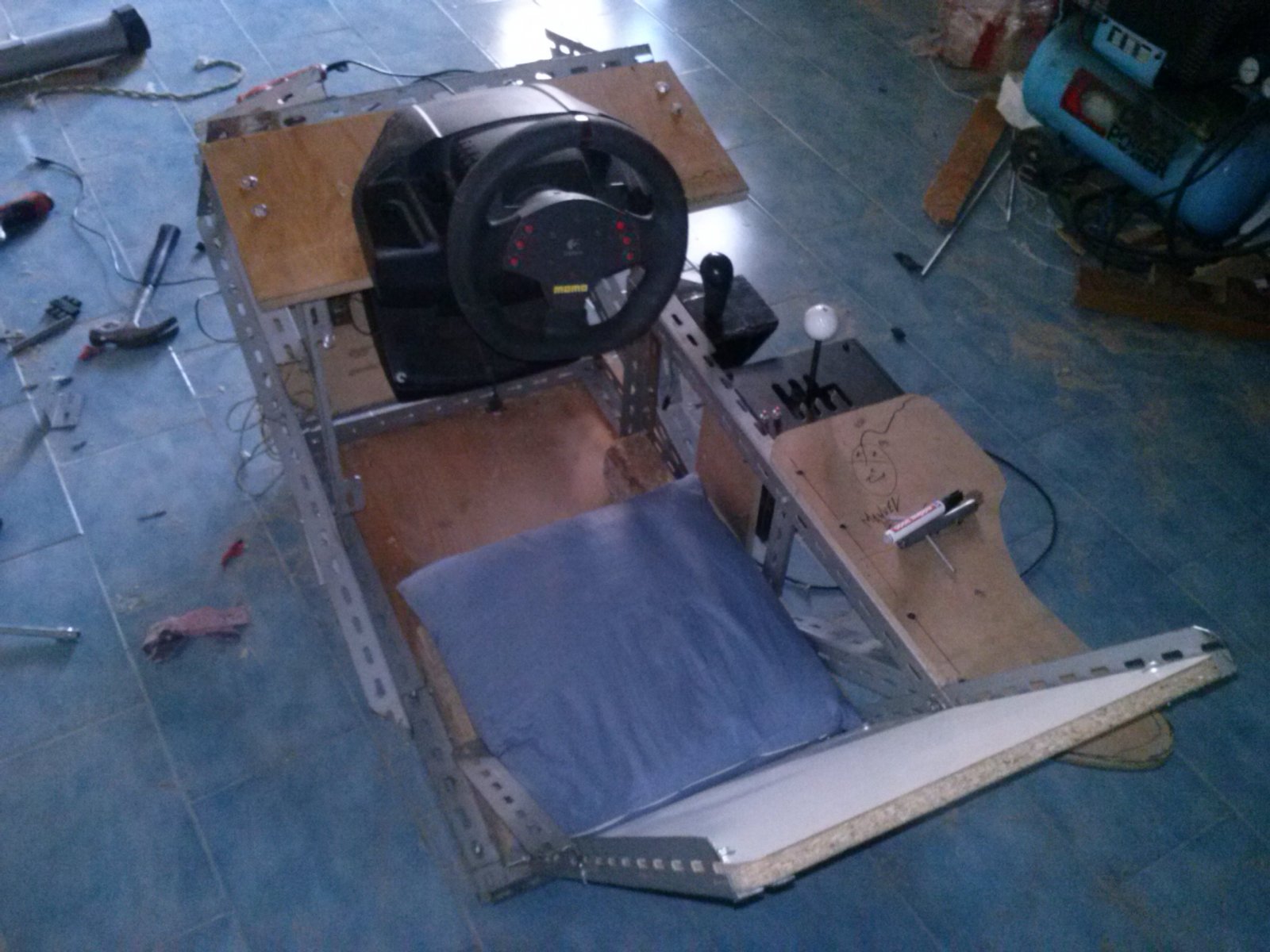

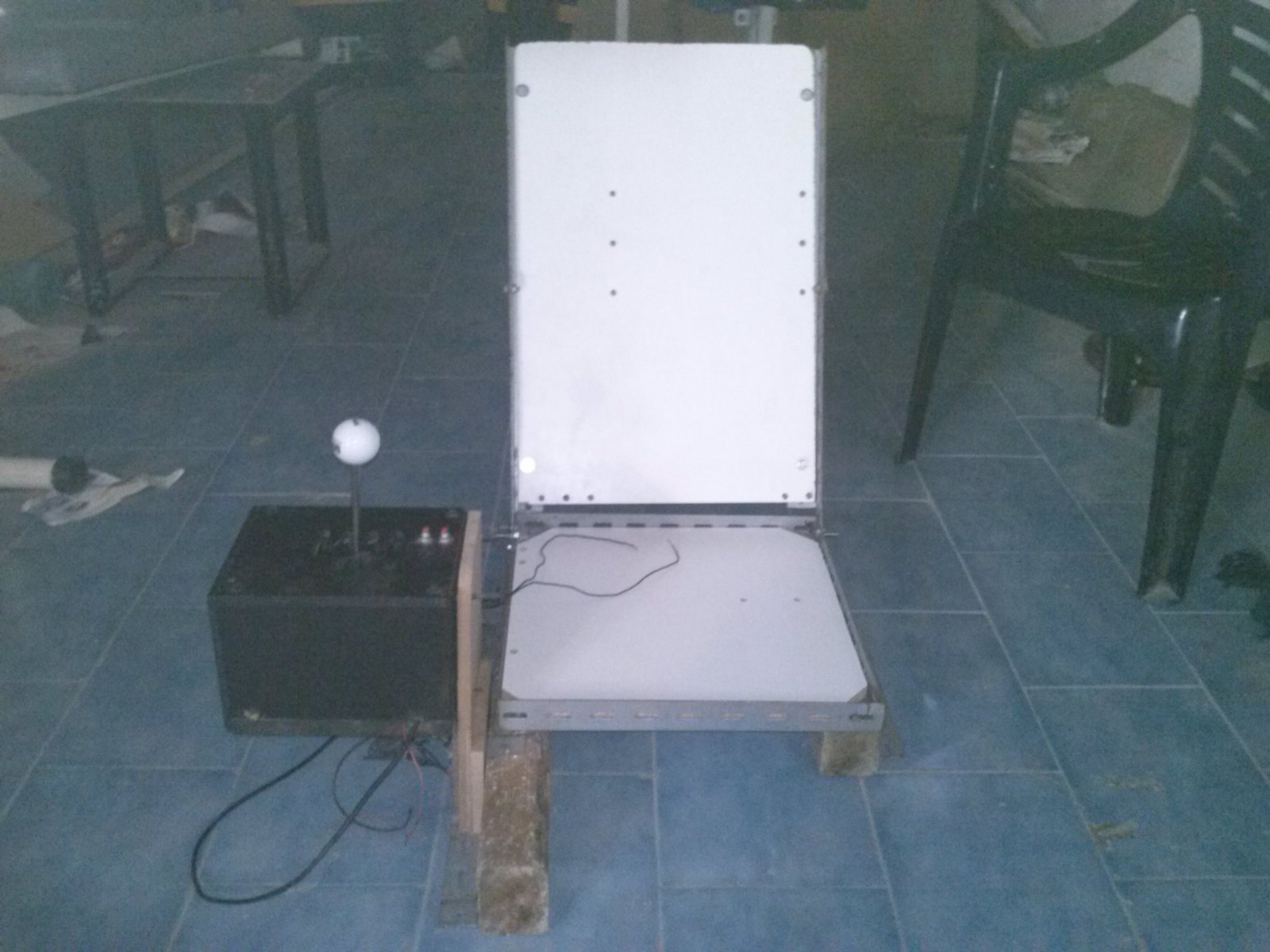

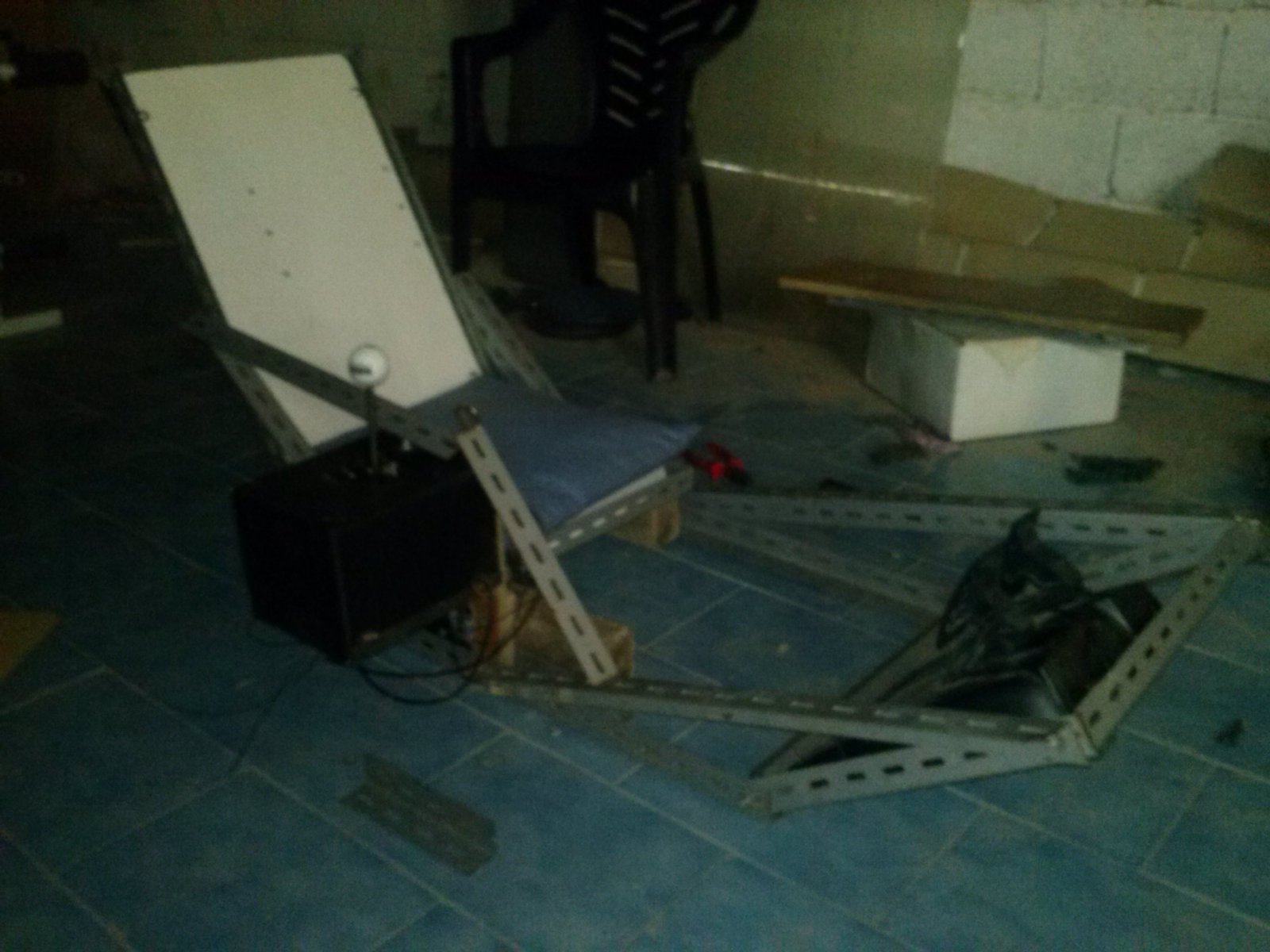

    This would be the base where the engine would couple to the movement of the platform.

    Attached Files:

  4. Capitan

    Capitan New Member

    Joined:
    Feb 18, 2013
    Messages:
    16
    Balance:
    202Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

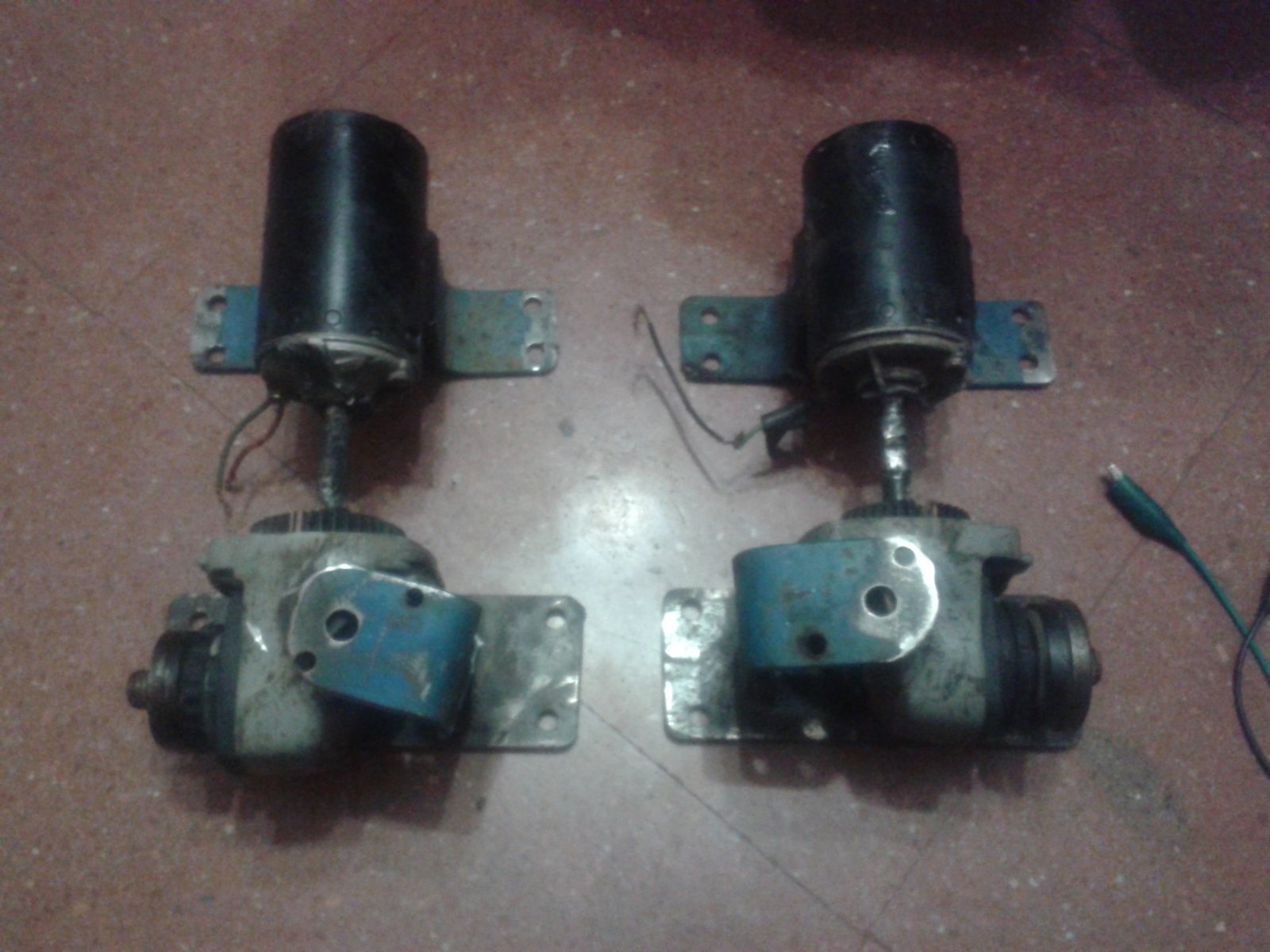

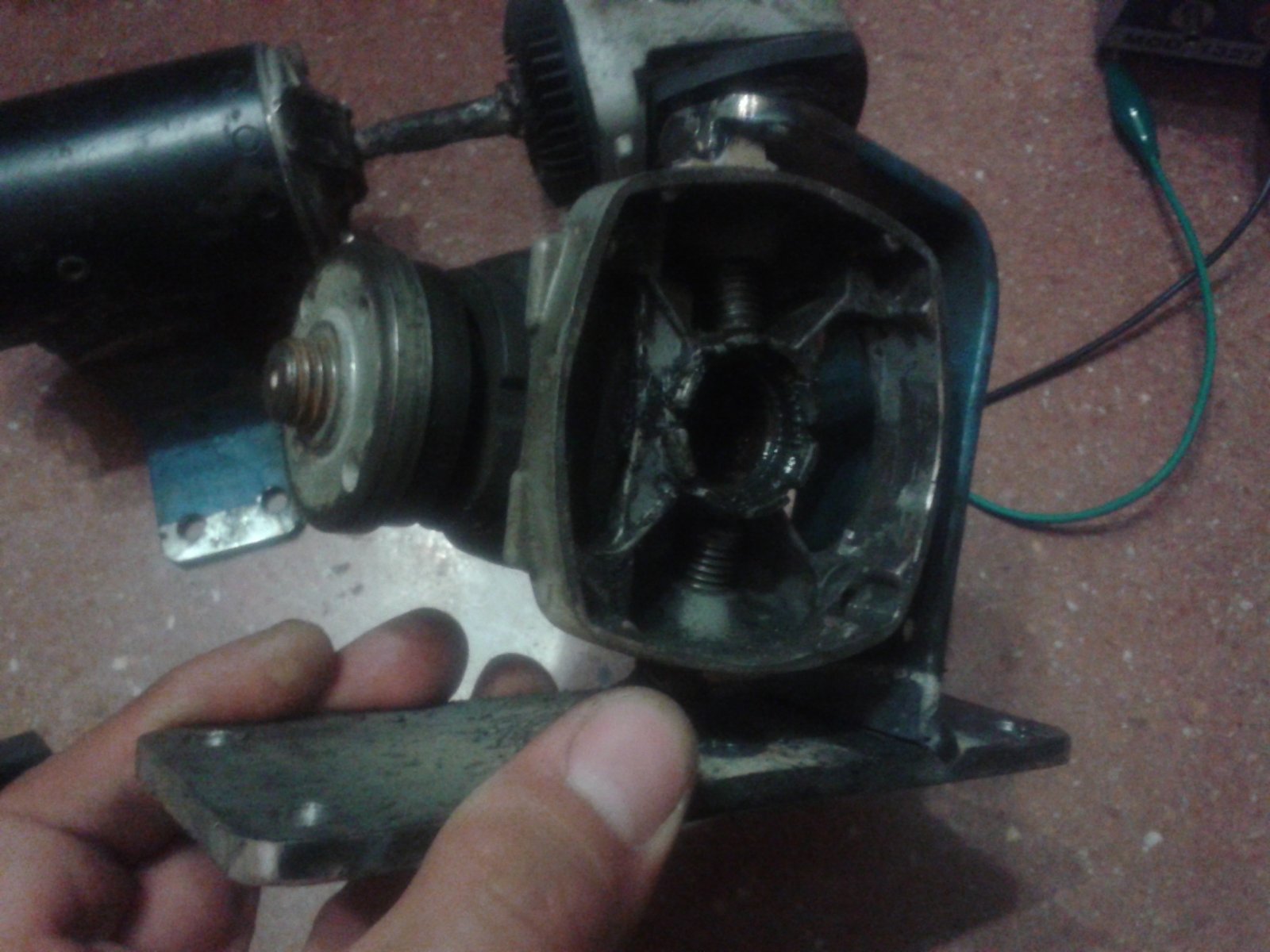

    and these engines at the moment I'm about to try but not if they will give the necessary torque for movement and the entire assembly is a heavy weight.

    Attached Files:

  5. Capitan

    Capitan New Member

    Joined:
    Feb 18, 2013
    Messages:
    16
    Balance:
    202Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

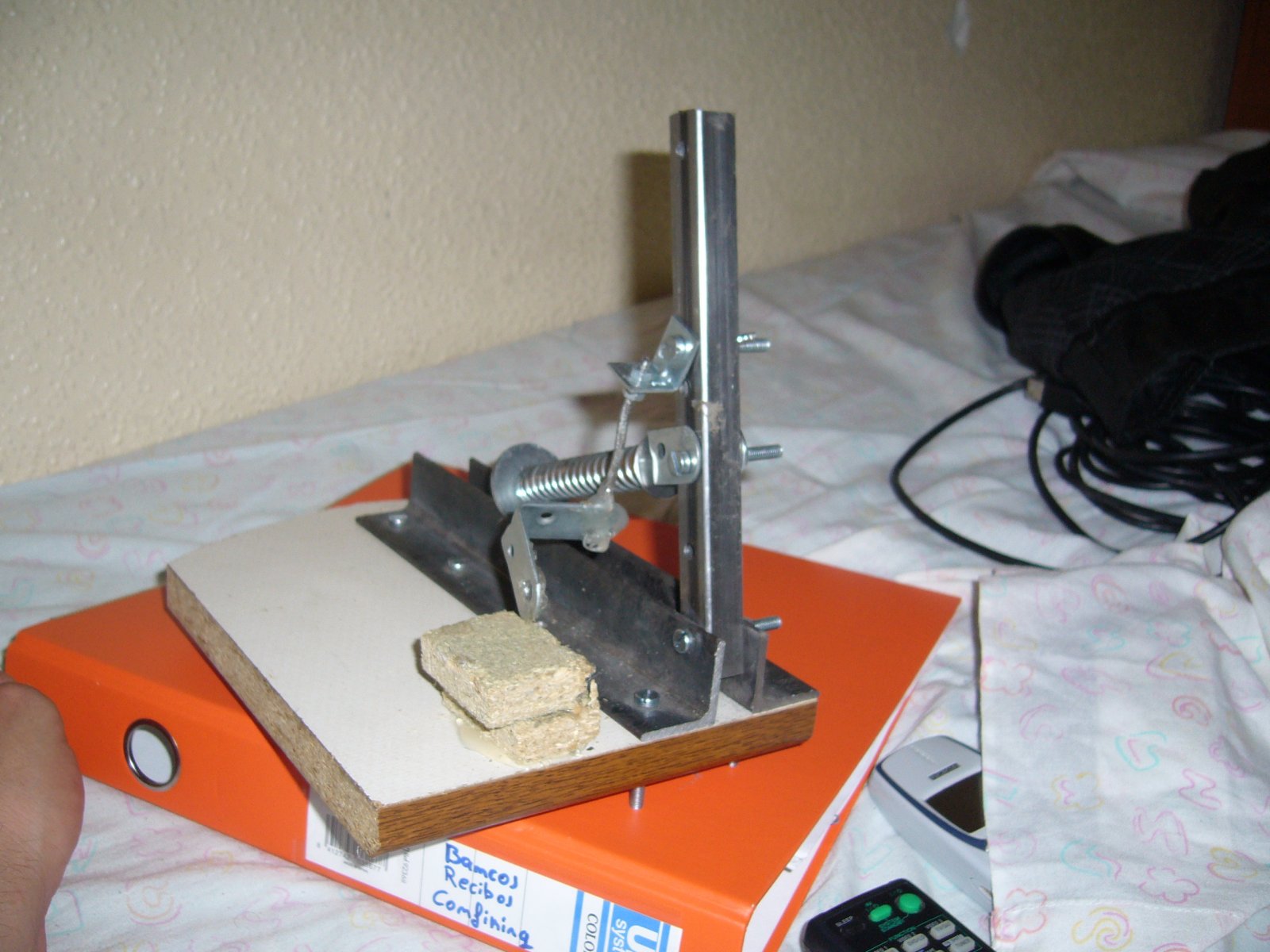

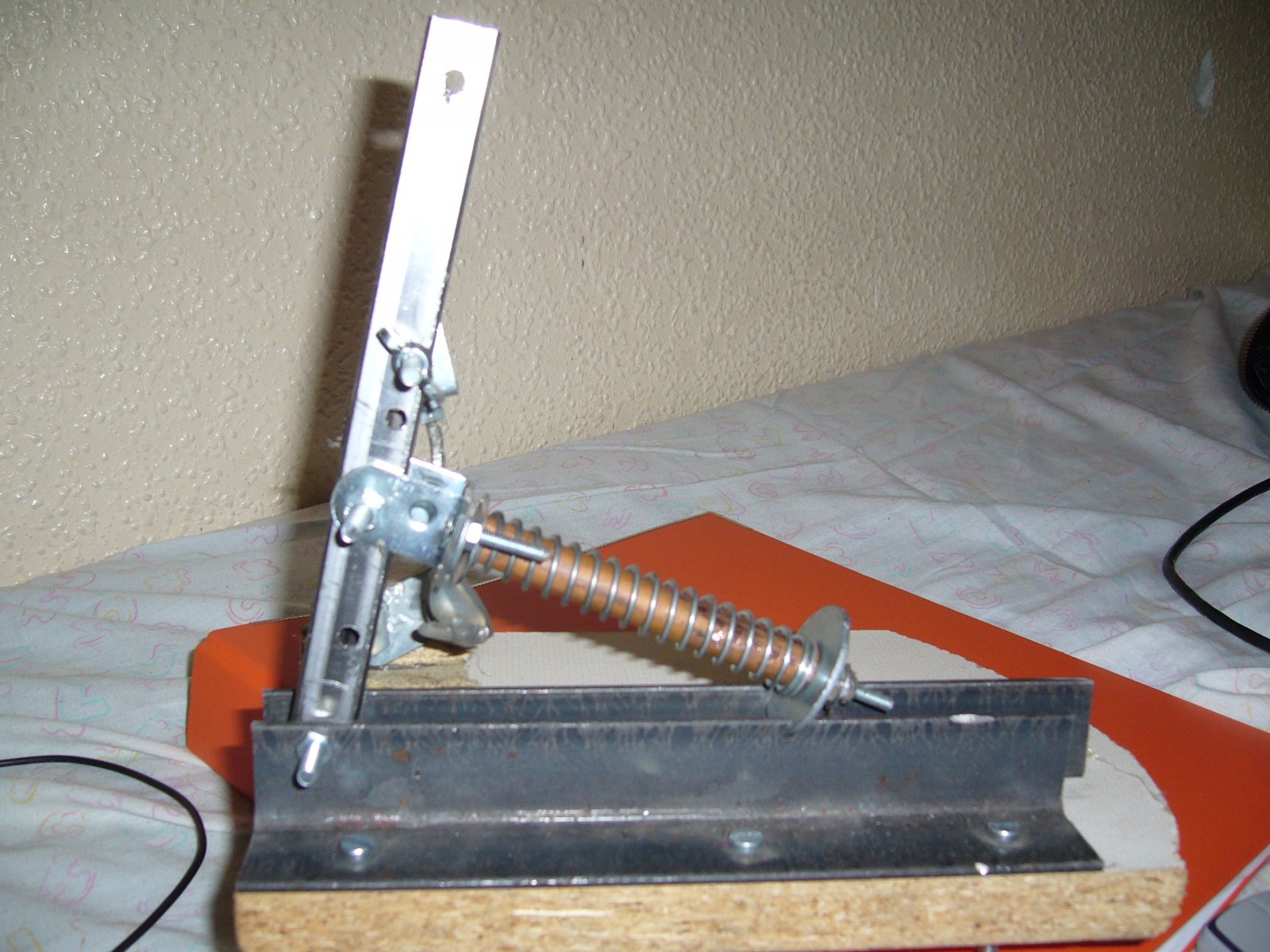

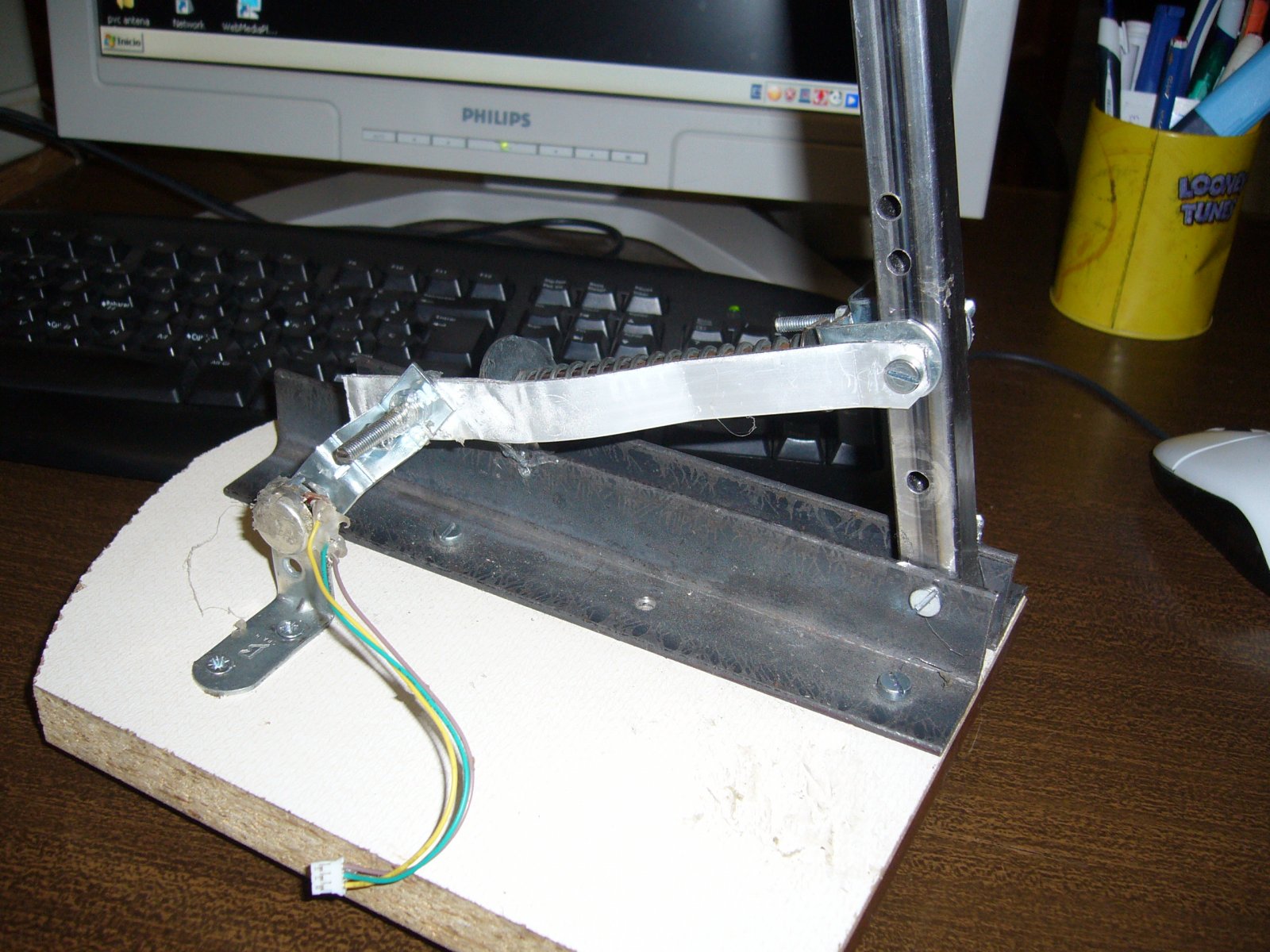

    Installing the additional clutch miss home with a potentiometer.

    Attached Files:

  6. Capitan

    Capitan New Member

    Joined:
    Feb 18, 2013
    Messages:
    16
    Balance:
    202Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

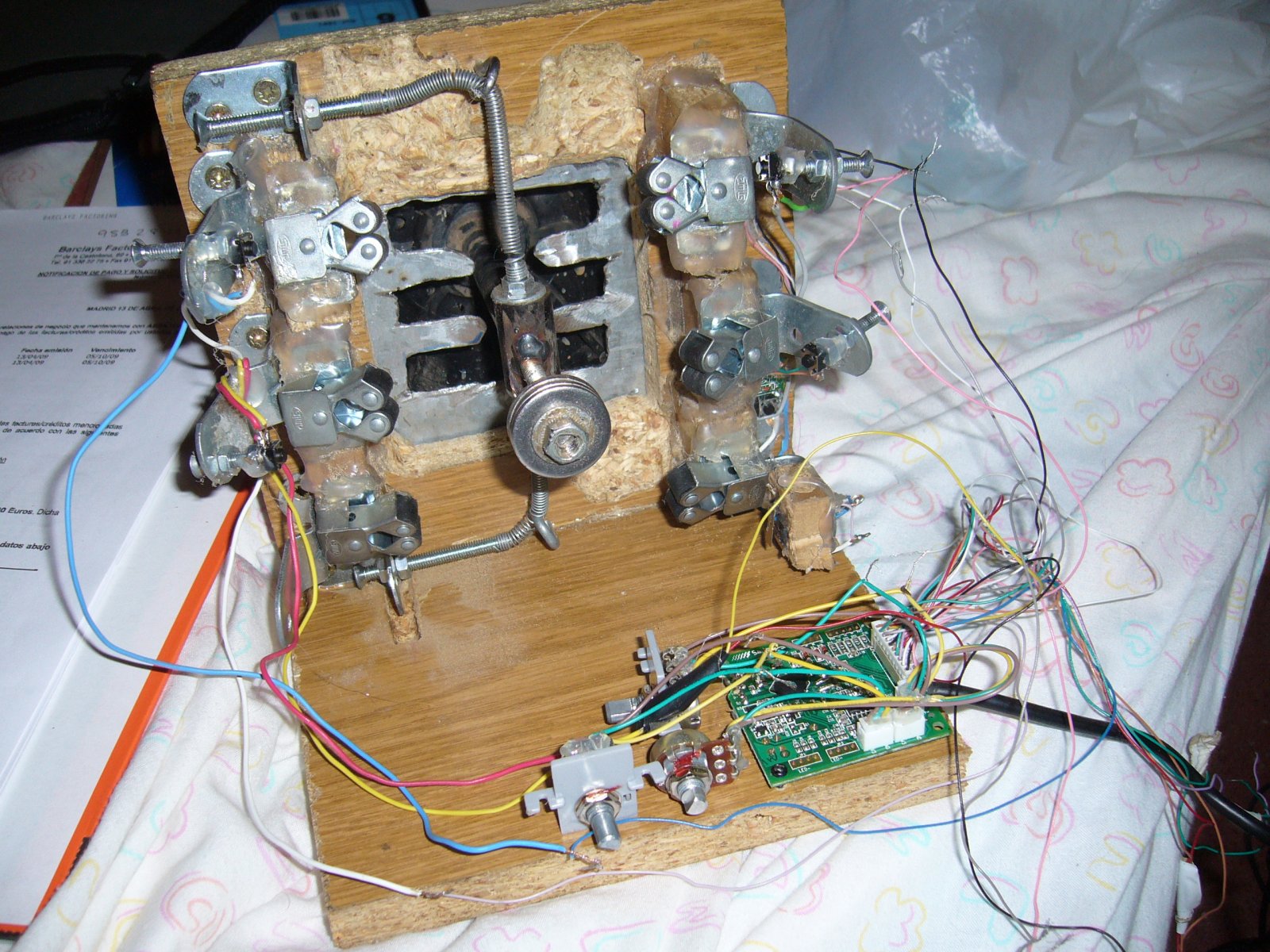

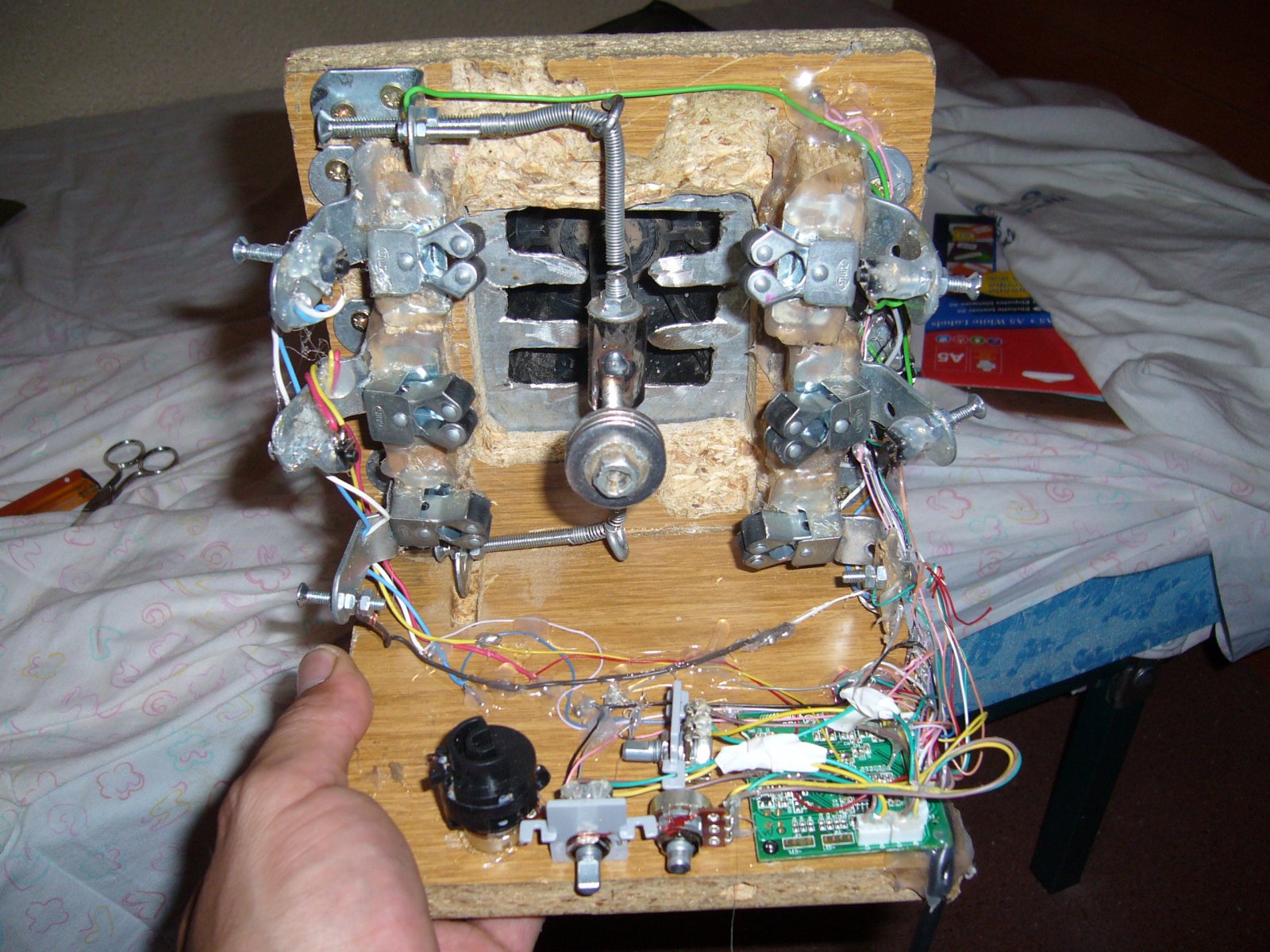

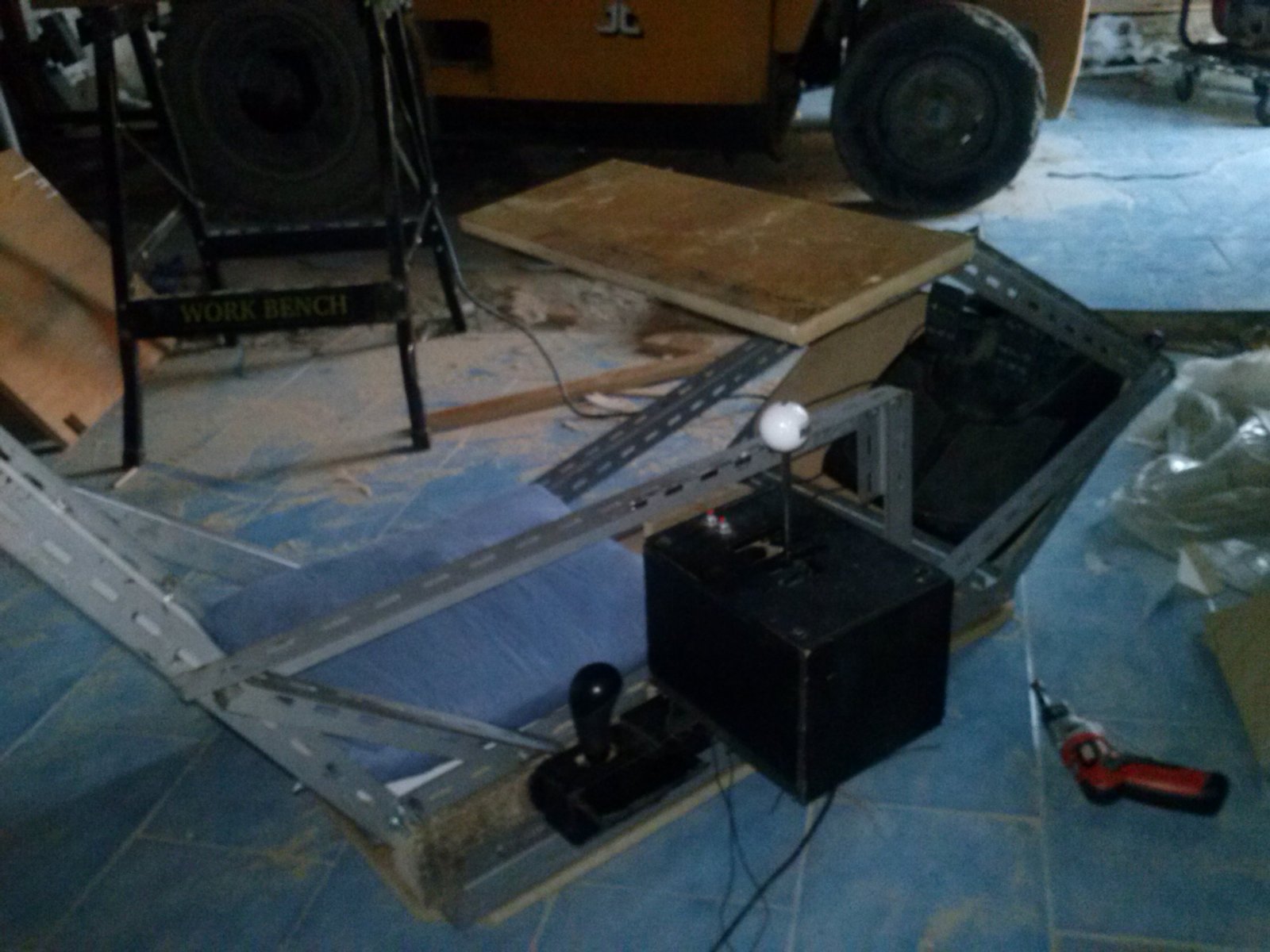

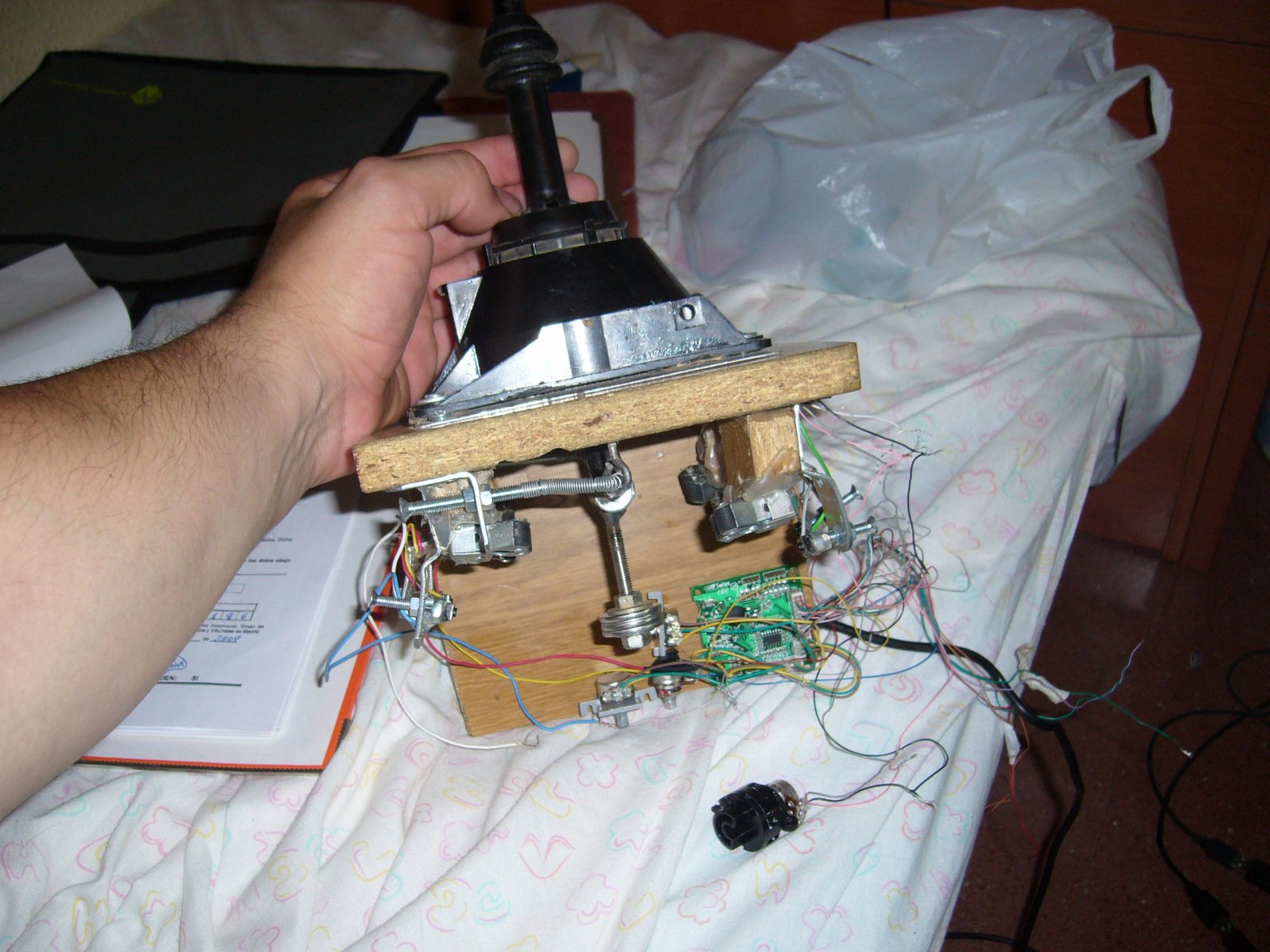

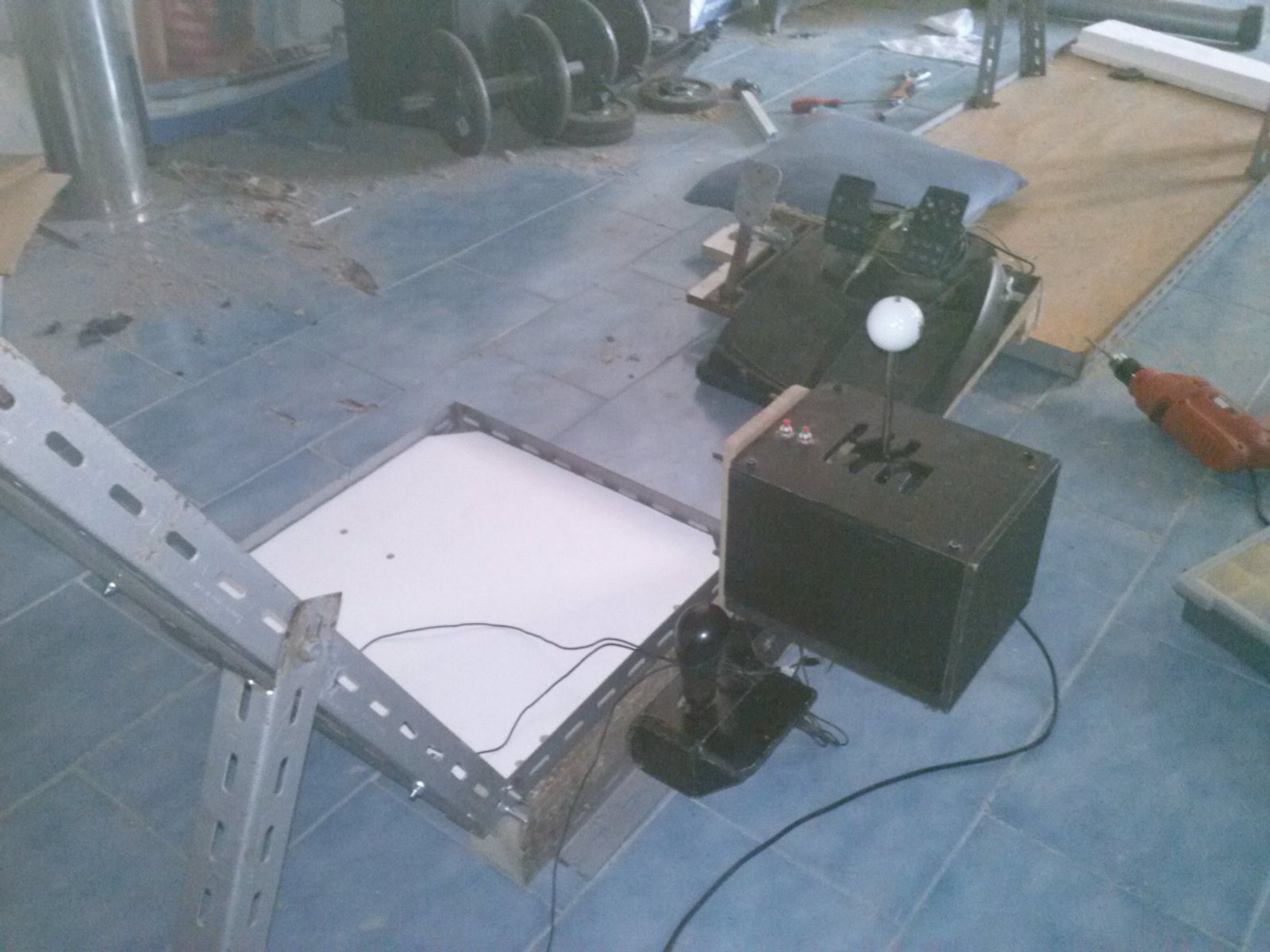

    This is the first gearbox manual hize H, was not bad but now hize another with the same electronics that is taken from an old joystick and more perfected. Coming soon I will put photos of the new gearbox if anyone you may be interested in this also.

    Attached Files:

    • Like Like x 2
