Discussion in 'New users start here - FAQ' started by stowaway, Jun 20, 2009.

  1. stowaway

    stowaway New Member

    Joined:
    Mar 16, 2009
    Messages:
    213
    Location:
    Gold Coast - Australia
    Balance:
    1Coins
    Ratings:
    +0 / 0 / -0
    I have hit another wall.
    I got the LCd working on the AMC. and now when the programming bridge is not on it has on the lcD:

    flasing
    START
    18 PWM v1.0 JoyR

    And sometimes it changes to:
    1.0 pjoyRider ect.... a bit scrambled.

    any idea?
    ps - i cant find a datasheet on my Potentiometer. so i wired it up with the midle pin going to the middle pin on the AMC.. when i twist it it doesnt do anything. but when i twist it to the entire way the lcd turns off..

    pss- it seems to not start properly. as the start on the lcd doenst go away....

    http://www.jaycar.com.au/productView.as ... rm=KEYWORD

    psss- I think i found the problem. ill know tomorrow.. Ive been painstakely looking for cross wires and the wrong parts. one thing i didnt think to look at is the chip!! i have a atmega16 and the design calls for a ATmega8535!!!

    would this be the problem? or are they interchangeable?
    anyway tomorrow morning. first thing on my shopping list. atmega8535 to go test it out!!!!!

    psss

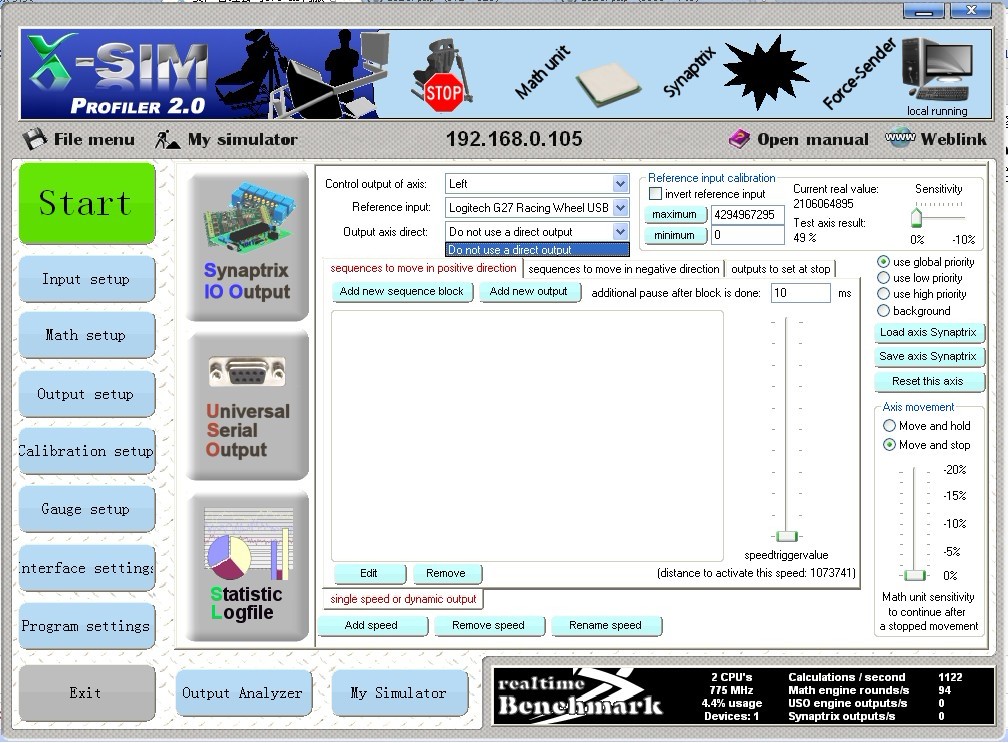

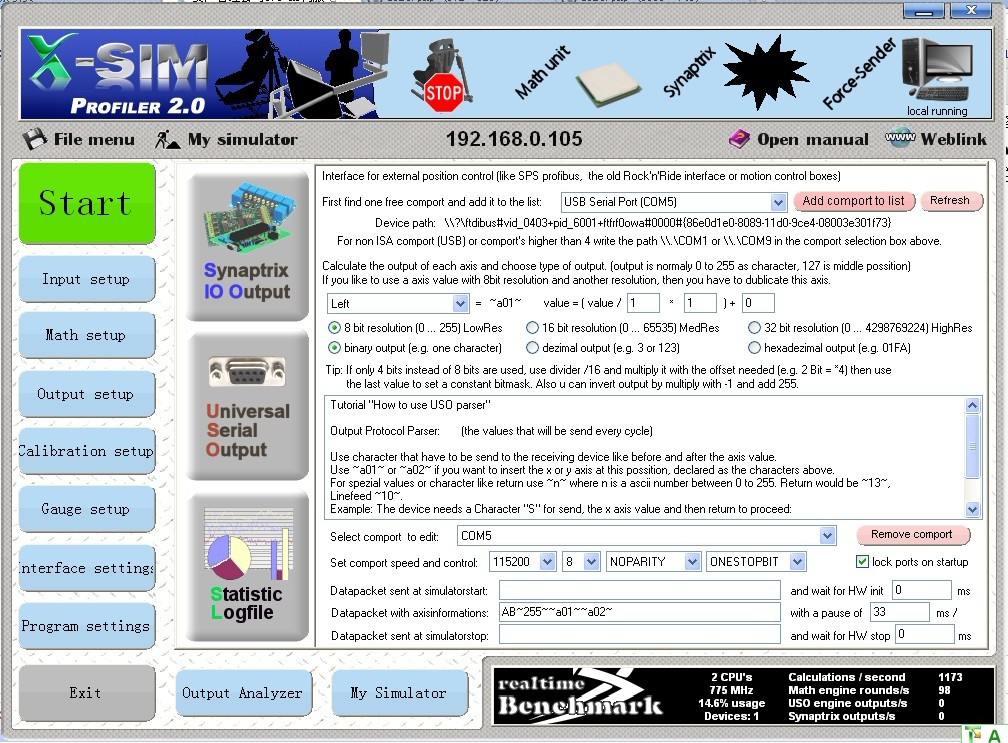

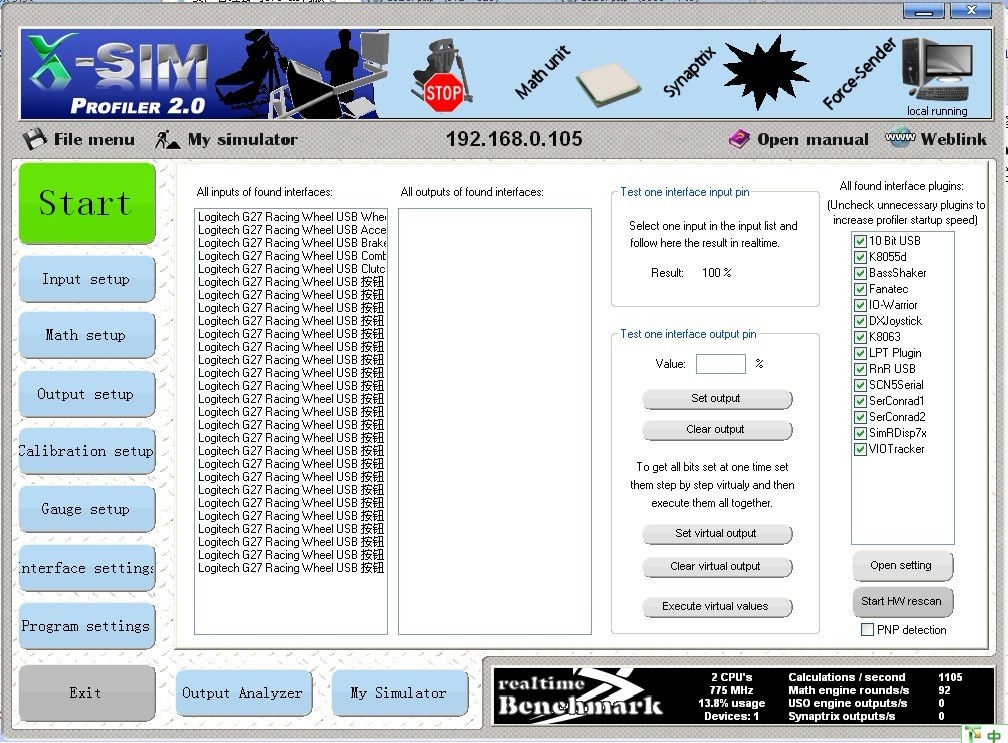

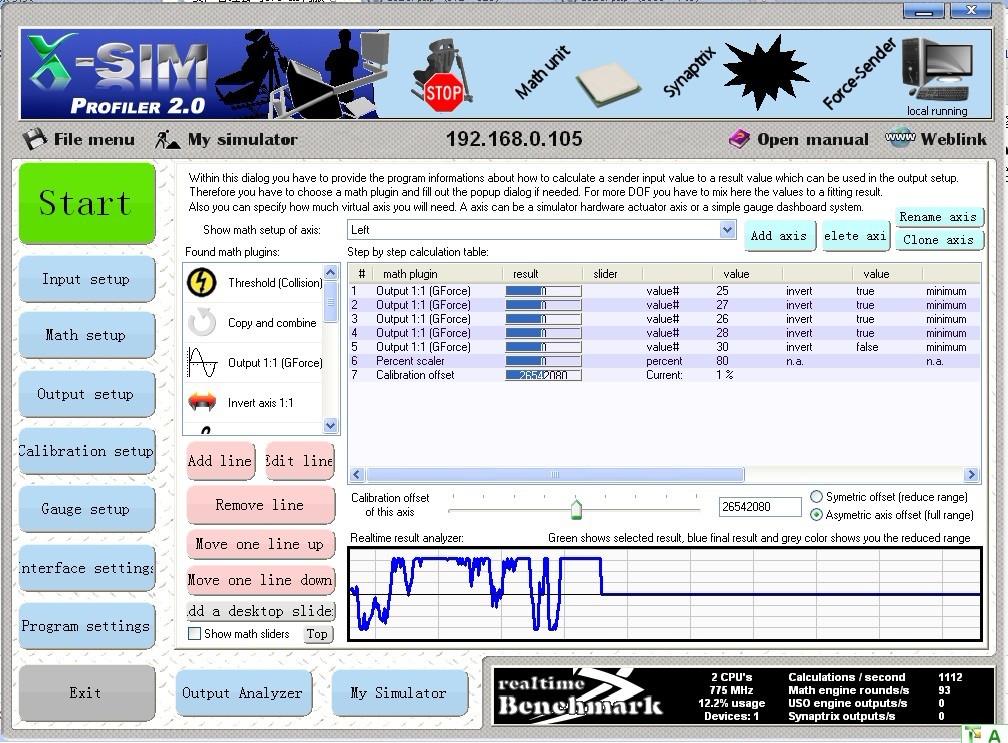

    Attached Files:
