Can not make the engine spin

Discussion in 'DIY Motion Simulator Projects' started by phonghornet, Oct 11, 2018.

?

what is your date of birth

  1. 21

    0 vote(s)
    0.0%
  2. i dont now

    0 vote(s)
    0.0%
  3. i dont now

    0 vote(s)
    0.0%
Multiple votes are allowed.
  1. phonghornet

    phonghornet New Member Gold Contributor

    Joined:
    Aug 19, 2018
    Messages:
    26
    Balance:
    102Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF, 6DOF
    hello everyone i am new

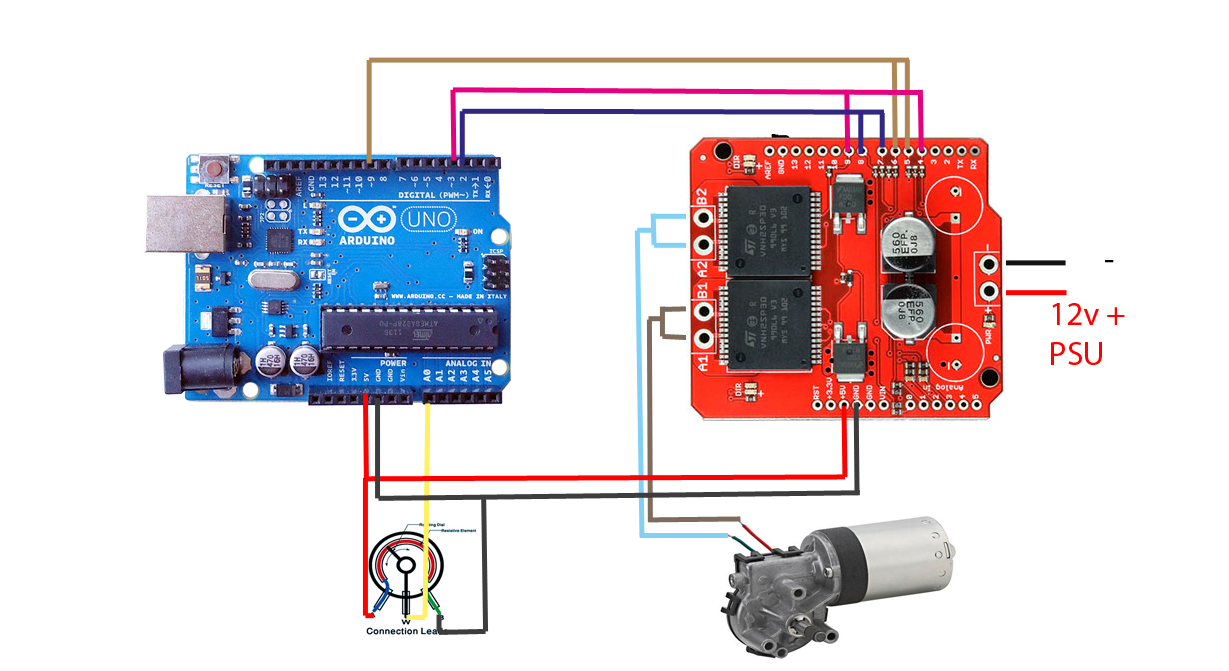

    I use smc3 v0.6 code (I do not edit anything to upload to my uno arduino and diagram under the attached photo template.

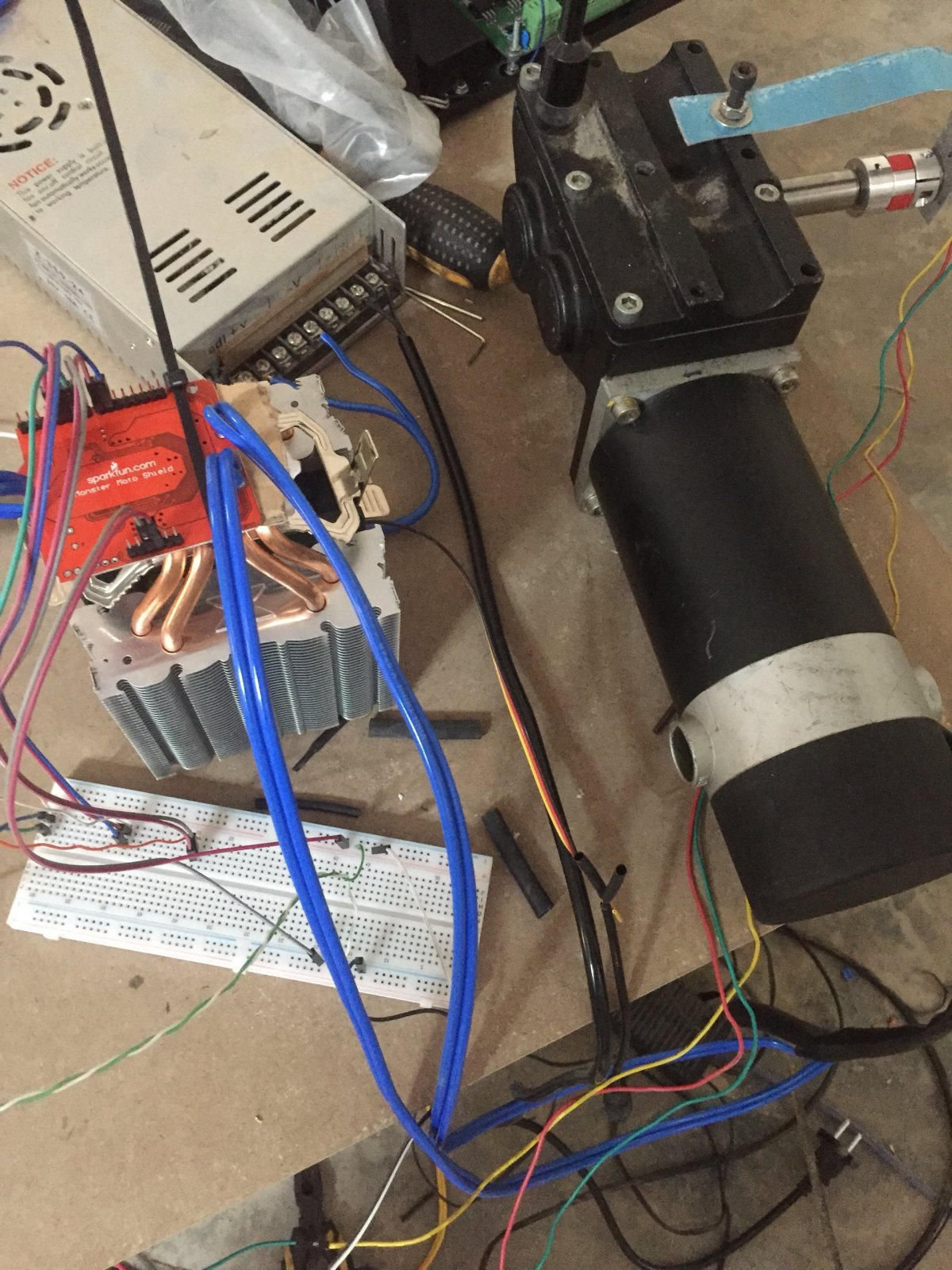

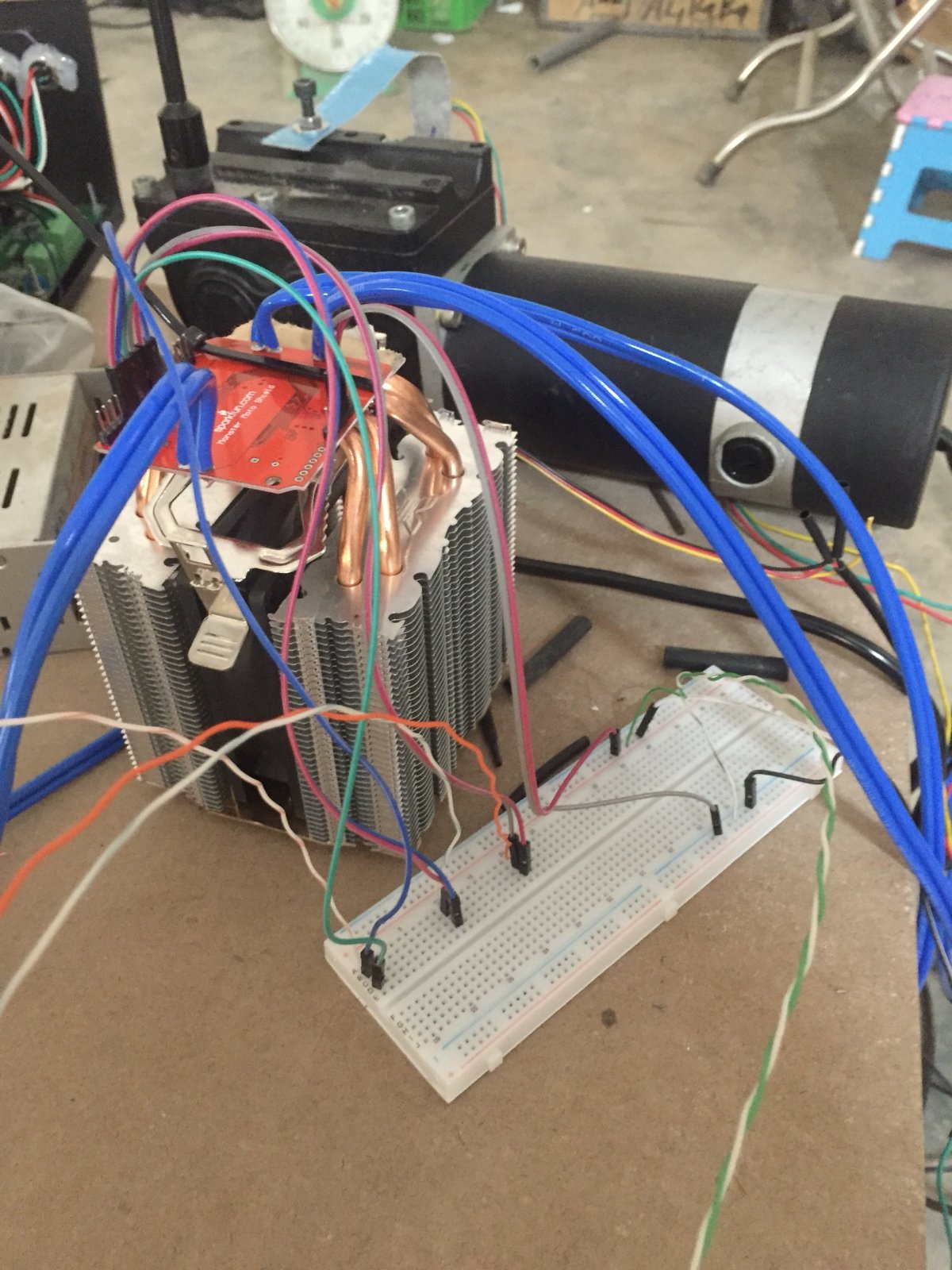

    I can not make the engine spin.
    I do not know where I was wrong.
    Please help everyone.

    Attached Files:

  2. phonghornet

    phonghornet New Member Gold Contributor

    Joined:
    Aug 19, 2018
    Messages:
    26
    Balance:
    102Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF, 6DOF
    completely original code
    //****************************************************************************************************************
    // SMC3.ini is basic Motor PID driver designed for motion simulators with upto 3 motors (written for UNO R3)
    //
    //****************************************************************************************************************

    // Set to MODE1 for use with a typical H-Bride that requires PWM and 1 or 2 direction inputs
    // Set to MODE2 for a 43A "Chinese" IBT-2 H-Bridge from e-bay or equiv

    #define MODE2


    // COMMAND SET:
    //
    // [] Drive all motors to defined stop positions and hold there
    // [Axx],[Bxx],[Cxx] Send position updates for Motor 1,2,3 where xx is the binary position limitted to range 0-1024
    // [Dxx],[Exx],[Fxx] Send the Kp parameter for motor 1,2,3 where xx is the Kp value multiplied by 100
    // [Gxx],[Hxx],[Ixx] Send the Ki parameter for motor 1,2,3 where xx is the Ki value multiplied by 100
    // [Jxx],[Kxx],[Lxx] Send the Kd parameter for motor 1,2,3 where xx is the Kd value multiplied by 100
    // [Mxx],[Nxx],[Oxx] Send the Ks parameter for motor 1,2,3 where xx is the Ks value
    // [Pxy],[Qxy],[Rxy] Send the PWMmin and PWMmax values x is the PWMmin and y is PWMmax each being in range 0-255
    // [Sxy],[Txy],[Uxy] Send the Motor Min/Max Limits (x) and Input Min/Max Limits (y) (Note same value used for Min and Max)
    // [Vxy],[Wxy],[Xxy] Send the Feedback dead zone (x) and the PWM reverse duty (y) for each motor
    // [rdx] Read a value from the controller where x is the code for the parameter to read
    // [ena] Enable all motors
    // [sav] Save parameters to non-volatile memory
    // [ver] Send the SMC3 software version
    //

    // Arduino UNO Pinouts Used
    //
    // 9 - Motor 1 PWM
    // 10 - Motor 2 PWM
    // 11 - Motor 3 PWM
    // 2 - Motor 1 H-Bridge ENA
    // 3 - Motor 1 H-Bridge ENB
    // 4 - Motor 2 H-Bridge ENA
    // 5 - Motor 2 H-Bridge ENB
    // 6 - Motor 3 H-Bridge ENA
    // 7 - Motor 3 H-Bridge ENB
    // A0 - Motor 1 Feedback
    // A1 - Motor 2 Feedback
    // A2 - Motor 3 Feedback




    // BOF preprocessor bug prevention - leave me at the top of the arduino-code
    #if 1
    __asm volatile ("nop");
    #endif

    #include <EEPROM.h>
    #include <SoftwareSerial.h>

    // defines for setting and clearing register bits
    #ifndef cbi
    #define cbi(sfr, bit) (_SFR_BYTE(sfr) &= ~_BV(bit))
    #endif
    #ifndef sbi
    #define sbi(sfr, bit) (_SFR_BYTE(sfr) |= _BV(bit))
    #endif

    #define COM0 0 // hardware Serial Port
    #define COM1 1 // Software Serial Port
    #define START_BYTE '[' // Start Byte for serial commands
    #define END_BYTE ']' // End Byte for serial commands
    #define PROCESS_PERIOD_uS 250 // 244 -> 4096 per second approx
    #define TIMER_UPPER_LIMIT 4294966000 // Used to check for timer wraparound
    #define TIMER_LOWER_LIMIT 1000 // Used to check for timer wraparound


    unsigned long TimesUp=0; // Counter used to see if it's time to calculate next PID update

    int Feedback1 = 512;
    int Feedback2 = 512;
    int Feedback3 = 512;
    int Target1 = 512;
    int Target2 = 512;
    int Target3 = 512;

    unsigned int RxByte[2]={0}; // Current byte received from each of the two comm ports
    int BufferEnd[2]={-1}; // Rx Buffer end index for each of the two comm ports
    unsigned int RxBuffer[5][2]={0}; // 5 byte Rx Command Buffer for each of the two comm ports
    unsigned long LoopCount = 0; // unsigned 32bit, 0 to 4,294,967,295 to count times round loop
    unsigned long LastCount = 0; // loop counter the last time it was read so can calc delta
    byte errorcount = 0; // serial receive error detected by checksum

    //
    //
    // +----+ +------+
    // +-|PWR |--------------| USB |-----+
    // | | | | | |
    // | +----+ +------+ o|
    // | o|
    // | o|AREF
    // | o|GND
    // NC|o o|13 TTL (software) Serial
    // IOREF|o +----+ o|12 TTL (software) Serial
    // RESET|o | | o|11~ PWM Motor 3
    // 3.3V|o | | o|10~ PWM Motor 2
    // 5V|o | | Arduino o|9~ PWM Motor 1
    // GND|o | | UNO o|8
    // GND|o | | |
    // VIN|o | | o|7 Motor 3 ENB
    // | | | o|6~ Motor 3 ENA
    // Motor 1 Pot A0|o | | o|5~ Motor 2 ENB
    // Motor 2 Pot A1|o | | o|4 Motor 2 ENA
    // Motor 3 Pot A2|o | | o|3~ Motor 1 ENB
    // A3|o | | o|2 Motor 1 ENA
    // A4|o | | o|1
    // A5|o +-/\-+ o|0
    // +-\ /---------+
    // \--------------------/
    //
    //
  3. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator SimTools 2.0 Beta Tester

    Joined:
    Jul 13, 2014
    Messages:
    11,755
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    91,348Coins
    Ratings:
    +7,681 / 37 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I don't use SMC3 but it should be set to Mode 1 for MMs.

    It would also help if you posted pictures of all your settings.
  4. phonghornet

    phonghornet New Member Gold Contributor

    Joined:
    Aug 19, 2018
    Messages:
    26
    Balance:
    102Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF, 6DOF

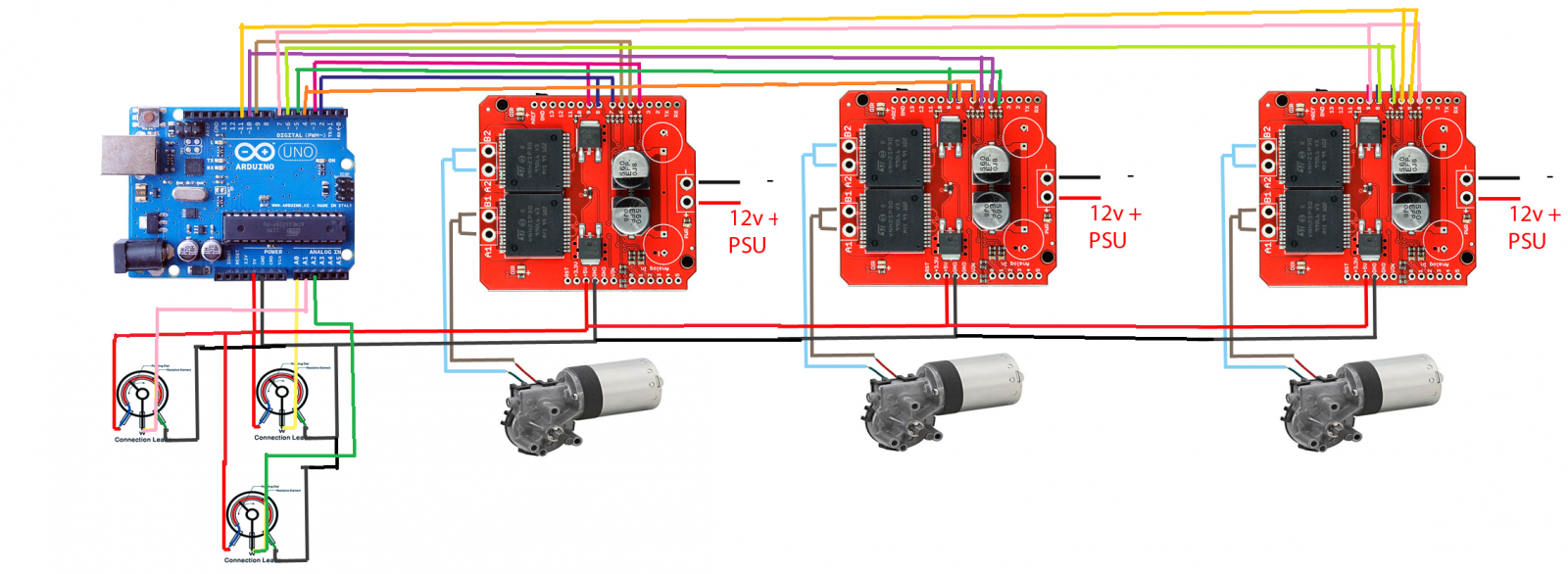

    I want to build 3dof following model.
    But programming arduino for me is very difficult.

    Attached Files:

  5. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator SimTools 2.0 Beta Tester

    Joined:
    Jul 13, 2014
    Messages:
    11,755
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    91,348Coins
    Ratings:
    +7,681 / 37 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
  6. phonghornet

    phonghornet New Member Gold Contributor

    Joined:
    Aug 19, 2018
    Messages:
    26
    Balance:
    102Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF, 6DOF
    Thank you.NOORBEAST
    may be to add time for reading instruction.
