Arduino UNO steering wheel DIY

Discussion in 'DIY peripherals' started by Anthony atallah, Sep 5, 2021.

  1. Anthony atallah

    Anthony atallah New Member

    Joined:
    Aug 14, 2021
    Messages:
    3
    Occupation:
    Mechanical Engineer
    Location:
    Lebanon
    Balance:
    27Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Petrol head :) + national economic crisis :sos + lock down :roll = sim racing :grin

    Lately I've been getting more and more in the Arduino world and I decided to built my own cheap racing simulator.
    But first I tried to build a no FFB steering wheel kit from parts and scraps that I had.
    Maybe it's like reinventing the wheel (ironically it is :cool:) but I gave it a try.

    Below is the best tutorial that helped me to achieve it:
    Arduino UnoJoy Steering Wheel | Gaming steering wheel with Arduino Uno[Steering+Pedals]-ETS2Gameplay - YouTube
    Thanks for the video!

    It will take a while and some tinkering to make it work, but the quality is impressive overall. A better potentiometer will improve it also.
    Anyway, it's wayyy better than keyboard racing ;)

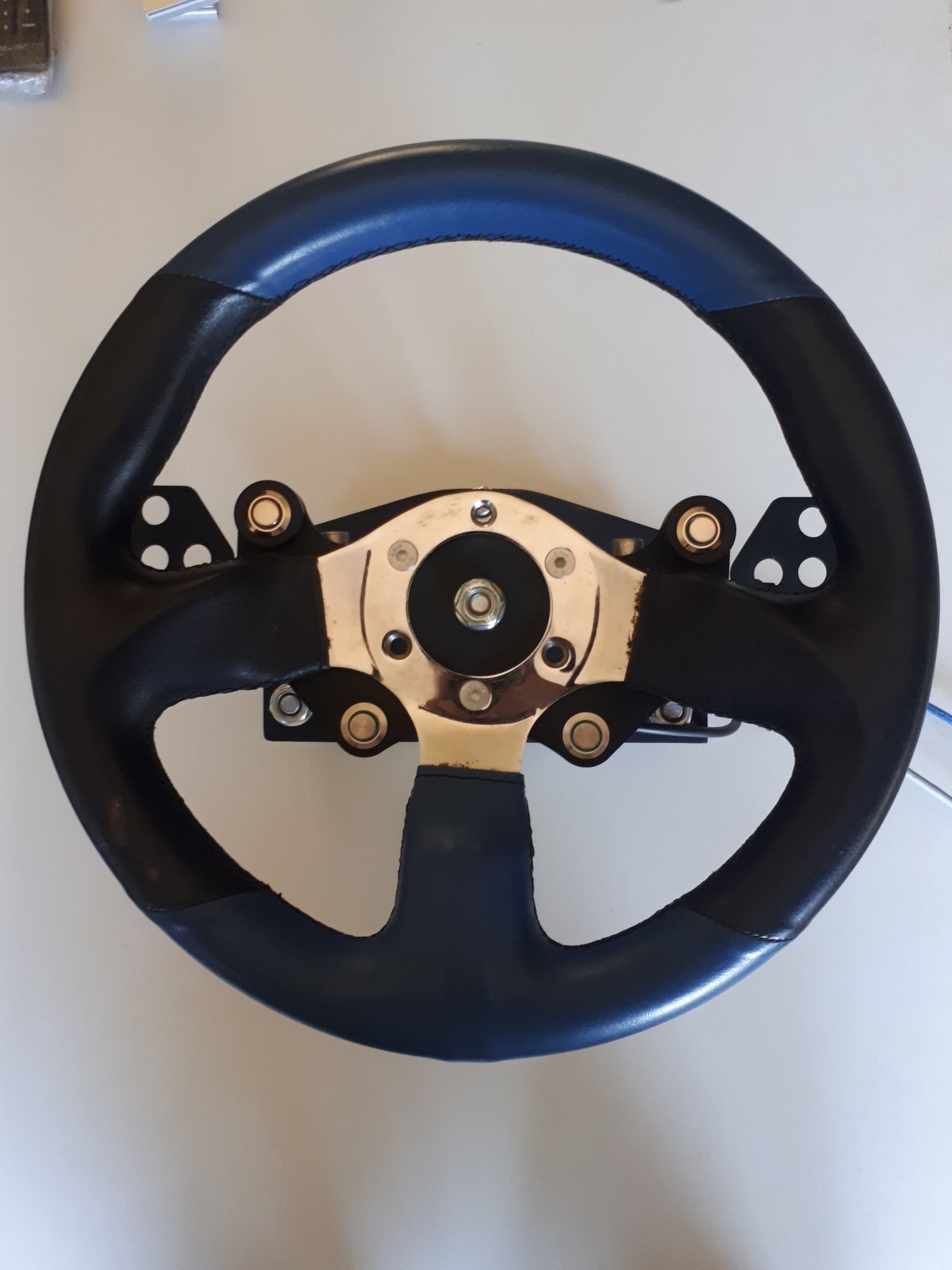

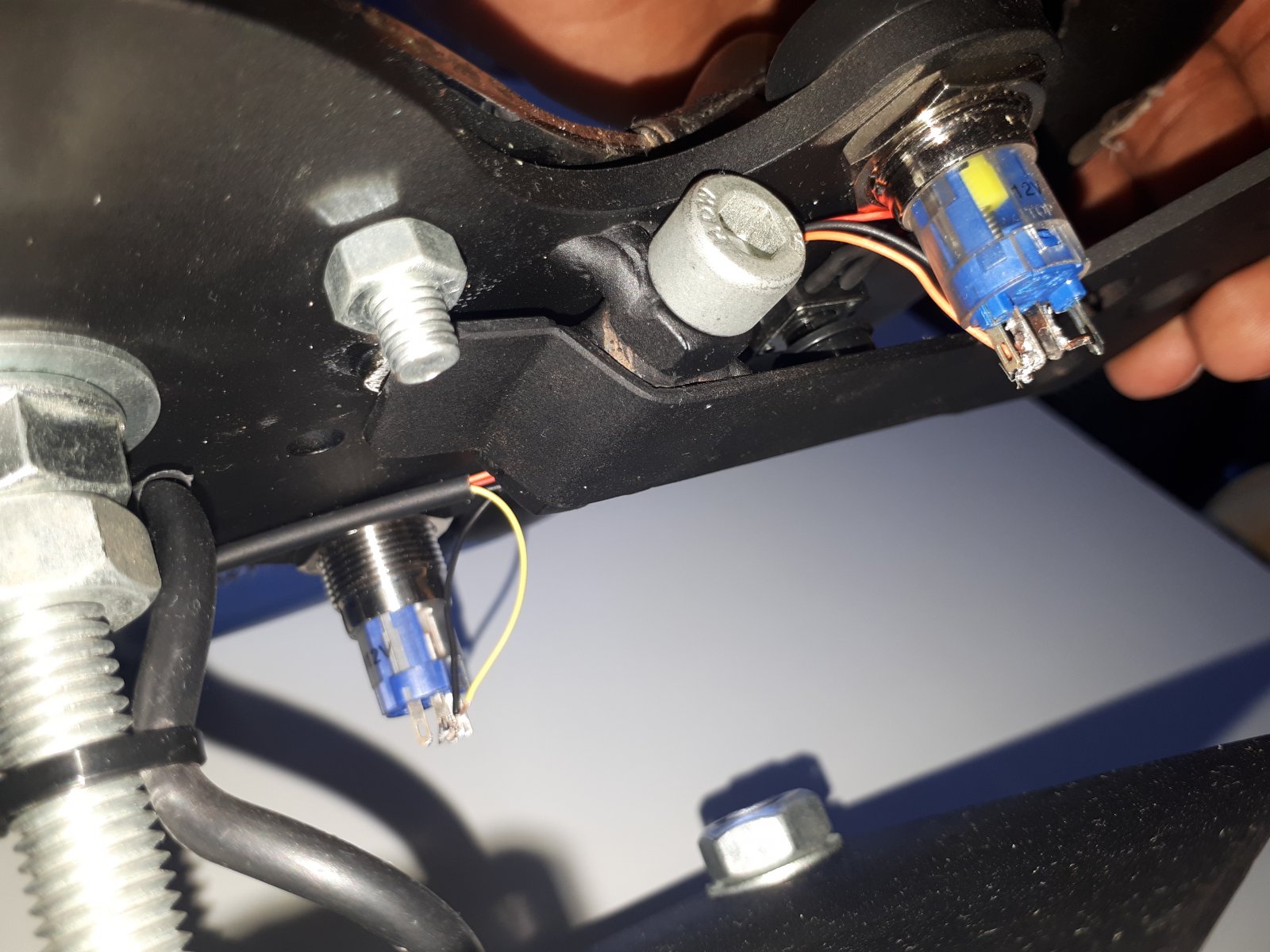

    Below the first prototype (evo 1) of the kit:

    upload_2021-9-5_12-53-29.jpeg upload_2021-9-5_12-53-56.jpeg 20210905_113812.jpg 20210905_113900.jpg 20210905_113844.jpg
