Showroom 2DOF to be 4DOF soon.

Discussion in 'DIY Motion Simulator Projects' started by MotionMaker, Dec 5, 2019.

  1. MotionMaker

    MotionMaker New Member Gold Contributor

    Joined:
    Jul 13, 2016
    Messages:
    3
    Occupation:
    Electrician
    Location:
    Mount Isa Queenslan
    Balance:
    202Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF
    Good day everyone.

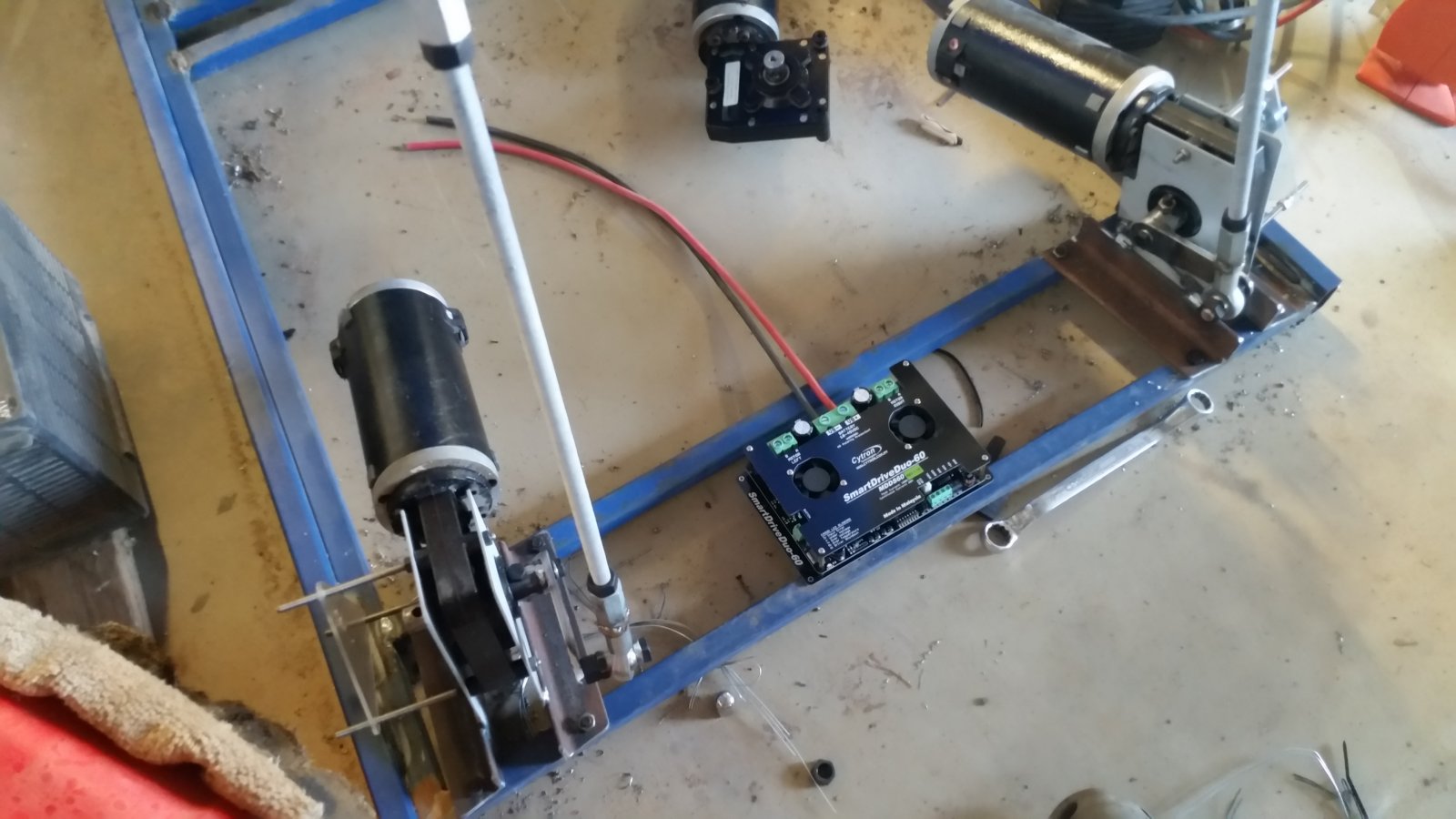

    So, I am about to connect and test the first 2 motors for the seat mover. I have 4 x 320W motors rated at 12V. (75Nm at 70 rpm) 2 for the seatmover, 1 for traction loss and another for heave.
    [​IMG]

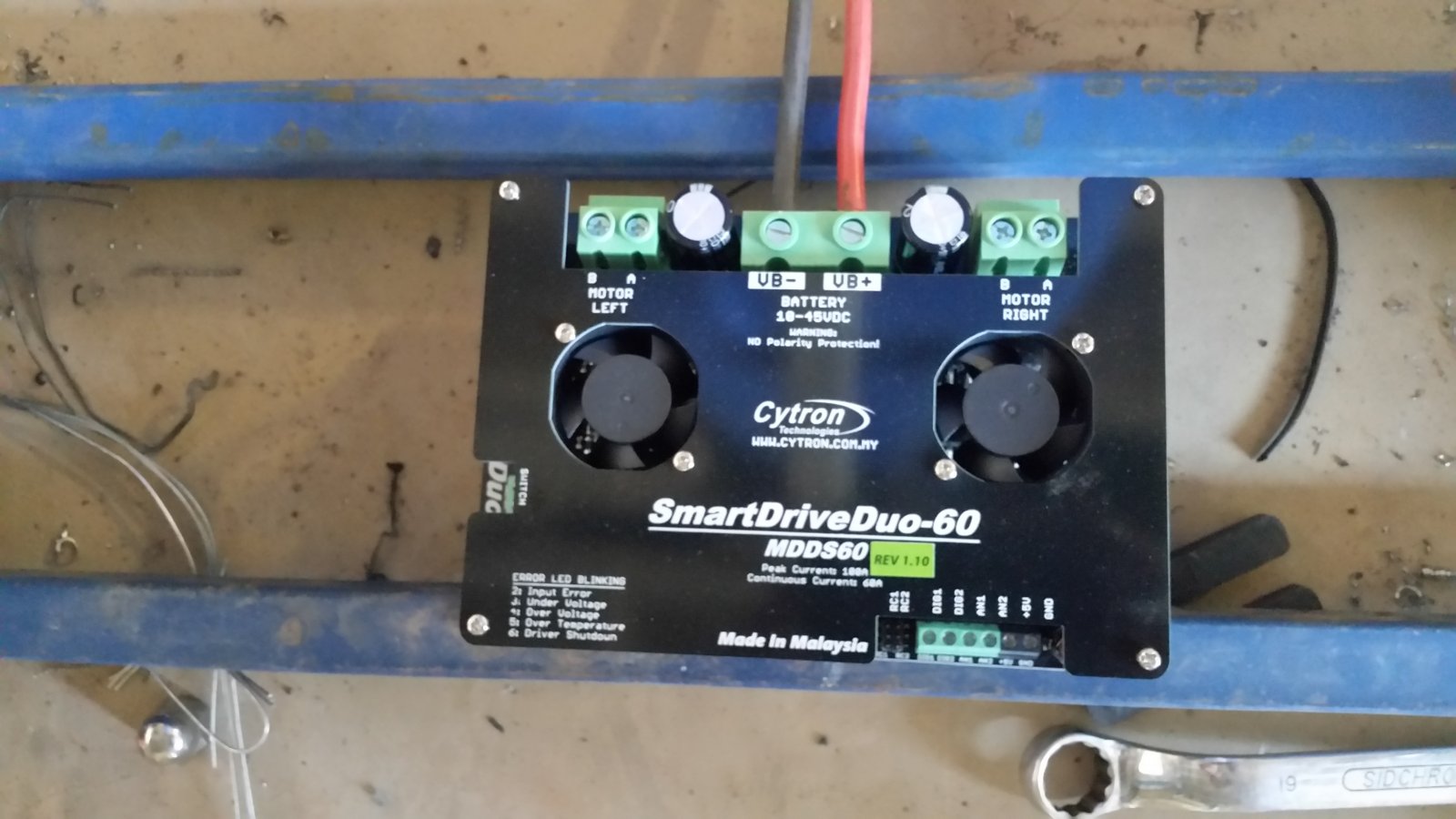

    I'd thought I will give the Cytron smartdrive-duo-60 a go.
    [​IMG]

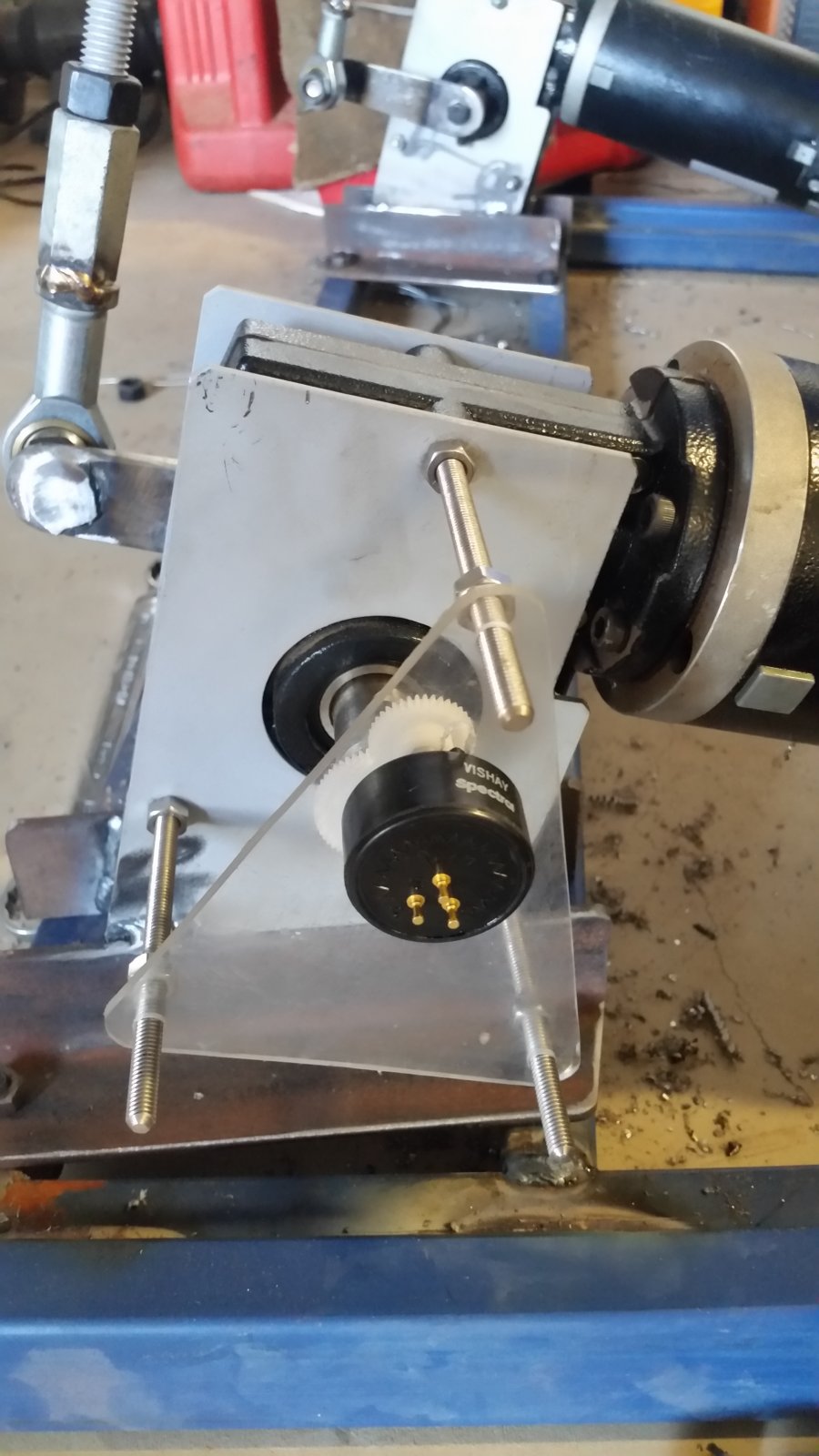

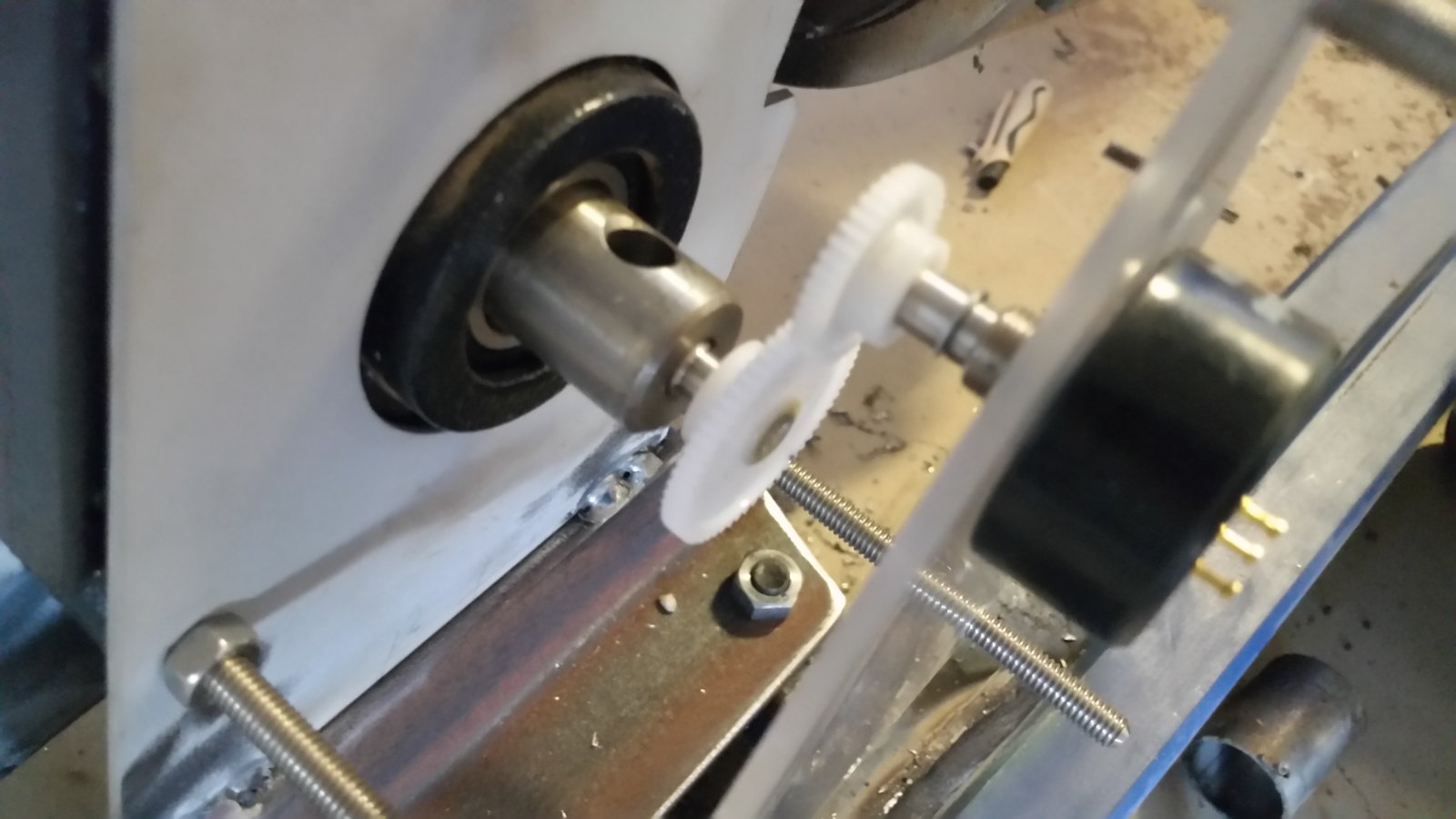

    For position feedback I have a gear arrangement. I have some 3 mm plexiglass available and made some mounts for the potentiometers. The ratio is 1:1.8.
    [​IMG]
    [​IMG]

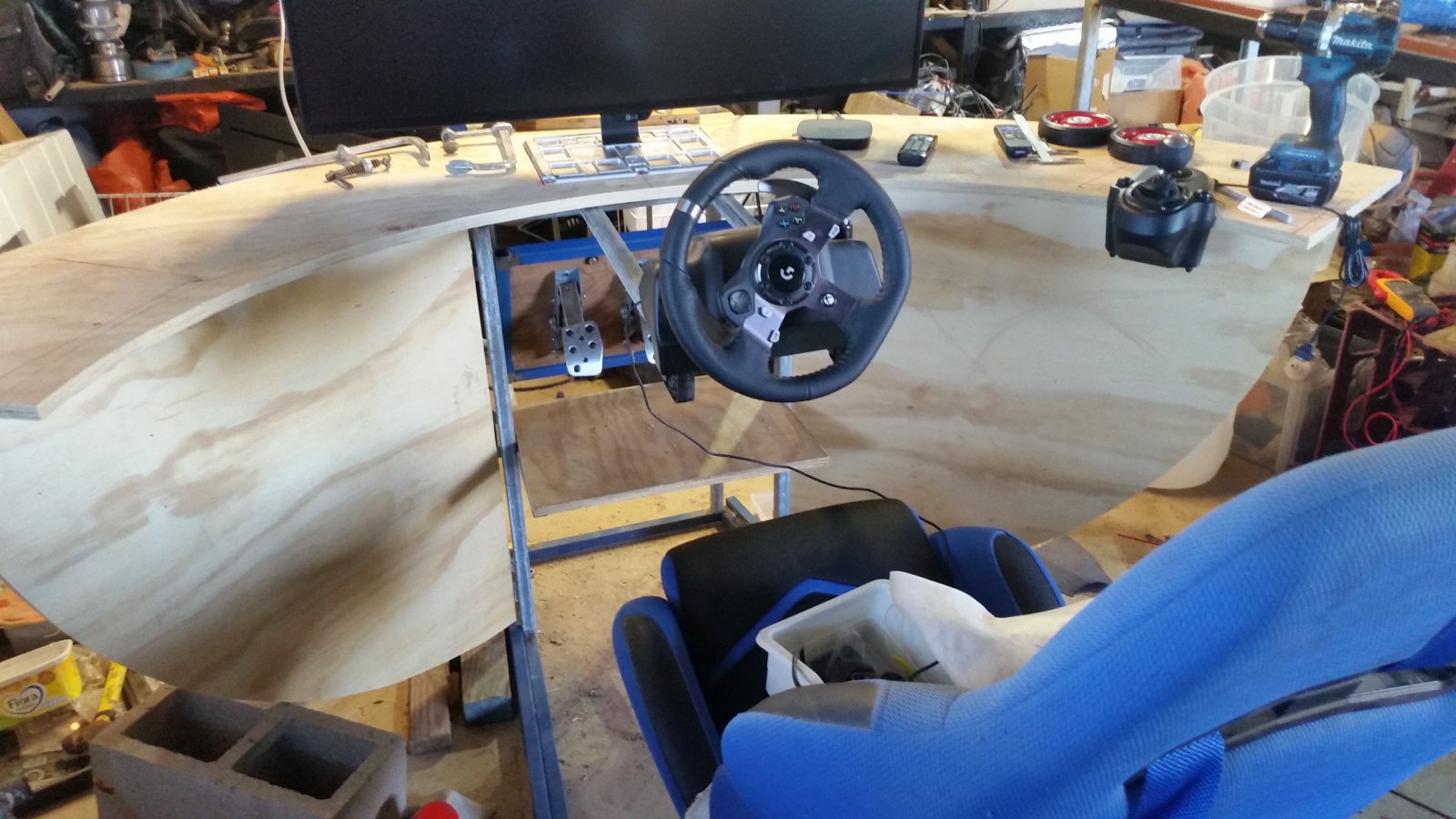

    I have a triple screen setup on a curved desk. I realise that it is a bit high but I will drop after the first few runs.
    [​IMG]

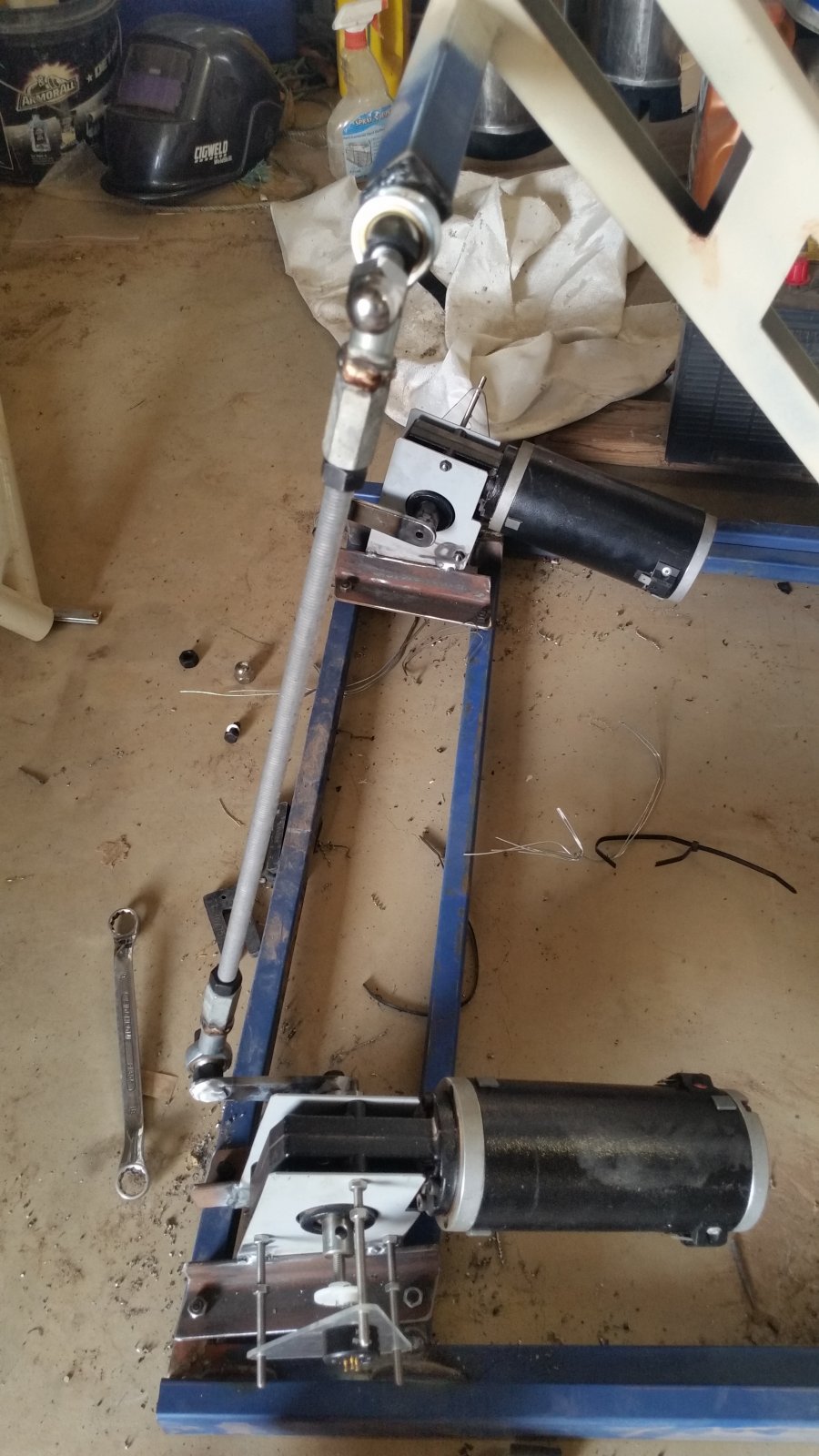

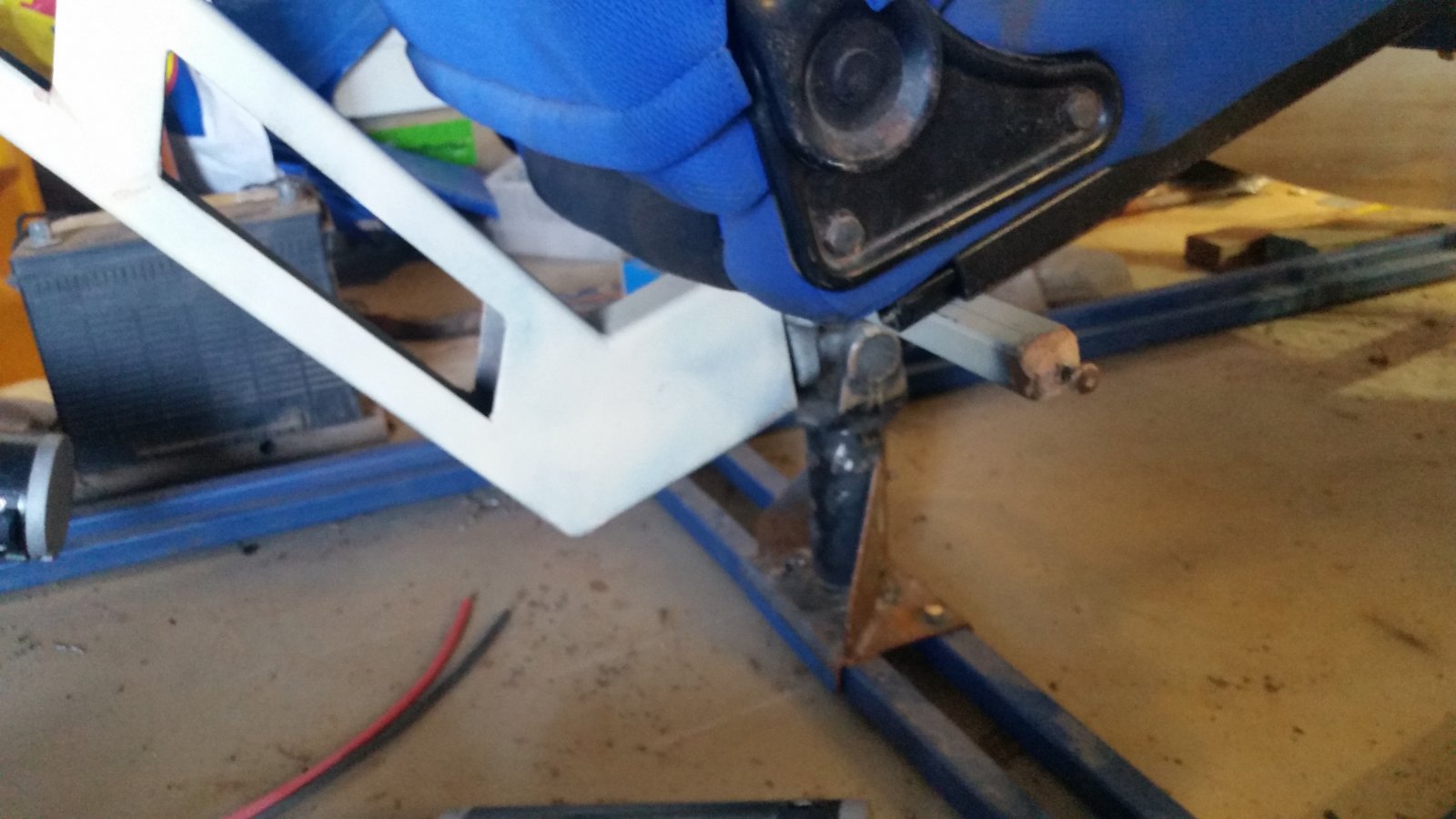

    For heave, I am constructing a crank that will push the rear of the up. I reckon 30mm either way from the zero position.

    [​IMG]


    Thanks for having a look!

    Attached Files:

    • Like Like x 1
    MotionMaker, Dec 5, 2019
    #1
  2. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,234
    Location:
    Marseille - FRANCE
    Balance:
    20,895Coins
    Ratings:
    +2,084 / 21 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    I like your curved desk!

    Looking forward the Heave mechanism you're designing
    RacingMat, Dec 5, 2019
    #2
