2dof motion using wooden components

Discussion in 'DIY Motion Simulator Projects' started by Martin Hoare, Feb 18, 2020.

  1. Martin Hoare

    Martin Hoare @M45T1N

    Joined:
    Jun 24, 2019
    Messages:
    5
    Occupation:
    Photographer
    Location:
    Havant
    Balance:
    109Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, AC motor, Arduino, Motion platform

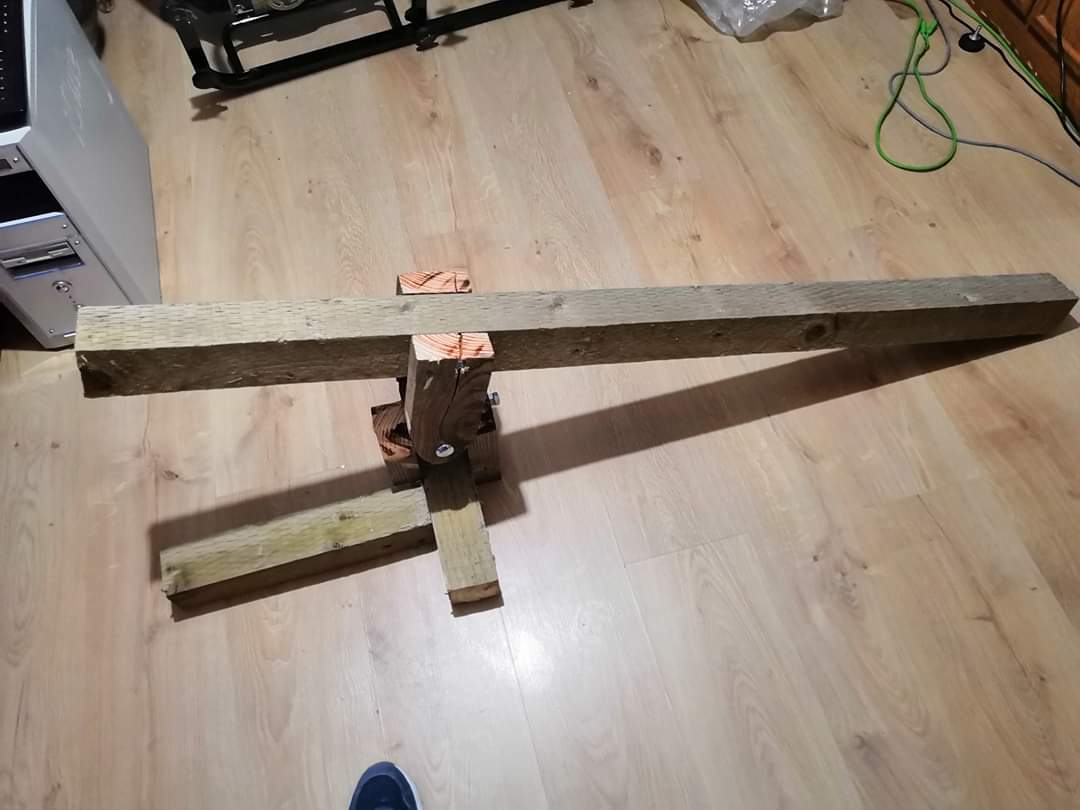

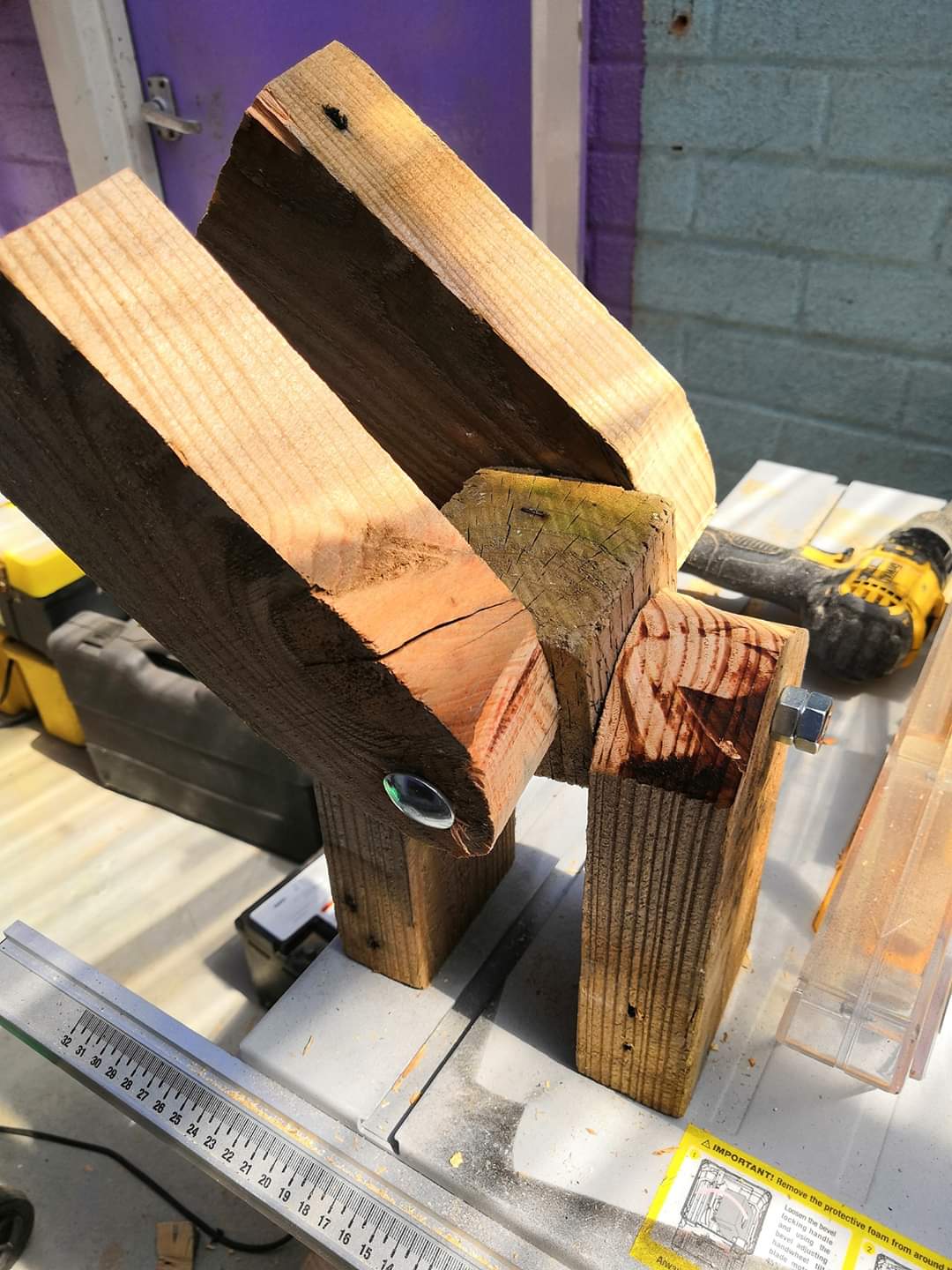

    Has anyone ever successfully built one out of wooden components?

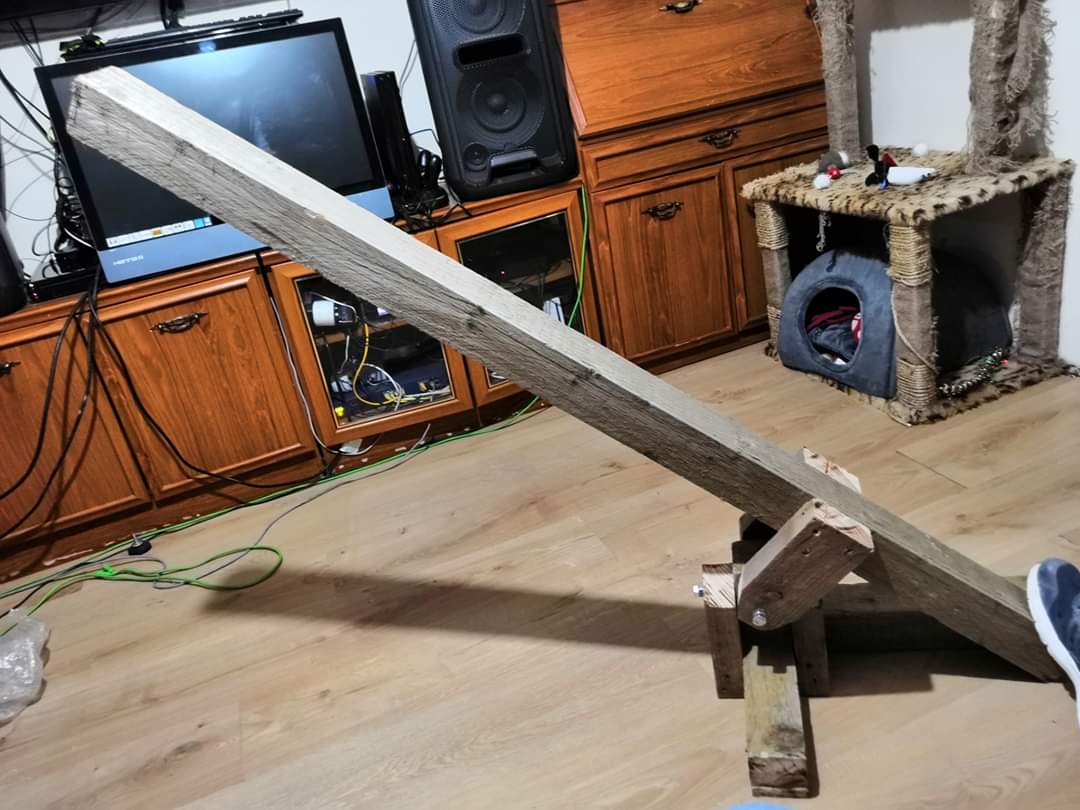

    I have made a start on my build however come a cropper on the motor side of things currently

    Attached Files:

  2. Martin Hoare

    Martin Hoare @M45T1N

    Joined:
    Jun 24, 2019
    Messages:
    5
    Occupation:
    Photographer
    Location:
    Havant
    Balance:
    109Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, AC motor, Arduino, Motion platform

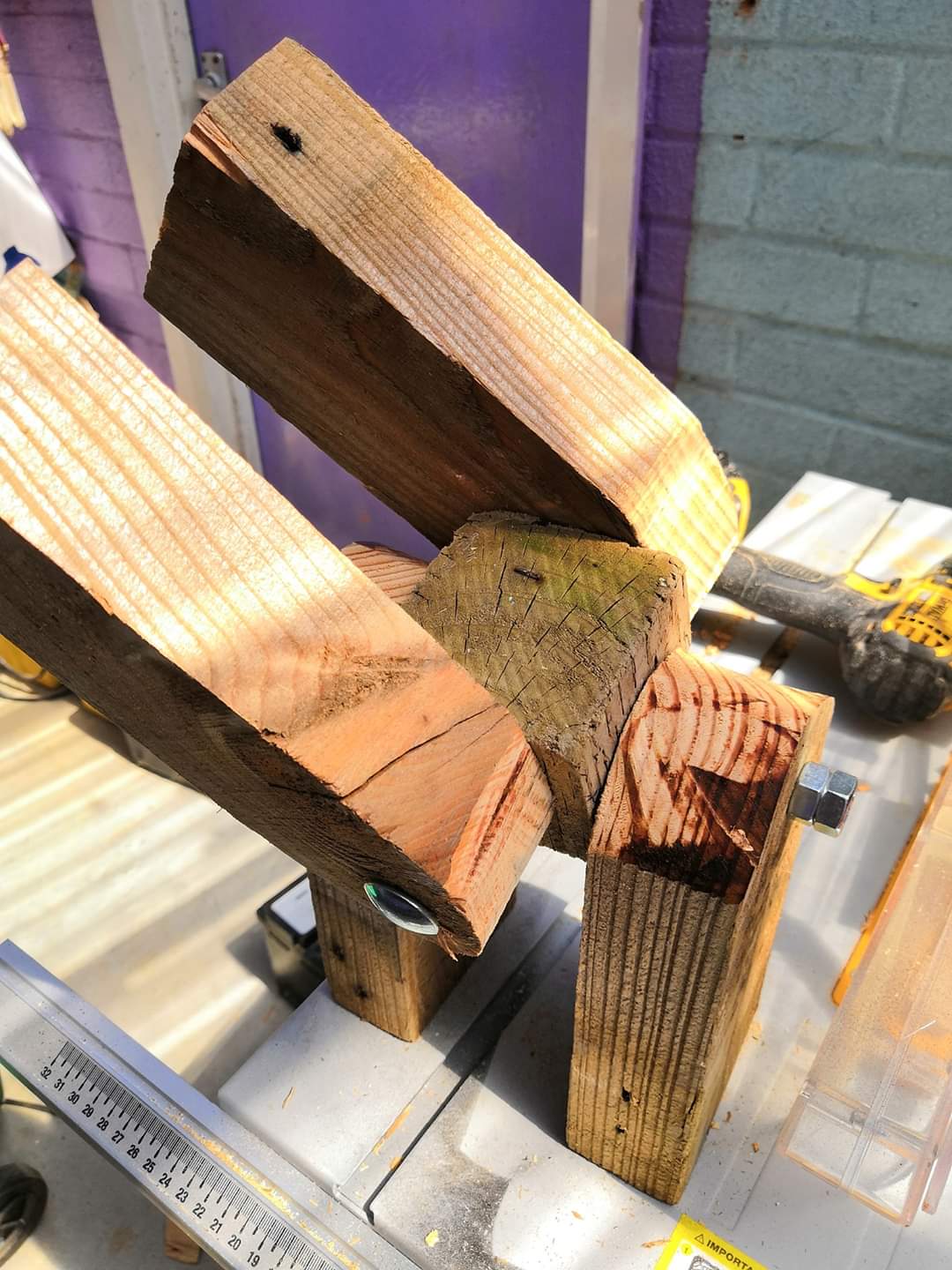

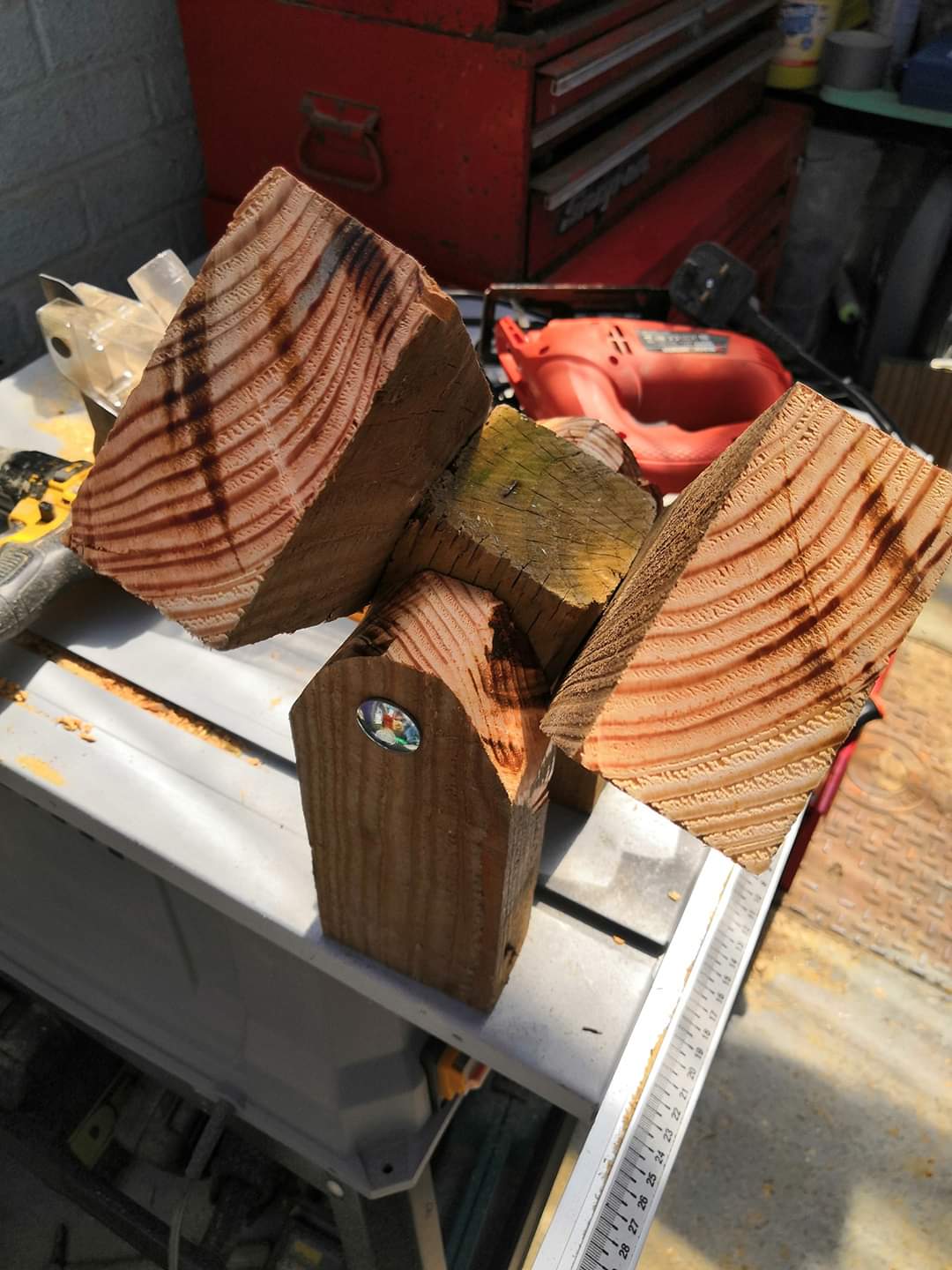

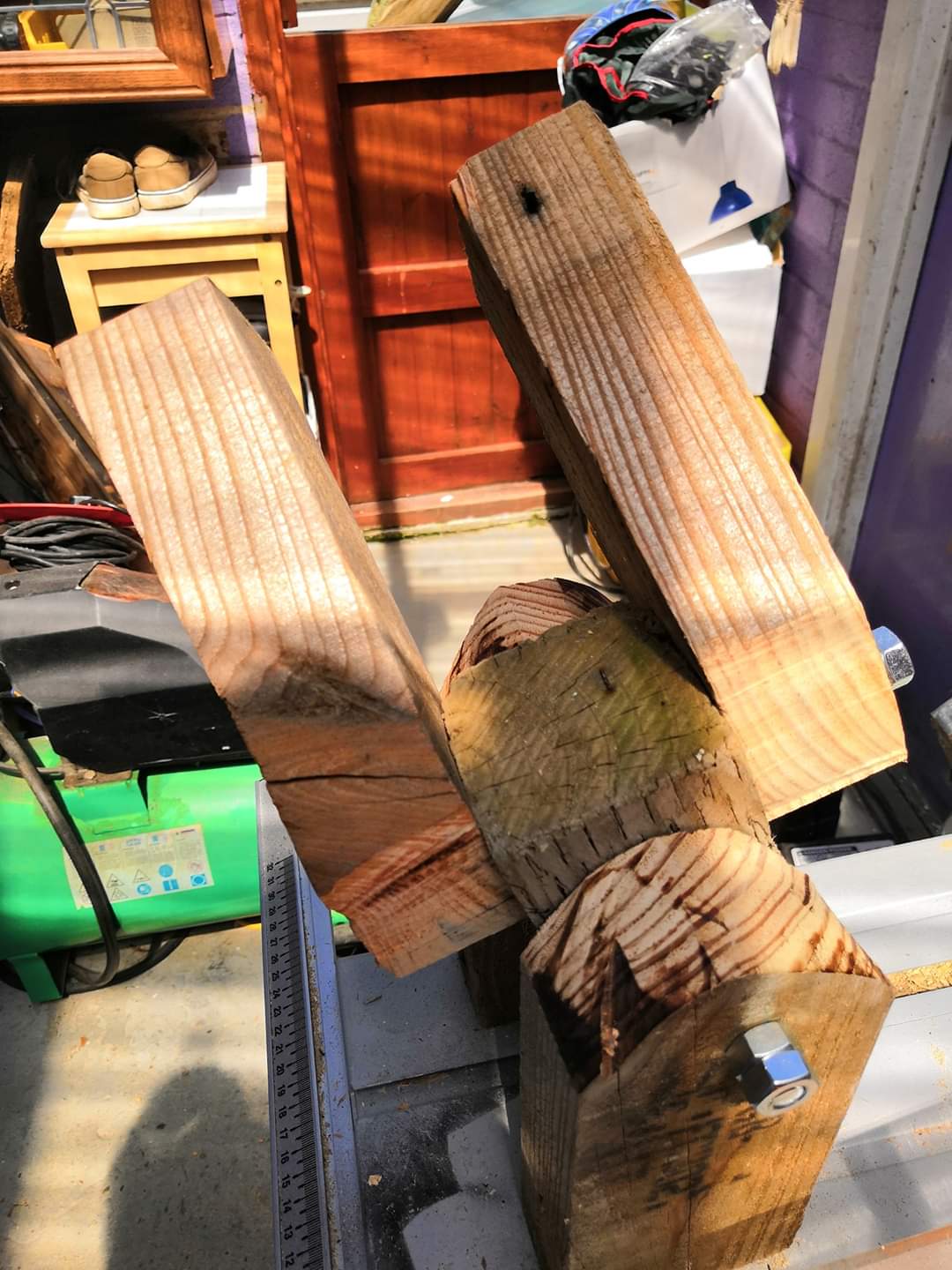

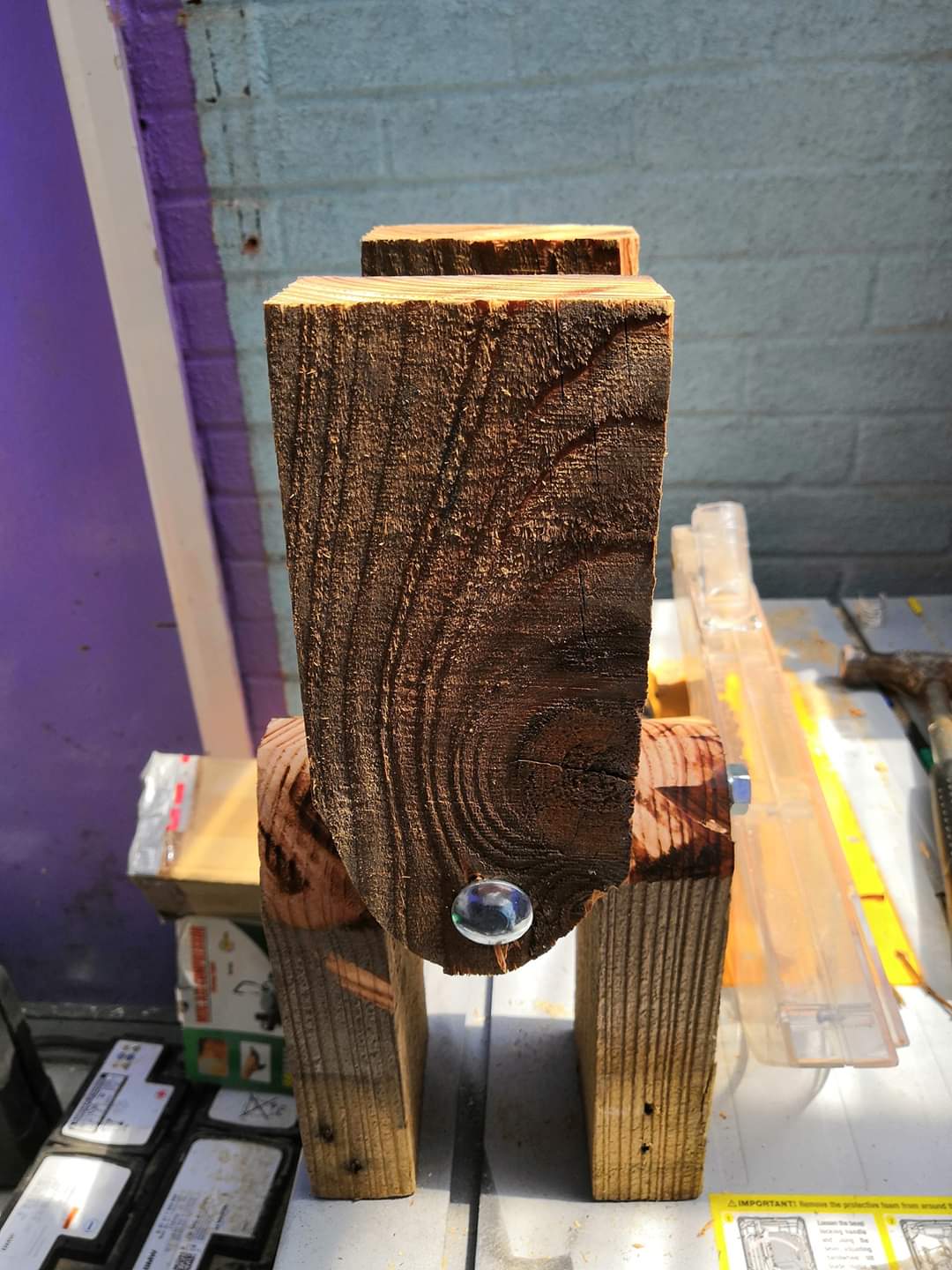

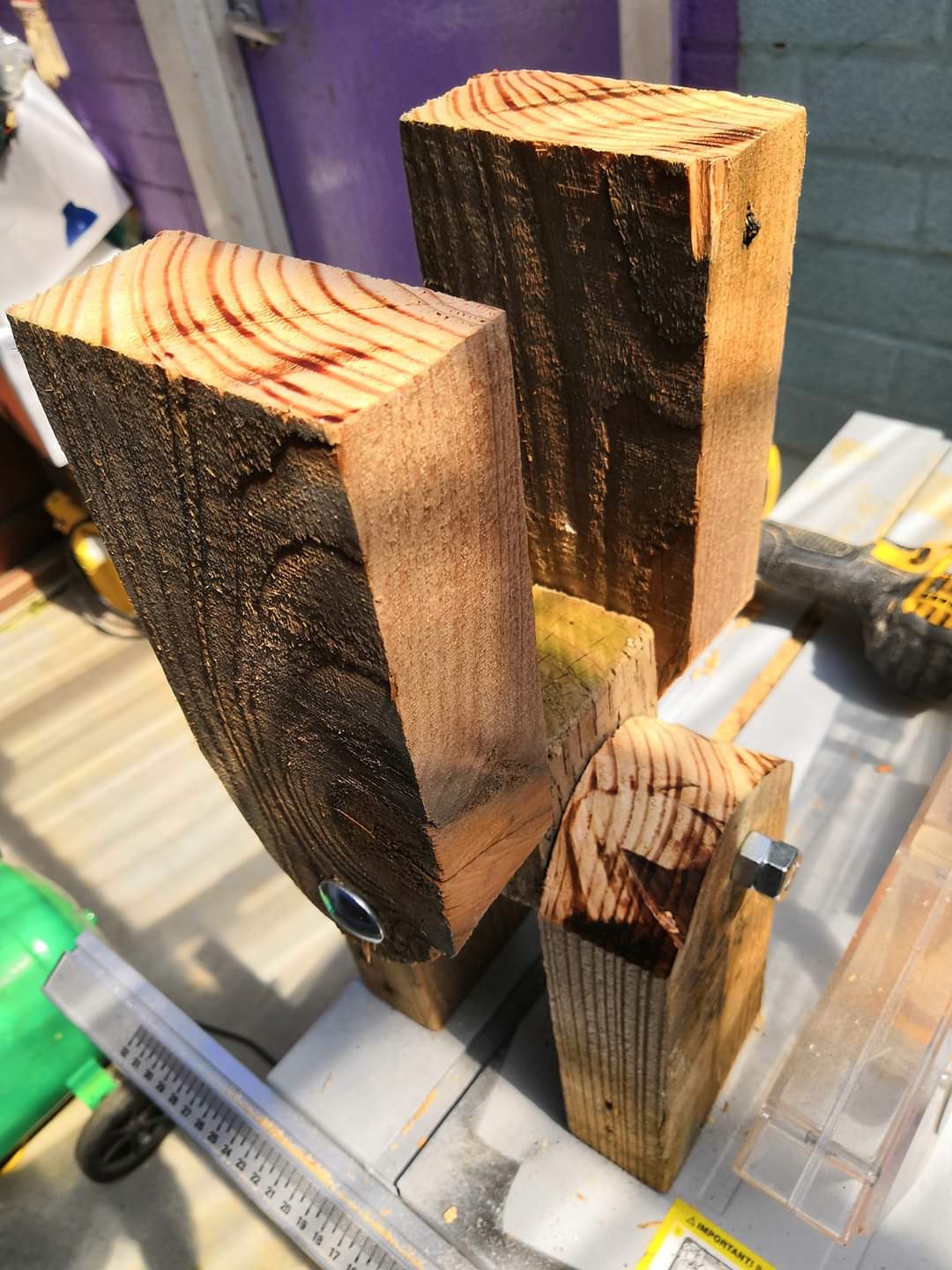

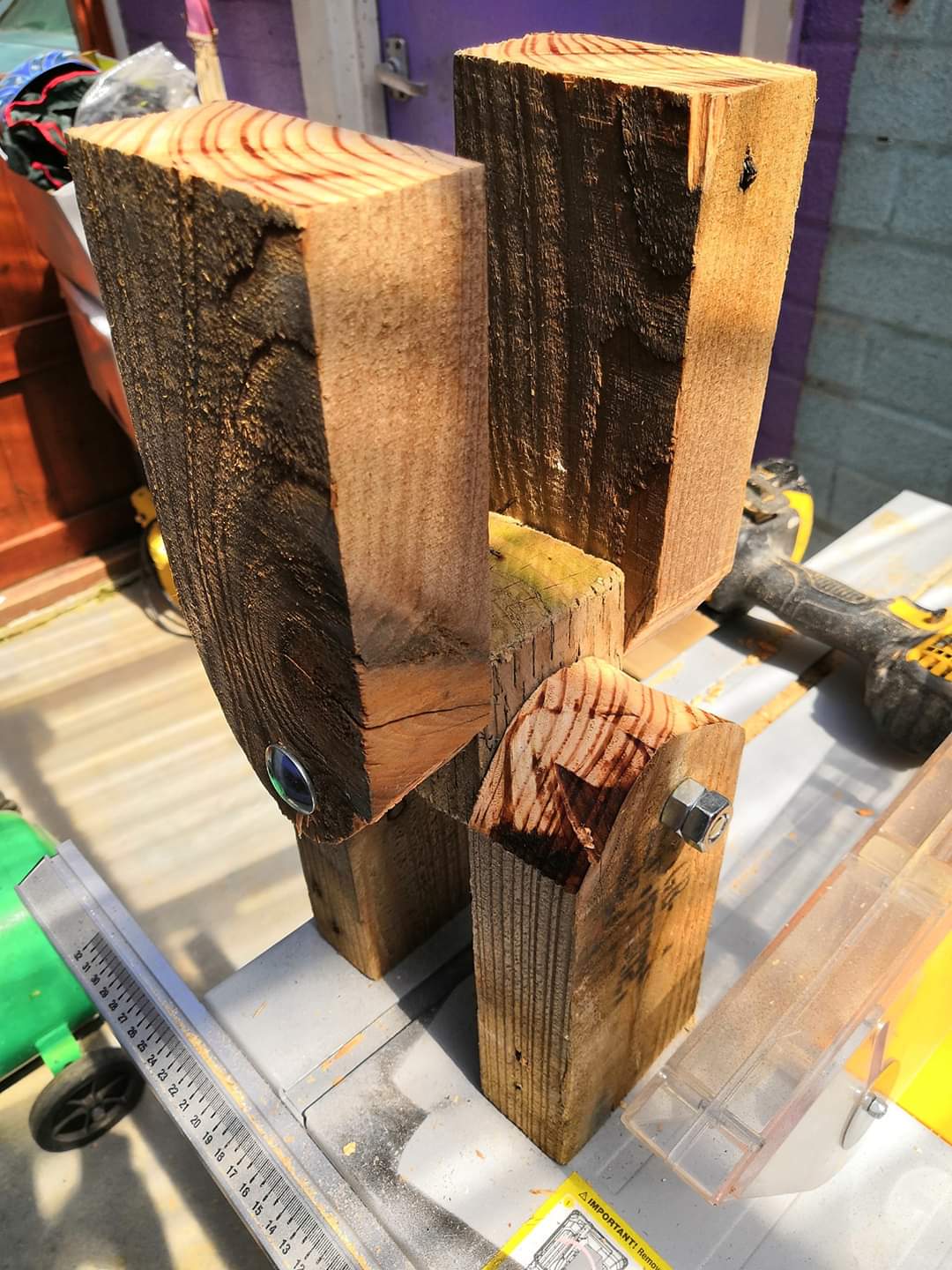

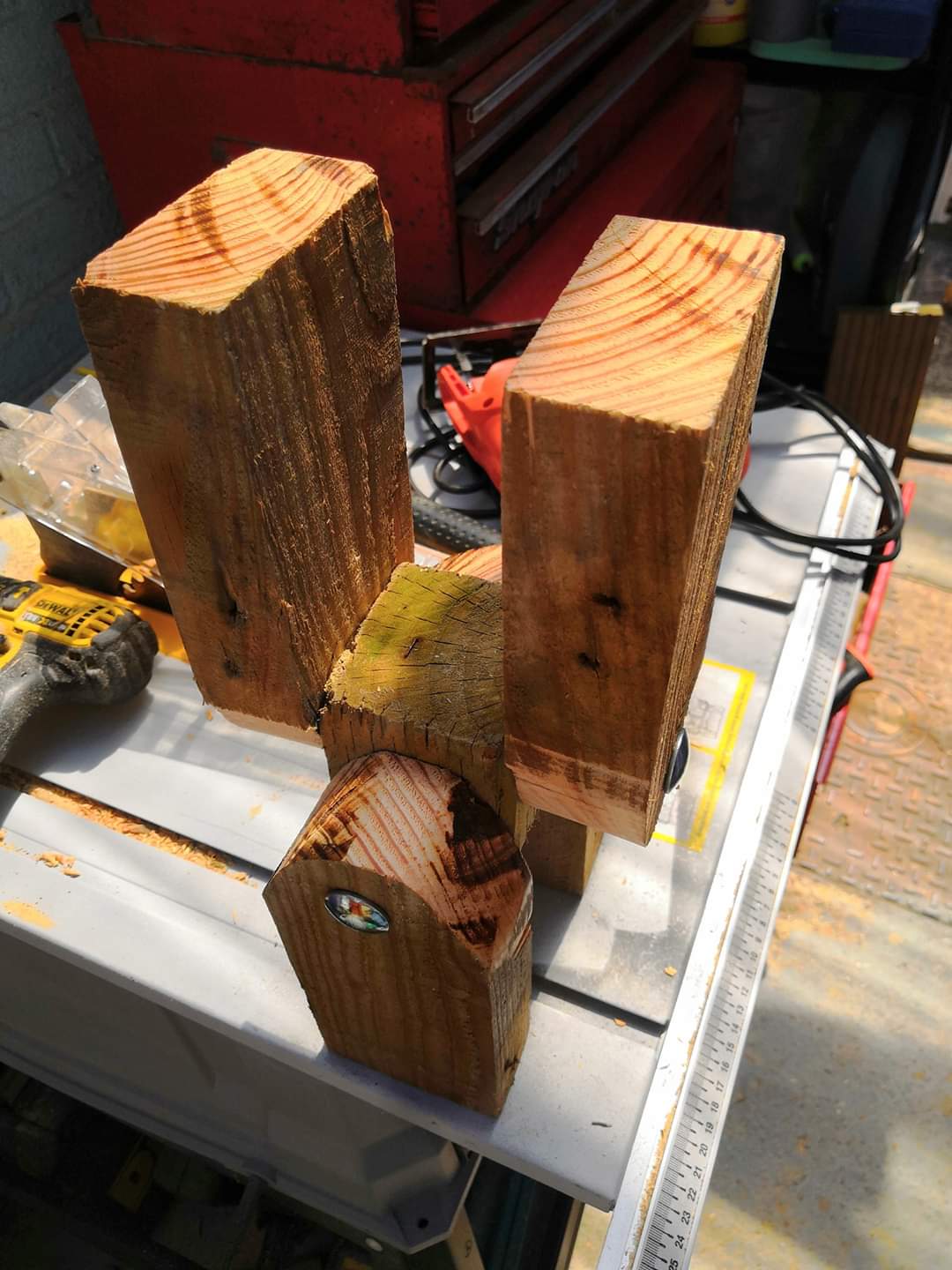

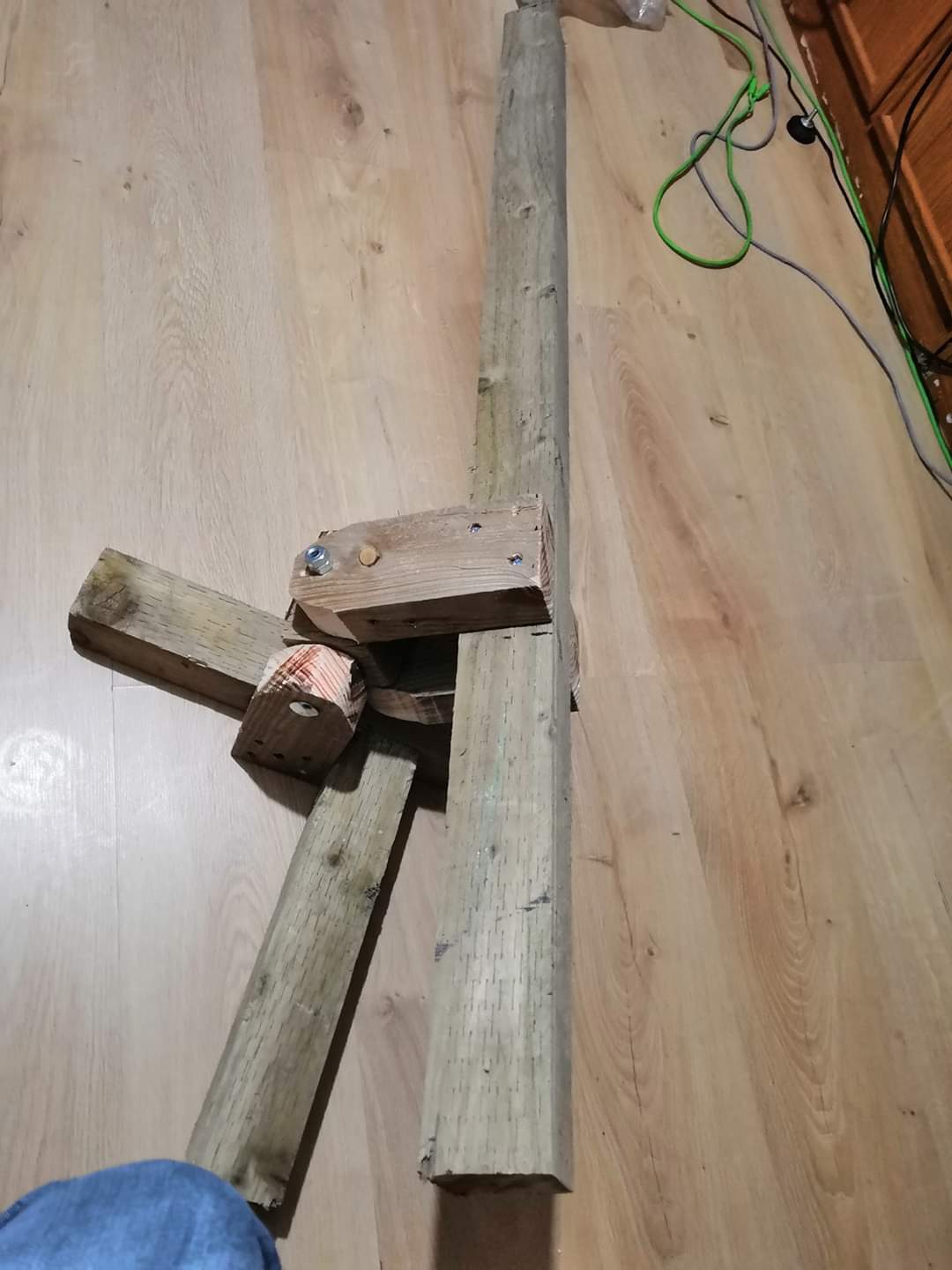

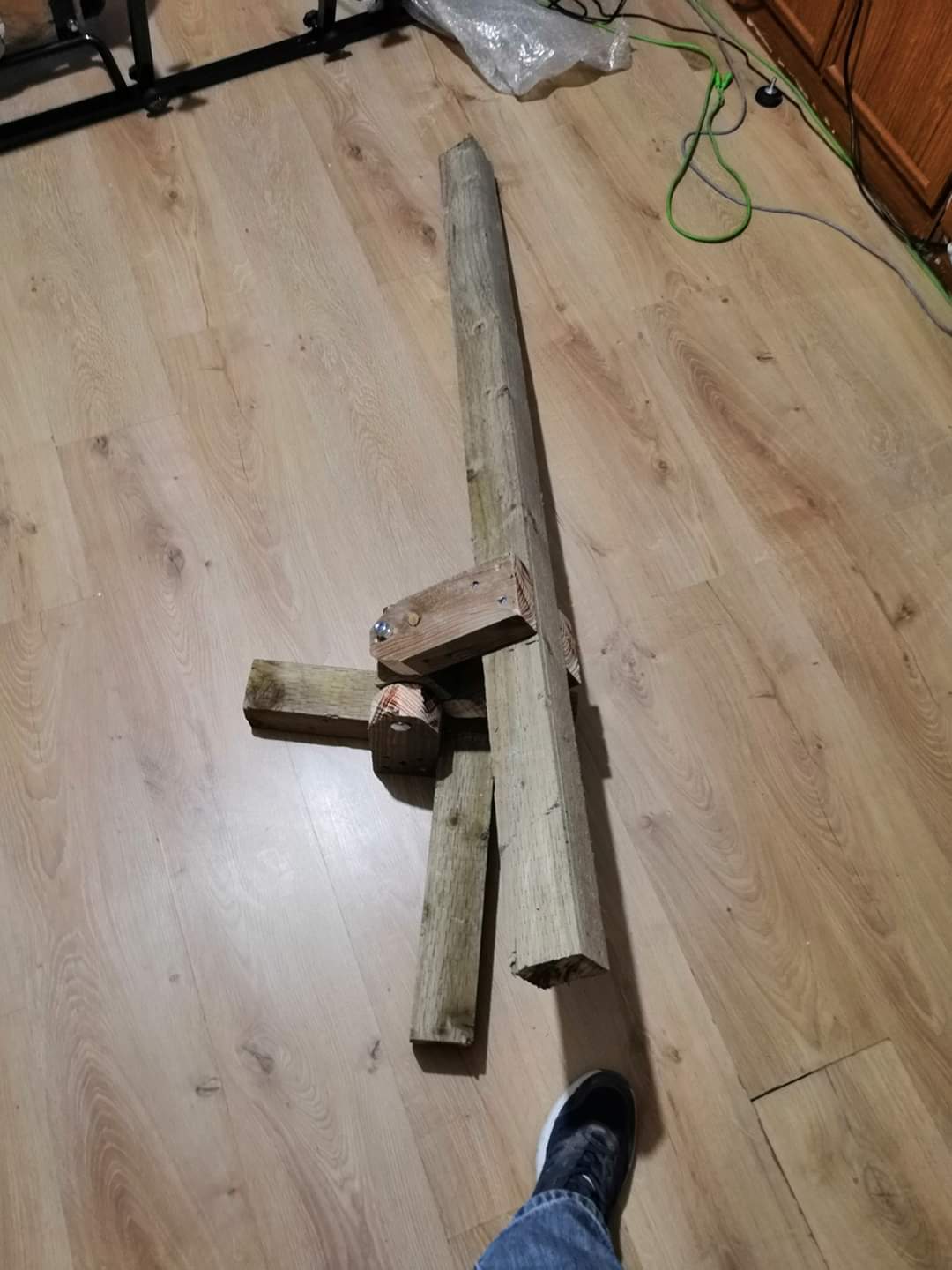

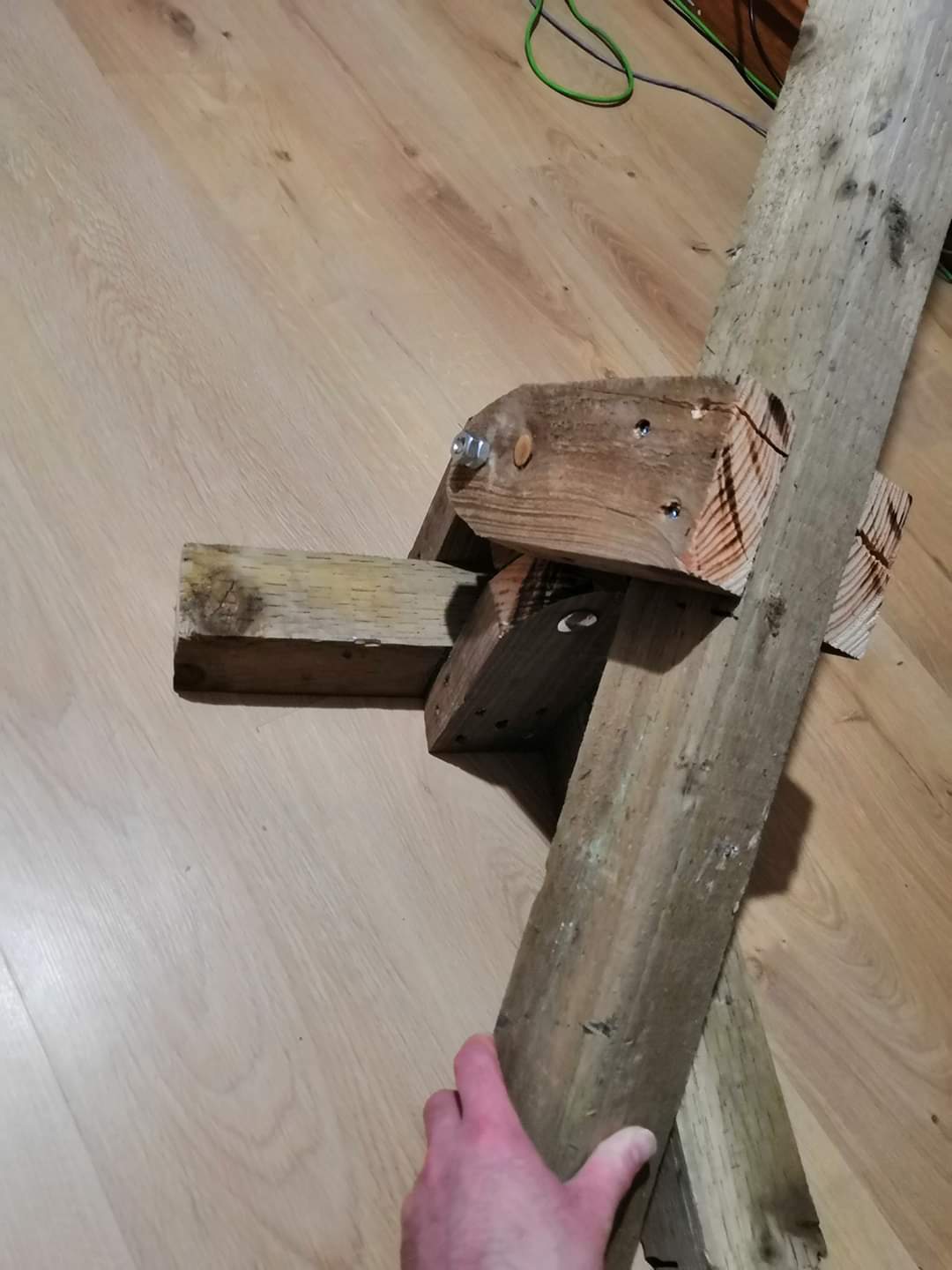

    The following photos are of the UJ mounted to the crossbeam

    Attached Files:

  3. Martin Hoare

    Martin Hoare @M45T1N

    Joined:
    Jun 24, 2019
    Messages:
    5
    Occupation:
    Photographer
    Location:
    Havant
    Balance:
    109Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, AC motor, Arduino, Motion platform

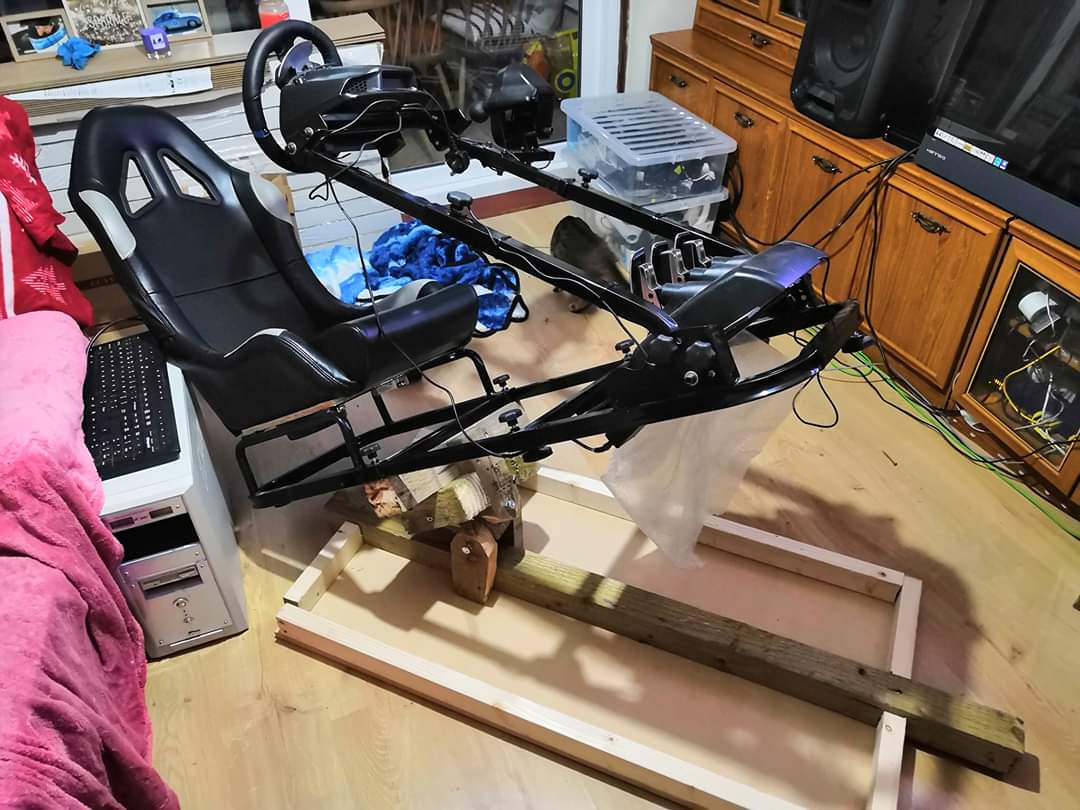

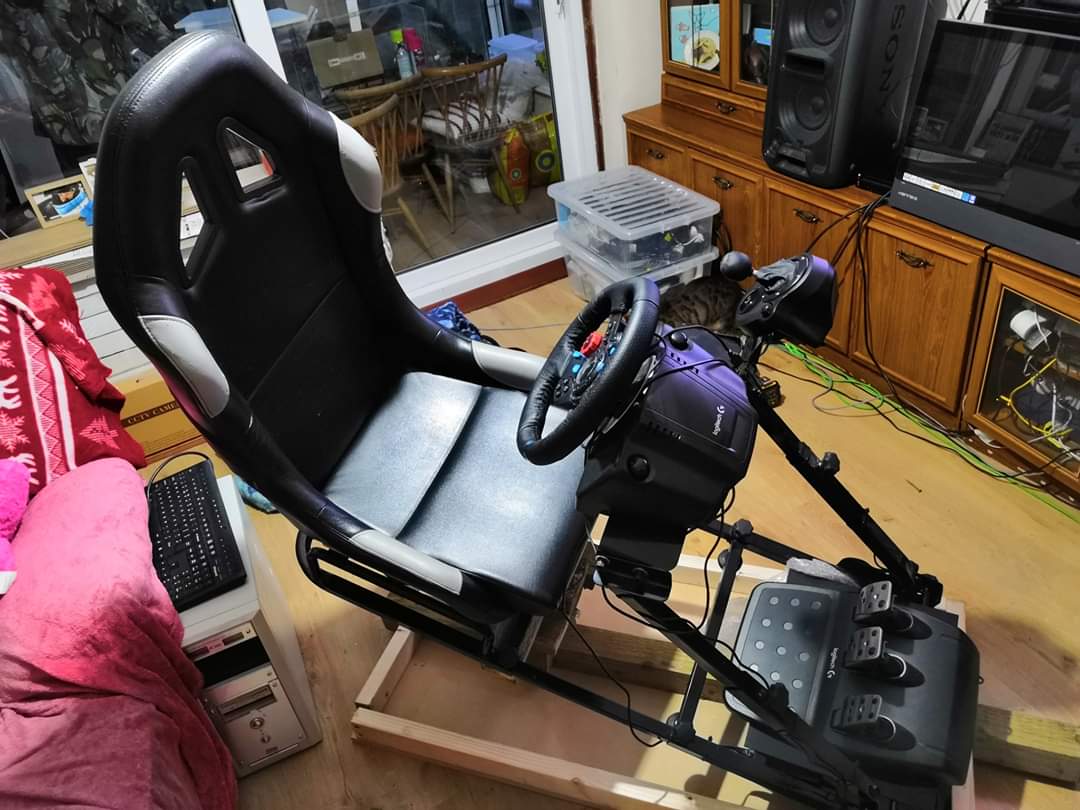

    Testing out the dimensions of the seat and drilling the holes to eventually mount the seat frame to the platform

    Attached Files:

  4. Martin Hoare

    Martin Hoare @M45T1N

    Joined:
    Jun 24, 2019
    Messages:
    5
    Occupation:
    Photographer
    Location:
    Havant
    Balance:
    109Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, AC motor, Arduino, Motion platform

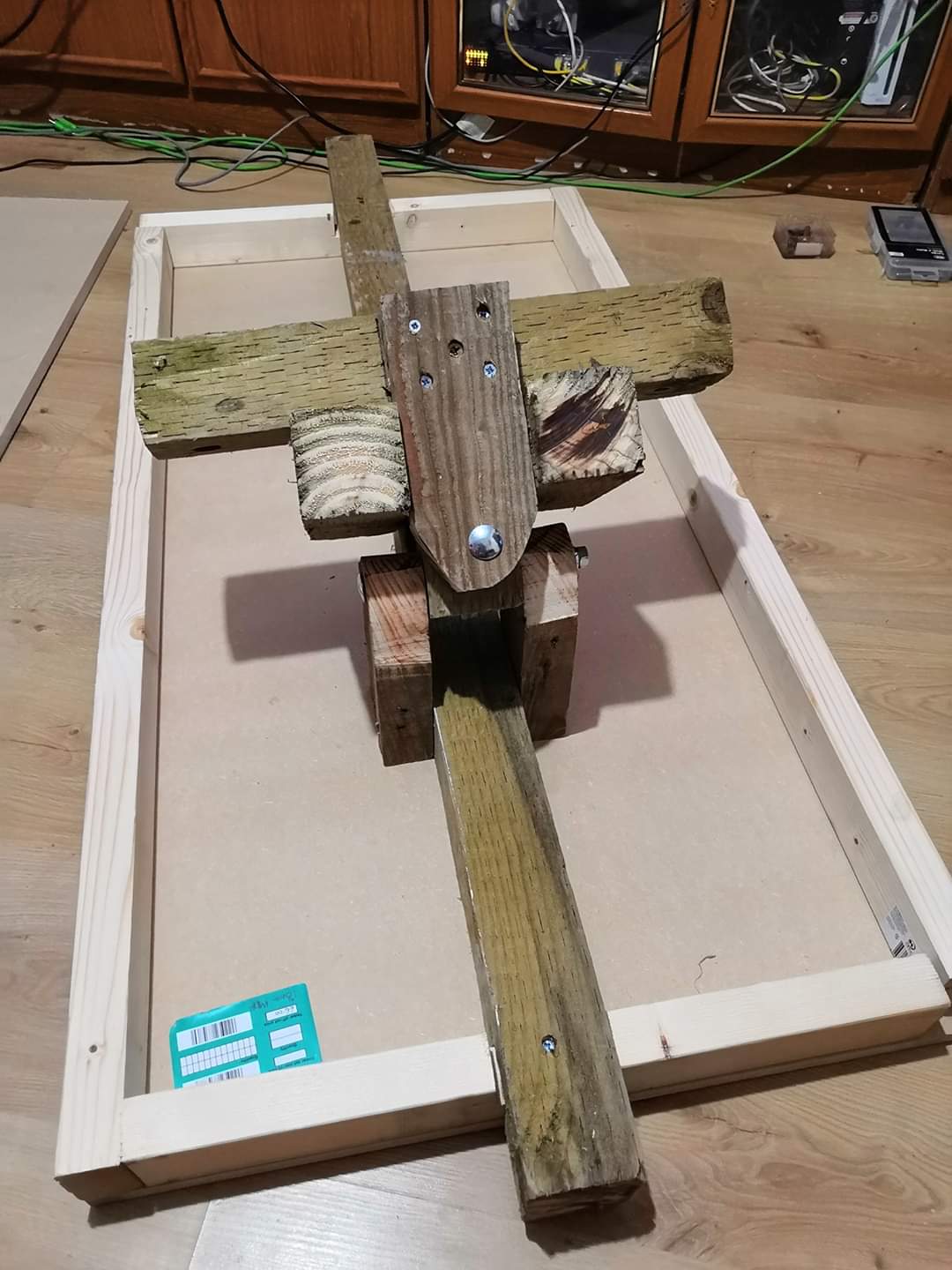

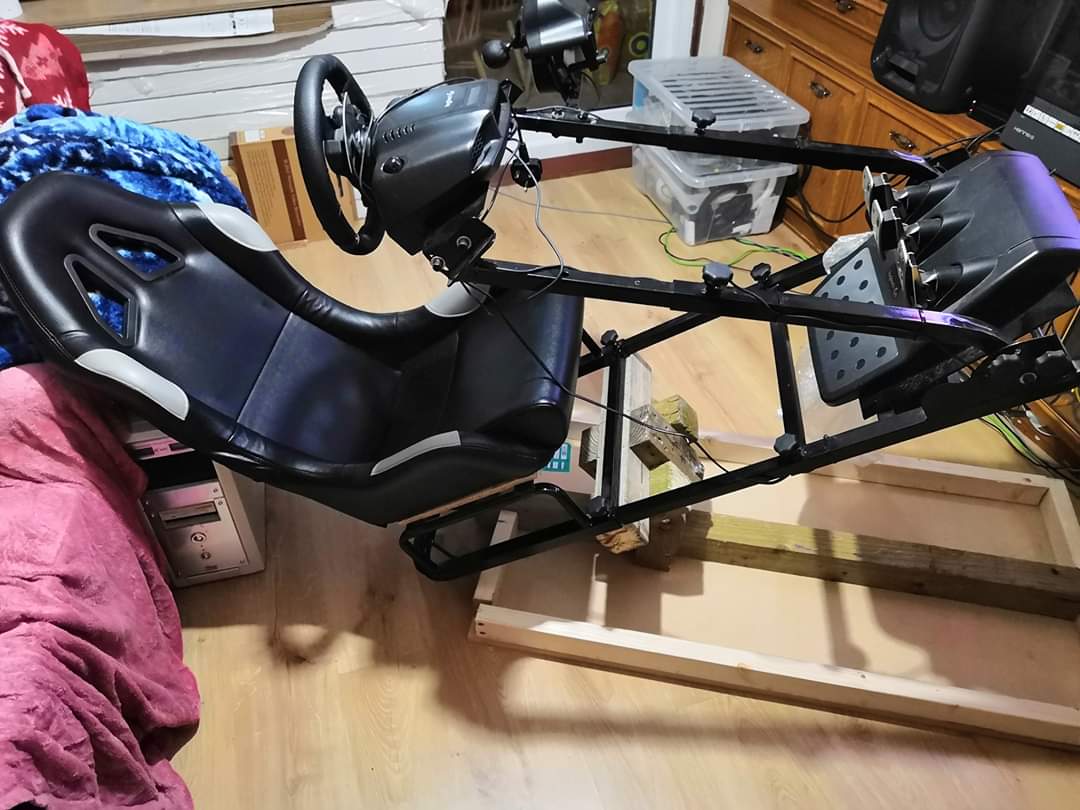

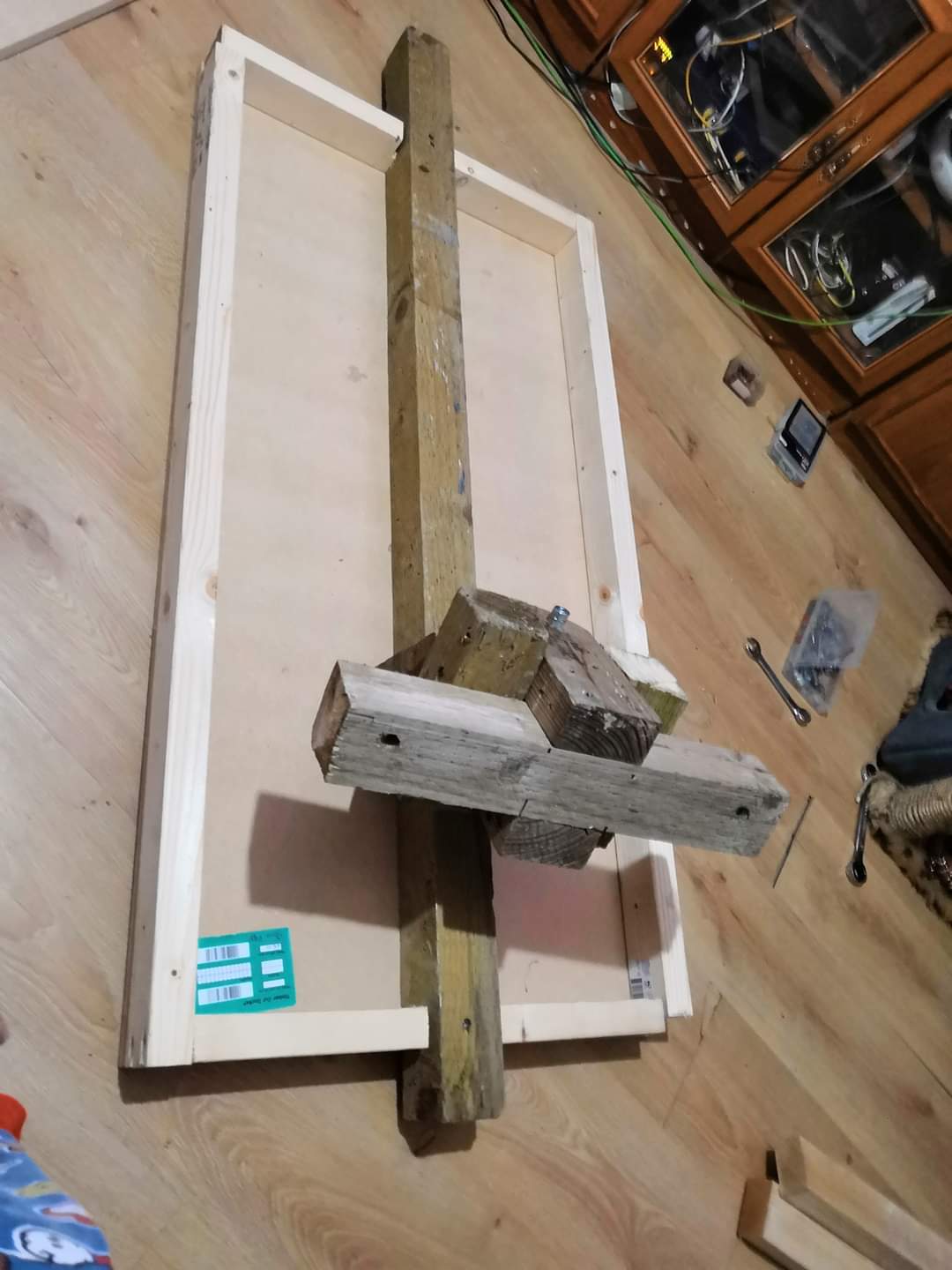

    I decided the platform needed to be a bit more sturdy so have included a baseplate to it

    Attached Files:

  5. Martin Hoare

    Martin Hoare @M45T1N

    Joined:
    Jun 24, 2019
    Messages:
    5
    Occupation:
    Photographer
    Location:
    Havant
    Balance:
    109Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, AC motor, Arduino, Motion platform

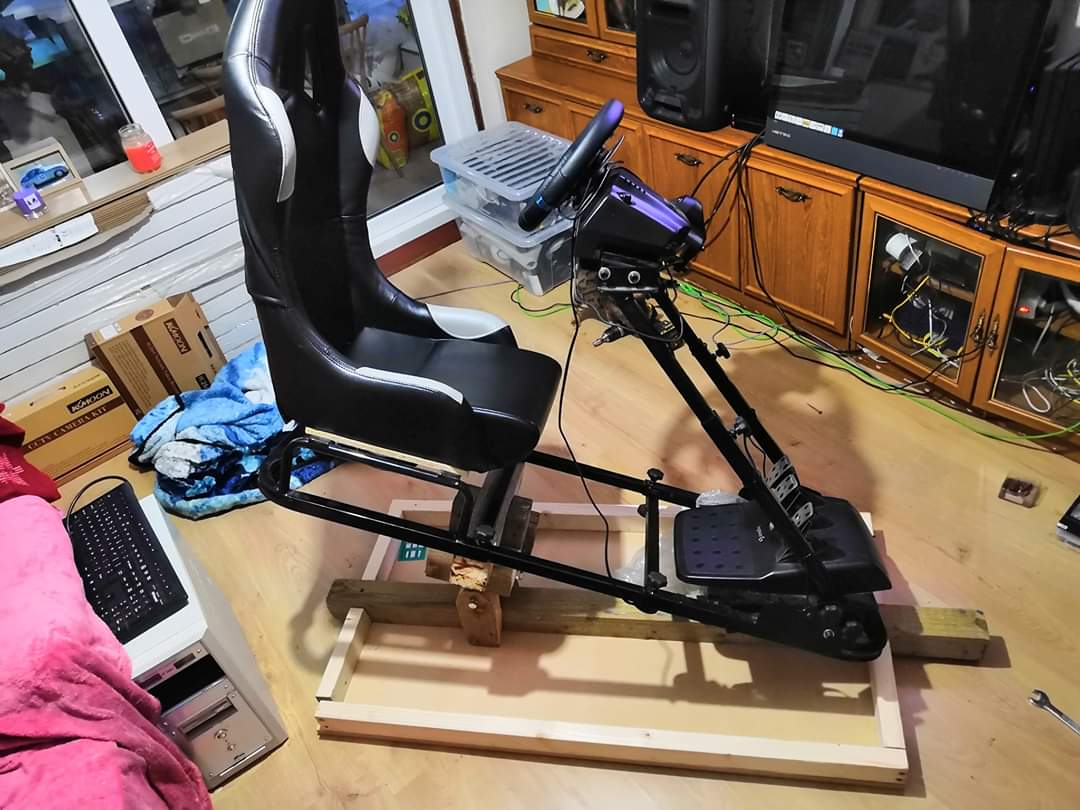

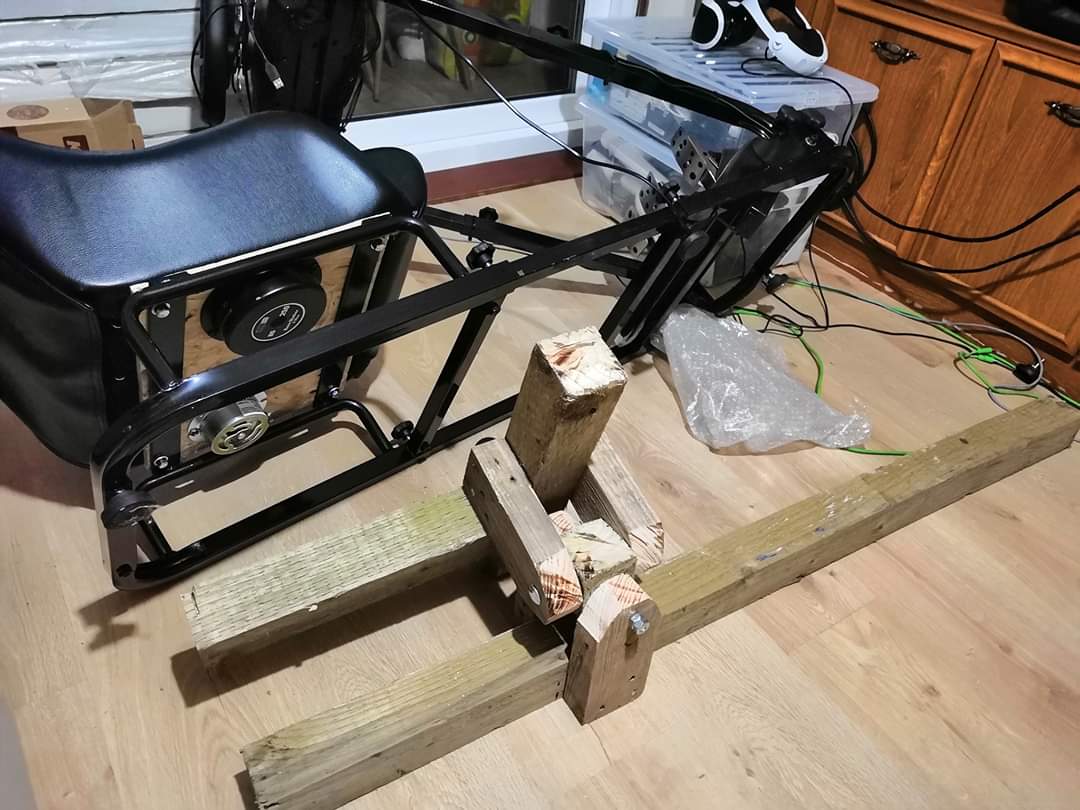

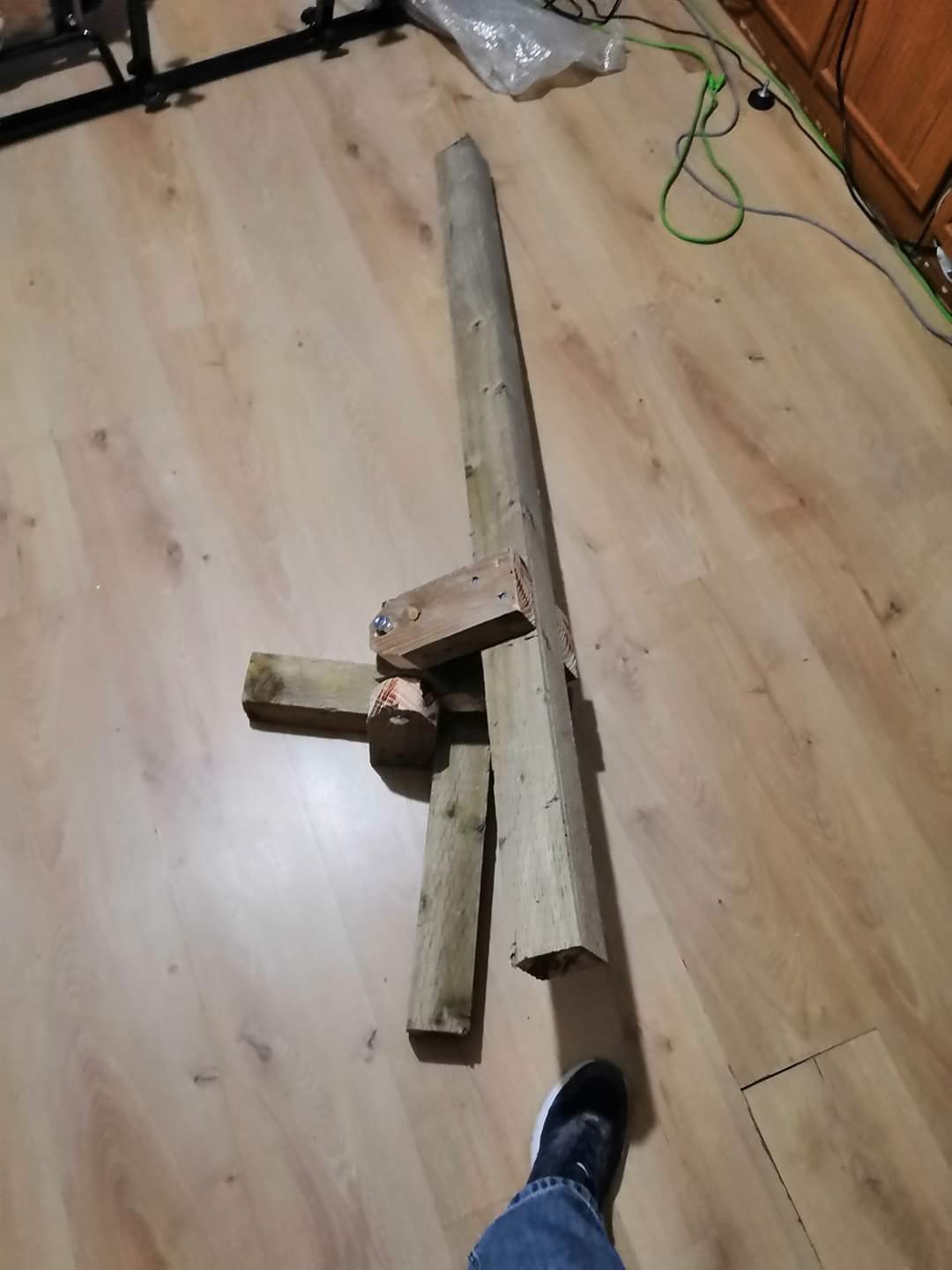

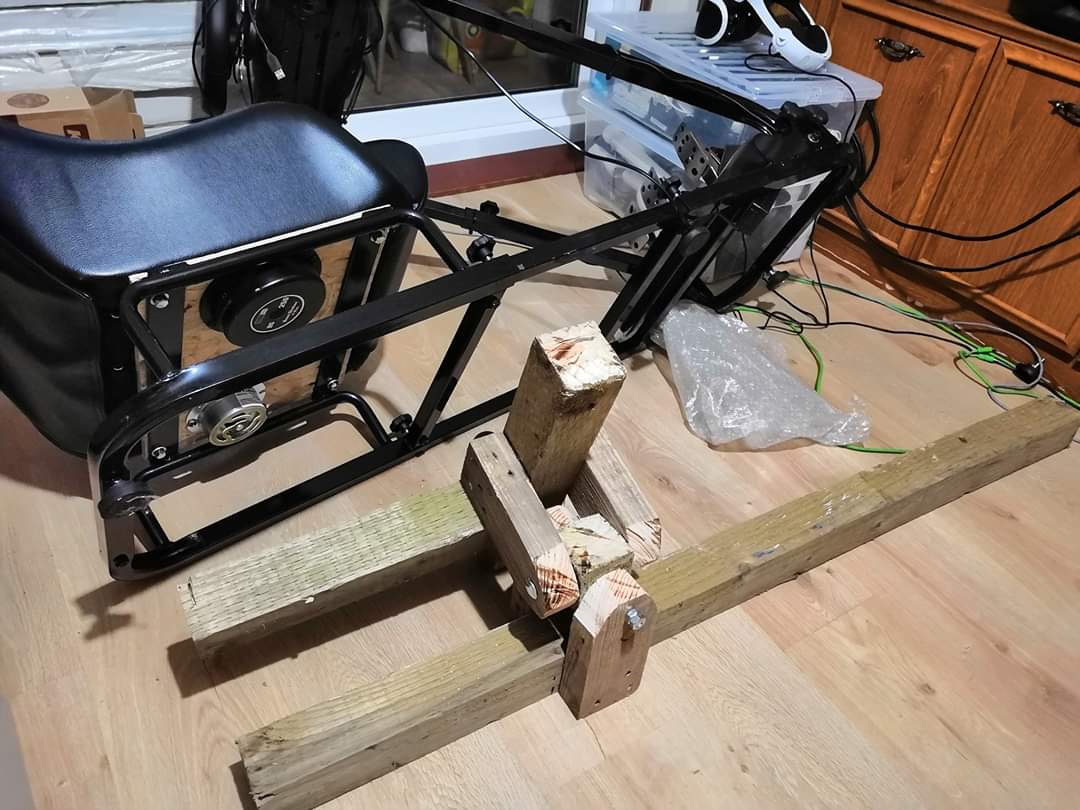

    The seat mounted to the crossbar and upon checking the available movement I needed to include some stoppers

    Attached Files:

    • Like Like x 1
  6. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,465
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,626Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    The motors and connecting rods will create a natural limit once fitted and even those motors that can be back driven should hold the platform once powered on.

    The timber frame should be fine, but for durability and minimum friction a traditional uni joint would be better, placed as close as possible to the seat base, as otherwise it adds a lot of stress on the motors: https://www.xsimulator.net/community/faq/universal-joint-placement.108/

    Your rig will also need to be properly balanced: https://www.xsimulator.net/communit...-of-gravity-to-balance-a-motion-simulator.55/
    • Agree Agree x 1
  7. Denaki

    Denaki New Member

    Joined:
    Oct 1, 2017
    Messages:
    1
    Location:
    Belgrade
    Balance:
    109Coins
    Ratings:
    +0 / 0 / -0
    Hey, looking good so far.
    I also want to make my sim with wooden components. Pls post more as you do. Tnx. Good luck!
