2DOF Aluminium Profile Rig

Discussion in 'DIY Motion Simulator Projects' started by stevemontuno, Feb 1, 2016.

  1. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    316
    Location:
    UK
    Balance:
    1,721Coins
    Ratings:
    +335 / 0 / -0
    My Motion Simulator:
    2DOF
    Thanks @SilentChill ,, I couldn't of done it without the inspiration from all the cool projects on this great forum,, it was your very own 2dof thread that opened my eyes and made me think it was possible in the first place.. :thumbs

    Oh and that Boundary rabbit hole can lose a mans sanity ,,haha :grin
    • Funny Funny x 1
  2. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    316
    Location:
    UK
    Balance:
    1,721Coins
    Ratings:
    +335 / 0 / -0
    My Motion Simulator:
    2DOF
    Just a little vid of the simulator in action,,,

    • Like Like x 3
  3. Hoddem

    Hoddem Well-Known Member

    Joined:
    Sep 27, 2016
    Messages:
    404
    Occupation:
    Engineer
    Location:
    Minnesota, USA
    Balance:
    3,342Coins
    Ratings:
    +713 / 2 / -0
    Is your shifter static or is it mounted to your chair? I'm building a seat shaker similar to yours and I'm struggling with how to mount the shifter and e-brake. Static or moving with the seat.

    Also, any idea how many degrees your seat moves through in each axis, pitch and roll.

    Great looking rig, congratulations
  4. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    316
    Location:
    UK
    Balance:
    1,721Coins
    Ratings:
    +335 / 0 / -0
    My Motion Simulator:
    2DOF

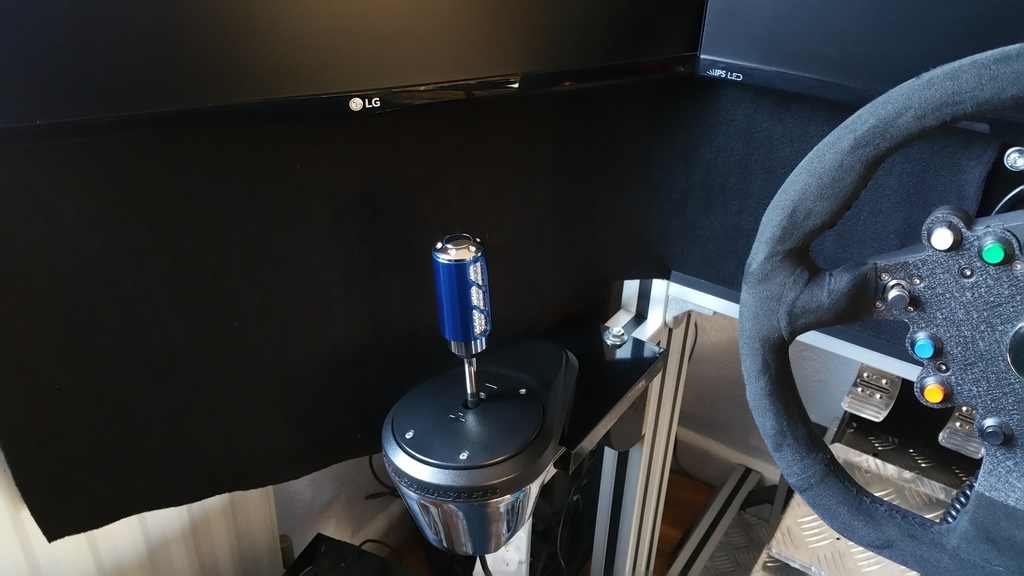

    Cheers ,,,,, The shifter is static attached to the H-frame next to my wheel,
    [​IMG]

    I don't know the actual degrees but i am using the Boundary filter with Pitch & Roll to shorten the degree of movement whilst still keeping the effect full on so to speak ,, Plus i find it stops pitch,roll & heave bleeding into the surge & sway too much with a 2DOF .
    Last edited: Mar 25, 2017
  5. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    316
    Location:
    UK
    Balance:
    1,721Coins
    Ratings:
    +335 / 0 / -0
    My Motion Simulator:
    2DOF
    I was wanting to add a picture of my rig to my simtools game engine home screen so i downloaded Photoshop and spoofed up one of the pics of my rig i had lying around,,,,turned out better than i expected for my first time using photoshop ,,,,oh the things we do for our beloved Simtools software,,,,lol

    [​IMG]

    [​IMG]
    • Like Like x 2
    • Winner Winner x 1
    Last edited: Jun 3, 2017
  6. eaorobbie

    eaorobbie Well-Known Member SimTools Developer Gold Contributor

    Joined:
    May 26, 2009
    Messages:
    2,582
    Occupation:
    CAD Detailer
    Location:
    Ellenbrook, Western Australia
    Balance:
    20,235Coins
    Ratings:
    +1,674 / 23 / -2
    My Motion Simulator:
    2DOF, DC motor, JRK, SimforceGT, 6DOF
    looks sweet mate , could Rene @RaceRay have permission to show this on our home page, Rene we need a couple more I think , Come on Guys , Im guilty too , lets show off our DIY designs, some briallant rigs here , need promoting , helps site and each pic should link to the post their rig is on, ??

    WOW gunna steel the back cover design for mine ,if OK !! thanks looks cool as. Well Done, Pro Job.
    • Like Like x 1
    • Agree Agree x 1
  7. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    316
    Location:
    UK
    Balance:
    1,721Coins
    Ratings:
    +335 / 0 / -0
    My Motion Simulator:
    2DOF
    Cheers Robbie ,,,yes mate your welcome to use it how ever you like ,,,,, :thumbs

    Yep i agree it would be cool to see some of the guys showing off their amazing rigs ,,,,

    this site is after all pretty much full of quality motion simulator designs and wot not :D
  8. Abram Manoge

    Abram Manoge Member

    Joined:
    Apr 6, 2021
    Messages:
    46
    Occupation:
    Web developer
    Location:
    South Africa
    Balance:
    319Coins
    Ratings:
    +5 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    how long did you make your Ujoin?
  9. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    18,459
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    132,107Coins
    Ratings:
    +10,210 / 48 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    @stevemontuno has not been active since March last year, and the post you are referencing is even older, 2016, so I am not sure you will get a response.
  10. Abram Manoge

    Abram Manoge Member

    Joined:
    Apr 6, 2021
    Messages:
    46
    Occupation:
    Web developer
    Location:
    South Africa
    Balance:
    319Coins
    Ratings:
    +5 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Oh I has not noticed. Do you by any chance know roughly how long a can make the ujoin and still have a comfortable seat height.
  11. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    18,459
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    132,107Coins
    Ratings:
    +10,210 / 48 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    That depends a lot on the actual rig design and if it is a seat shaker (needs less clearance so shorter Ujoint) or full frame (needs more clearance so longer Ujoint).
    • Like Like x 2
  12. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    316
    Location:
    UK
    Balance:
    1,721Coins
    Ratings:
    +335 / 0 / -0
    My Motion Simulator:
    2DOF

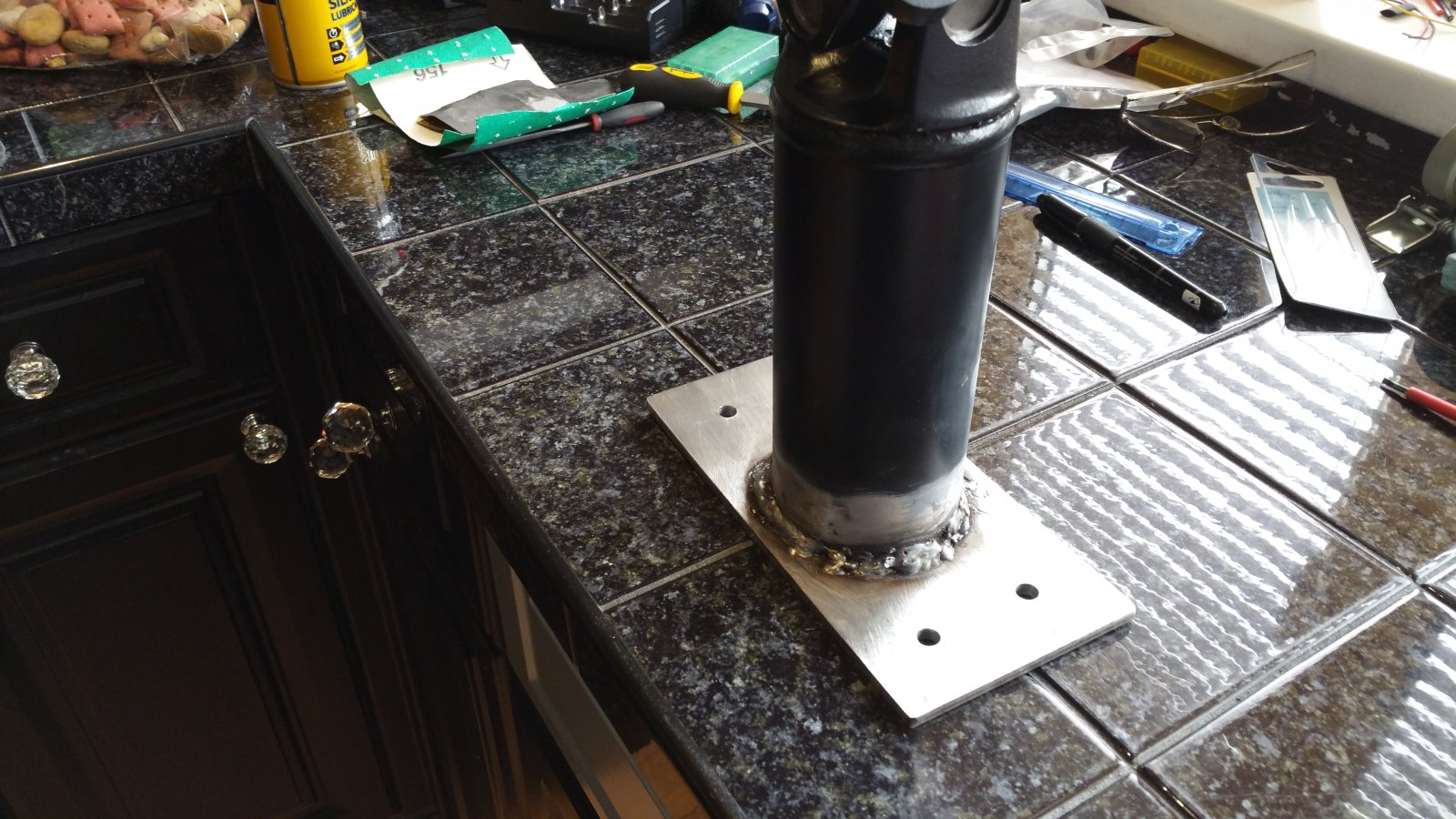

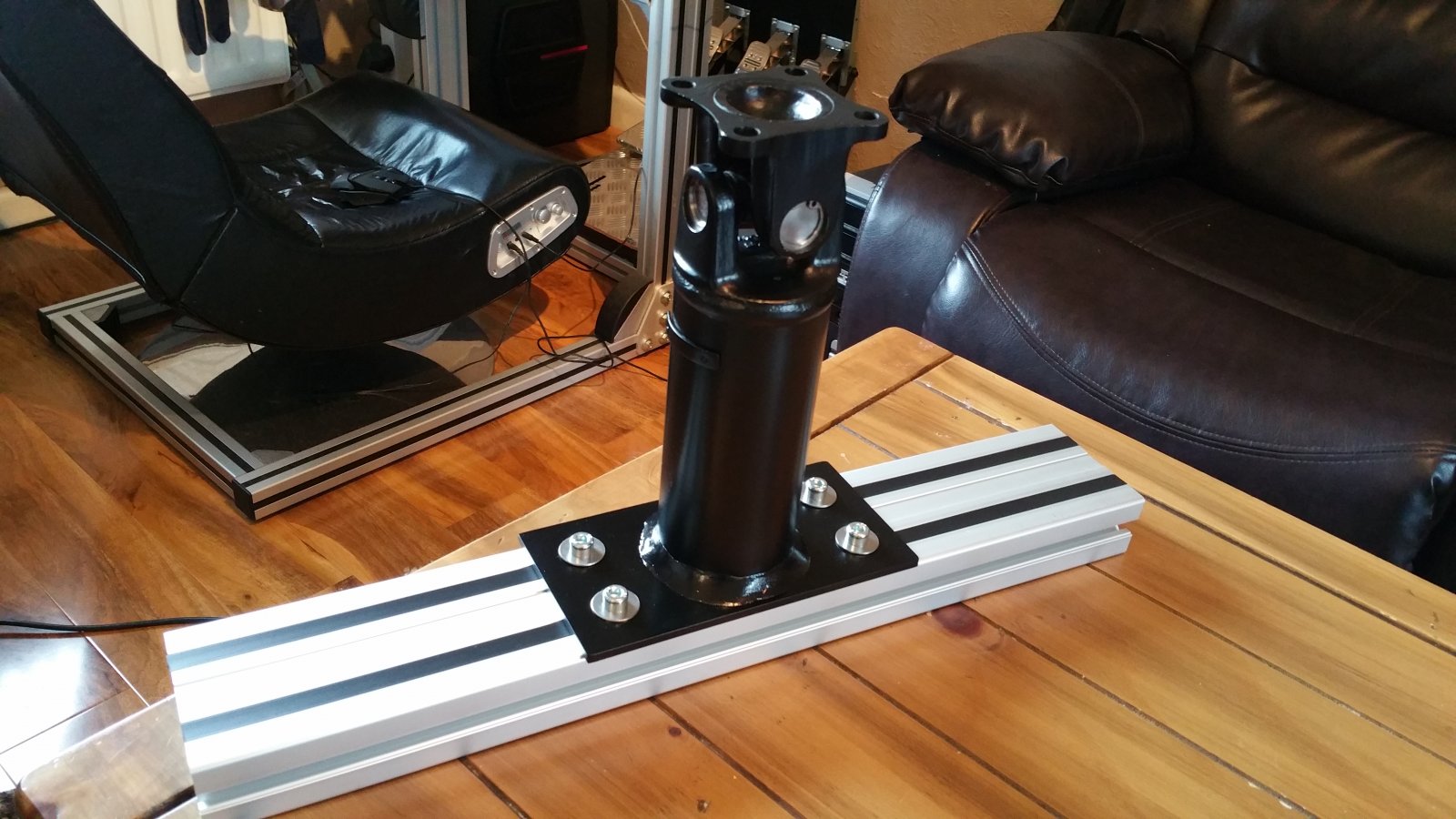

    I seem to think it was about 25cm long ,,I needed it that high because i wanted my foot pedals raised so i could fit my motor control box under them ,,,,

    noorbeast is right though it all depends on what type of design your going for.
