Showroom DIY 2 DOF Wanegain (Arduino + Sabertooth 2x25 + Smolka DC 24V)

Discussion in 'DIY Motion Simulator Projects' started by Wanegain, Jan 13, 2015.

  1. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Hi all !

    My DIY 2DOF motion simulator is using
    - Arduino UNO (I will share my code very soon, I need to clean it before :p)
    - Sabertooth 2x25
    - DC motor Smolka 24V

    I am using a G25, a TH8RS and a DIY handbrake (plugged on my G25 shifter)

    My screen is either a videoprojector or an Oculus rift DK2.

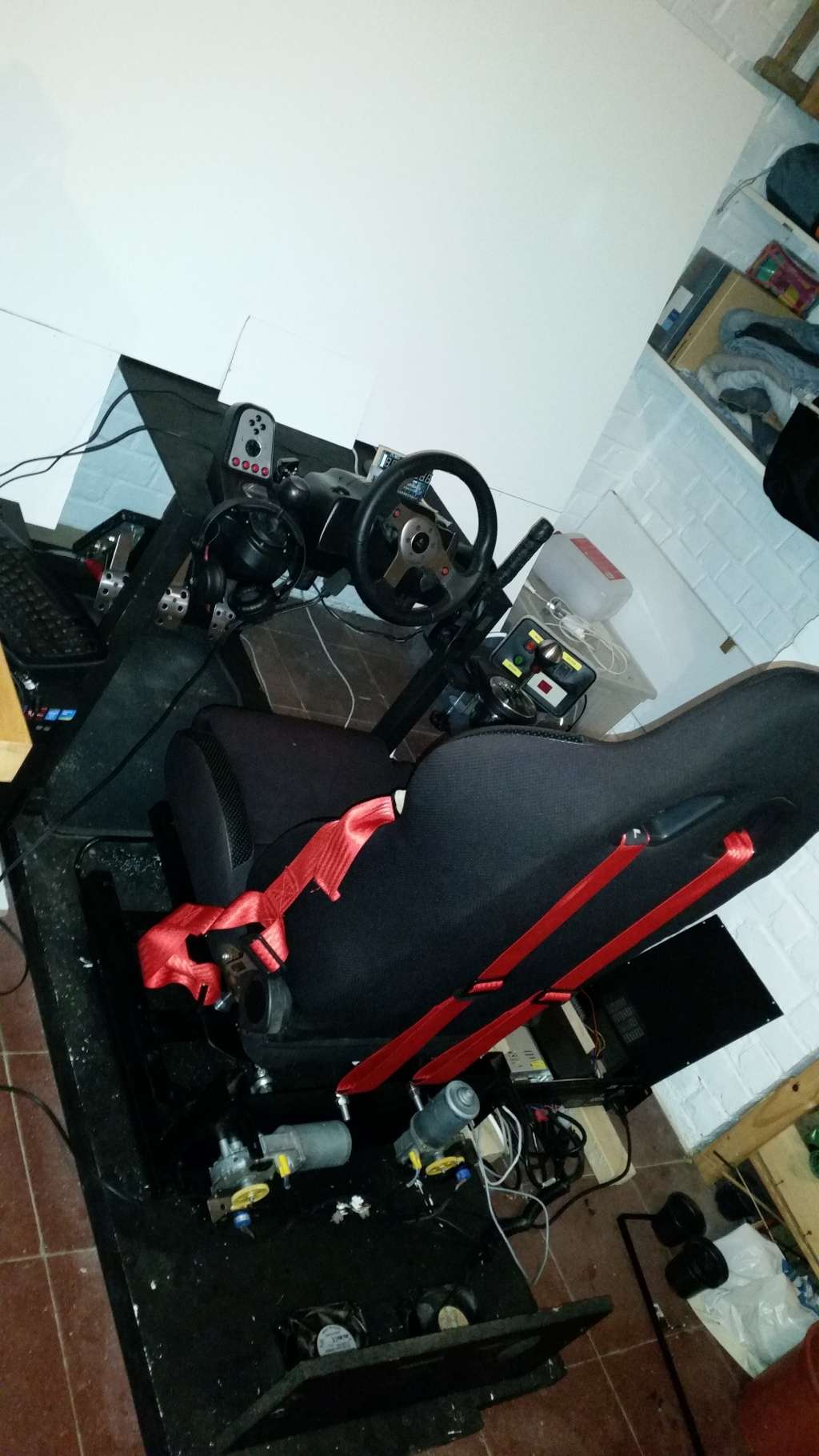

    Here is a picture :
    [​IMG]

    And here are videos I recorded (it was not using SimTools) but you can see how it works :
    Presentation of my motion simulator :


    Using videoprojector (super fov, scale 1:1) :

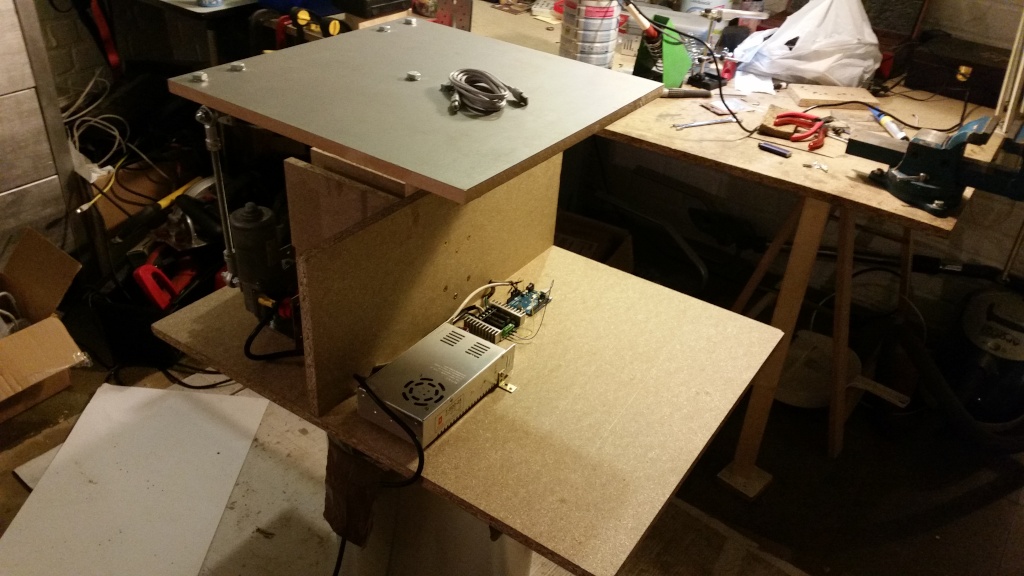

    I also wrote that I am building a new motion simulator low cost (less than 450€ !!), very easy to build and I will publish a complete tutorial soon (in french first) :

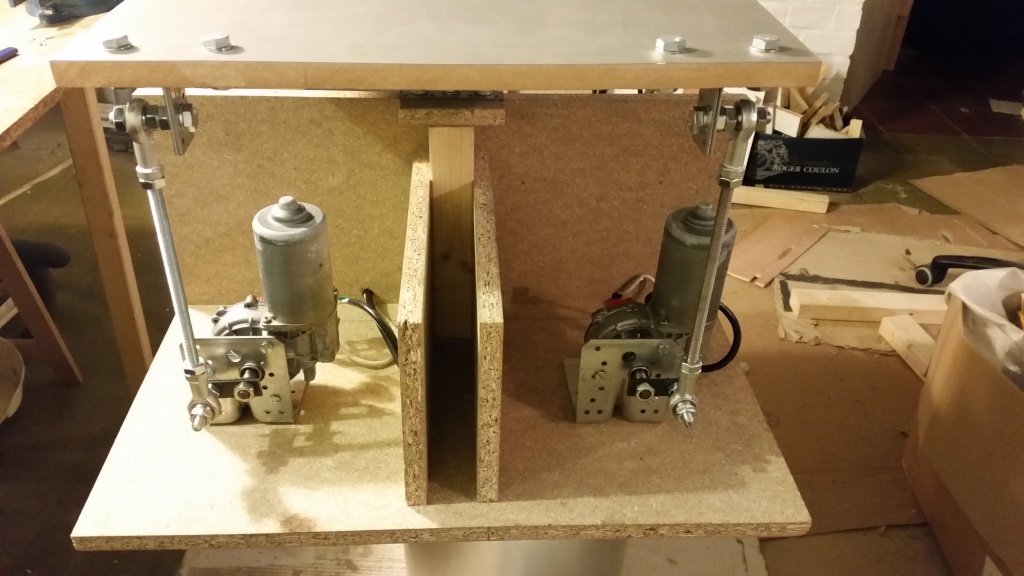

    [​IMG]

    [​IMG]

    And a video from it running Elite Dangerous (using SimTools !!) :



    FYI : I am working on the project to make motions on a sport video I recorded (ski, MTB, etc...), and I will use this platform below :
    [​IMG]


    If you have questions or want more photos, please do not hesitate I would be happy to share my knowledge with you!
    • Like Like x 6
    Wanegain, Jan 13, 2015
    #1
  2. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,124Coins
    Ratings:
    +10,778 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Thanks for sharing your sim and projects @Wanegain.

    I am guessing you plan on recording a motion sequence to match the video then sync them in playback, is that right?
    noorbeast, Jan 13, 2015
    #2
  3. Blame73

    Blame73 Well-Known Member

    Joined:
    Nov 6, 2014
    Messages:
    1,210
    Location:
    Italy
    Balance:
    8,255Coins
    Ratings:
    +1,106 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    Hey @Wanegain , welcome to this forum and nice work.
    Thanks for sharing
    Blame73, Jan 13, 2015
    #3
  4. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    I am recording data using an Android device (smartphone) and recording the video with a GoPro (or another cam). The app is working (but needs more development)... My big problem is the software. I hope SimTools will help me to do that and be compatible with my oculus rift ^^
    Wanegain, Jan 13, 2015
    #4
  5. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,124Coins
    Ratings:
    +10,778 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I am still not sure I have my head around what you are trying to do but a new joystick plugin has just been developed for SimTools and that may be useful if you are trying to create a motion sequence: http://www.xsimulator.net/community/marketplace/joystick-plugin.127/

    I am also not sure how you plan on creating the VR environment for the Rift, perhaps you can elaborate further.
    noorbeast, Jan 13, 2015
    #5
  6. value1

    value1 Nerd SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Jan 9, 2011
    Messages:
    2,184
    Location:
    Zug, Switzerland
    Balance:
    14,505Coins
    Ratings:
    +3,319 / 11 / -1
    My Motion Simulator:
    2DOF, DC motor, JRK, Joyrider
    Hi @Wanegain
    Nice project of yours!
    There is a Video Ride Editor and a Video Ride Player available. Ask @yobuddy about it ;)
    value1, Jan 13, 2015
    #6
  7. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    @value1 what ? what ? what ? o_O

    Thank you for the info !!!
    Wanegain, Jan 13, 2015
    #7
  8. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    @noorbeast : as you can read it, I replied to the topic (before introduce myself I know :oops:)...
    Wanegain, Jan 13, 2015
    #8
  9. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,234
    Location:
    Marseille - FRANCE
    Balance:
    20,895Coins
    Ratings:
    +2,084 / 21 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    @Wanegain : these apps are in the beta restricted forum area...
    that's why you have to ask yobuddy to publish it maybe ;)
    in the Download section
    RacingMat, Jan 13, 2015
    #9
  10. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    I sent him a pm ;)
    Wanegain, Jan 13, 2015
    #10
  11. Seth2Christ

    Seth2Christ Member

    Joined:
    Apr 14, 2015
    Messages:
    54
    Location:
    France
    Balance:
    192Coins
    Ratings:
    +13 / 0 / -0
    My Motion Simulator:
    2DOF
    Hello Wanegain!
    Good job. Interestingly, as always!
    • Like Like x 1
    Seth2Christ, May 12, 2015
    #11
  12. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Thanks :thumbs
    Wanegain, May 12, 2015
    #12
  13. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    571
    Location:
    Bruxelles
    Balance:
    1,947Coins
    Ratings:
    +297 / 2 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    New video with my DK2 and my Motion sim :
    • Like Like x 4
    Wanegain, Jun 19, 2015
